Modern Flames AMBIANCE LINEAR 40 Instructions originales

Read these instructions completely before beginning installa-

tion. Failure to follow them could cause a heater malfunction

resulting in serious injury and/or property damage.

WARNING: All electric heaters have hot and arcing or sparking

parts inside. Do not use it in areas where gasoline, paint or

flammable liquids are or are stored.

This fireplace meets the construction and safety standards of

H.U.D. for application in manufactured homes when installed

according to these instructions.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

AMBIANCE LINEAR 40

AMBIANCE LINEAR 60

AMBIANCE LINEAR 100

SAFETY INFORMATION AND OPERATIONS MANUAL

Table of Contents

Safety................................................2

Listing Approvals...............................3

Product Dimensions..........................4

Box Contents………..........................5

Unpacking and Testing…..................5

Locating Fireplace.............................6

When using electrical heaters, basic pre-

cautions should always be followed to

reduce the risk of fire, electric shock and

injury to persons, including the following:

1. Read all instructions before using this

heater.

2. Keep combustible materials, such as

furniture, pillows, bedding, papers,

clothes and curtains away from front

of heater. 1.5 yards minimum clear-

ance required.

3. This heater is hot when in use. To

avoid burns, do not let bare skin touch

hot surfaces. The grill directly in front

of heater outlet becomes hot during

heater operation.

4. Extreme caution is necessary when

any heater is used and whenever

heater is left operating and unat-

tended.

5. Always unplug heater when not in

use.

6. Do not operate any heater with a dam-

aged cord or plug or if heater malfunc-

tions or has been dropped or dam-

aged in any way. Return heater to

authorized service facility for examina-

tion, electrical or mechanical adjust-

ment or repair.

7. Do not use outdoors.

8. This heater is not intended for use in

bathrooms, laundry areas and similar

WARNING: Improper installation,

adjustment, alteration, service or

maintenance can cause injury or

property damage. Refer to this

manual. For assistance or addi-

tional information, consult a

qualified installer.

CAUTION: Do not expose the

heater to the elements (such as

rain, etc).

Do not place clothing or other

flammable material on or near

firebox. Never place any objects

on the fireplace.

Carefully supervise young chil-

dren when they are in the room

with fireplace.

Fireplace becomes very hot

when running. Keep children and

adults away from hot surfaces to

avoid burns or clothing ignition.

Fireplace will remain hot for a

time after shutdown. Allow sur-

faces to cool before touching.

Do not install fireplace directly

on carpet or similar surface

which may restrict air circula-

tion beneath unit.

Installation........................................6

Operation.........................................9

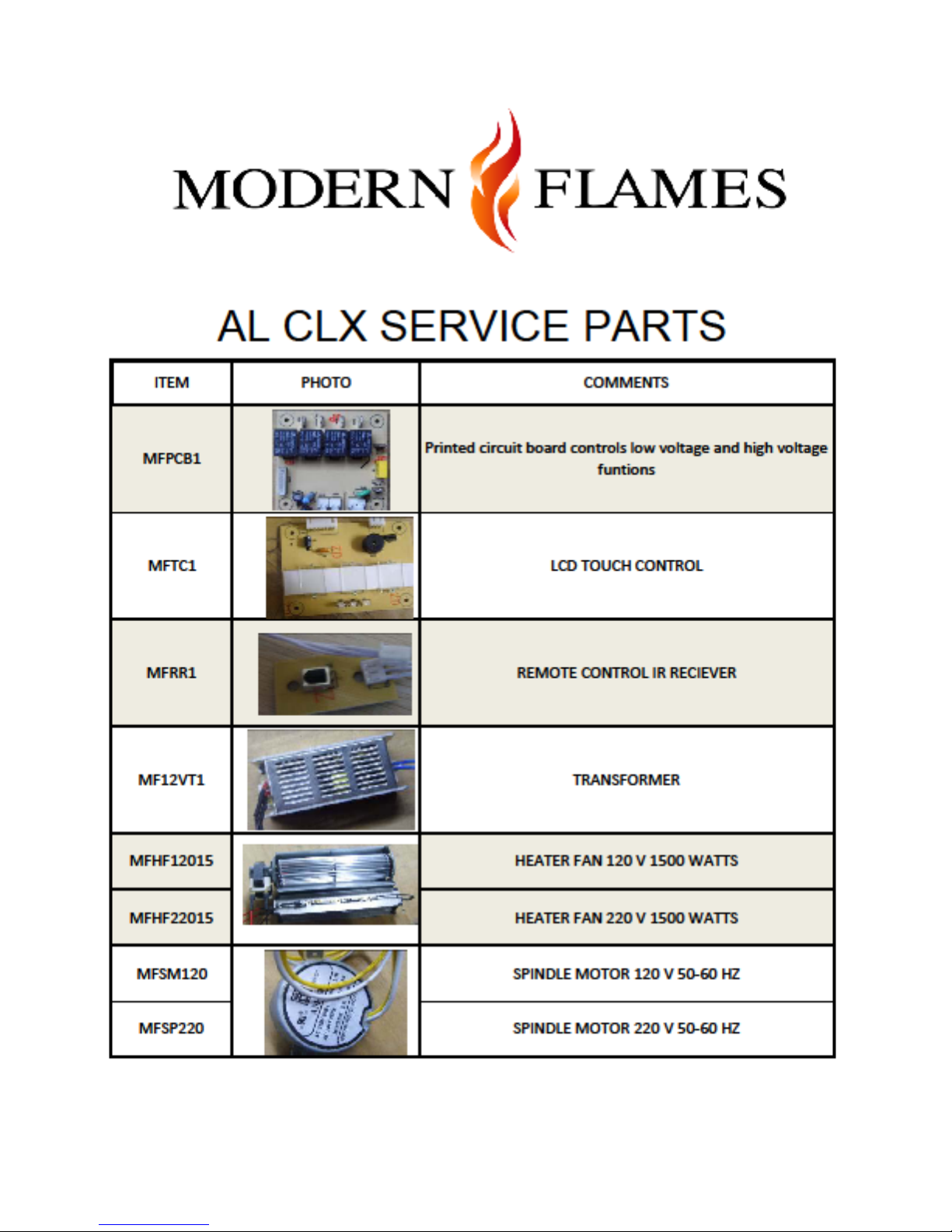

Service Parts……………………….10

Frequently Asked Questions……..12

Troubleshooting……………………13

Safety

indoor locations. Never locate heater

where it may fall into a bathtub or

other water container.

9. Do not run cord under carpeting. Do

not cover cord with throw rugs, run-

ners or the like. Arrange cord away

from traffic area and where it will not

be tripped over.

10. To disconnect heater, turn controls to

the OFF before removing plug from

outlet.

11. Do not insert or allow foreign objects

to enter any ventilation or exhaust

opening as this may cause an electric

shock or fire or damage the heater.

12. To prevent possible fire, do not block

air inlets or outlets in any manner. Do

not use on soft surfaces, like a bed,

where openings may become

blocked.

13. Always use properly grounded fused

and polarized outlets.

14. A heater has hot and arcing or spark-

ing parts inside. Do not use it in areas

where gasoline, paint or flammable

liquids or vapors are used or stored.

15. Use this heater only as described in

this manual. Any other use not rec-

ommended by the manufacturer may

cause fire, electric shock or injury to

persons.

16. Avoid the use of an extension cord

because the extension cord may

overheat and cause a risk of fire.

However, if you have to use an ex-

tension cord, the cord should be No.

14 AWG minimum size and rated not

less than 1875 WATTS.

17. Always use ground fault protection

where required by electrical codes.

18. Always disconnect power before per-

forming any cleaning, maintenance or

relocation of heater.

19. To prevent a possible fire, do not

burn wood or other materials in this

heater.

20. To prevent electric shock or fire, al-

ways use a certified electrician

should new circuits or outlets be re-

quired.

21. When transporting or storing heater,

keep in a dry place.

22. Control panel door gets hot during

heater operation. Open door by

pressing on right corner. A spring

magnet will disengage. Pull door

down to open.

23. SAVE THESE INSTRUCTIONS

Safety

Listing Approvals

This heater has been tested in

accordance with the CSA Stan-

dards for fixed and location-

dedicated electric room heaters

in the United States. This fire-

place is UL or CSA safety certi-

fied.

AL-100 CLX AL-60CLX AL-40 CLX

Volts AC 120V/60Hz AC 120V/60Hz AC 120V/60Hz

Amps 15 Amp 15 Amp 15 Amp

Watts 1570 W 1530 W 1520 W

Heater AC 120V/60Hz

1500W

AC 120V/60Hz

1500W

AC 120V/60Hz

1500W

No Heater

Lamps LED DC12V 5W*7

LED DC3V 3W*8

LED DC12V 5W*3

LED DC3V 3W*4 LED DC12V 5W*3

Rotor motor

AC 120V/60Hz 4W

CCW 15/18 r/min

AC 120V/60Hz 4W

CCW 15/18 r/min

AC 120V/60Hz 4W

CCW 15/18 r/min

Shipping Size 2600*230*800mm 1590*230*800mm 1080*230*800mm

Shipping Weight

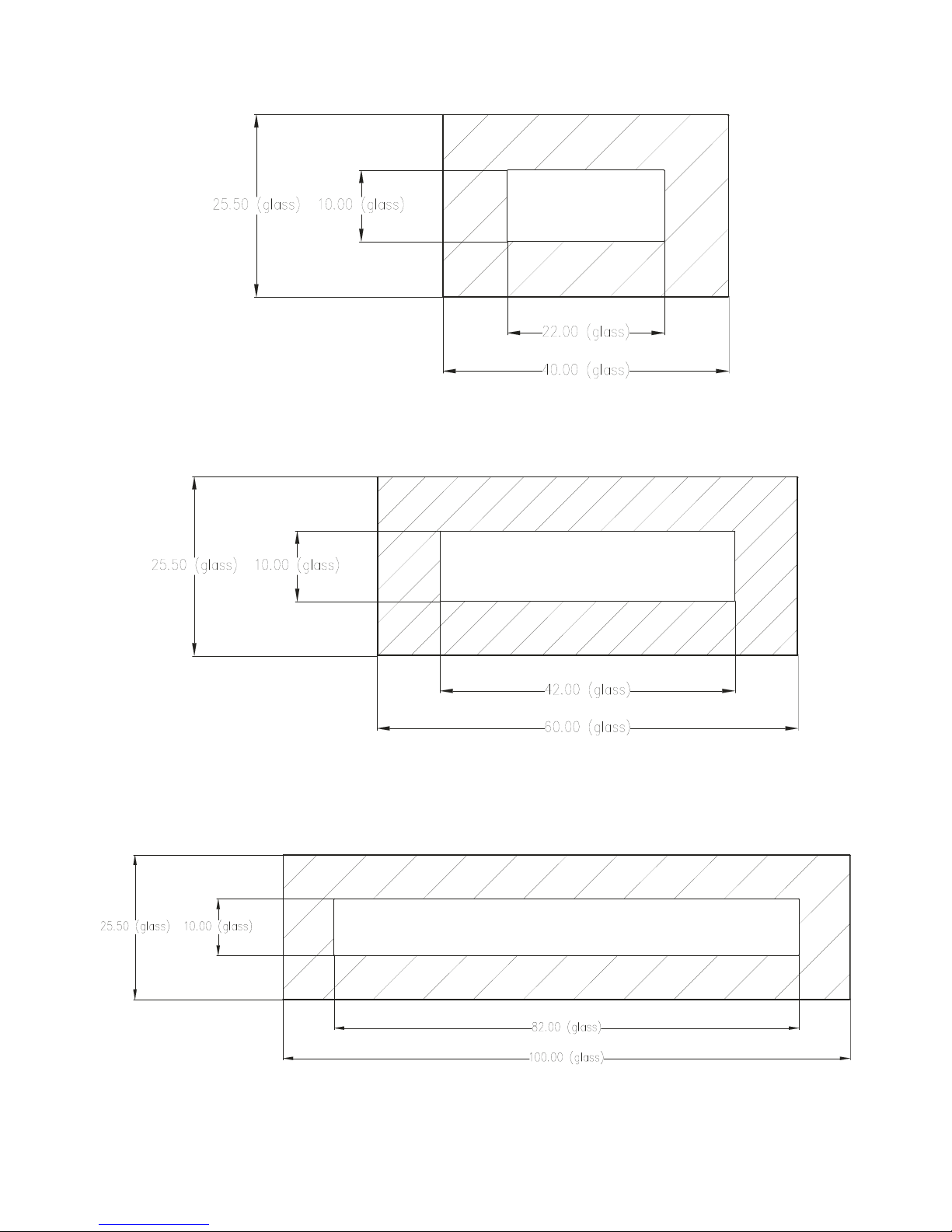

Product Dimensions

AL CLX 40

40” W x 25.5” H x 3.48” D

AL CLX 60

60” W x 25.5” H x 3.48” D

AL CLX 100

100” W x 25.5” H x 3.48” D

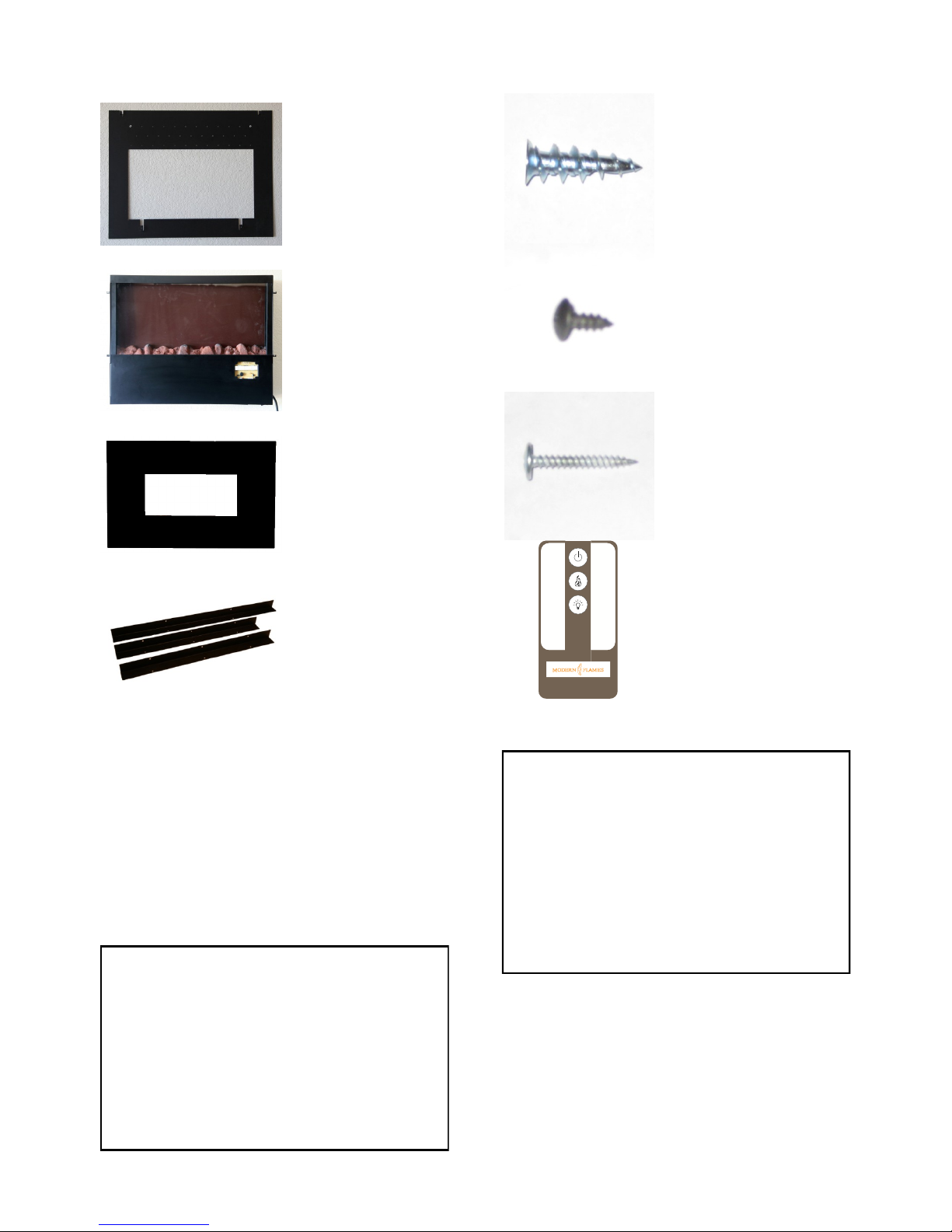

Box Contents

Unpacking and Testing

Carefully remove unit from box. Prior to

permanently installing unit, test to make

sure unit operates properly. To do this,

plug unit's power supply cord into a con-

veniently located 120-volt grounded out-

let.

CAUTION: The unit's power

supply cord must be connected

to a properly grounded and pro-

tected 120-volt outlet. Always

use ground fault protection

where required by the electrical

code.

WARNING: Do not operate the

unit if it is damaged or has mal-

functioned. If you suspect the

unit is damaged, return the unit

to an authorized service facility

for examination, electrical or

mechanical adjustment or re-

pair.

1 Mounting

Bracket

1 Fire Unit

1 Glass Face

3 L-metal

Brackets

4 Wall Anchors

8 Small Washer

Head Screws

4 Large Washer

Head Screws

1 Remote

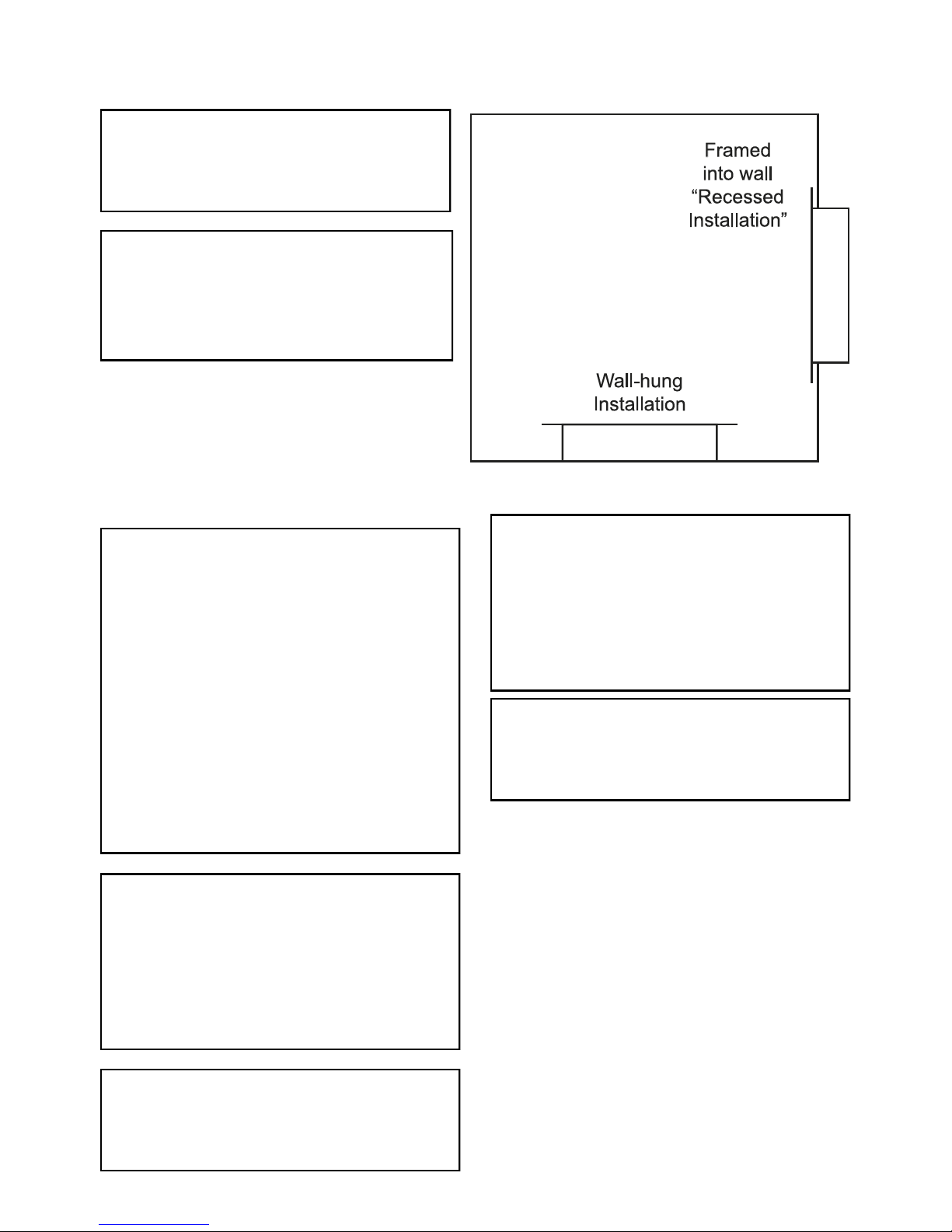

Locating Fireplace

CAUTION: Do not expose the

heater to the elements (such as

rain, etc.)

CAUTION: Wear gloves and

safety glasses for protection

during installation and mainte-

nance.

This electric fireplace can be in-

stalled framed in to a wall or simply

hung on the wall.

Installation

WARNING - RISK OF FIRE!

The power cord must not be

pinched or against a sharp edge.

Secure cord to avoid tripping or

snagging to reduce the risk of

fire, electric shock or personal

injury.

Do not run cord under carpeting.

Do not cover cord with throw

rugs, runners or the like. Arrange

cord away from traffic areas and

where it will not be tripped over.

WARNING - RISK OF FIRE!

To prevent a possible fire, do not

block air intake or exhaust in any

manner. Do not use on soft sur-

faces where openings may be-

come blocked.

WARNING - RISK OF FIRE!

Do not blow or place insulation

against the firebox.

Do not store or use gasoline or

other flammable vapors in the vi-

cinity of this or any other heater.

Installing fireplace

Select a suitable location that is not

susceptible to moisture and is a safe

distance from drapes, furniture and

high traffic areas. A qualified electri-

cian should add an electrical outlet

per local building codes. See shaded

area on recessed installation diagram

for proper outlet placement. Fire-

place must be installed to a plumb

vertical wall for correct operation

of touch controls.

Note: Follow all national and local

electrical codes. This fireplace can be

wall-hung or framed in to the wall.

WARNING: If the information in

these instructions is not fol-

lowed exactly, a fire or explosion

may result causing property

damage, personal injury or

death.

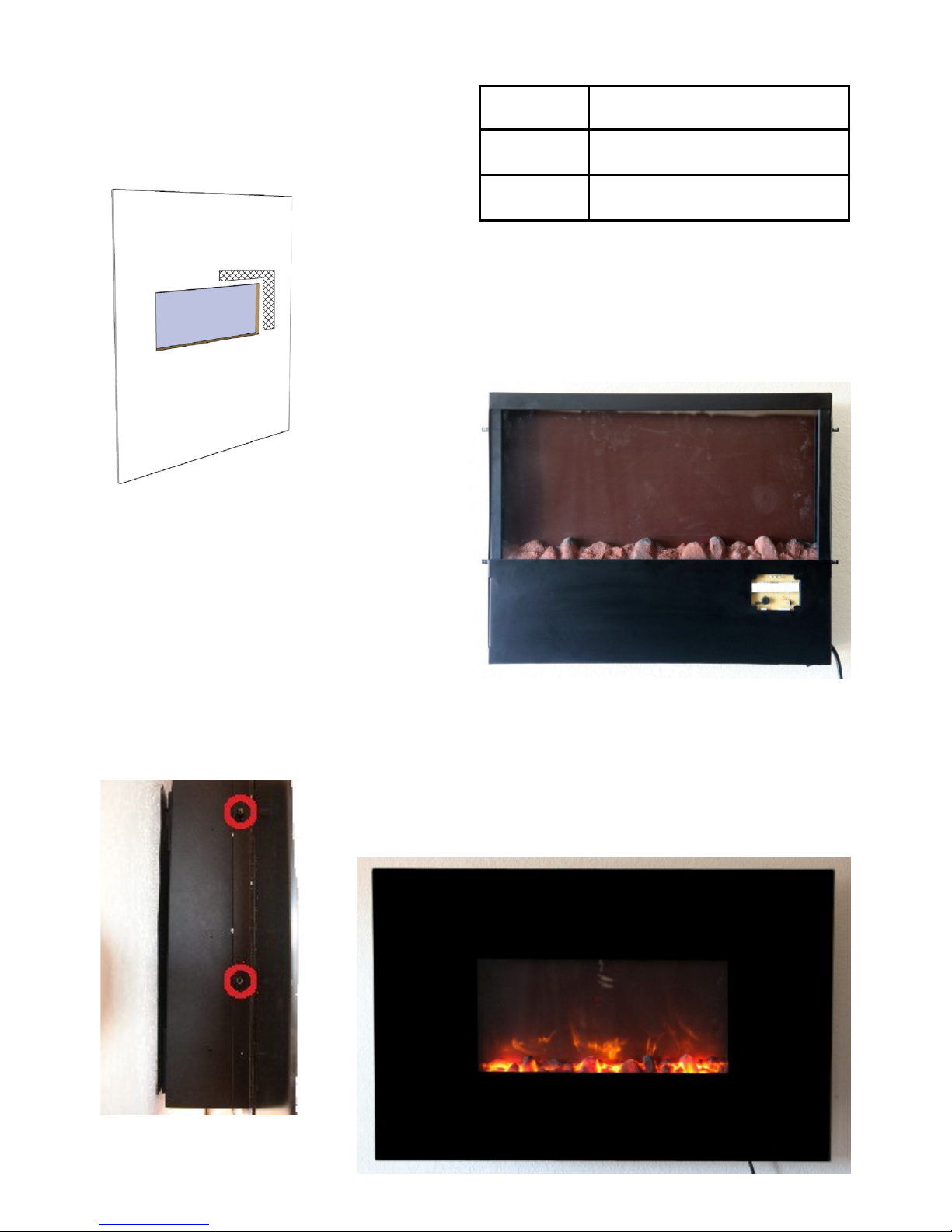

Recessed Installation:

1. Prepare frame opening according

to chart.

2. Attach L-metal brackets to the fire

unit with the provided small washer

head screws.

3. Secure fire unit to the finished

framed opening with the provided

large washer head screws. Make cer-

tain that at least 4 of the screws are

driven in to a solid backing. Fireplace

will stand proud of the finished wall

opening by 2.95 cm, this area must

not be blocked by any additional trim,

tile, etc. as this will block proper air

flow. 4. Hang the glass face on the fire

unit. Make certain that the hooks from

the on the backside of the glass face

are secured on all 4 studs on the fire

unit.

A40CLX 25” W x 19 3/4” H x 4” D

A60CLX 45” W x 19 3/4” H x 4” D

A100CLX 85” W x 19 3/4” H x 4” D

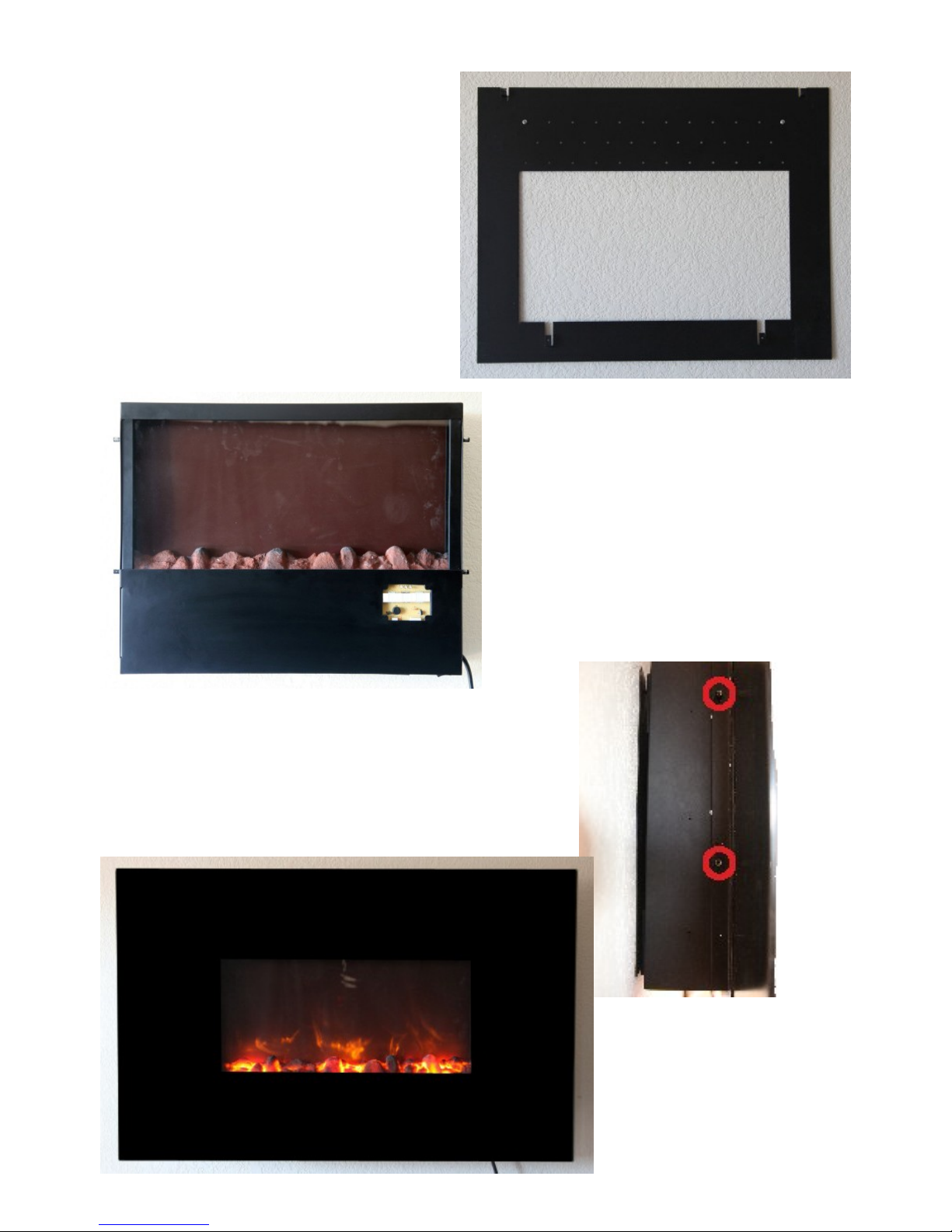

Wall-hung Installation:

1. Hang the mounting bracket with

the included large washer head

screws and wall anchors. Wall an-

chors should be used at the highest

outside corners. Be certain that at

least two screws are driven in to solid

backing.

2. Hang the fire unit on the mounting

bracket.

3. Hang the glass face on the fire

unit. Make certain that the hooks from

the on the backside of the glass face

are secured on all 4 studs on the fire

unit.

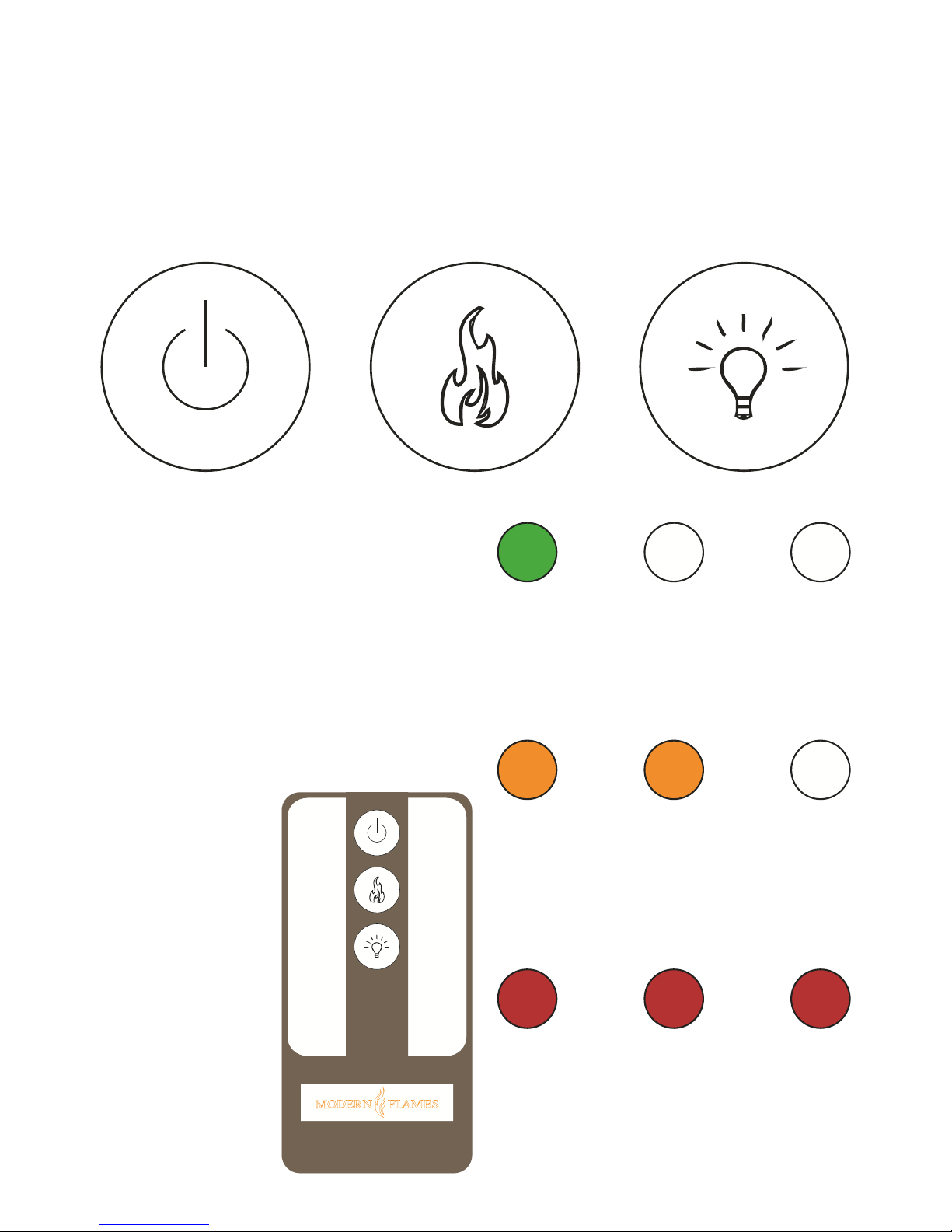

Operation

On the bottom of the unit is a main power switch. Switch this on to begin using

the fireplace. Directly below the flame, on the right hand side are 3 small LED

status lights and 3 buttons.

When all indicator lights are off,

pressing on any button will only show

the status. Once the indicator lights

are on you can press any button.

Press down on the power button to

turn the machine on. This will be indi-

cated by 1 green LED light. The Heat

button can be pressed multiple times

and will turn on low, high and off in

that order. The Backlight button turns

on high, medium, low and off in that

order.

Power Heat Backlight

The status light above shows that the

power is on and the heater is off

The status light above shows that the

power is on and the heater is on low

The status light above shows that the

power is on and the heater is on high

The included re-

mote functions in

the same manner

as the buttons on

the main unit.

Autres manuels pour AMBIANCE LINEAR 40

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Modern Flames Cheminée intérieure

Modern Flames

Modern Flames Landscape Pro Multiview Series Manuel utilisateur

Modern Flames

Modern Flames CEF-50B Manuel utilisateur

Modern Flames

Modern Flames Sunset Charred Oak Mode d'emploi

Modern Flames

Modern Flames AL45CLX Instructions d'installation et d'entretien

Modern Flames

Modern Flames OR26-TRAD-INT Manuel utilisateur

Modern Flames

Modern Flames SPS-50B Manuel utilisateur

Modern Flames

Modern Flames RS-2621-EU Manuel utilisateur

Modern Flames

Modern Flames LPM-9616/INT Mode d'emploi

Modern Flames

Modern Flames WMC LPM Series Manuel utilisateur

Modern Flames

Modern Flames OR30-MULTI-INT Manuel utilisateur

Modern Flames

Modern Flames Landscape Pro Multiview Series Instructions d'installation

Modern Flames

Modern Flames Redstone RS-2621-AU Manuel utilisateur

Modern Flames

Modern Flames SPS-50B-AU Manuel utilisateur

Modern Flames

Modern Flames ORION OR26-TRAD Manuel utilisateur

Modern Flames

Modern Flames LANDSCAPE FULLVIEW LFV4015-SH Manuel utilisateur

Modern Flames

Modern Flames SC36-B Instructions d'installation et d'entretien

Modern Flames

Modern Flames Landscape Pro Slim LPS-4414V2 Manuel utilisateur

Modern Flames

Modern Flames ORION OR52-MULTI Manuel utilisateur

Modern Flames

Modern Flames ZCR 3824 Manuel utilisateur

Modern Flames

Modern Flames RS-2621 Manuel utilisateur

Modern Flames

Modern Flames LFV2-40/15-SH Instructions d'installation et d'entretien

Modern Flames

Modern Flames Landscape Pro Slim Series Mode d'emploi

Modern Flames

Modern Flames Sedona Pro Multi Mode d'emploi

Modern Flames

Modern Flames OR52-SLIM Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
