SPECTRUM SLIMLINE WALL MOUNT/RECESSED ELECTRIC FIREPLACE

Model# : SPS-50B SPS-60B SPS-74B SPS-100B

OWNER’S MANUAL

AC 120V 60Hz 1465W (5000BTUs)

WARNING

Read and understand this entire owner’s manual, including all safety

information, before plugging in or using this product. Failure to do so could

result in fire, electric shock, or serious personal injury.

CAUTION

Keep this owner’s manual for future reference. If you sell or give this

product away, make sure this manual accompanies this product.

AFFIX SERIAL NUMBER LABEL HERE

FOR FUTURE REFERENCE

IMPORTANT SAFETY INFORMATION!

WARNING

Read all instructions before installing or using this heater.

This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If

provided, use handles when moving this heater. Keep combustible materials, such as

furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of

the heater, and keep them away from the sides and rear.

Extreme caution is necessary when any heater is used by or near children or invalids and

whenever the heater is left operating and unattended.

Do not operate any heater after it malfunctions. Disconnect power at service panel and have

heater inspected by a reputable electrician before reusing.

Do not use outdoors.

To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect

panel (or operate internal disconnect switch if provided).

Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may

cause an electric shock, fire, or damage the heater.

To prevent a possible fire, do not block air intakes or exhaust in any manner.

A heater has hot arcing or sparking parts inside. Do not use in areas where gasoline, paint,

flammable vapors, or liquids are used or stored.

Use this heater only as described in this manual. Any other use not recommended by

the manufacturer may cause fire, electric shock, or injury to persons.

This heater may include an audible or visual alarm to warn that parts of the heater are getting

excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect

for any objects on or adjacent to the heater that may have blocked the airflow or otherwise

caused high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE

ALARM SOUNDING (OR ILLUMINATING).

ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an

extension cord or relocatable power tap (outlet/power strip).

NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater

could fall into a bathtub, pool,become damp, or come in contact with water.

AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other

blockage. Unplug the unit and clean with a vacuum ONLY.DO NOT rinse or get wet.

ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.

NEVER use a wall mount bracket from another manufacturer.

This product is not intended to be a primary heat source. It is for supplemental heat only.

INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!

ALWAYS disconnect this unit from the power supply before performing any assembly or

cleaning, or before relocating the electric fireplace.

NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.

ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.

NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or

connections. Plugging this heater into a faulty outlet could result in electric arcing within the

outlet that could cause the outlet to overheat or catch fire.

ALWAYS check your heater cord and plug connections with each use.

i) MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs

can cause the outlet to overheat.

ii) Heaters draw more current than small appliances. Overheating may occur even if it has

not occurred with the use of other appliances.

iii) During use check frequently to see if the plug outlet or face plate is HOT.

iv) If the outlet or face plate is HOT,discontinue use immediately and have a qualified

electrician inspect and/or replace the faulty outlets.

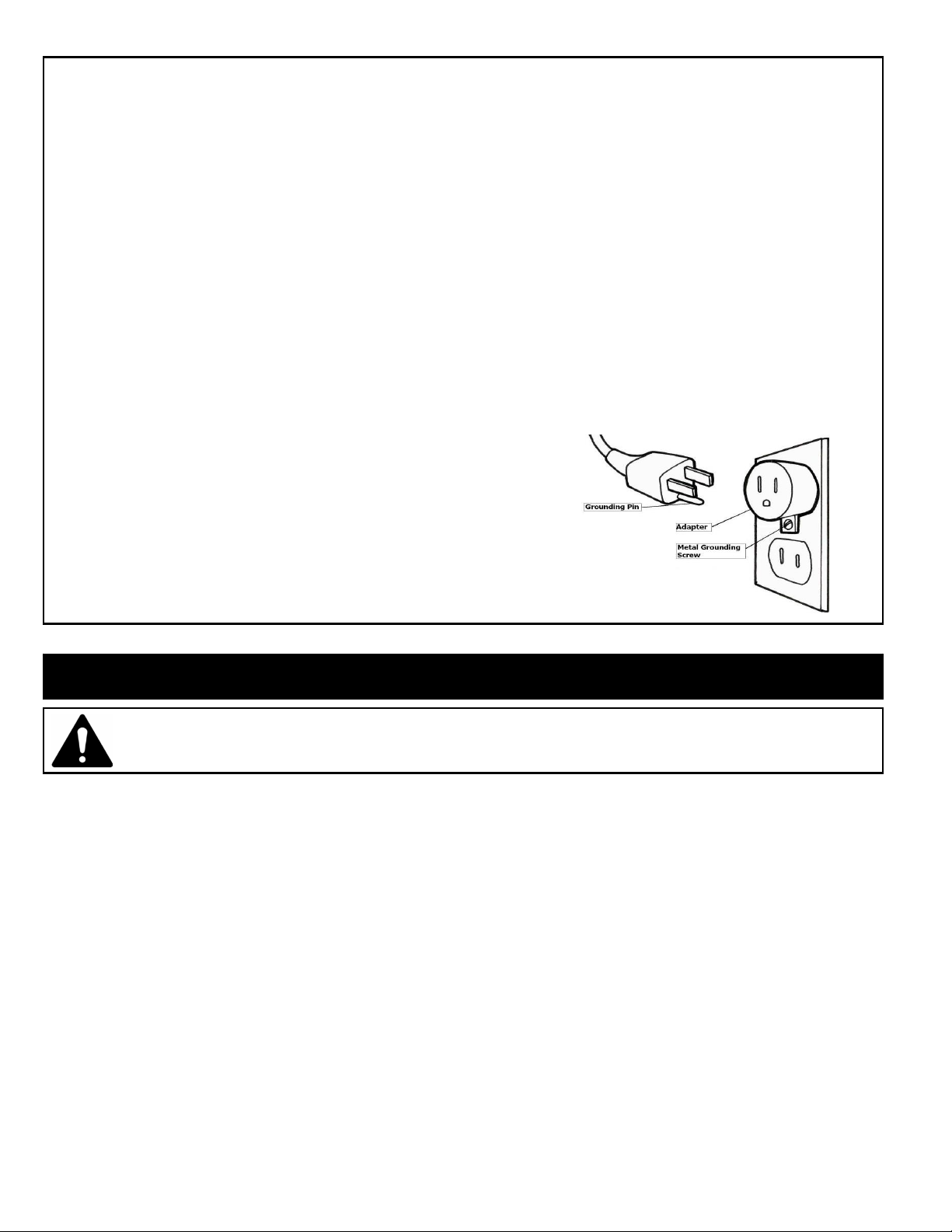

The power cord supplied with the heater has three

prongs: two flat blades (live and neutral) and one

round pin (ground). If a 3-slot receptacle is not

available, an adapter MUST be used. The adapter

MUST be properly grounded to the outlet box (see

figure at right). [NOTE: Adapter NOT INCLUDED.]

SAVE THESE INSTRUCTIONS.

Preparation

This product includes a GLASS panel. Always use extreme caution when handling

glass. Failure to do so could result in personal injury or property damage.

Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and

assembly steps are grouped for wall-hanging or recessing use. Check the parts list to make sure nothing

is missing. Dispose of packaging materials properly. Please recycle whenever possible.

You will need the following tools (not included): Phillips screwdriver, stud finder, level, tape measure,

electric drill, 1/4” wood drill bit, hammer.

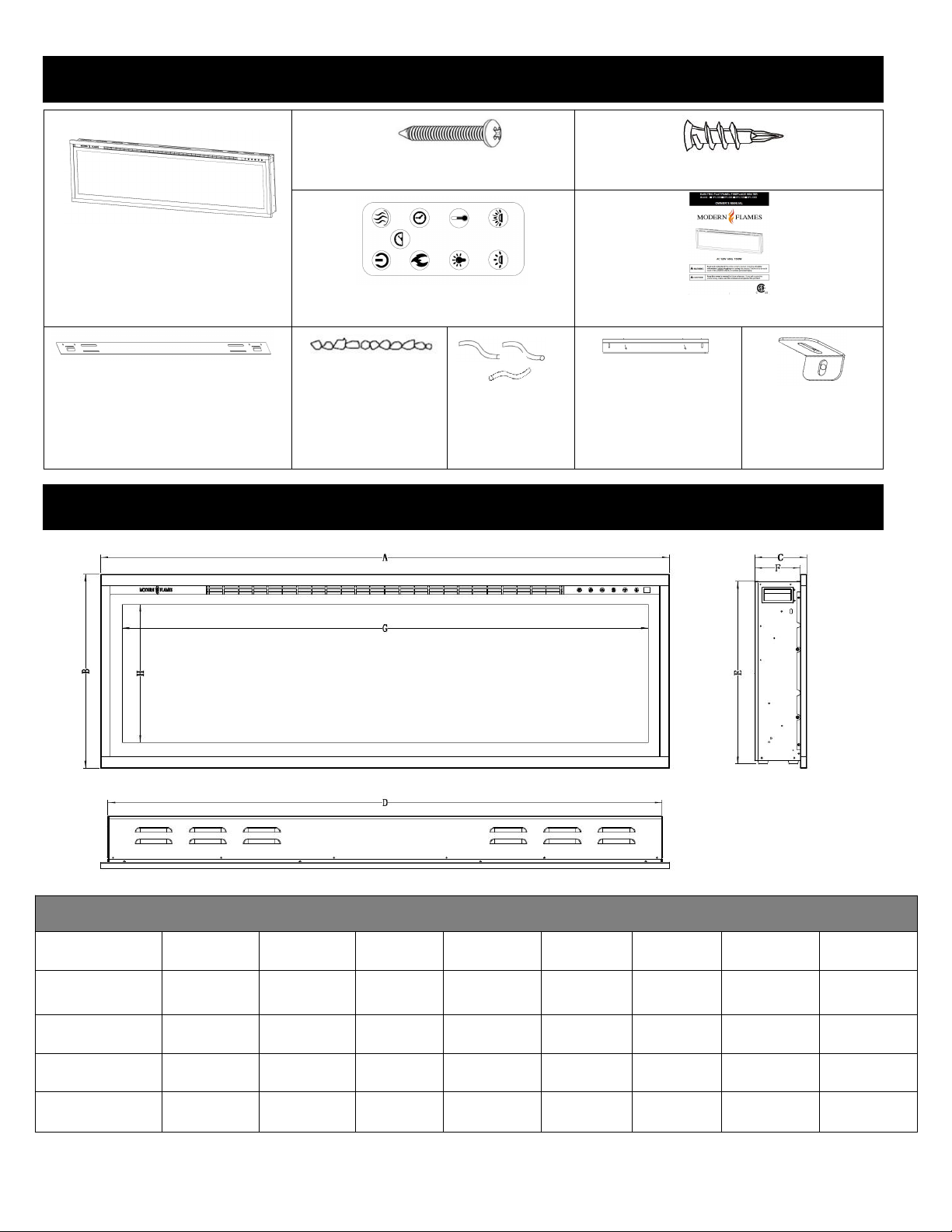

Parts and Hardware

A– Fireplace

B– Screws

C– Drywall anchors

D- Remote Control

E-Instruction manual

F-Wall Bracket

Fixed on back of firebox

G-Small glacier

crystals

H - Log set

I - Metal bracket

For wall recessed

purpose

J - “L”shape

bracket

Specification and Dimension

PRODUCT DIMENSIONS

Model

Number

SPS-50B

49-3/4"

[1262mm]

17"

[430mm]

4- 5/8"

[117mm]

48- 7/16"

[1230mm]

15- 5/8"

[397mm]

[101mm]

46"

[1168mm]

12"

[306mm]

SPS-60B

59-3/4"

[1516mm]

17"

[430mm]

4- 5/8"

[117mm]

58- 7/16"

[1484mm]

15- 5/8"

[397mm]

[101mm]

56"

[1422mm]

12"

[306mm]

SPS-74B

73-3/4"

[1872mm]

17"

[430mm]

4- 5/8"

[117mm]

72- 7/16"

[1840mm]

15- 5/8"

[397mm]

[101mm]

70"

[1778mm]

12"

[306mm]

SPS-100B

99-3/4"

[2532mm]

17"

[430mm]

4- 5/8"

[117mm]

98- 7/16"

[2500mm]

15- 5/8"

[397mm]

[101mm]

96"

[2438mm]

12"

[306mm]

Installation and Assembly

Your appliance is a wall-mounted, recessed, and/or mantel installed appliance. Select a suitable location

that is not susceptible to moisture and is away from drapes, furniture and high traffic areas.

NOTE: Follow all National and local electrical codes.

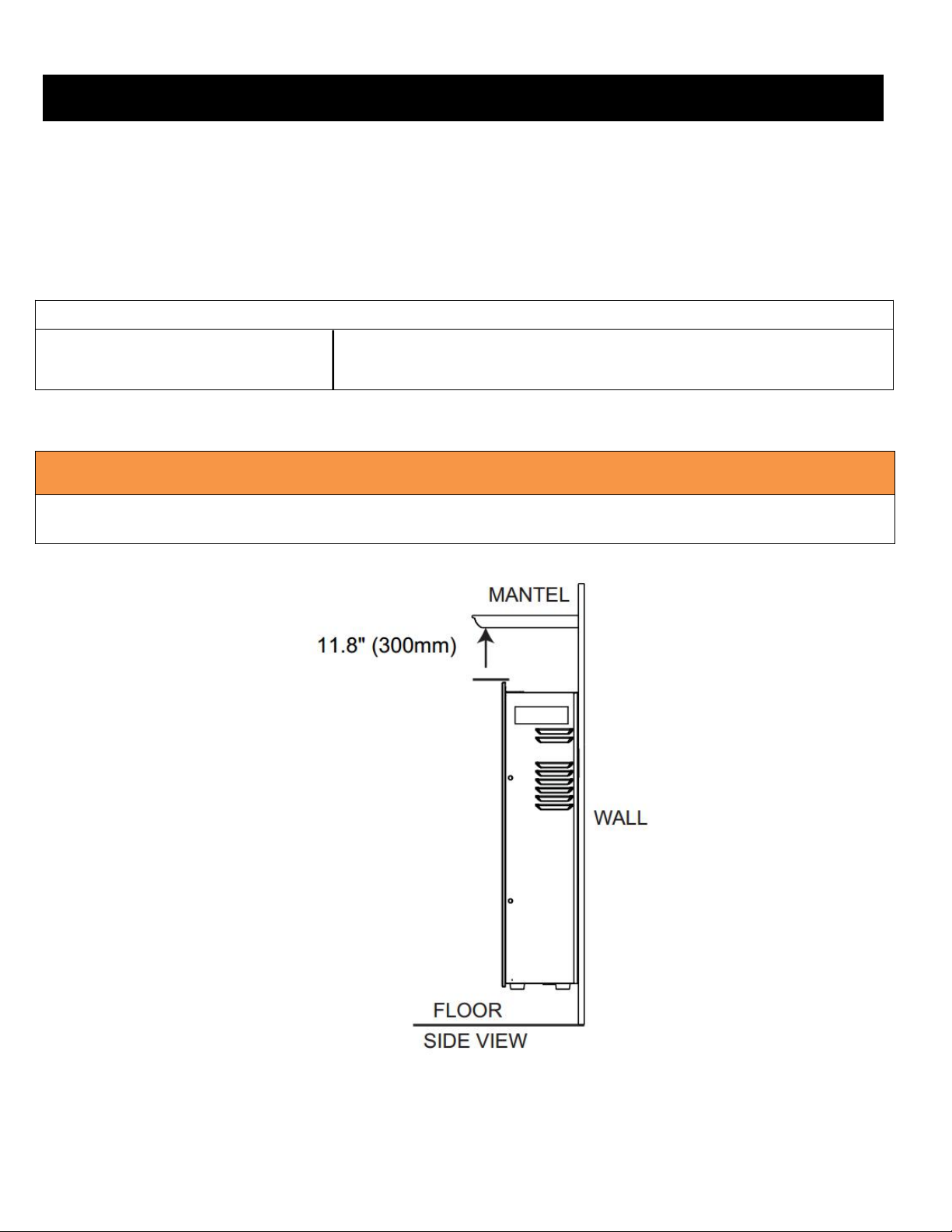

MINIMUM CLEARANCE TO COMBUSTIBLES

Measurements are taken from the glass front.

Bottom 0" Top 11.8" (300mm) to mantel

Sides 0" Top 11.8" (300mm) to ceiling

Back 0"

MINIMUM MANTEL CLEARANCES

WARNING

WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE

HEAT RESISTANT TO PREVENT DISCOLOURATION.

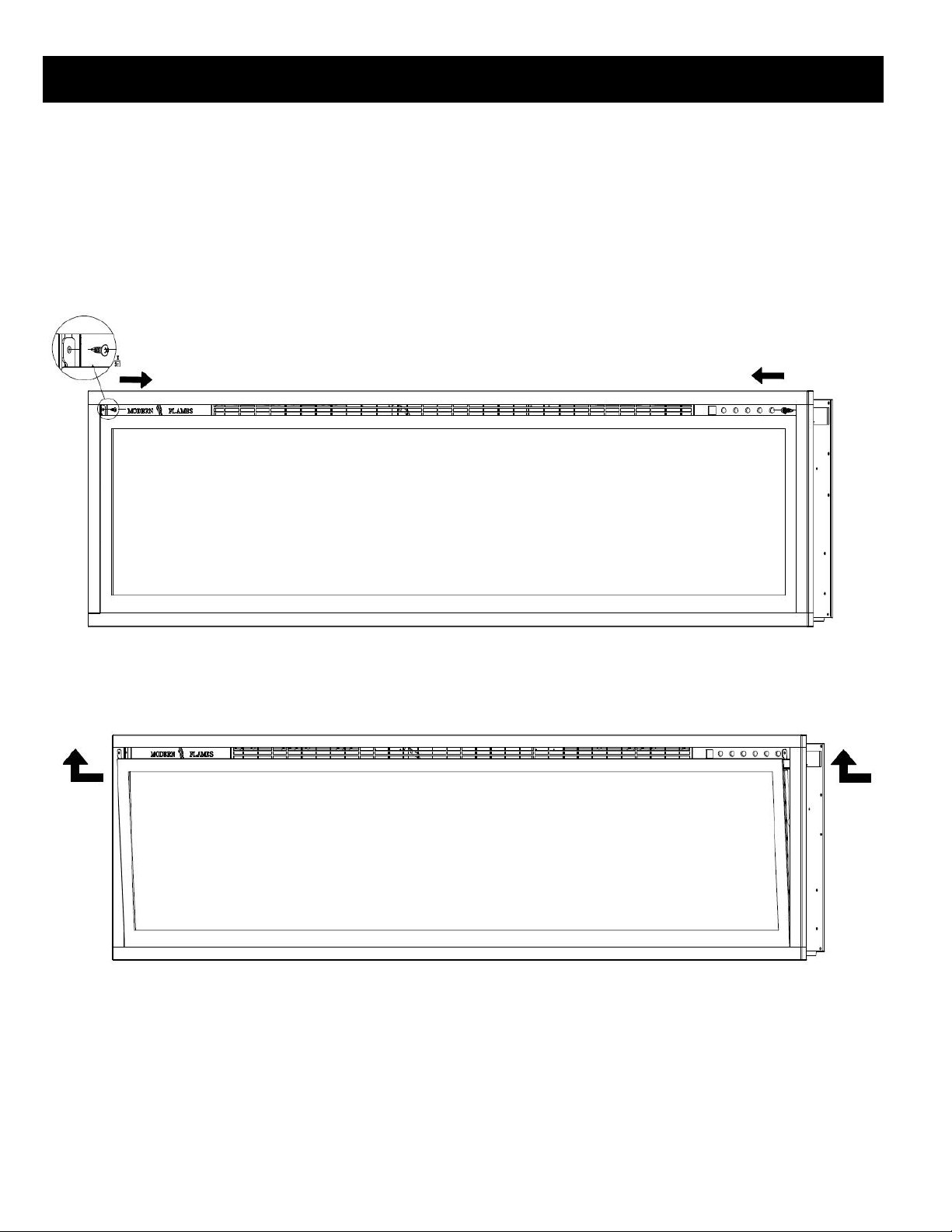

Front glass removal / installation

A. With one hand on the front glass to prevent it from falling, remove the two screws (1 per side) from the

side of the appliance (Fig. 1-1). Set the screws aside.

B. Carefully lift the front glass up and away from the appliance (Fig. 1-2 ). Place it face down on a soft,

non-abrasive surface.

C. Reverse these steps to install the front glass.

Fig. 1-1

Fig. 1-2

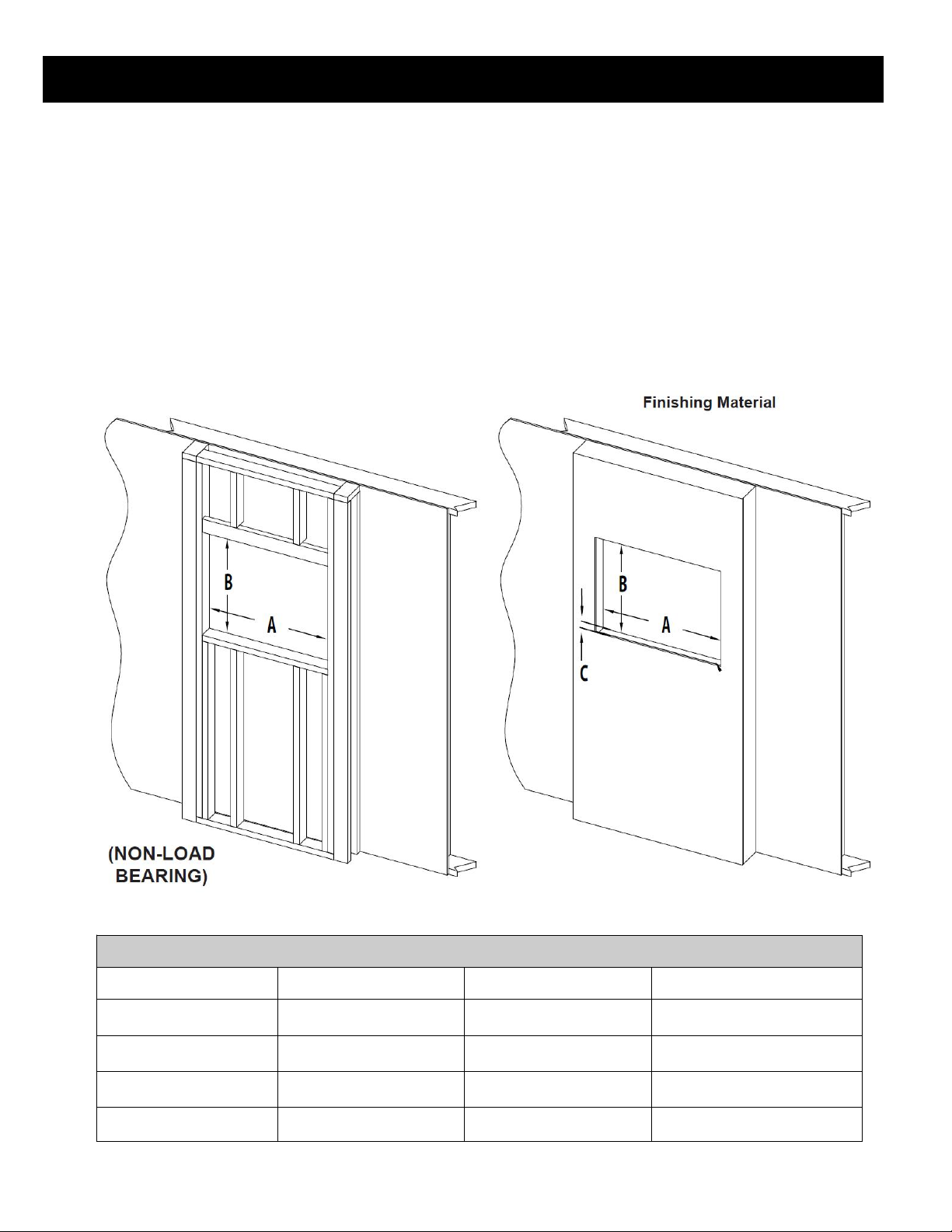

Recessed pre-installation

Due to the many different materials used on different walls, it is highly recommended that you

consult your local builder before you install this appliance on the wall.

A. Select a location that is not prone to moisture and is located at least 36” (94.1cm) away from

combustible materials such as curtain drapes, furniture, bedding, paper, etc.

B. Measure the appliance and create a rough-in frame with electrical (see below “framing”).

C. Remove the front glass (see “front glass removal / installation” section).

D. Hold the appliance up to ensure it will fit into the framing.

Framing Hole Size

Model Number

SPS-50B

48- 3/4" [1238mm]

16" [406mm]

3-7/8”(98mm)

SPS-60B

58- 3/4" [1492mm]

16" [406mm]

3-7/8”(98mm)

SPS-74B

72- 3/4" [1848mm]

16" [406mm]

3-7/8”(98mm)

SPS-100B

98- 3/4" [2508mm]

16" [406mm]

3-7/8”(98mm)

Fully recessed installation

A. Remove power cord and complete hardwiring (see “hardwiring installation” section).

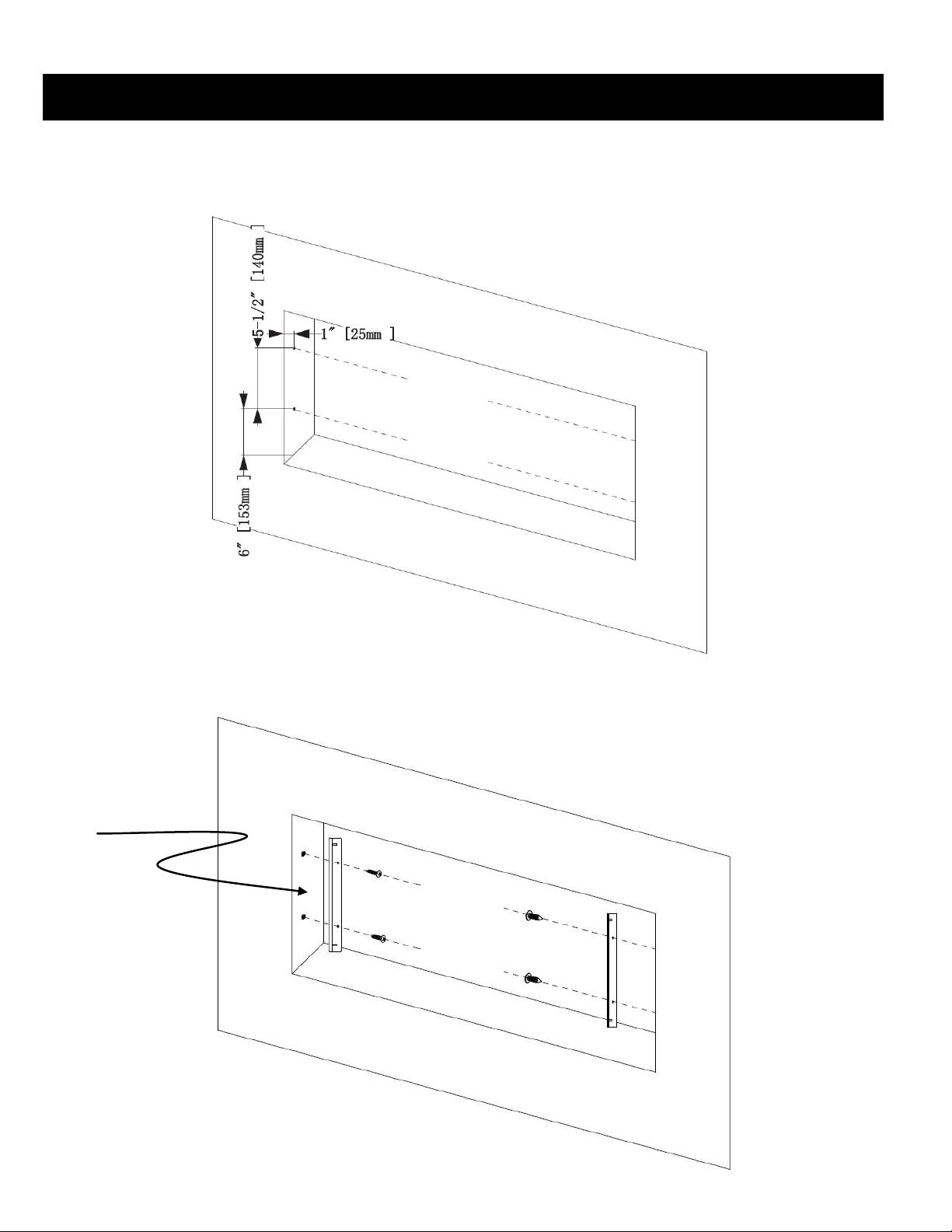

B. Mark location for the screws according to the dimensions as below. (Figure 2-1)

Figure 2-1

C. Fix the two metal brackets (1per side), with 4 screws (supplied) through wood stud. (Figure 2-2)

Wood Stud

Figure 2-2

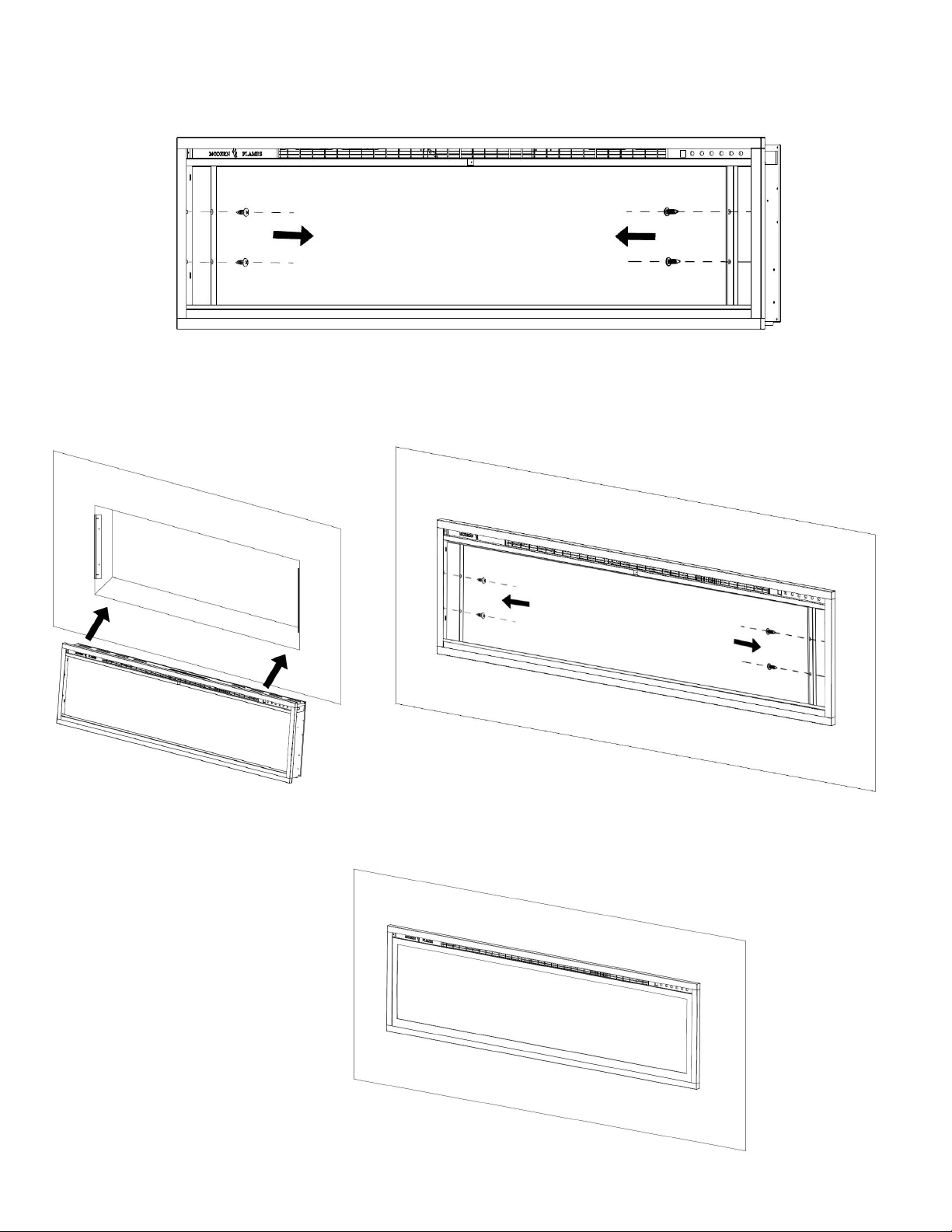

D. Remove the four screws (2 per side) from the side of the appliance and remove the brackets

(Fig. 2-3). Set the screw/brackets aside.

Figure 2-3

E. Insert the appliance into the rough-in frame and then secure it by installing 4 screws and two brackets

(supplied) through the side holes (Fig. 2-4).

Figure 2-4 Figure 2-5

F. Install media (see “media installation” section). You must complete this step before moving onto

the next step.

G. Re-install the front glass

Wall mounted installation

Due to the many different materials used on different walls, it is highly recommended

that you consult your local builder before you install this appliance on the wall.

A.Select a location that is not prone to moisture and is located at least 36" (914mm)

away from combustible materials such as curtain drapes, furniture, bedding, paper,

etc.

B.Have two people hold the appliance against the wall to determine the final

location.

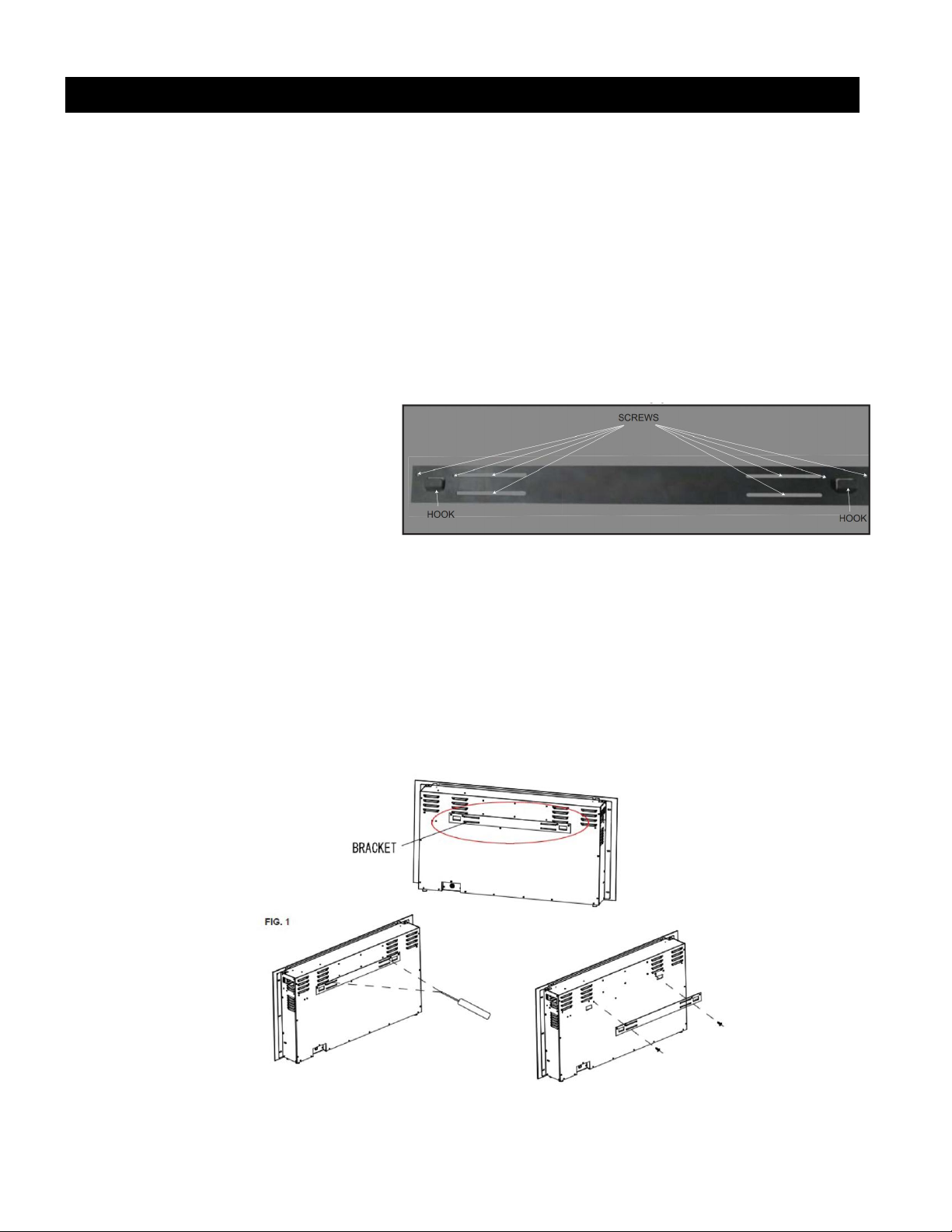

C.Place unit face down on a soft, non abrasive surface. Remove the bracket from

the back of the unit by removing the screws, refer to Figure 1.

D.Mark location, then mount the bracket(s) onto the wall using the supplied screws.

This bracket MUST have the hooks facing upward and be level. NOTE: It is

strongly recommended that the

mounting bracket (E) be

Screwed into the wall studs

where possible. If the wall

studs cannot be used, ensure

the supplied plastic anchors are used to affix the bracket to the wall and the

bracket is adequately secured.

E. With the wall mounting bracket installed have two people lift the appliance up and

insert the two hooks on the bracket into the two slots on the back of the appliance.

F. Check the appliance for stability ensuring that the bracket will not pull free from

the wall

SPS-50B Wall Bracket Illustrated
