Complete integration for web and security

CamIO

User Manual

MOBOTIX ... the new face of IP video

Vandalism-protected

Wall bracket

with cable cover

for RJ45 wall outlet

30 Frames/s

VGA (640 x 480)

10 fps Mega

-22°F to +140°F

Weatherproof

-30°C to +60°C, IP65

no heating necessary

IEEE 802.3af

PoE

network power

even in winter

Video SIP Client

IP Telephony

alarm notify,

cam remote control

lip-syncronized audio

Recording

event-ringbuffer

30 cams each 30 fps

Backlight

safe using CMOS

without mechanical iris

Video motion

multiple windows

precision pixel-based

microphone & speaker

Audio

bi-directional via IP

variable framerates

Live viewing

30 cams at 30 fps

all on one screen

Megapixel

1280 x 960

software zoom

Robust

no moving parts

fiber glass housing

MOBOTIX

Security-Vision-SystemsSecurity-Vision-Systems

com

Lamp

In2

In1

Line-In

Speaker

RJ45

Door

230 V~/115V~

8 to 48 V~

8 to 230 V~ (8 to 48 V~)

Out2

Out1

123

7 8 10 11 13 14 15 16

MOBOTIX

CamIO

Speaker

Microphone with

pre-amplifier

www.mobotix.com • [email protected]

MOBOTIX CamIO User Manual

Note: MOBOTIX offers inexpensive seminars that include a workshop and

practical exercises: Basic Seminar three days, Advanced Seminar two

days.

For more information, see www.mobotix.com

Caution

Only qualified personnel may install and open the CamIO and con-

nect it to the mains power; make sure that the relevant regula-

tions of your country are respected!

It is imperative that all electrical wires have been disconnected

from the mains power when working on or servicing the CamIO!

Please also make sure to adhere to the applicable regulations for

this kind of work!

MOBOTIX will not assume any responsibility for damages from

faulty installations or inappropriate use!

Notes

CamIO User Manual

1 INTRODUCTION 4

1.1 MOBOTIX CamIO Concept 6

1.2 The MOBOTIX CamIO and MOBOTIX Cameras 8

1.2.1 Functional Overview of the CamIO Models 8

1.2.2 Connection Cables between CamIO and MOBOTIX Cameras 9

1.3 Important Notes 10

1.3.1 Safety Regulations 10

1.3.2 Cables for the MOBOTIX CamIO 10

1.3.3 Minimum Load at the Signal Outputs 11

1.3.4 Safety Notes for Operating the MOBOTIX CamIO 11

1.3.5 Maximum Cable Lengths 12

1.3.6 Charging the Rechargeable Battery (CamIO-ACplus) 12

1.3.7 Weatherproofness, Temperature Range 12

1.3.8 Cleaning Instructions 12

1.3.9 Additional Information 12

2 MOUNTING 14

2.1 Delivered Parts, Components, Dimensions and Connectors 14

2.1.1 Delivered Parts and Components 14

2.1.2 Wall Mount Foot and Housing 15

2.1.3 Dimensions and Drilling Template 16

2.1.4 Connectors and Wiring 20

2.2 Information on Connecting the MOBOTIX CamIO 22

2.3 Mounting the CamIO Wall Mount and the Control Cable 24

2.3.1 Mounting with an M12 Camera 24

2.3.2 Mounting with an M22 Camera 26

2.4 Mounting the CamIO Housing and Installing the Cables 28

2.4.1 Mounting the CamIO Housing on the Wall 28

2.4.2 Power Supply of the CamIO 29

2.4.3 Ethernet Connection of the CamIO 32

2.5 Connecting External Components to the CamIO 33

2.5.1 Connecting External Devices, Sensors and Audio Devices 33

2.6 Mounting the Camera on the CamIO 36

2.6.1 Connecting the Additional Speaker in the Wall Mount Foot 36

2.6.2 Connecting the Ethernet and the CamIO Control Cables 37

2.7 Wiring, Fire Prevention, Lightning and Surge Protection 38

2.7.1 Wiring 38

2.7.2 Fire Prevention 38

2.7.3 Lightning and Surge Protection 38

2.8 Accessories, Replacement Parts 40

www.mobotix.com • [email protected]

1/56

MOBOTIX CamIO User Manual

3 OPERATION OF THE CAMIO 42

3.1 Activating the CamIO 42

3.2 Configuration Sample 43

3.2.1 Functional Overview 43

3.2.2 Terminal Connections of the CamIO 44

3.2.3 Overview of the Configuration Steps 44

3.2.4 Configuring the MOBOTIX Camera 45

3.2.5 Configuring a Softphone 51

4 TECHNICAL SPECIFICATIONS 52

APPENDIX: DECLARATION OF CONFORMITY

DRILLING TEMPLATE (SCALE 1:1)

www.mobotix.com • [email protected]

2/56 MOBOTIX CamIO User Manual

Download the latest versi-

on of this document as a

PDF file from

www.mobotix.com:

Support> Manuals

Note

Download the latest version of this document as a PDF file from

www.mobotix.com, Support> Manuals.

Information subject to change without notice!

trademarks of MOBOTIX AG. Microsoft, Windows and Windows Server are reg-

istered trademarks of Microsoft Corporation. Apple, the Apple logo, Mac and

Mac OSX are trademarks of Apple Inc. Linux is a trademark of Linus Torvalds.

All other marks and names mentioned herein may be trademarks or registered

trademarks of the respective owners.

www.mobotix.com • [email protected]

3/56

MOBOTIX CamIO User Manual

Notes

1 INTRODUCTION

The MOBOTIX CamIO is the expansion box for connecting the MOBOTIX cameras

M12 and M22M (IT and Secure models). In the security and home automation

fields, the CamIO is the ideal supplement to the MOBOTIX cameras, if you want to

switch lamps, doors, control wires, pushbuttons or other external devices, evaluate

other sensors than those in the camera or use external audio devices (M12 models

only).

An external device (e.g. a lamp) connected to the CamIO-AC/ACplus can be

powered directly by the CamIO and is switched on or off using the first signal out

put of the MOBOTIX camera. The second signal output can be used for potential

free switching of another external device (e.g. door opener; max. 230V~ or 48V~/

68V=, depending on the CamIO model). This signal output can also be used to

connect the MOBOTIX camera to the input of an alarm system, for example.

You can also attach external sensors to the MOBOTIX camera via the CamIO, e.g.

to evaluate remote sensors, such as light barriers, reed switches, external PIR sen-

sors or the output of an alarm system.

www.mobotix.com • [email protected]

4/56 MOBOTIX CamIO User Manual

All CamIO models can be

used with the MOBOTIX

M12 and M22 cameras

(IT and Secure models).

The CamIO can switch

Ohm resistive loads with

max. 5A, (max. 500W

lamps at 230V or

300W lamps at 115V).

When mounting the MOBOTIX CamIO, the foot of the CamIO wall mount replaces

the original foot of an M12 or M22 camera mount. The foot of the CamIO wall

mount covers the CamIO and reliably protects it against atmospheric exposure

(IP65). In addition, the foot of the CamIO wall mount also contains an additional

speaker, which is more powerful than the camera's internal speaker.

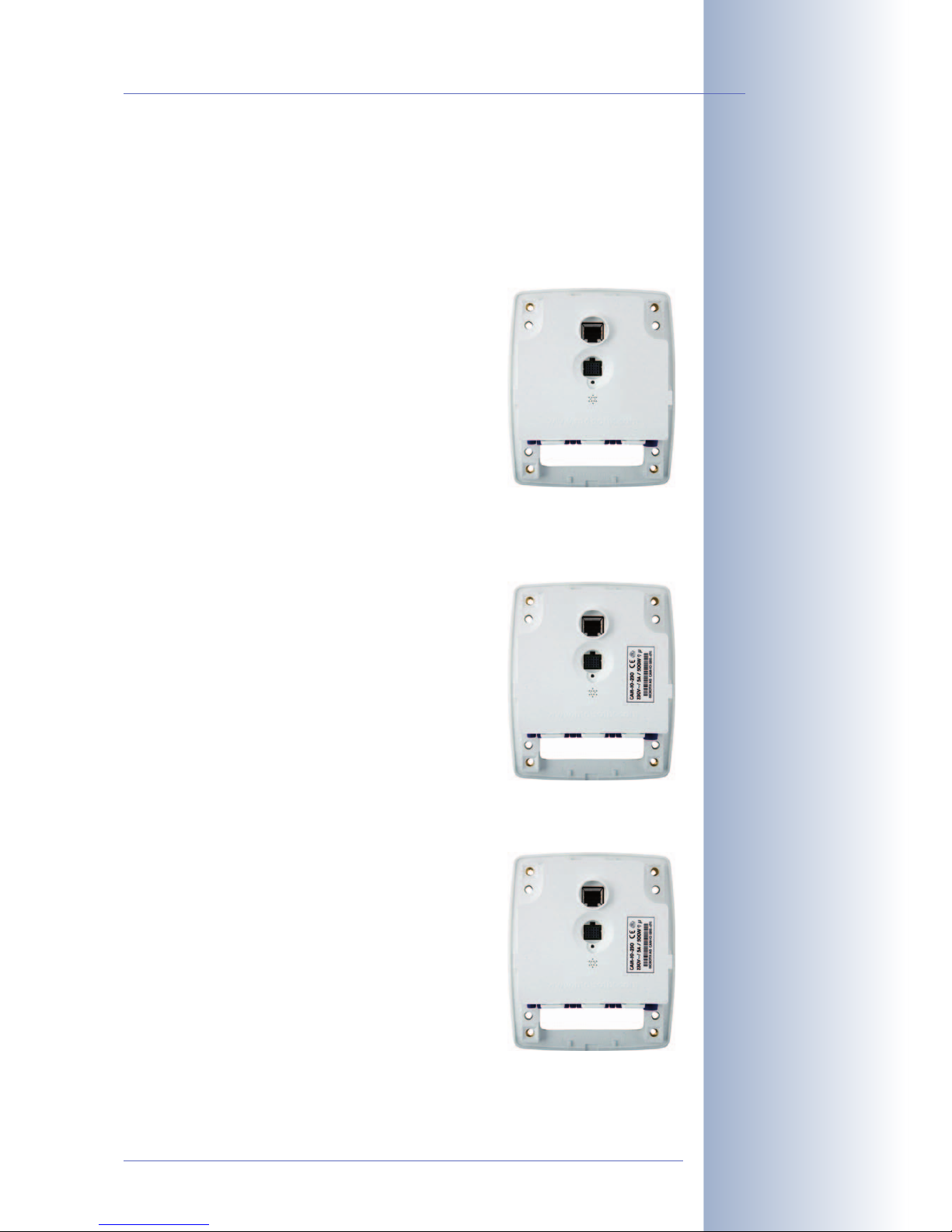

CamIO models

•CamIO-PoE: This model is supplied using

PoE (IEEE 802.3af), which powers the camera

and the CamIO itself. The signal output Out1

can switch one external device (max. 5A), if

max. 48V~ or 68V= have been connected

to terminals 1 and 2; the signal output Out2

can be used for potential-free switching of

another external device (max. 5A) with max.

48V~ or 68V=.

The CamIO-PoE also features two signal in-

puts, one audio input (Line-In) and one

audio output for directly connecting the supplied additional speaker

(max. 2.5W/8Ω).

•CamIO-AC: This model has the same fea-

tures as the CamIO-PoE, but it can be con-

nected directly to utility power (230V~/

115V~) and can power one external device

with up to 230V~ current (Ohm resistive

load, max. 5A, max. 500W lamp on 230V~,

max. 300W on 115V~). It can also be used

for potential-free switching of a second exter-

nal device (max. 5A) with up to 230V~/

115V~ at signal output Out2.

•CamIO-ACplus: In addition to the features of

the CamIO-AC, the CamIO-ACPlus has a re-

chargeable battery, which provides a

backup power supply for the M12 models

even during power failures (approx. 45 min-

utes at 20°C/68°F, 20 minutes at -20°C/-4°F).

www.mobotix.com • [email protected]

5/56

MOBOTIX CamIO User Manual

Currently, the audio

features of the CamIO

can only be used with

M12 cameras. A future

version of the CamIO

will support external

speakers and micro-

phones also on M22 cam-

eras.

The CamIO AC and ACplus

versions are VDE-certi-

fied

Using the backup power

feature of the CamIO-

ACplus requires a

MOBOTIX M12. M22

cameras do not support

this feature yet.

230 V

115V

Battery

MX-CAMIO-AC-230

MX-CAMIO-AC-115

MX-CAMIO-ACPLUS-230

MX-CAMIO-ACPLUS-115

PoE

MX-CAMIO-POE

1.1 MOBOTIX CamIO Concept

Simple Installation

When designing the MOBOTIX CamIO, special focus was placed on easy installa-

tion of the expansion box. The supplied drilling template facilitates mounting the

CamIO and connecting the cabling for devices and data connections is easy,

secure and weatherproof.

Directly supplying power to and switching of external devices

The CamIO-AC and CamIO-ACplus models can directly power one device at sig-

nal output Out1 (230V~/115V~ at terminals 1 and 2 required), allowing you to

switch this device from the MOBOTIX camera (max. 5A, max. 500W lamp on

230V, max. 300W on 115V). You can use the second signal output Out2 for po-

tential-free switching of another external device.

The CamIO-PoE model has similar possibilities for switching devices, but can only

switch loads of up to 48V~/68V=.

www.mobotix.com • [email protected]

6/56 MOBOTIX CamIO User Manual

To supply power to an ex-

ternal device (terminals 3

and 4), make sure that

the CamIO itself is con-

nected to the power sup-

ply (terminals 1 and 2).

ETHERNET

CAMERA

ETHERNET

Backup power using the CamIO-ACplus

The integrated rechargeable battery of the CamIO-ACplus model can bridge

smaller power failures and thus protects the integrity of the video and audio data.

At room temperature (20°C/68°F), the CamIO can power a MOBOTIX M12D for

about 45 minutes; at -20°C (-4°F), the CamIO still provides 20 minutes of backup

power. Providing backup power for an M22M using a CamIO-ACplus is currently

not possible.

Using external sensors

Using the two signal inputs of the CamIO, the MOBOTIX camera can monitor exter-

nal sensors and apply the different mechanisms available to the camera for storing

audio/video and for sending notification messages.

Connecting audio devices to M12 Cameras

Using the audio terminal of the MOBOTIX CamIO (Audio-Out), you can attach the

supplied external speaker in the wall mount foot to the MOBOTIX camera

(2.5W/8Ω; M12 models only). If you connect an external microphone via an ex-

ternal pre-amplifier to the Line-In terminals of the CamIO, the MOBOTIX camera will

also use this input device. It is likewise possible to connect the Line-In terminals of

the CamIO to the Line-Out connector of a computer.

Weatherproof

The weatherproofness of the MOBOTIX CamIO has been tested extensively and

has reached IP65 (absolutely dustproof and resistant against water jets). Special

attention has been paid to the waterproofness of the power cables, for which spe-

cial cable seals have been developed.

Robust and durable

Like all other MOBOTIX products, the CamIO has been designed for a long product

life. The housing from PBT-30GF is robust and reliably protects the interior of the

CamIO.

www.mobotix.com • [email protected]

7/56

MOBOTIX CamIO User Manual

The CamIO-ACplus can

provide backup power for

a MOBOTIX M12D for

about 45 minutes.

Using the backup power

feature of the CamIO-

ACplus requires a

MOBOTIX M12. M22

cameras do not support

this feature yet.

Currently, the audio

features of the CamIO

can only be used with

M12 cameras. A future

version of the CamIO

will support external

speakers and micro-

phones also on M22 cam-

eras.

1.2 The MOBOTIX CamIO and MOBOTIX Cameras

1.2.1 Functional Overview of the CamIO Models

www.mobotix.com • [email protected]

8/56 MOBOTIX CamIO User Manual

All CamIO models can be

used with MOBOTIX

M12 and M22 cameras

(IT/Secure models).

Using the backup power

feature of the CamIO-

ACplus requires a

MOBOTIX M12. M22

cameras do not support

this feature yet.

Currently, the audio

features of the CamIO

can only be used with

M12 cameras. A future

version of the CamIO

will support external

speakers and micro-

phones also on M22 cam-

eras.

CamIO-PoE

Mx-CAMIO-POE

CamIO-AC

Mx-CAMIO-AC-230

Mx-CAMIO-AC-115

CamIO-ACplus

Mx-CAMIO-ACPLUS-230

Mx-CAMIO-ACPLUS-115

Hardware Features

Outdoor - weatherproof IP65 IP65 IP65

Power Supply

Integrated rechargeable battery

Concealed cabling

PoE

230 V~/ PoE

115V~/ PoE

230 V~/ PoE

115V~/ PoE

Features

Audio Out (speaker/microphone)

Line In (microphone with pre-amp.)

Signal outputs

M12

M22M

Signal inputs

Input voltage (terminals 1 and 2)

8 to 48 V~

11 to 68 V=

M12

M22M

M12

230 V~

115V~

230 V~

115V~

Note

In order to use all features of the CamIO, make sure that you are

activating it in the camera software (Admin Menu> Manage

Hardware Expansions). Please note that you will need a software

version 3.3.1.x or higher on the MOBOTIX M22M and a software

version 3.1.0.x or higher on the MOBOTIX M12.

Table des matières

Autres manuels Mobotix Caméra de sécurité

Mobotix

Mobotix MOBOTIX M73 Instructions d'utilisation d'origine

Mobotix

Mobotix D22 Manuel utilisateur

Mobotix

Mobotix D25M Manuel utilisateur

Mobotix

Mobotix v26 Instructions d'utilisation d'origine

Mobotix

Mobotix D25 Instructions d'utilisation

Mobotix

Mobotix D12 Manuel utilisateur

Mobotix

Mobotix MOBOTIX M73 Manuel utilisateur

Mobotix

Mobotix v26 Instructions d'utilisation

Mobotix

Mobotix c26 Instructions d'utilisation

Mobotix

Mobotix Q24M Manuel utilisateur

Mobotix

Mobotix M26B Instructions d'utilisation

Mobotix

Mobotix M16 AllroundDual Instructions d'utilisation

Mobotix

Mobotix D16 DualDome Instructions d'utilisation

Mobotix

Mobotix S26 Flex Instructions d'utilisation

Mobotix

Mobotix D26 Dome Manuel utilisateur

Mobotix

Mobotix p26 Indoor PT Series Instructions d'utilisation

Mobotix

Mobotix VandalDome MOVE VD-4-IR Instructions d'utilisation

Mobotix

Mobotix Q25M Manuel utilisateur

Mobotix

Mobotix MOVE SD-330 Instructions d'utilisation

Mobotix

Mobotix Mx-D26A Instructions d'utilisation d'origine

Mobotix

Mobotix D26 Dome Instructions d'utilisation

Mobotix

Mobotix Q24M Manuel utilisateur

Mobotix

Mobotix p26 Instructions d'utilisation

Mobotix

Mobotix D14D Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
