17 September 2020 1
Mobileye 6 QuickStart
Document version: 1.0

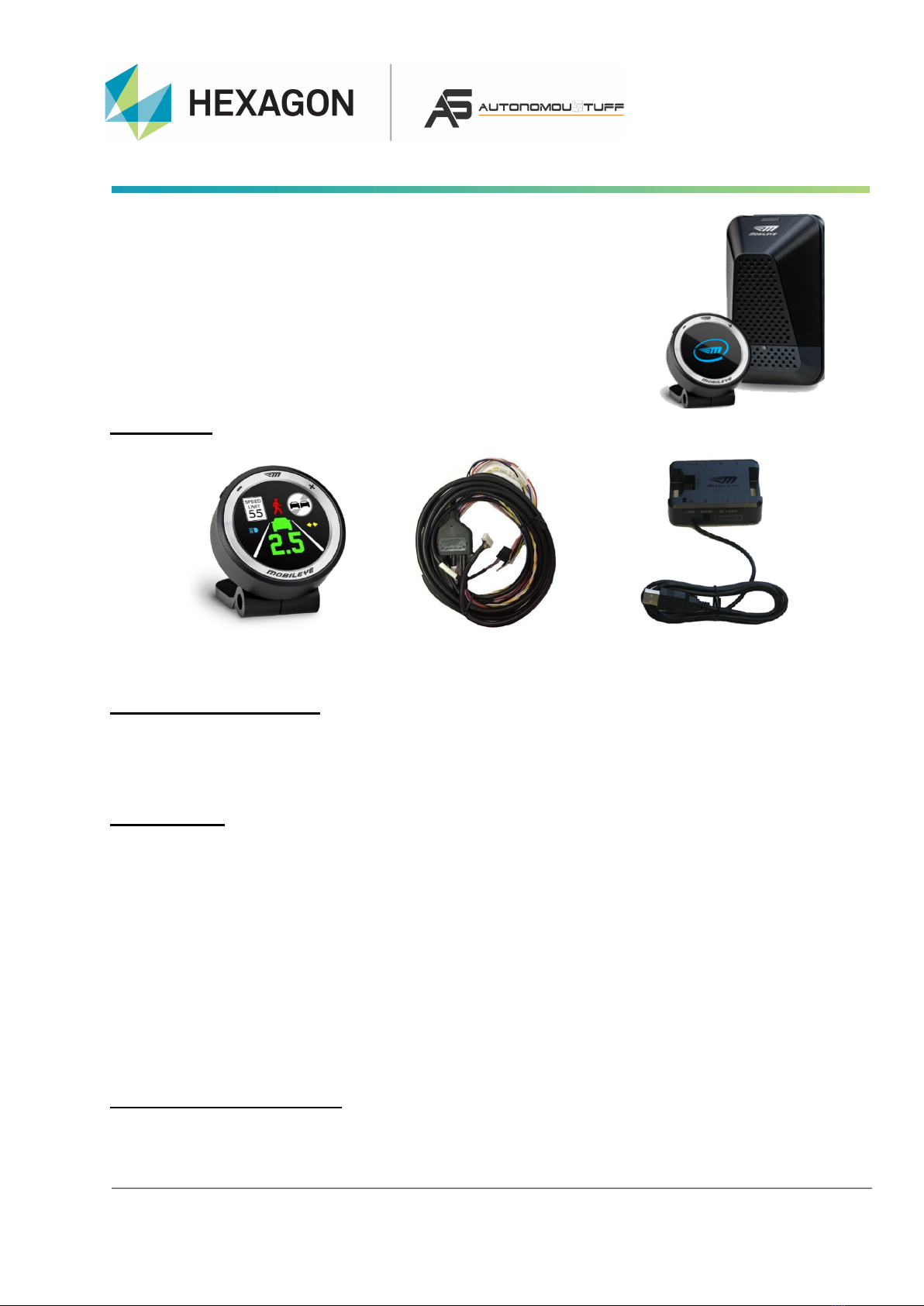

In the box
Required equipment
• Laptop computer
• Measuring tools for calibration (tape measure and level are recommended)
Installation
1. Mount the Mobileye to the center of the windshield.
2. Connect the Mobileye to vehicle CAN via the Mobileye 6 main cable.
3. Connect the EyeWatch to the main cable.
4. Supply 12VDC power via BAT+ and GND. A 12V ignition signal is required.
5. Connect a laptop to the Mobileye via the EyeCAN adapter.
6. Use the Mobileye Setup Wizard to configure and calibrate the Mobileye Camera.
a. Download the Setup Wizard installer here: https://www.mobileye.com/us/fleets/support/
Additional information
See “Mobileye Calibration Guide” for more information on the Mobileye Setup Wizard.
Eyewatch
Main cable
EyeCAN adapter
Mobileye 6 QuickStart
17 September 2020 2

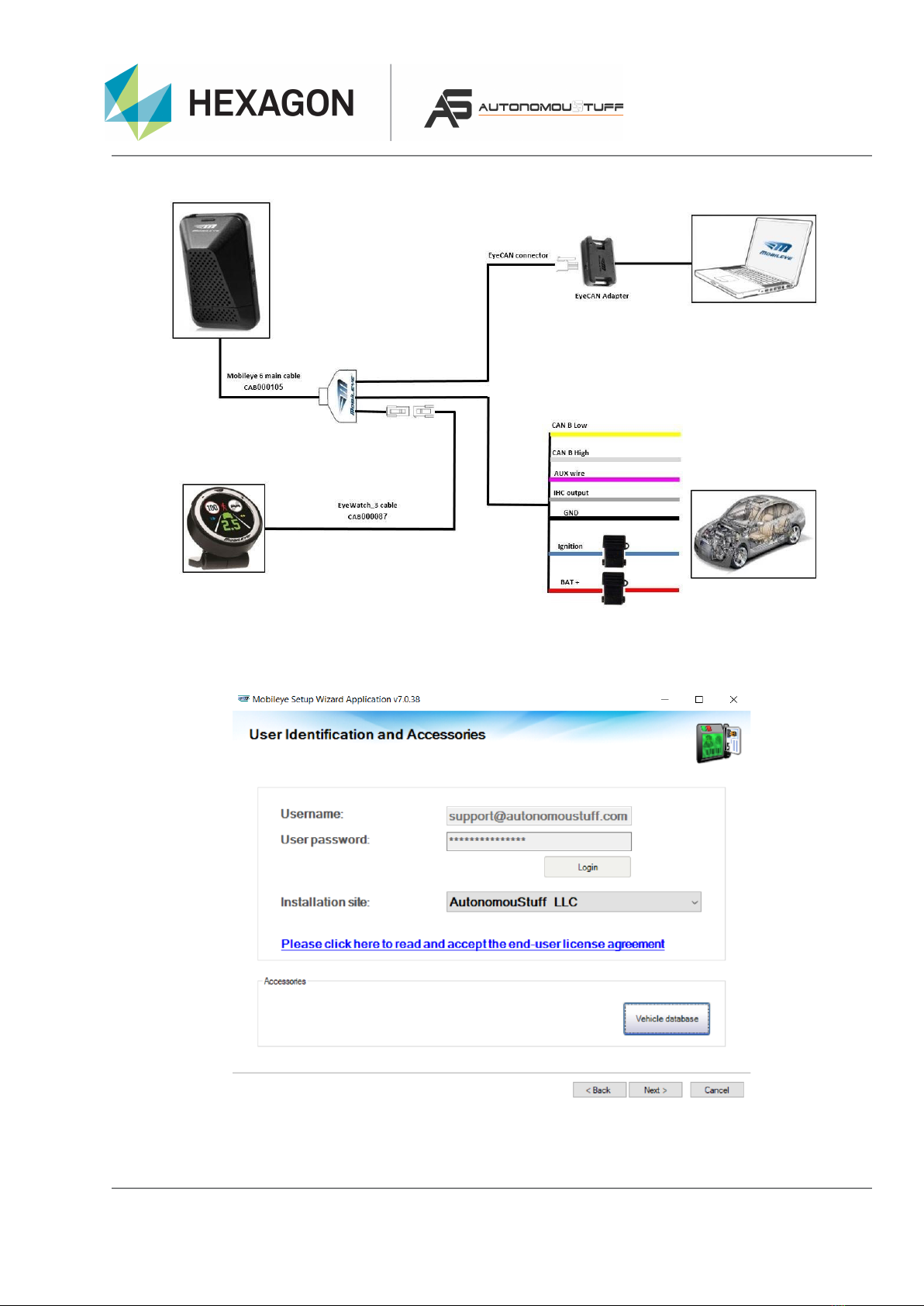

Mobileye 6 wiring diagram
Mobileye setup wizard
