MN Mounting Solutions WP-3 Manuel utilisateur

Assembly Guide

WP-3

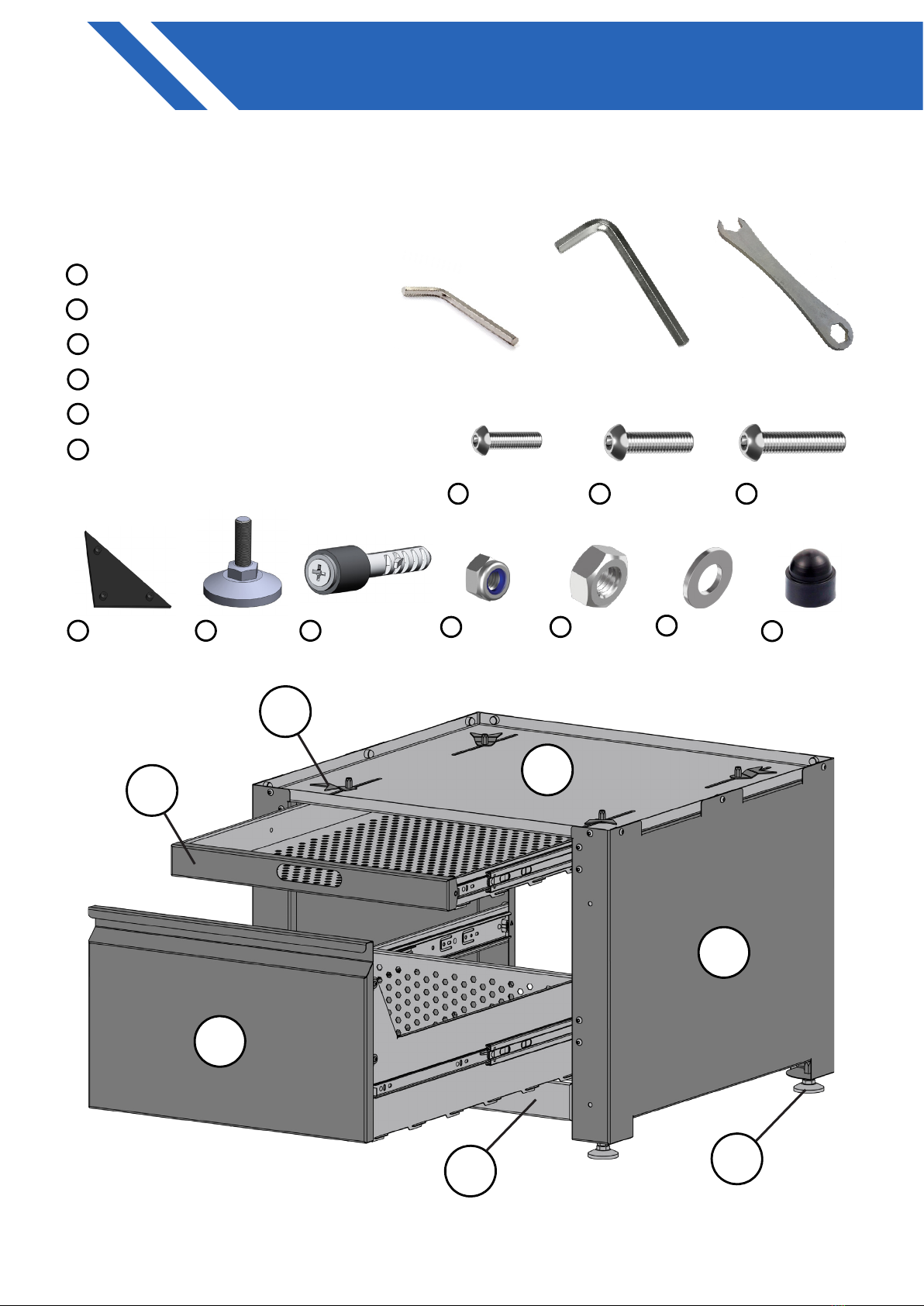

Assembly components:

Side panel - 2 pcs

Top shelf - 1 pcs

Top drawer - 1 pcs

Spacer - 2 pcs

78 9

Screw M6 x 10

- 34 pcs

Nut M10 -

4 pcs

Hex key 4 - 1 pcs Wrench 10 - 1 pcs

Washer

M6 - 4 pcs

Screw M6 x 12

- 4 pcs

Hexagonal

coupling cap

- 10 pcs

Fixing kit for

wall- 4 pcs

Rubber feet -

4 pcs

Leg M10 x

30 - 4 pcs

Screw M4 x 8

- 26 pcs

Bottom drawer - 1 pcs

13 15

Hex key 2,5 - 1 pcs

Nut M6 -

34 pcs

Leg clamp - 4 pcs

Washing machine rack WP-3 with two drawers

Assembly Guide

WP-3

1. Start by unpacking Rack WP-3. From the left Side Panel

, remove the side panels

from the rails. They must be extended to the maximum, as shown in the picture. Press the

lever on the rail and at the same time remove the top drawer panel. Do the same with the

bottom panel. Remove all wrapped parts from the Side Panel

Assembly Instructions:

1a. From the right Side Panel

, also remove the side panels from the rails. They

must be extended to the maximum, as shown in the picture. Press the lever on

the rail and at the same time remove the top drawer panel. Do the same with the

bottom panel.

Assembly Guide

WP-3

2. Screw both Spacers to the Side Panels with screws and nuts .

11 13

3. Install the Top shelf

and fasten with screws and nuts . Put on the nuts

Hexagonal coupling cap .

11 13

Assembly Guide

WP-3

4. Place the Rack WP-3 on the legs:

screw the nut onto the leg and

screw it in as shown in the picture.

Install all 4 legs. Level the Rack WP-3.

Fix the position of the legs with nuts .

4a. Or place the Rack WP-3 on the

rubber feet .

5. Install the Leg clamps onto the Top shelf using the screws with

the washer , without tightening them.

Install the Leg clamps mirrored to each other to secure the washing machine

later.

Assembly Guide

WP-3

7. Insert the screws into the mounting holes in the Rack WP-3, put the

bushings on them, attach the rack to the wall so that the screws enter the

holes with the dowels , and screw the Rack WP-3 to the wall.

6. After installing the legs or feet , measure the distance from the bottom

hole of the Rack WP-3 to the oor. Install wall dowels into the wall as picture to

secure the Rack WP-3 under the washing machine.

Assembly Guide

WP-3

Assembly of drawers

9. Screw the sides of the Top drawer as shown with the screws .

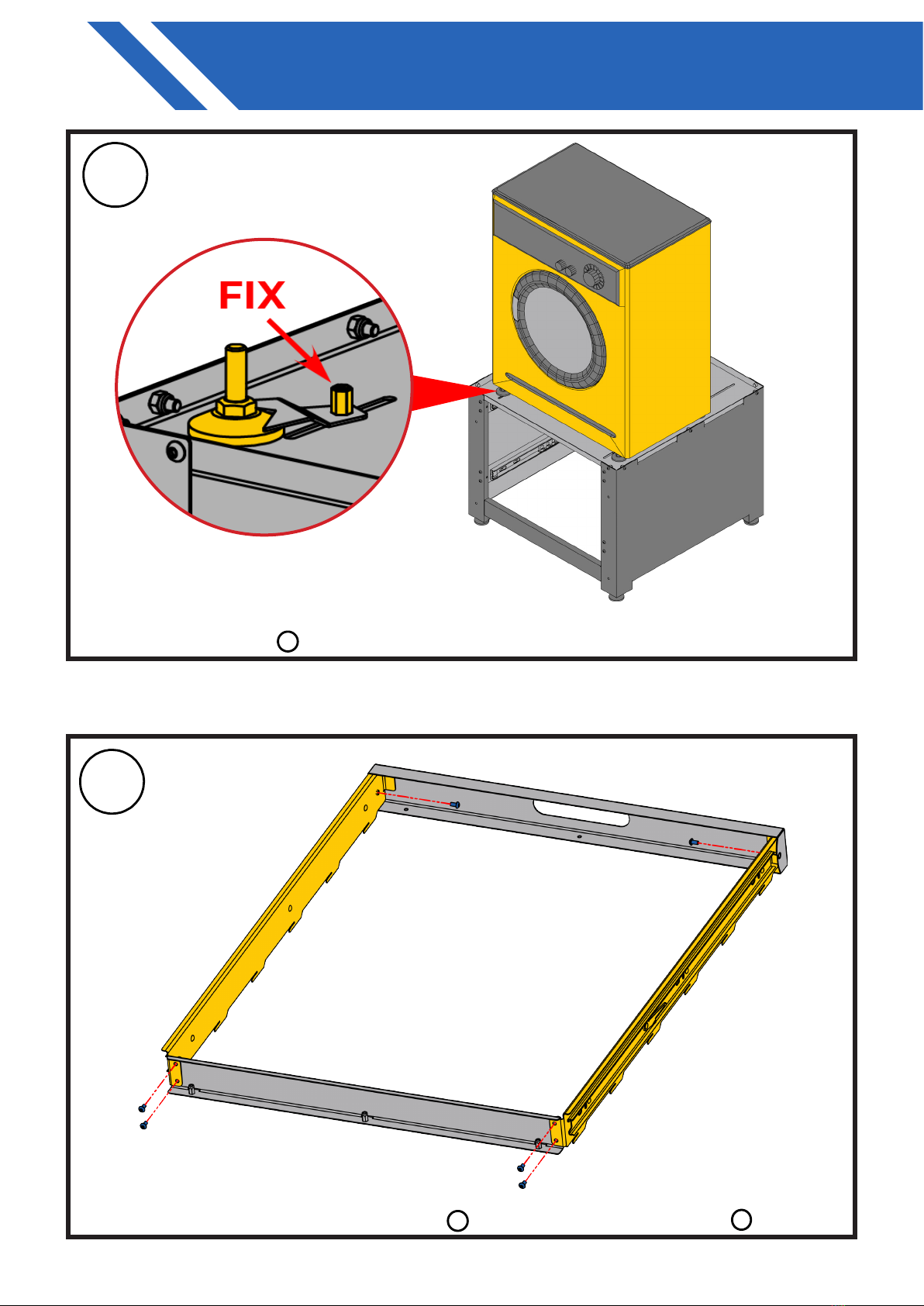

8. Place the washing machine on the Rack WP-3, press the legs of the machine

with the Leg clamps and tighten them.

Assembly Guide

WP-3

10. Turn the frame of the Top drawer over and install the bottom as shown in

the picture. Tighten the screws .

11. Screw the sides of the Bottom drawer as shown with the screws .

Assembly Guide

WP-3

13. Install Top drawer and Bottom drawer on the rails in the Rack WP-3.

Your Rack WP-3 is set up and ready.

12. Turn the frame of the Bottom drawer over and install the bottom as shown

in the picture. Tighten the screws .
