INSTALLATION & MAINTENANCE MANUAL

SUR5LED

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following product:

SUR5LED

GENERAL INSTRUCTIONS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a

qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed

the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location

for installation

• This product is for indoor use only

• This product is Class I and must be earthed

• This product series is IP20 rated

INSTALLATION & MAINTENANCE MANUAL

These instructions should be read carefully and retained after installation by the end user for future reference

and maintenance.

These instructions should be used to aid installation of the following product:

SUR5LED

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of

the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for

installation

•This product is Class I and must be earthed

•This product series is IP20 rated

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with the

manufacturer of the sensors that they are compatible with LED luminaires

•Provide power to the required point of installation

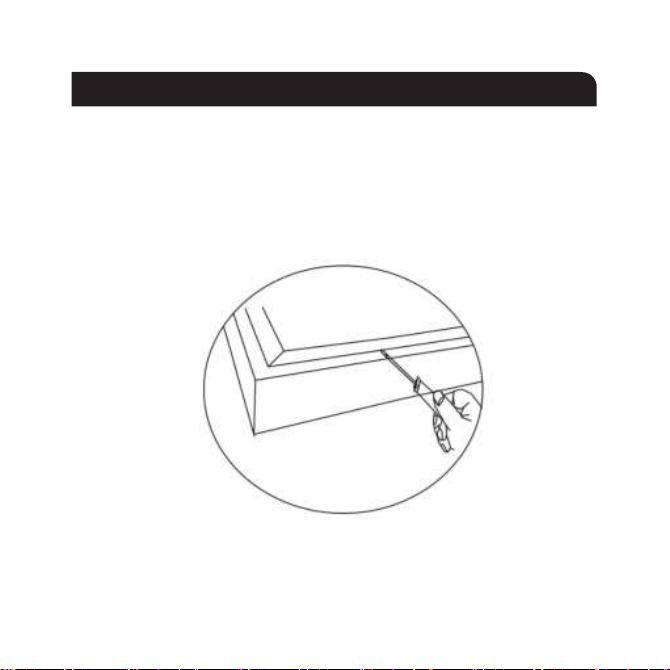

•Remove the diffuser by inserting a small plastic flat-headed tool into the frame (see Fig. 1)

Fig. 1

•Using the luminaire as a template, mark the location for, and drill the fixing holes ensuring not to

infringe with any gas/water pipes or electrical cables

•Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 2

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please

conﬁrm with the manufacturer of the sensors that they are compatible with LED luminaires

• Provide power to the required point of installation

• Remove the diffuser by inserting a small plastic ﬂat-headed tool into the frame (see Fig. 1)

• Using the luminaire as a template, mark the location for, and drill the ﬁxing holes ensuring

not to infringe with any gas/water pipes or electrical cables

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 1

Fig. 2

• Secure the mains cable under the cable clamp

• Re-ﬁt the diffuser ensuring that the earth ﬂy-lead is connected, and the plastic strings are

attached to the body and diffuser

• Switch on and check for correct operation

INSTALLATION & MAINTENANCE MANUAL

These instructions should be read carefully and retained after installation by the end user for future reference

and maintenance.

These instructions should be used to aid installation of the following product:

SUR5LED

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of

the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for

installation

•This product is Class I and must be earthed

•This product series is IP20 rated

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with the

manufacturer of the sensors that they are compatible with LED luminaires

•Provide power to the required point of installation

•Remove the diffuser by inserting a small plastic flat-headed tool into the frame (see Fig. 1)

Fig. 1

•Using the luminaire as a template, mark the location for, and drill the fixing holes ensuring not to

infringe with any gas/water pipes or electrical cables

•Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 2

WARNING

This luminaire must be disconnected from the circuit if subjected to any high voltage or

insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efﬁciency class D to Regulation (EU) No.

2019/2015.

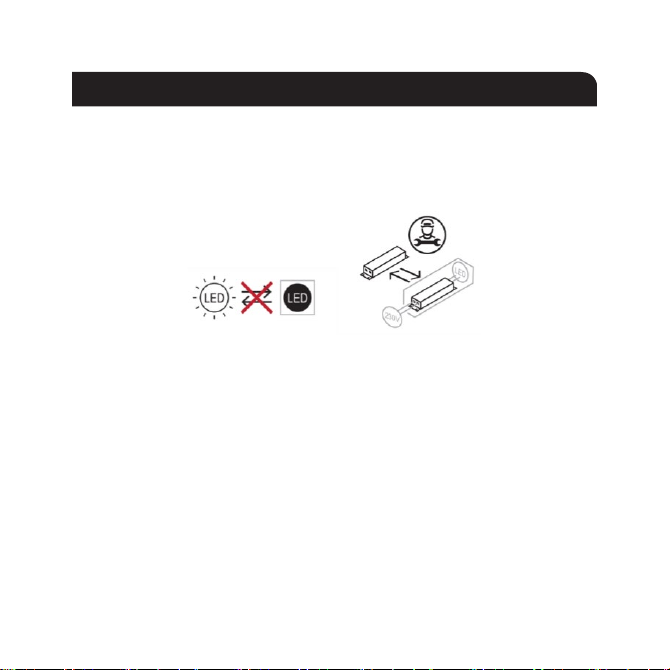

This product contains a non-replaceable LED light source and a control gear which can be

replaced by a professional.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which

may damage the product.

This product is non-dimmable.

This product should be dismantled for disposal when it reaches the end of its life. Please

see website for dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life.

Check local authorities for where facilities exist.

SUR5LED INSTRUCTIONS AMENDMENTS

As per existing except the following:

This product is for indoor use only

NEW GENERAL SECTION – NON-EMERGENCY

GENERAL

This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015.

This product contains a non-replaceable LED light source and a control gear which can be replaced by a

professional.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the

product.

This product is non-dimmable.

This product should be dismantled for disposal when it reaches the end of its life. Please see website for

dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities

for where facilities exist.

NEW GENERAL SECTION – EMERGENCY

GENERAL

This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015.

This product contains a non-replaceable LED light source and a control gear which can be replaced by a

professional.

WARRANTY

This product has a warranty of 5 years from date of purchase. Failure to install this product

in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper

use, or removal of the batch code will invalidate the warranty. If this product should fail

within its warranty period, it should be returned to the place of purchase for a free of

charge replacement. ML Accessories does not accept responsibility for any installation

costs associated with the replacement product. Your statutory rights are not affected. ML

Accessories reserve the right to alter product speciﬁcation without prior notice.

AVAUG21_V2

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

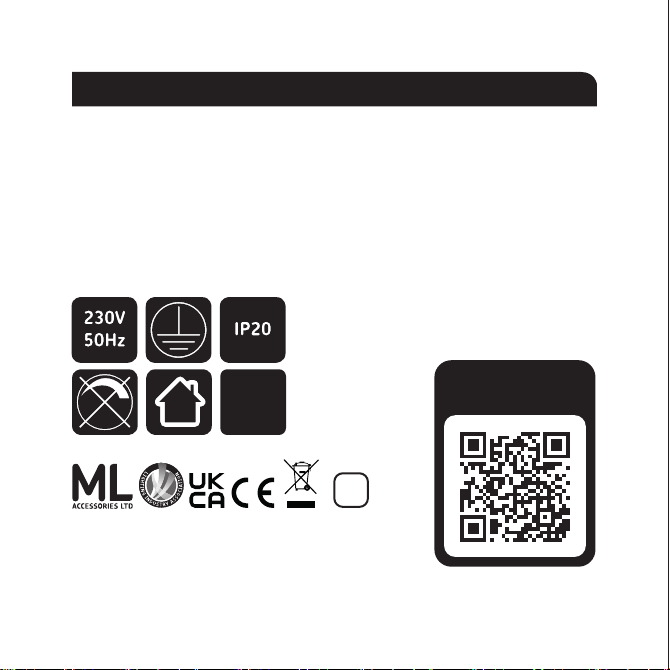

-20~

50°C
