MK Diamond Products BX-3 Manuel utilisateur

06.2015

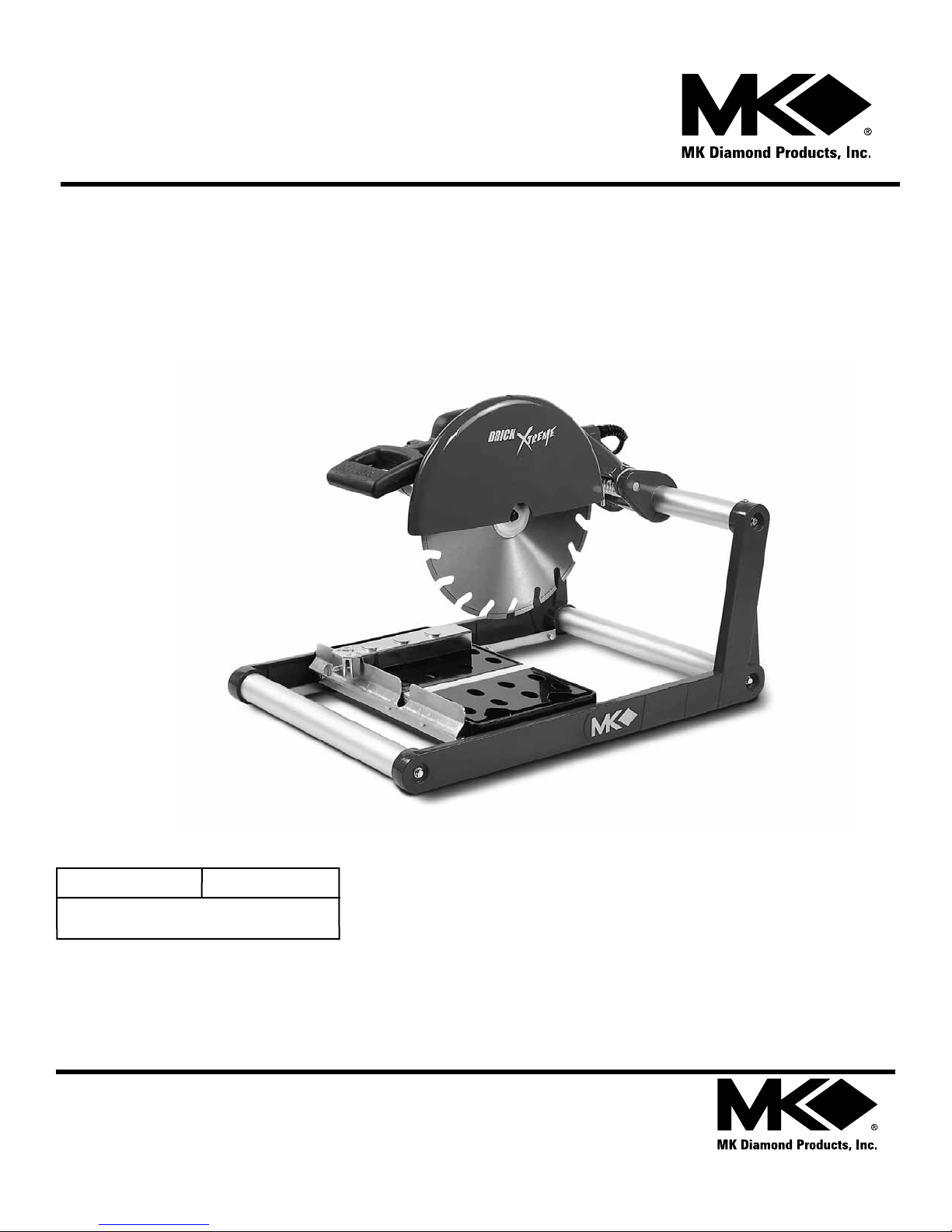

BX-3 MASONRY SAW

OWNER'S MANUAL, PARTS LIST &

OPERATING INSTRUCTIONS

Caution: Read all safety and operating instructions

before using this equipment. This owners manual MUST

accompany the equipment at all times.

Revision 102

Manual Part No. 158168

www.mkdiamond.com

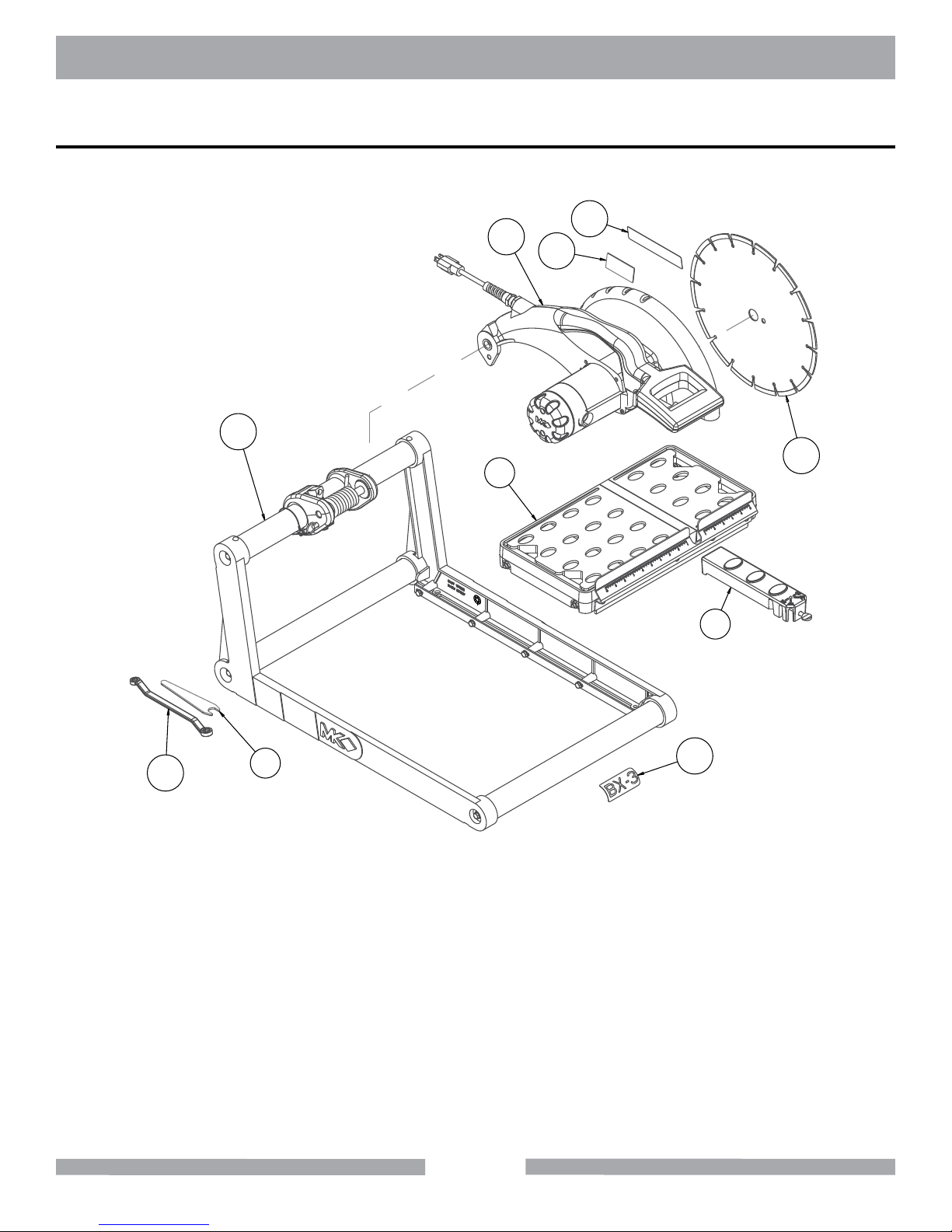

BX-3 EXPLODED VIEW

PARTS LIST: BX-3 SAW - P/N 157721

BX-3 PARTS LIST

Item Description Part # Qty

1 RIP GUIDE, BRICK/BLOCK SAW 132332-MK 1

2 ASSY, CONVYR CART 133082 1

3 WRENCH, TILESAW, 11/16 OPEN END 153450 1

4INSERT, MK-2000 ACCESSORY 153576 1

5CARTON, ACCESSORY MK-2000 154809 1

6 CARD, WARRANTY REGISTER SAW 155037 1

7SELL SHT, TILE ACCESSORY 156915 1

8CARTON, BLADE TOP 157187 1

9 CARTON, BLADE BOTTOM 157188 1

10 TAG, SERIAL NUMBER, BLANK 157500-RW 1

11 FILTER, MOTOR 157729 1

12 CARTON, BX-3 OUTER, PRINTED 157936 1

13 LABEL, BRICK XTREME 157958 1

14 LABEL, BX3 157959 1

15 OWNER'S MANUAL, BX3 158168 1

16 TIE, WIRE 48" X .345 158187 1

17 WRENCH, SHAFT NUT 12-14MM 158406 1

18 CARON, INSERT BX-3 159867 1

19 ASSY, WARN LBL, MASONRY, ELEC DRY 166011-ED 1

20 BLADE, CG, 14X125X1 10MM 166308 1

21 ASSY, FRAME, BX3 171265 1

22 ASSY, CUTTING HEAD, BX3 171266 1

PART LIST: BX-3 SAW - P/N 157721

3 4

BX-3 EXPLODED VIEW

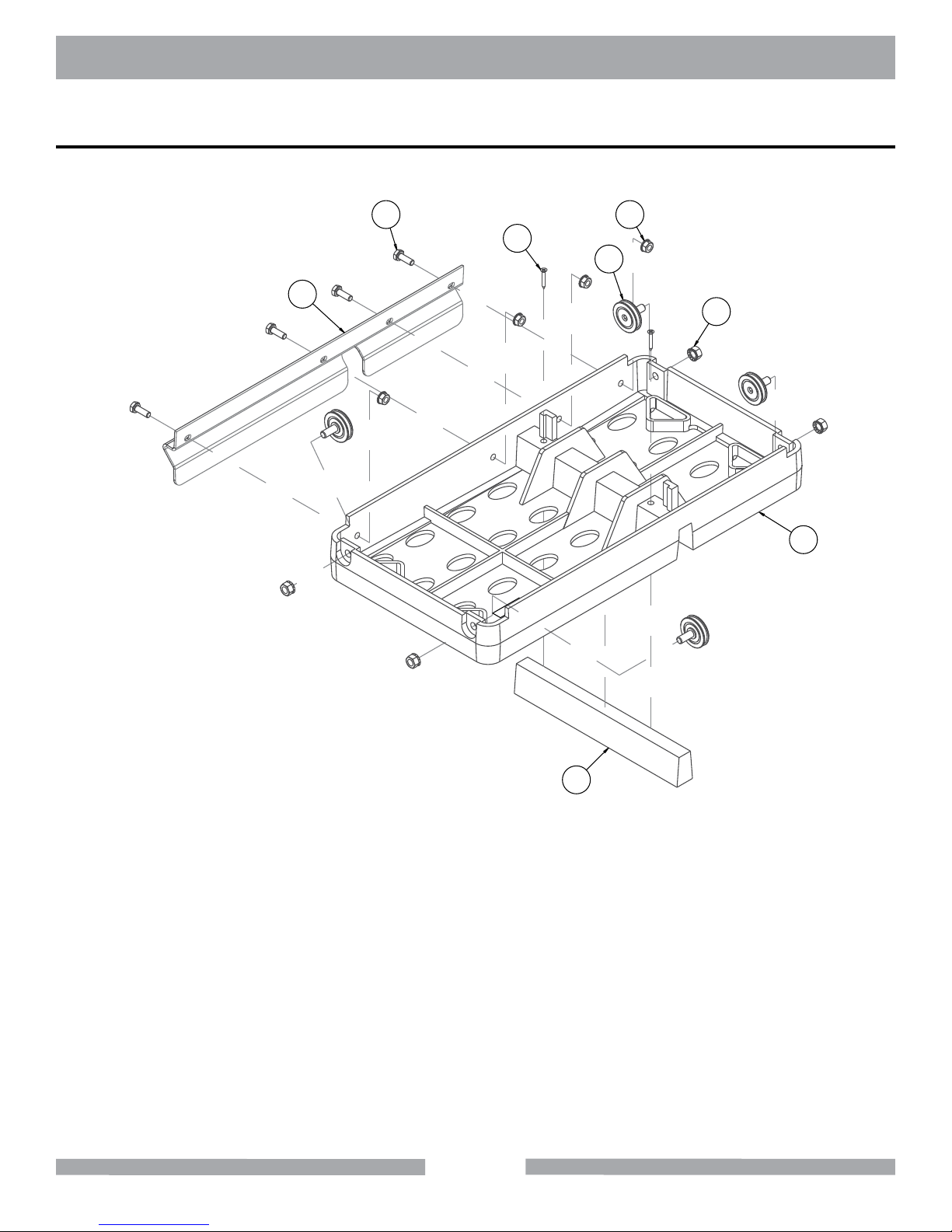

PARTS LIST: ASSY, CONVYR CART BX-3 - P/N 133082

BX-3 PARTS LIST

Item Description Part # Qty

1 WHEEL, CONVEYOR CART 133090 4

2 BACKSTOP, CONVEYOR CART 134387 1

3 SCREW, HEX HD, 1/4-20 X3/4 152370 4

4 NUT, HEX, TW, 1/4-20 153941 4

5 NUT, HEX TW, 5/15-18 153942 4

6 TABLE, D.C. COMP 158144 1

7 WOOD STRIP, TABLE INSERT 158283 1

8 SCREW, DRYWL, FLAT, HD #6X1 159906 2

PARTS LIST: ASSY, CONVYR CART BX-3 - P/N 133082

BX-3 EXPLODED VIEW

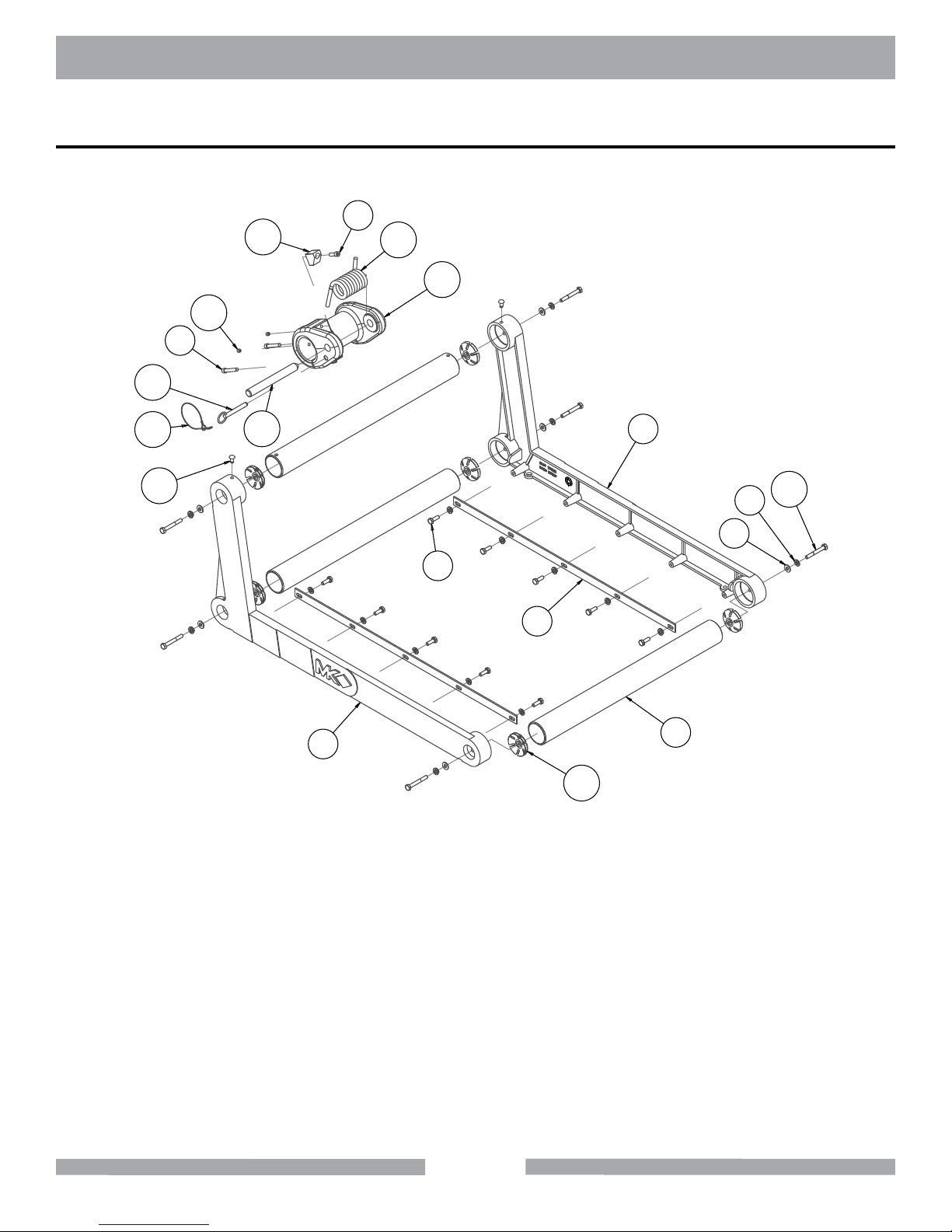

PARTS LIST: ASSY, FRAME BX-3 - P/N 171265

BX-3 PARTS LIST

Item Description Part # Qty

1 WASHER, FLAT, SAE, 1/4 151915 6

2 SCREW, HEX HD, 1/4-20X3/4 152370 10

3 SCREW, 1/4-20 X 3/4 SOCKET HEAD CAP 152587 1

4 WASHER, LOCK, SPLIT, 1/4 152591 16

5 SCREW, SOC HD CAP, 1/4-20 X 1 154683 2

6 DC FRAME, RIGHT (COMP) 157367 1

7 DC FRAME, LEFT (COMP) 157369 1

8RAIL, TABLE GUIDE 157383 2

9 SUPPORT, HORIZ FRAME 157384 3

10 SCREW, SET, 14/-20X 1/4 157528 2

11 CLAMP, PIVOT (COMP) 157593 1

12 PIN, PIVOT 157645 1

13 SPRING, TORSION 157702 1

14 TUBE CONNECTOR 1/4-20 157930 6

15 PIN, DETENT, W/RING PULL 157933 1

16 STUD, GROOVED, #16X1/2 158071 2

17 LANYARD, 3/64X8" GALVNZD STEEL 158072 1

18 BLOCK, STOP 158226 1

19 SCREW, HEX HD 1/4-20 X 2 158282 6

PARTS LIST: ASSY, FRAME BX-3 - P/N 171265

BX-3 EXPLODED VIEW

14 15

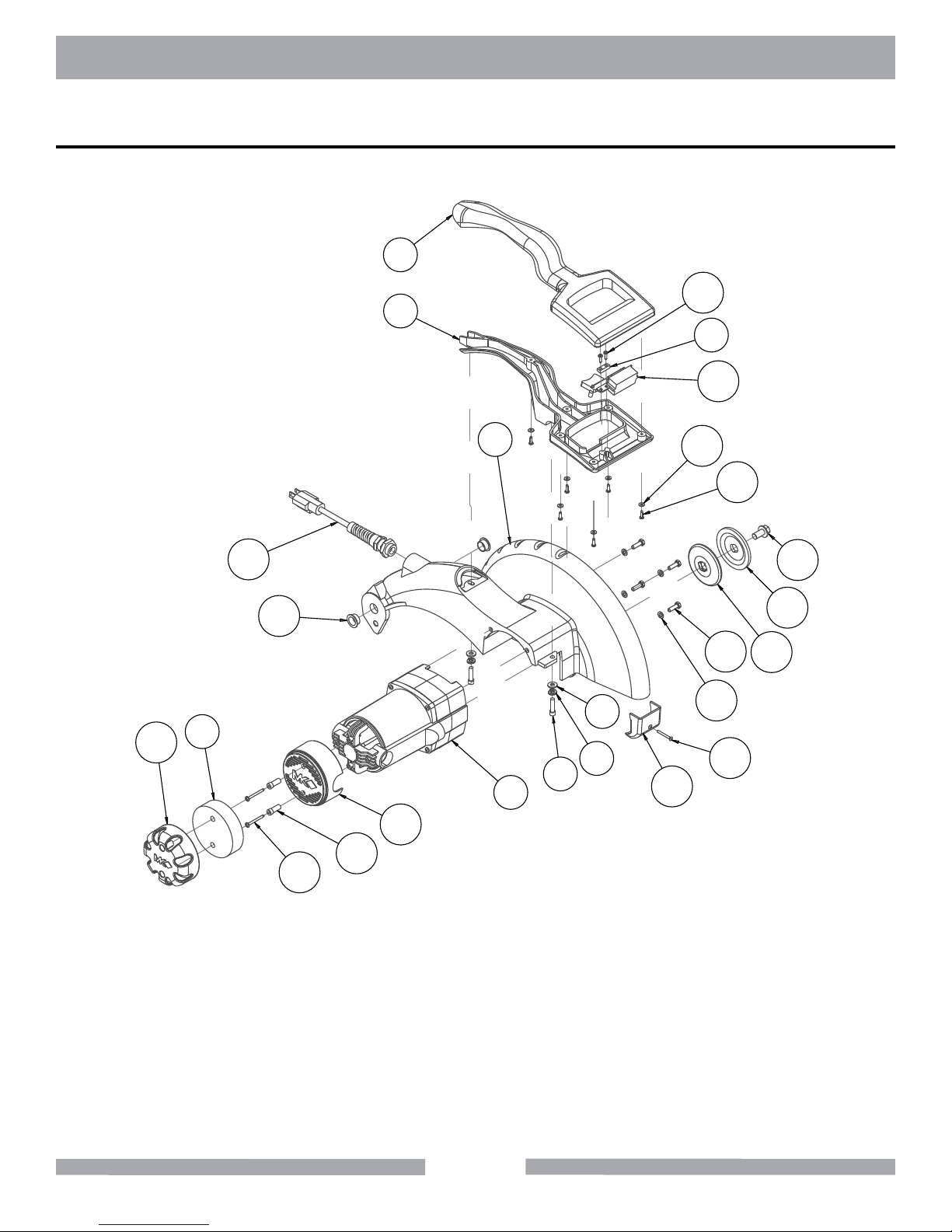

PARTS LIST: BX-3 - ASSY, CUTTING HEAD P/N 171266

BX-3 PARTS LIST

Item Description Part # Qty

1 SCREW, SOC HD CAP, 1/4-20 X 1 151049 2

2 WASHER, FLAT, SAE, 1/4 151915 2

3 WASHER, LOCK, SPLIT, 1/4 152591 2

4 ARM, MOTOR MOUNT (COMP) 157599 1

5 FILTER, MOTOR 157729 1

6 MTR, 115V, 15A, AC 157801-C 1

7 HANDLE, LOWER 157874 1

8 HANDLE, UPPER 157875 1

9 PLATE, SWITCH MOUNTING 157876 1

10 CAP, MOTOR 157877 1

11 SPACER, NYLON 157878 1

12 SPACE, CAP SCREW 157879 2

13 WIRE COVER, BX3 157880 1

14 BUSHING, FLANGE 157932 2

15 FLANGE, OUTER 158105 1

16 FLANGE, Ø 3.0 INNER 158106 1

17 SCREW, HEX HD, FL, M10X20MM 158107 1

18 SCREW, PAN HD, M3.5X12MM 158156 8

19 SCREW, #8 X 1-1/2 FLAT HD PHIL 158157 2

20 SCREW, HEX HEAD CAP, M6X1X20MM 158158 4

21 WASHER, LOCK, SPLIT, M6 158159 4

22 SCREW, FLAT HD, ALN, #6-32X1-1/4 158160 1

23 WASHER, FLAT, SAE, #6 158231 6

24 ASSY, SWITCH 158323-MK 1

25 HARNESS, WIRE 158329-R 1

PARTS LIST: BX-3 - ASSY, CUTTING HEAD P/N 171266

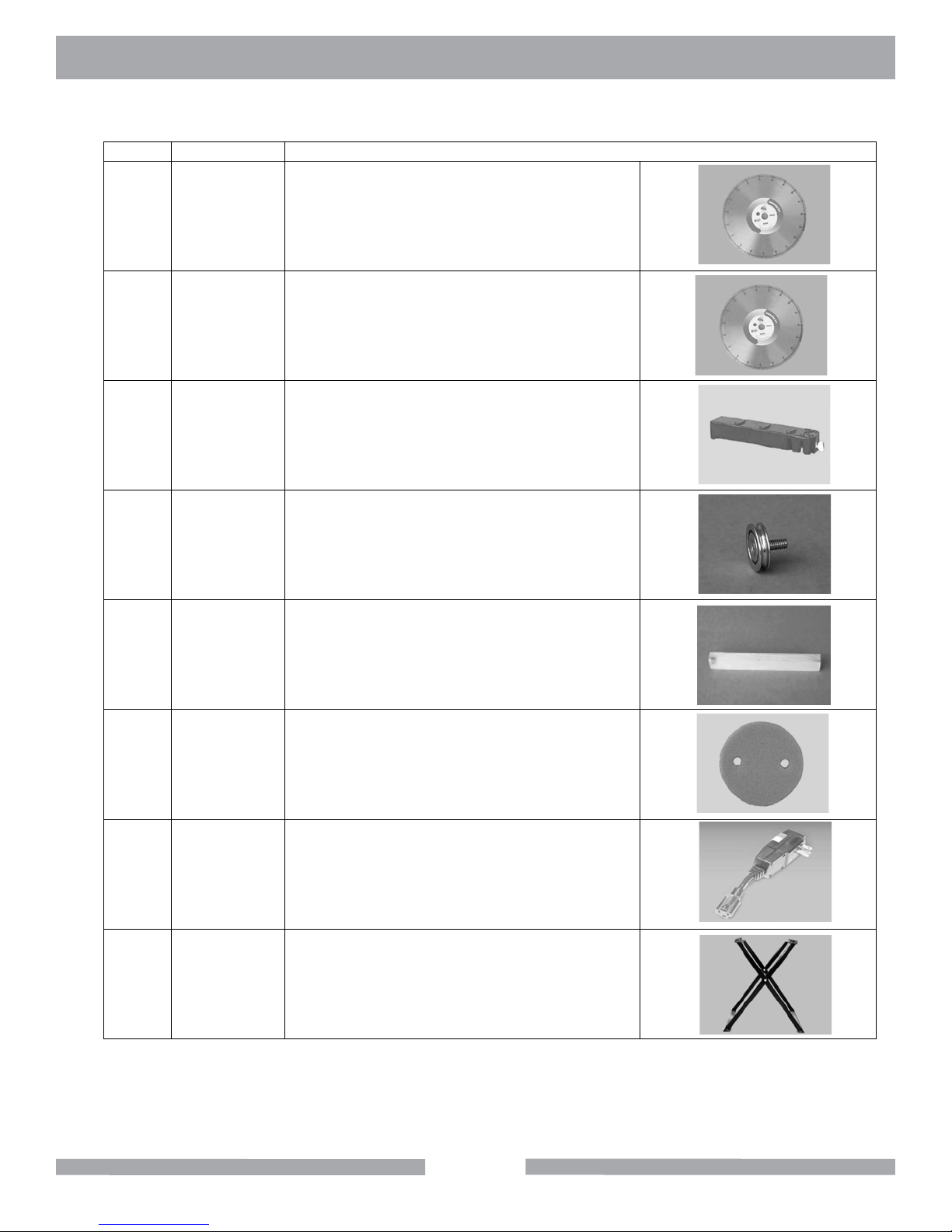

ACCESSORIES AND REPLACEMENT PARTS:

NOITPIRCSEDREBMUNMETI

157957 MK-BX10, Dry Cutting 14" Segmented Blade

157944 MK-BX30, Dry Cutting 14" Segmented Block

Blade

231276 Adjustable Cutting Guide*

133090 Roller Wheel*

156427 Protective Wooden Strip*

157729 Motor Air Filter*

152610 Ground Fault Circuit Interrupter

157981 BX-3 Stand

(Stand contains Owners Manual)

*Included at time of shipping

BX-3 ACCESSORIES
