Mitsubishi Electric XD250U Manuel utilisateur

MULTIMEDIA DATA/VIDEO PROJECTORS

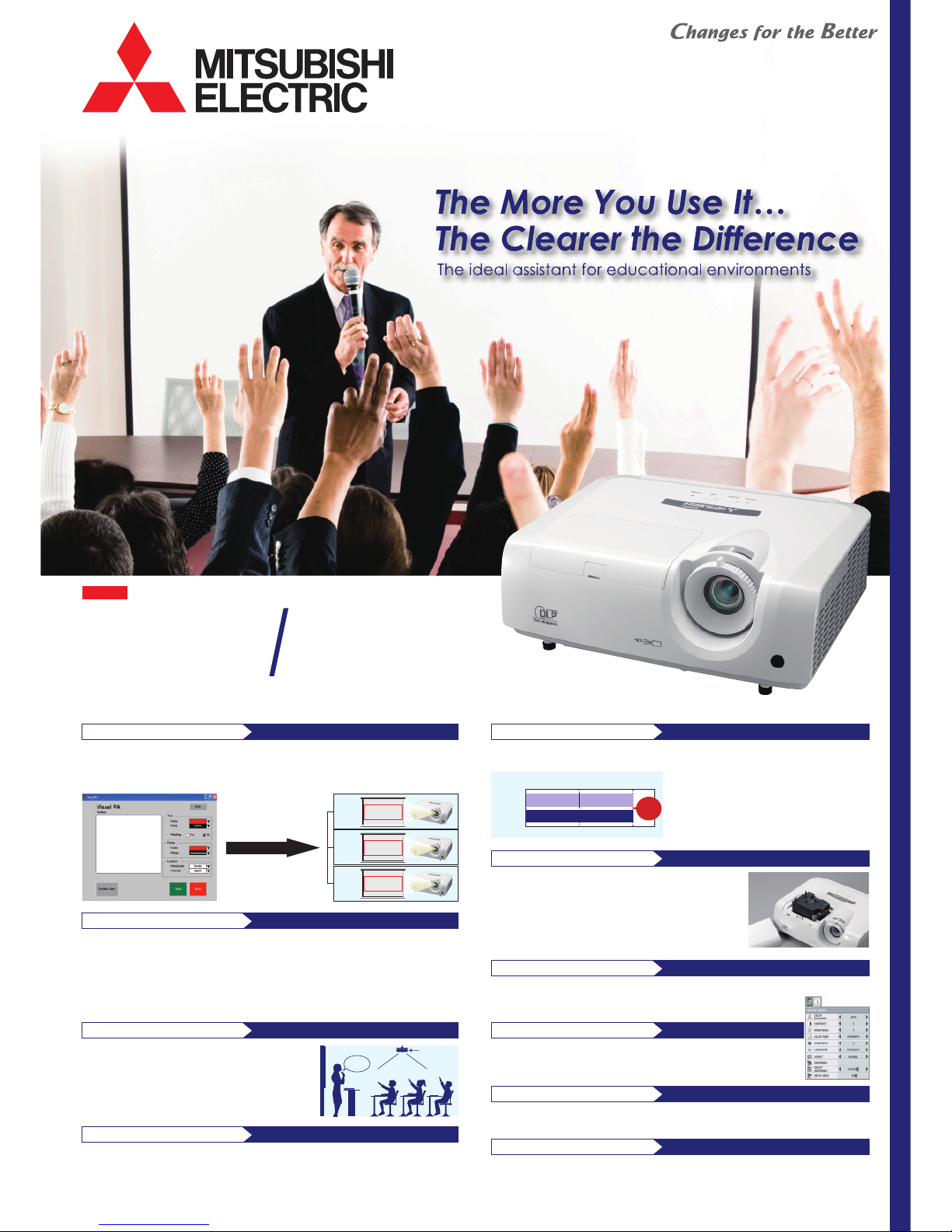

5 Easy-to-manage Features

5 Easy-to-use Functions

After installing ProjectorView Global+ (separately available software),

the status of multiple projectors connected to a dedicated LAN in the same

network can be viewed. Remote operation of the power switch (ON/OFF),

image input switch and other functions is possible using the software.

All-in-one Management of Multiple Projectors

Low operating cost realized by considering energy savings for every function.

Maintenance has been reduced as well.

Low Operating Cost

Simple Lamp Replacement

Projector

What’s

this?What’s

this?

A high-volume, 10W speaker is built-in,

eliminating the need for an external speaker.

Using the “Audio Mix*” feature and wireless

microphone sold separately, the presenter’s

voice is reproduced loud and clear in real time.

For improved operation ease, the tool bar has seven main

menus and one custom menu. Switching to the sub-menu

allows the selection of more specific operations.

Mitsubishi Electric’s original built-in color wheel is incorporated for enhanced

color reproduction. Clear, vivid images are reproduced from computer and

video-player signals.

Visual PA

Simultaneous Message Display

Using a control room computer equipped with projector-control software,

simultaneously send messages (up to 350 characters long) in real-time to

projectors connected to the LAN. Ideal for broadcasting important

information to multiple rooms in the school or building.

A closed caption decoder comes installed as standard equipment. Words

spoken are processed into subtitles that are projected onto the screen.

This feature conveniently addresses the needs of language students and

hearing-impaired viewers.

Control Room

via LAN

Round up in

the schoolyard

Room

IT manager inputs

message and sends

Same message is

displayed in each

classroom

Room

(*1): 3W in Normal mode (network turned on).

(*2): When used at the low lamp mode. Maximum lamp life at

standard mode use is 3,000 hours.

(*3): Lamp life refers to the average time required for brightness

to be reduced by half, and not the time specified in the

warranty. Use time may vary widely by the environment

and conditions, and whether or not cleaning and other

maintenance procedures are followed.

Lamp Replacement Frequency*3

3,000-hour

lamp

6,000-hour

lamp

3,000 6,000

Like giving a presentation in a suburban residential area in the middle of

the night! That’s the operating sound level promised by the XD280U/XD250U.

Excellent Sound Projection

ProjectorView Global+

10W Speaker + Audio Mix

Automatic Subtitle Function Closed Caption (CC) Capable

Standby Mode under 1W*

6,000hr*

Long-life Lamp, filter-free

Top-loading Lamp

Enhanced Terminal group HDMI, Dual PC Input

Vastly Improved Operability Quick Menu

Quiet Fan Noise

Silent 28dBA Operation (in low mode)

Superior Color Performance New BrilliantColorTM Adopted

Round up in

the schoolyard

Round up in

the schoolyard

Round up in

the schoolyard

XD280U XD250U

Excellent cost-performance and easy to use

Reduced

running

cost

NEW

* A special replacement lamp removal tool is included to prevent dropping

the lamp during replacement.

*Only compatible with stereo mini-jack.

Not compatible with RCA jack (L/R) or HDMI.

The projection lamp is installed in the upper section

of the main body. Regardless of whether sitting on

a shelf or suspended from the ceiling, lamp

replacement is simple and easy*, and there’s

never a need to move the whole projector.

1st replacement 2nd replacement

1st replacement

L-188-9-B8253-B KYO-0904 Printed in Japan(MDOC)

XD280U

XD250U

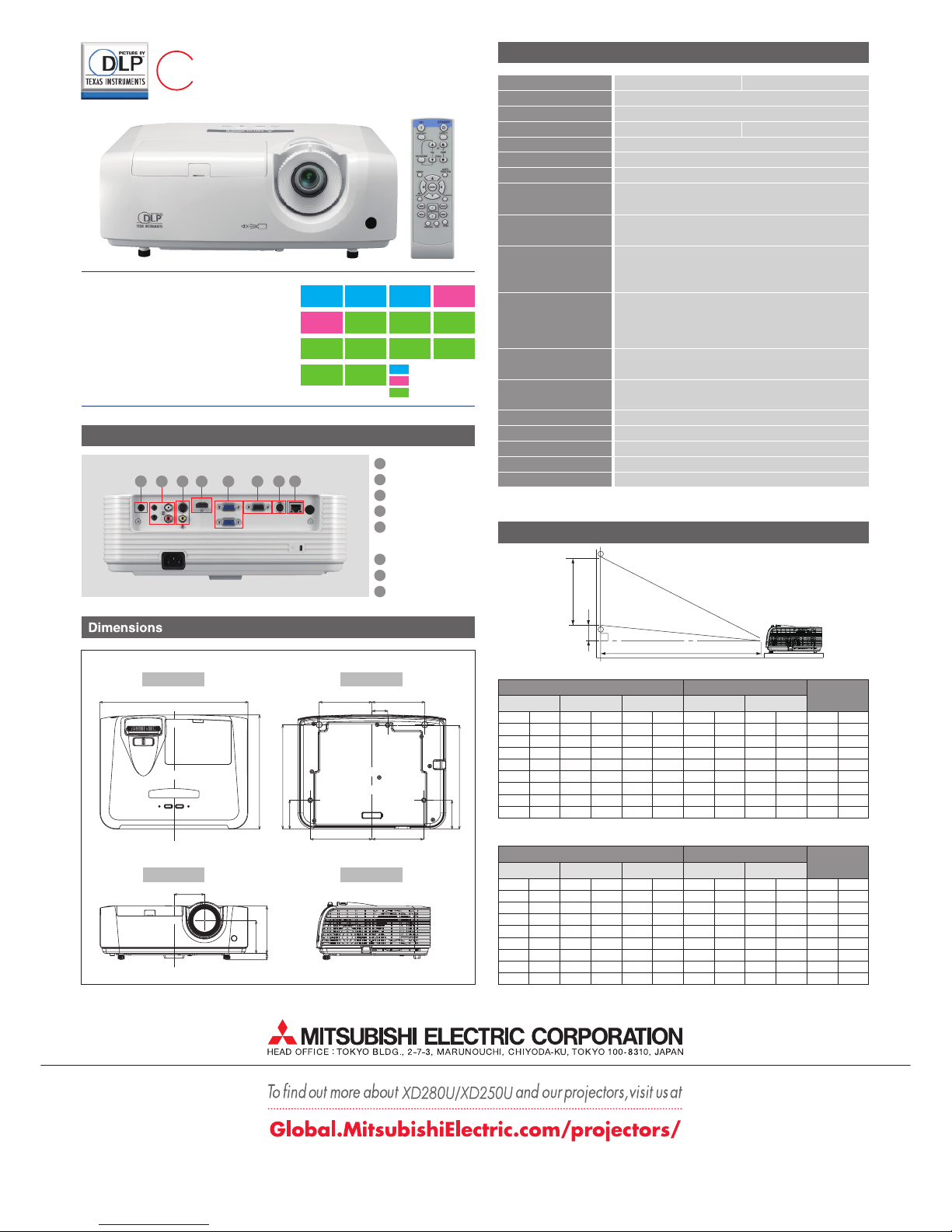

Screen size and Projection distance

As seen from the side

XD280U

XD250U

Height

Projection Distance (L)

XD280U

0.55" 1-Chip DMD

1024 x 768 (Total 786,432 pixels)

3000lm

2000 : 1

40" - 300"

1.6 - 2.0

Model

Display Technology

Resolution

Brightness

Contrast Ratio

Picture Size

Throw Ratio

Specifications

• Compliance with ISO21118-2005

•

All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

PC Compatibility 640 x 480 - 1280 x 1024,

True : 1024 x 768, Sync on Green available

NTSC / NTSC 4.43 / PAL

(

including PAL-M, N

)

/ SECAM / PAL-60

Component Video ; 480i/p (525i/p), 576i/p (625i/p),

720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)

Video Compatibility

190W (Shut-off Time 6000hr)with Low Mode,

230W (Shut-off Time 3000hr)with Standard Mode

Source Lamp

RGB ; mini D-sub 15pin x 2

Video ; RCA x 1, S-VIDEO x 1

Digital ; HDMI x 1

Audio ; Stereo mini jack (ø3.5mm)x 2, RCA jack (L/R) x 1

RGB ; mini D-sub 15pin x 1

Audio ; Stereo mini jack (ø3.5mm)x 1

Input Terminals

Output Terminals

Audio Speaker

Dimensions (W x H x D)

Weight

Power Requirements

Optional Lamp

10W Mono

325 x 118 x 251 mm / 12.6 x 4.1 x 9.3 inch

3.3kg / 7.3lbs

AC 100-240V, 50/60Hz

VLT-XD280LP

Screen

Diagonal Size Width (W)Max. Zoom Min. Zoom

Height (H)

inch

120

150

180

Distance from screen (L)Height projected

image (Hd)

inch

100

150

200

250

300

102

152

203

254

381

508

635

762

inch

120

160

200

240

122

163

203

305

406

508

610

122

152

229

305

381

457

inch

103

129

195

260

326

391

1.3

2.0

2.6

3.3

4.9

6.6

8.3

9.9

inch

125

157

236

315

394

1.6

2.4

3.2

4.0

6.0

8.0

10.0

inch

3.6

5.4

7.2

9.0

13.4

17.9

22.4

26.9

Screen size chart (4:3 aspect ratio)

The above numbers are approximate, and may be slightly different from the actual measurements.

Screen

Diagonal Size Width (W)Max. Zoom Min. Zoom

Height (H)

inch

123

147

Distance from screen (L)Height projected

image (Hd)

inch

100

150

200

250

300

102

152

203

254

381

508

635

762

inch

131

174

218

261

133

177

221

332

443

553

664

100

125

187

249

311

374

inch

113

141

213

284

356

427

1.4

2.1

2.9

3.6

5.4

7.2

9.0

10.8

inch

102

137

171

258

344

430

1.7

2.6

3.5

4.4

6.5

8.7

10.9

inch

7.2

10.8

14.3

17.9

26.9

35.9

44.8

53.8

114

137

Screen size chart (16:9 aspect ratio)

The above numbers are approximate, and may be slightly different from the actual measurements.

Top View Bottom View

Front View Side View

XD250U

2700lm

RS-232C ; mini DIN 8pin x 1,

LAN ; RJ-45 x 1

Communication Terminal

MOBILE XGA PROJECTOR

NEW

Revised publication effective Apr. 2009

Superseding publication of L-188-9-B8253-A Mar. 2009

Specifications subject to change without notice.

Unit:mm

Input and Output Terminals

Audio output

Audio input

S-Video/Video

HDMI

PC/Component

Video input

Monitor output

Serial RS-232C

LAN (RJ-45)

Brilliant

ColorTM

Color

Enhancer

Wall

Screen 10W

Speaker

Closed

Caption

Low

Fan Noise

1 2 3 7 8

654

104

72.2

116

135.5

229

228

113.9

116

34.5

325

251

Top/Side

Lamp

LAN

(RJ-45) HDMI

Low

Standby

Power

User

Logo

Projection

Password

Lock

Instant

Shutdown

Long-life

Lamp

Picture Performance

Presentation

User Friendly
