Ample Features for Increased Expressiveness and Operation Ease
Colour matching function
Multiple projectors side-by-side Multiple projectors top-bottom
Examples of Noise Levels
20dB : Rustling leaves, the ticking of
a wall clock (from 1m in front)
30dB : A whisper, a suburban
area very late at night
40dB : A quiet neighborhood,
small birds chirping
28dB
OSD menu multilanguage compatibility
(19 languages*)
2-Screen mode
PinP: XD8100U Split: WD8200U
UD8400U
Direct power o
Test pattern
High-altitude mode (2,000 to 2,700 m)
Closed caption support
(
(
Optional
*Previous languages: Chinese, English, French, German, Italian,
Japanese, Korean, Polish, Portuguese, Russian,
Spanish, Swedish
Languages added: Dutch, Indonesian, Malaysian, Norwegian, Thai,
Turkish, Vietnamese
The trademark of PJLink is trademark applied for registration or registered
trademark in Japan, the United States, and other countries and areas.
Projector fan noise can be distracting
during a presentation or
videoconference. Falcon series
projectors operate at a signi-
cantly low noise level of only 28dB (i.e. using a single lamp in
“low lamp” mode). As a result, presentations and conferences
can be held without distracting projector noise in the back-
ground.
Ultra Quiet 28dB Operation
Falcon series projectors come equipped with a colour wheel
that accentuates brightness, and an optional colour wheel for
accentuating colour is also available. A sensor-based detection
function is embedded in each unit to detect when a colour
wheel is replaced, at which time the colour wheel index is auto-
matically adjusted. This interchangeability enables a more ap-
propriate expression of the images being reproduced.
Interchangeable Colour Wheels
ID settings for up to 63 projectors are possible. Setting the IDs
allows control of each individual projector when multiple pro-
jectors are installed.
ID-compatible Remote Control

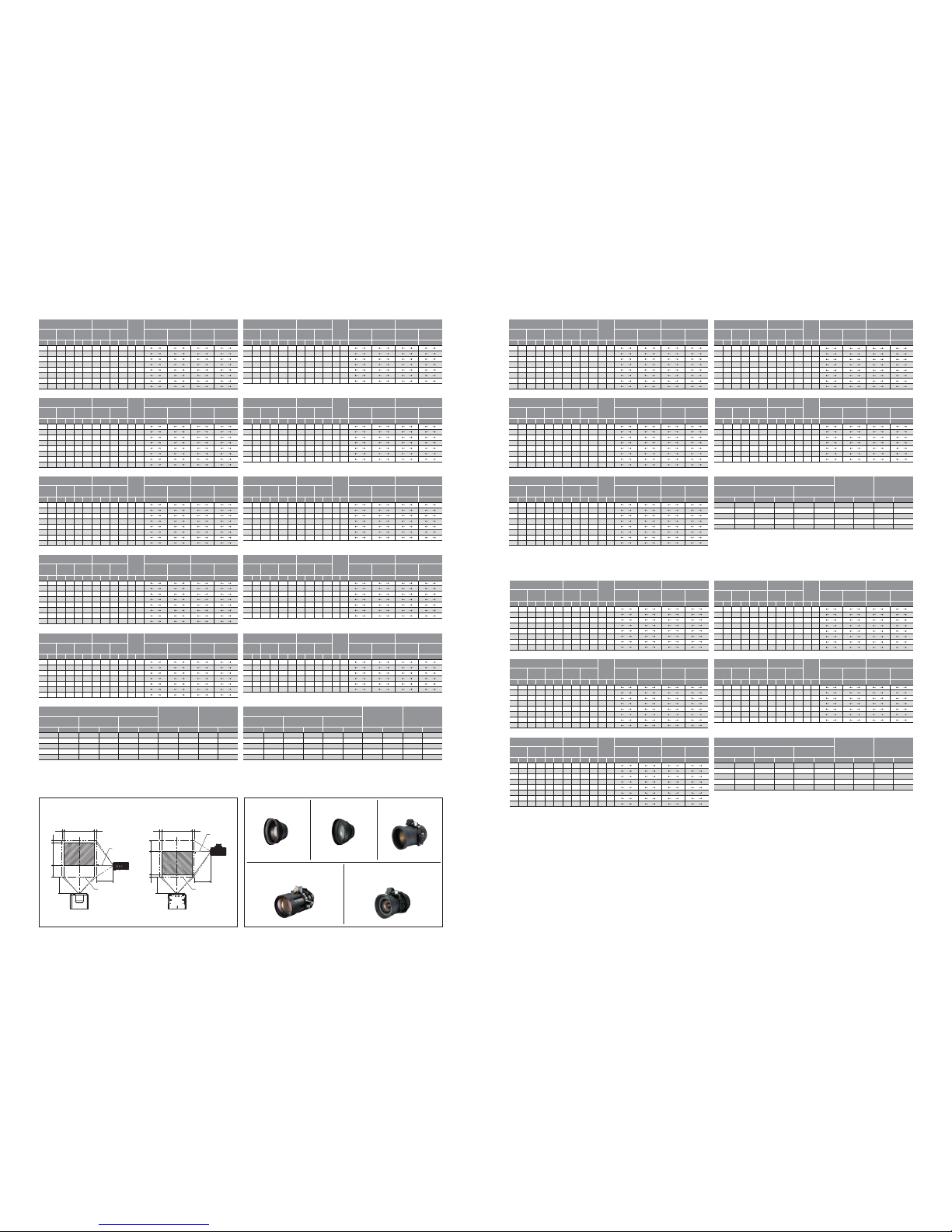

The zoom/focus and lens shift adjustment are powered by an
electric motor, ensuring easy operation.
Power Zoom/Focus and Lens Shift
*When in stand-by (low) mode. At this time, use of the LAN function,
serial output and Remote 1 is not possible.
Stand-by (low) mode power consumption is less than 0.3W,
oering increased energy savings and further contributing to
environmental preservation.
Stand-by Wattage under 0.3W*
An internal shutter in the projector enables light to be com-
pletely blocked when the projector is in Mute mode.
Mechanical Shutter
The lamps can be accessed from the side of the unit.
Lamp Side Access
The projectors are equipped with a RJ-45 LAN terminal for
remote operation. Additionally, when used with Crestron Room-
View TM, integrated control of up to 250 projectors including
power on/o control, message display and conrmation of lamp
service hours is possible. The Falcon series are equipped with
AMX Device Discovery for simpli-
ed device management and are
compatible with PJLinkTM.
Network Connectivity
Many dierent interfaces are possible thanks to a variety of ter-
minals including 3G-SDI (UD8400U only), DVI-D (HDCP), HDMI
and 5BNC. A control terminal (compatible with RS-
232C) is also provided for easier system integration.
Multiple Terminals
Images can be projected over a full 360°
range along the vertical axis* including
reproduction on the ceiling or oor. The
application possibilities are limitless.
*Excluding use in high-altitude mode.
360° Projection Capability
Keystone Correction
Trapezoidal distortion caused when the projector is not posi-
tioned directly in front of the screen can be corrected in both
vertical and horizontal directions.
Cornerstone Correction
Pixel conversion is used to correct trapezoidal and diagonal dis-
tortion that causes oblique images, ensuring the proper aspect
ratio.
Curved-surface Projection Correction
Projectors in the Falcon series are equipped with a distortion
correction function that can be used when projecting images
onto curved surfaces. Coordinates at the image’s four corners
are adjusted, enabling the projec-
tion angle to be adjusted. It is ex-
tremely handy for unique applica-
tions like projecting images onto
special surfaces such as pillars at
event sites.
Geometric Corrections
Edge Blending
Edge blending creates a seamless image by adjusting the
brightness at adjoining edges when using multiple projectors
side-by-side to reproduce a single widescreen image. This fea-
ture can also be utilised for top-bottom projection or a combi-
nation of side-by-side and top-bottom projection; for example,
when images are projected from four projectors in a two-by-two
arrangement.
Colour Matching
The use of multiple projectors to create a larger image can
result
in colour variations due to slight dierences in projector
processing. Falcon series projectors are equipped with a colour
matching function that resolves this problem.
Each projector is
adjusted so that the same colours are repro
duced when multiple
projectors are used simultaneously.
Multi-screen Solutions
Image overlap apparent
Without
edge blending
(UD8400U)
