Mitsubishi Electric SmartD90EV Manuel utilisateur

SMART PHOTO PRINTER

MODEL

SmartD90-EV

USER'S GUIDE

Version V1.5.2.0

TABLE OF CONTENTS

Introduction

Introduction 3

Basics 4

Construction of compositions 5

Operation

Easy Print Service 8

Fun Print Service 10

Sharing SmartD90EV HotFolders with Samba 12

FTP Service 13

#Hashtag print service 14

Settings

Login to the maintenance web application as administrator 15

Start maintenance page 16

Top Menu 17

HotFolder Setting 20

Print Setting 22

Service Setting 23

System Setting 25

Additional Setting 26

Maintenance 27

Frame Layout Setup 28

Appendix

How to customize Fun Print web frontend 29

SmartD90EV Upgrade procedure 30

How to check if the SmartD90EV has Internet access 32

Frequent tasks 33

System recovery 35

Frame Specification 37

Setting up a #Hashtag print service 40

Glossary 44

What’s new fron V1.5.0.

INTRODUCTION

The SmartD90EV is a new concept of photo printer system designed to offer an outstanding user

experience while print your camera shoots, memories, and any instant moment taken at any event:

Private parties, ceremonies, corporate events, …

The system consists of the multi format dye sublimation photo printer CP-D90DW combined with a

powerful small computer. The built in software of this new generation computer provides the

capability of wireless connection from different devices (Smartphones, Tablets, PCs, high end photo

cameras, …) and with multiple transfer protocols ( ftp, http, smb )

BASICS

The SmartD90EV software offers two different built in printing services based on web technology than can

be selected and setup from the maintenance application, that is also based on web technology and

provided by the internal web server.

The built in printing web services available are the EasyPrint service and the FunPrint service.

The SmartD90EV also offers printing services from external applications, like the Kiosk Print app available

for Android and iOS Smartphones and Tablets, high end photo cameras, and other applications and systems

developed by authorized third parties.

The SmartD90EV’s input photo/image area is structured in smart containers called HotFolders. The unique

combination of the HotFolders, the Smart Image Processor and the Print Module gives large flexibility to

print out high quality multi format photos ,add frames and text, and allows the SmartD90EV offer several

print services simultaneously: EasyPrint, Kiosk Print app, third parties apps , …

Smart


Processor


Construc-

tor

Module

Control

System control

HotFolder

Input

Output

SmartD90EV Block diagram

CONSTRUCTION OF COMPOSITIONS

Each one of the input HotFolders has its own image constructor parameters. The image processor uses these

parameters to build the image to be printed.

The construction of the image is based on a canvas concept. The SmartD90EV’s image processor creates a

solid surface base on where the different layers that will create the final image are painted following a

certain order. The availability of some layers depends on the selected service mode and the settings of the

HotFolder used by the service selected.

Each layer has its own group of settings that can be adjusted from the SmartD90EV’s maintenance

application.

All the layers are referenced to the upper left corner of the base canvas, being this point the 0,0 coordinate.

In order to create a correct final image, all the layers have to be equally sized.

The image/photo layer has four parameters for the image constructor: X, Y W, H. The values must be in

pixels and defines the are where the image will be fitted. If these values are blank, the image/photo will

match the canvas size.

Canvas

Height

Canvas X = 0

Canvas Y = 0

CONSTRUCTION OF COMPOSITIONS

When a specific area is defined for the image, it will be processed and fitted according to the canvas

format

Portrait canvas

Portrait image

Portrait canvas

Landscape image

Landscape canvas

Portrait image

Landscape canvas

Landscape image

The parts of the image out of

the red doted square (defined

area for the image) are not

printed.

Canva

CONSTRUCTION OF COMPOSITIONS

Main parameters to construct the image:

Text: Disable/Enable, Color, Size, Shadow, Background, horizontal and vertical position

Clip Arts: Select built in Clip Art images.

Frame: Disable / Enable. If enabled, then select the type of frame ( *.png file)

Canvas: Width, Height

Background

(Only FunPrint)

Image/Photo

Frame

(Only EasyPrint)

Text

(Only EasyPrint)

Print out

Layers overlap to construct the image to be printed

Clip Arts

(Only FunPrint)

Canvas

OPERATION

Easy Print Service

Easy Print provides a quick and easy way of printing stored images from mobile phones and tablets (iOS and

Android). This service feature and functions are:

• Quick print service

• One image per print

• Users can select an image from their photo

library or take a photo and send it directly for

printing thru Wi-Fi connection

• Import custom frames to add to the photo

• No photo editing

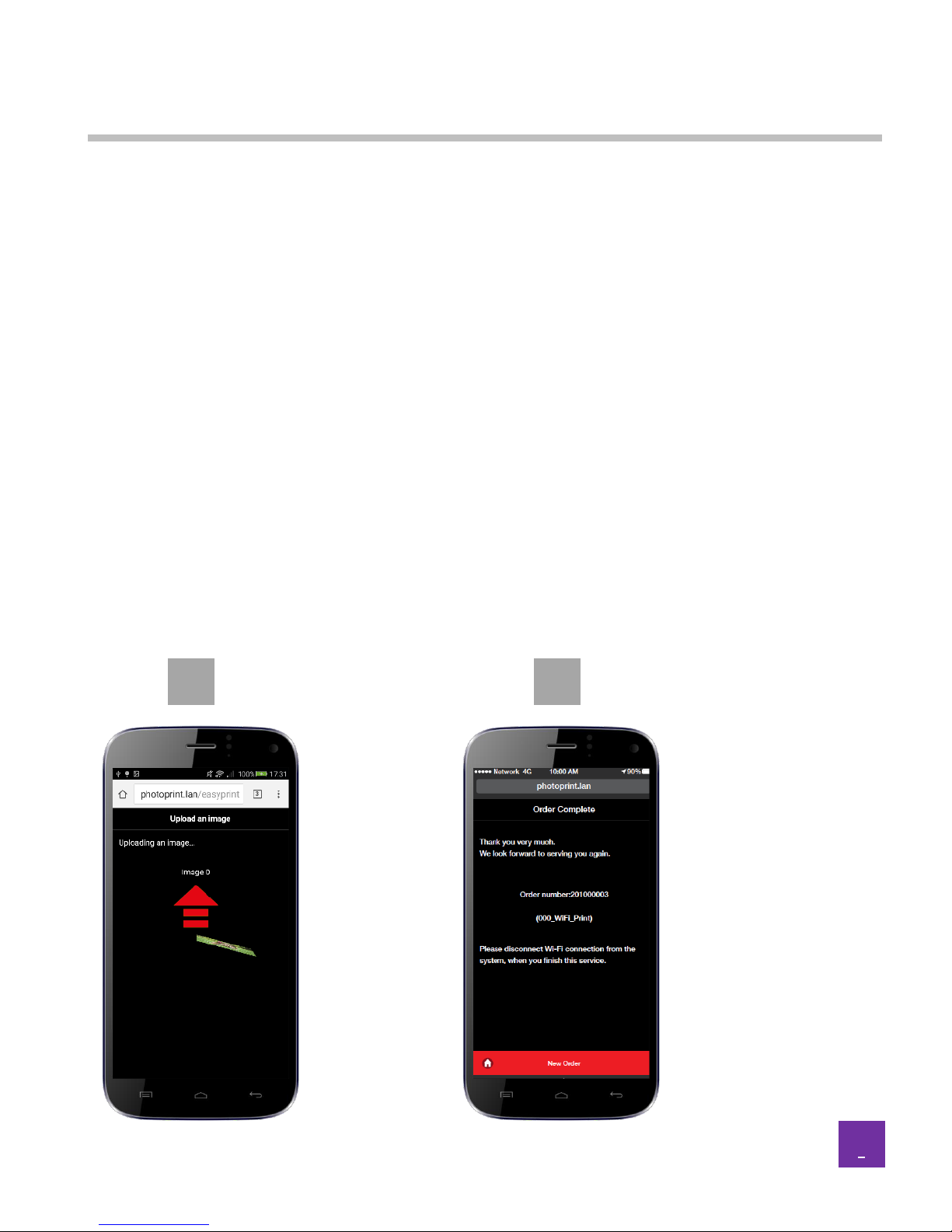

Easy Print1

After selecting photo:

1. “Order Confirm” screen will come up.

2. The image will be immediately uploaded to the system. Printing will begin shortly.

OPERATION

Easy Print2

After selecting photo:

3. Click “Print” button to upload the image to the SmartD90EV. Press “Back” to re-select photo.

4. The image will be immediately uploaded to the system. Printing will begin shortly

5. Once the image has been uploaded the user will get an order ref number that can be used for

validation purposes. To continue press “Select New image”.

OPERATION

Fun Print Service

Fun Print allows selection of up to 6 images from your mobile device and place them in a pre-format template. Can

preview and edit each image before printing. The feature and functions are:

• Up to 6 images per print

• Users can edit each image (size, angle, position)

and add decoration icons.

• Copies are selectable by end-users

• End-users can preview image(s) before sending

it for printing

Fun Print

After selecting photo:

1. Choose a template design (No. 1 - 6).

2. Tap on the square to place the photo in that location.

3. Optional: click Stamp to show Select Stamp screen. Choose a stamp and select a stamp size.

Touch image to stamp.

4. Optional: To edit the photo, touch the photo and hold, to show the edit menu.

*Adjust size, position and angle or re-select image (center icon).

5. Click confirm to upload the image and print.
