Mitel SmarT-1 EuroRoute Guide d'installation

8346-382-115-BA

Issue 1, January 1999

® Registered Trademark of MITEL Corporation

™ Trademark of MITEL Corporation

Installation & Programming Guide

Compact Dialer

2 - Com

act Dialer 8346-382-115-B

Issue 1, January 1999

NOTICE

The information contained in this document is believed to be

accurate in all respects but is not warranted by Mitel Corporation

(MITEL). The information is subject to change without notice and

should not be construed in any way as a commitment by Mitel or

any of its affiliates or subsidiaries. Mitel and its affiliates and

subsidiaries assume no responsibility for any errors or omissions

in this document. Revisions of this document or new editions of it

may be issued to incorporate such changes.

Table of Contents

8346-382-115-B

Issue 1

Januar

1999 Com

act Dialer - 3

Compact Dialer Register Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

General Notes on Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System and Trunk Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Route Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Programming Access Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Search Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Wall Mounting Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table of Contents

8346-382-115-BA

4 - Com

act Dialer Issue 1

Januar

1999

8346-382-115-BA

Issue 1, January 1999 Compact Dialer - 5

Section

System/Trunk

01 3 On-hook Timing 21

02 8 Rotary Inter-digit Pause 21

03 4 Inter-digit Time-out 21

04 4MF4Rate 22

05 0 ExchangeType 22

06 0 SubscriberType 22

08 0 Off-hook Beep 22

09 D Centrex Digit 23

Route Registers

20 Blank Route 1 Digit String 25

21 Blank Route 2 Digit String 26

22 Blank Route 3 Digit String 26

23 Blank Route 4 Digit String 26

24 20 Route 1 Dialling Rule 27

25 Blank Route 2 Dialling Rule 27

26 Blank Route 3 Dialling Rule 27

27 Blank Route 4 Dialling Rule 27

28 Blank System String 1 28

29 Blank System String 2 28

30 Blank System String 3 28

31 Blank System String 4 28

Programming Access

32 #345✳Local MF4 Password 29

33 #124✳Remote MF4 Password 29

SearchTables

01 Blank Search Table A, Set 1 31

02 Blank Search Table A, Set 2 31

03 Blank Search Table A, Set 3 31

04 Blank Search Table A, Set 4 31

05 Blank Search Table A, Set 5 31

06 Blank Search Table A, Set 6 31

07 Blank Search Table A, Set 7 31

08 Blank Search Table A, Set 8 31

09 Blank Search Table A, Set 9 31

0✳

✳✳

✳Blank Search Table A, Set 10 31

0# Blank Search Table A, Set 11 31

0A Blank Search Table A, Set 12 31

0B Blank Search Table A, Set 13 31

0C Blank Search Table A, Set 14 31

0D Blank Search Table A, Set 15 31

1 Compact Dialer Register Index

Compact Dialer Register Index

8346-382-115-BA

6 - Com

act Dialer Issue 1

Januar

1999

11 Blank Search Table B, Set 1 31

12 Blank Search Table B, Set 2 31

13 Blank Search Table B, Set 3 31

14 Blank Search Table B, Set 4 31

15 Blank Search Table B, Set 5 31

16 Blank Search Table B, Set 6 31

17 Blank Search Table B, Set 7 31

18 Blank Search Table B, Set 8 31

19 Blank Search Table B, Set 9 31

1✳

✳✳

✳Blank Search Table B, Set 10 31

1# Blank Search Table B, Set 1 31

1A Blank Search Table B, Set 12 31

1B Blank Search Table B, Set 13 31

1C Blank Search Table B, Set 14 31

1D Blank Search Table B, Set 15 31

Features

72 Blank Call Home Number 18

73 Blank Set Time/Date 18

74 Blank Call Home Time/Date 19

Commands

75 Not Applicable Clear Search Tables 19

76 Not Applicable Clear Default Route Strings (20 - 33) 19

81 Not Applicable Display Software Revision 19

82 Not Applicable Display Serial Number 19

83 Not Applicable Display Call Home Number 19

85 Not Applicable Display Search Tables 19

88 Not Applicable Drop from Program Mode 20

92 Not Applicable Enter Verify Mode 20

93 Not Applicable Re-load Defaults 20

95 Not Applicable Reset Statistics 20

96 Not Applicable Display Statistics 20

97 Not Applicable Leave Verify Mode 20

98 Not Applicable Exit Program Mode 20

✳

✳✳

✳#✳

✳✳

✳#Not Applicable Personal PIN Entry 28

8346-382-115-BA

Issue 1, January 1999 Compact Dialer - 7

Section



Indicates the Default for the register



Represents a burst of 400 Hertz tone transmitted over the phone to the

subscriber.

Absorbed Digits Absorbed digits are digits that are “absorbed” by the Compact Dialer via

the Search Tables. The digits that are “absorbed” are copied to a special

buffer, which can hold a maximum of 8 digits. The absorbed digits can be

totally removed from the destination number or appended to, via the

respective Dialing Rule token.

Centrex Abusinesstelephoneservice provided bythe PSTNthatgives thesubscriber

unique telephone features, similar to the features provided bya PABX.

Destination Number The destination number isthe number thatisdialled to reach thecalledparty.

Exchange Line The physical connection between a telephone service subscriber and the

PSTN that provides the telephone service.

Hz Hertz

mA milliampere

MF4 Dialling MF4 tone dialling

ms millisecond

PABX Private Automatic Branch Exchange

pps pulses per second

PSTN Public SwitchedTelephone Network

Rotary Dialling Pulse dialling

Route A Route is a set of preprogrammed dialling rules that can include access

codes to be used to place a telephone call over a particular service or carrier.

A Route is chosen by matching dialled digits with a template in the Search

Tables.

Search Tables The Search Tables consist of two buffers, Buffer A and Buffer B, in which

the user’s dialled digits are screened for the purpose of assigned a pre-

defined setof instructions. It is here inthe Search Tables where calls can be

barred or sent to a select carrier via a Dialling Rule.

sec second

2 Glossary of Terms

Glossary of Terms

8346-382-115-BA

8 - Com

act Dialer Issue 1

Januar

1999

8346-382-115-BA

Issue 1, January 1999 Compact Dialer - 9

Section

Description

The Compact Dialer package consists of:

• 1 Unit

• 1 Safety Instructional Sheet

• 2 Line Cords (one for the network and one for the telephone).

Mounting

The Compactcan be placedon a deskor any other flatsurface or mounted vertically using

self tapping screws. Avoid placing the Compact in areas where severe temperature exists,

such as direct air flow from a heating duct, radiator or direct sunlight. This productis not

intended for outdoor use.

The installer, resident, may use the supplied template (refer to page 39) as a guide to drill

holes in the wall with a 3mmdrill. Beforemounting the Compact to a wall, the installer

can supply two 18mm #6 pan-headscrews and placetheminto pre-made holes in the wall.

When attaching the Compact to a plaster wall, insert the nylon anchors into the pre-made

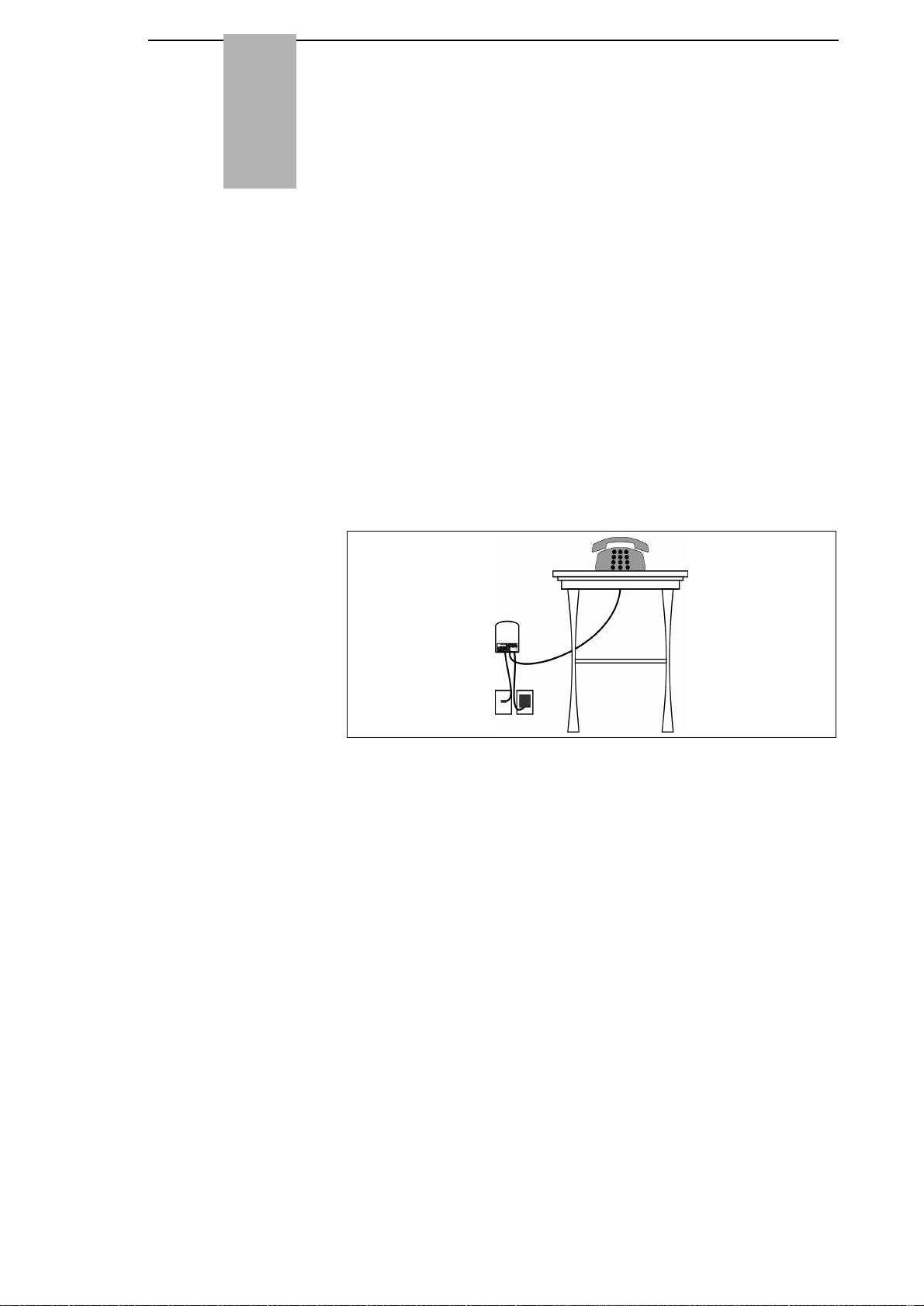

holesapplyingthe 18mm #6 pan-head screws. The illustration below shows the positioning

of the Compact.

Connecting the Compact to your phone line

• Verify that the two cables supplied with your Compact are connected. If they are

not connected, please refer to the section titled, Installing the Compact Connection

Leads.

• Unplug your telephone from the BT WallSocket.

Note: If you have multiple extensions plugged into the Master BT Socket, then

route all of them through the Compact. You will be able to make calls from any of

the connected extensions, and they will be routed correctly. Extensions hard-wired

into the back of the BT socket will NOT be routed through the Compact.

• Plug the lead from the Compact Dialer with the BT plug connected into your BT

wall socket.

• Connect your telephone(s) to the lead with the BT telephone socket on the

Compact.

• Pick up the telephone handset, and verify whether you have dial tone.

• Replace the handset.

3 Hardware Installation

Hardware Installation

8346-382-115-BA

10 - Com

act Dialer Issue 1

Januar

1999

Checking whether the Compact will work on your line

• Pick up the telephone handset and dial 0002.

• If you hear a continuous tone you may hang up. The Compact will now call the

management centre for programming. Please wait 10 minutes before using your

telephone.

• If you do NOT hear a tone or you get a BT recorded message, you will need to

contact your maintainer to obtain a power supply.

Warning

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations.

• Use caution when installing or modifying telephone lines.

Connecting a Power Supply

• Connect the power supply to the power supply jack.

• Plug the power supply into a power outlet, and verify that the Mains switch is on.

• Lift the telephone handset, and check for dial tone.

• Repeat the installation process with the power supply connected.

• If you experience problems, please call your maintainer.

Note: Before disconnecting the power supply, in installations requiring a power supply,

disconnect the telephone network connections first.

Power Failure

If a power failure occurs while the optional power supply is being used, theuser’s

telephone equipment will be connected directly to the Exchange line. The user will still

have accessto thetelephone network,but the Compact will notscreenor route calls.This

statement does notapply to the installationsthat donotrequire the optional power supply.

Note: Although this equipmentcan use either loop disconnect or DTMF signalling, only

the performance of DTMF signalling is subject to regulatory requirements for correct

operation. It is therefore strongly recommended that the equipment is set to DTMF

signalling for access to public or private emergency services. DTMF signalling also

provides faster call set up.
