Mircom FA-1000 SERIES Manuel utilisateur

LT- 1155 Rev. 0 Nov. 2012 Page 1of 4

FA-1000

Addendum for Fire Alarm Model

Installation Instructions

Mechanical Installation for the FX-1000 Fire Alarm Backbox

The enclosure model is BB-1024XT(R) with dimensions 14.76” wide by 35.8” long by 5.45”. Figure 1 below shows

backbox and door dimensions as well as the trim ring model FA-XT-TRB which is used for flush mounting of the enclosure.

The backbox and trim ring is black and the door is available in red Model BBX-1024XTR and white Model BBX-1024XT. In

all other respects, the BBX-1024XT and BBX-1024XTR are the same.

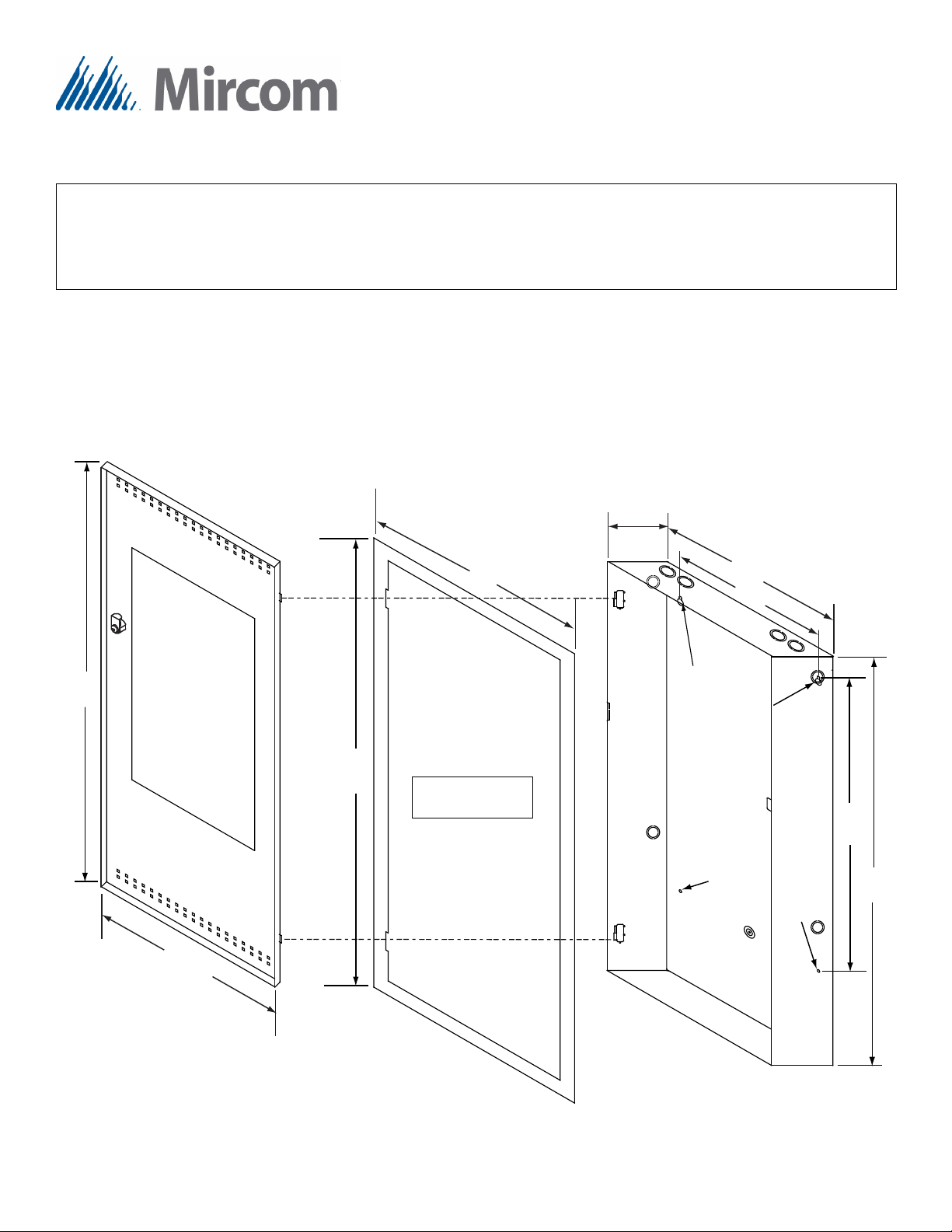

Figure 1: BBX-1024XT(R) Backbox Enclosure with Trim Ring

THIS DOCUMENT, LT-1155, ONLY DESCRIBES MECHANICAL INSTALLATION.

FOR ALL OTHER INFORMATION, REFER TO LT-600 FA-1000 INSTALLATION AND OPERATION MANUAL. FOR

INFORMATION RELATED TO WIRING REFER TO LT-600 SECTION 6.0. FOR POWER SUPPLY RATINGS REFER

TO LT-600 SECTION 6.7. FOR SPECIFICATIONS REFER TO LT-600 SECTION 13.0.

Adhere trim ring to

wall surface around

backbox.

14.5”

14.76”

17”

38”

25.5”

5.25”

12”

35.8”

Mounting Holes

35.5”

FA-XT-TRB

Trim Ring for

Flush Mounting

Backbox

Front Door

(Inside View)

LT- 1155 Rev. 0 Nov. 2012 Page 2 of 4

Figure 2: Surface and Flush Mounting Views of the BBX-1024XT

Figure 3: Cross-Section of the BBX-1024XT Flush Mounted Box with FA-XT-TRB Trim Ring

5.45” 0.7”

TRIM RING

WALL

WOOD OR

METAL STUD

BACKBOX

LT- 1155 Rev. 0 Nov. 2012 Page 3of 4

Mounting the Chassis into the BBX-1024XT(R)

Install the chassis into the BBX-1024XT(R) enclosure as shown below in Figure 4. Use four (4) 8-32 nuts to connect the

Chassis to the BBX-1024. Connect all green ground wires to the dimple in backbox and secure them using a #8 screw.

Ensure that this ground connection leads to an earth ground. Connect the battery cables to the batteries. Refer to LT-600

Section 6.7 Power Supply Connections for more information.

Figure 4: Mounting of MCC-1024-12XTDS into BBX-1024XT(R)

LT- 1155 Rev. 0 Nov. 2012 Page 4 of 4

Mounting Adder Boards into the Chassis

Up to 9 adder modules can be mounted in the same manner as explained in the respective LT-600 FA-1000

manual and as shown in Figure 5.

Figure 5: FX-2003-XT in a BB-1024XT Enclosure

Inside Chassis for mounting adder

modules. Three modules can be

mounted over the main re alarm

board and six abovethe main re

alarm board stacked three over

three.

Three adder modules

mounted over main re

alarm board.

Main Fire Alarm Board
