C43000-002H USER MANUAL

MODEL: C43000-002H

Minuteman International specializes in innovative design and manufacturing of reliable

air movers, while providing exible and efcient real-world solutions to meet our

customer’s changing needs. Our movers are small and lightweight yet powerful enough

to meet your restoration, drying, and ventilation needs. Our products are made to be

durable and high performing.

The contents of this manual are based on the latest product information available at the time of publication. We reserve

the right to make changes or improvements to the machine without notice.

Minuteman International •14N845 U.S. Route 20 •Pingree Grove, IL 60140

1 (800) 323-9420 •www.minutemanintl.com

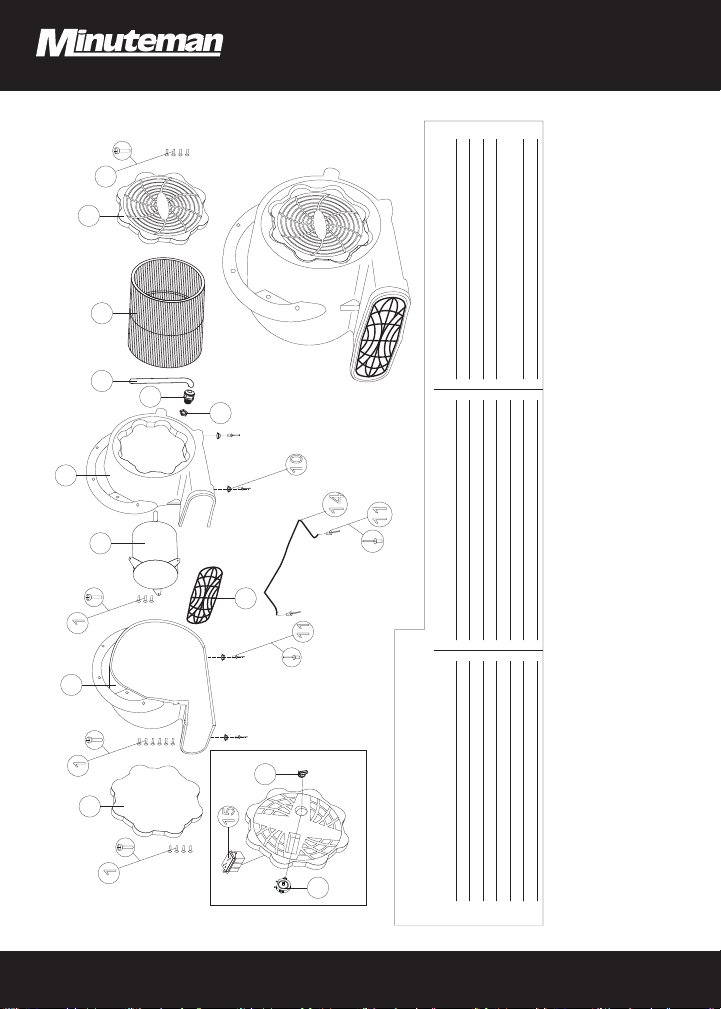

ref# ref# ref#

3. APSKNB

4. APSRB

5. APC-25

1. APSFH

cap

strain relief-lq tight

power cord

screw

qty qty

qty

3a. APSRT Rotary Switch (internal) 1

1/3 HP Air Mover

6. APNH

8. APMT-B

9. APH300RM

10. APRF

11. APRVT

7. APGA300E

14. APA300WS

15. APGFCI

16. APGA300S

13. APGA300S

12. APF-01

nut,hex

front guard

AC motor

housing - blower

rubber foot

rivet

blower wheel,cage

guard,intake

kickstand

GFCI Breaker 1

Guard, Intake,

switch plate A300 1

descriptiondescription description

11 10

119

Your Air Mover Provider

PAGE PB PAGE 1

PREFACE

Thank you for your purchase of the industry standard for industrial

equipment. Minuteman International takes great pride in offering the

most dependable, reliable and best value in industrial equipment; we set

the standard.

Our Customer Service department would like to hear from you. If you see

any errors, omissions or something that needs clarication in this spare

parts catalog please let us know. We are working hard toward perfection in

our corner of the process to bring you the best you can buy. Please copy

the form below, ll out andcomment on how you found our catalog.

Thank you.

Name: ______________________________________________________________

Title: _______________________________________________________________

Company: __________________________________________________________

Address: ___________________________________________________________

Country: ____________________________________________________________

Type of equipment or model number: _________________________________

Comments:

Please return to: Minuteman International, Inc.

14N845 U.S. Route 20

Pingree Grove, Illinois 60140 USA

Phone: (800) 323-9420 Email: [email protected]

Your Air Mover Provider

PAGE 2

NOTES

Your Air Mover Provider

PAGE 2 PAGE 3

NOTES

Your Air Mover Provider

PAGE 4

GENERAL SAFETY WARNINGS

• Do not operate your air mover with a cut or frayed cord. Do

not run power cord under carpeting. Do not cover power cord

with rugs, runners, or similar covers. Place power cord away

from trafc area to prevent tripping.

• Do not unplug your unit by pulling on its cord. Firmly grasp the

plug and pull it out of the wall socket or power receptacle.

• The plug has a safety ground pin installed that must not be

removed. If the pin is damaged or missing, replace the power

cord before further use. Visually inspect the power cord before

each use. Ignoring these safety precautions may result in a re

or electrical shock.

• Always use a GFCI outlet. Contact a qualied electrician

for verication and/or installation of a GFCI receptacle

if necessary.

• To reduce the risk of re or electrical shock, do not use this

fan with any after-market or solid-state speed control device.

• To prevent electric shock, do not operate the unit in standing

water. Never plug in or unplug the unit with wet hands or while

standing in water.

• Do not drop the unit. Sudden and severe impact may result in

damage to internal components.

Your Air Mover Provider

PAGE 4 PAGE 5

• Do not operate unit with the safety grills, existing covers,

shields, or housing removed. Personal injury may result.

Do not stick ngers or objects into the safety grills.

• To avoid injury, do not direct air ow at face or body. Do not

allow children to play with or around unit at any time.

• Do not move or carry air mover while unit is operating.

• Drop cloths or other loose fabrics can be drawn against

the unit thereby restricting airow. This may cause the unit

to overheat. Keep area around unit free and clear of any

obstructions.

• Save the shipping carton in case your air mover needs to

be returned.

• This unit should never be serviced or cleaned while it is

plugged into a live electrical power source.

• Keep away from heat, chemicals, and other potentially

hazardous materials.

• Use equipment as instructed and with manufacturer’s

recommended accessories.

• Do not operate this equipment while impaired, distracted, or

under the inuence of alcohol, drugs, or medication.

OPERATING INSTRUCTIONS

When operating the unit, please adhere to the following:

Your Air Mover Provider

PAGE 6

• Inspect unit upon receipt for any freight damages. Be sure

to keep all original packaging if return process is required.

If you discover any damages, please contact Minuteman

International.

• Check the machine for any obstructions in the fan or airow

areas before plugging the unit in for operation.

• Set the machine in the desired orientation for operation.

• Ensure the switch is in the (OFF) position.

• Plug the power cord into a GFCI outlet.

• Do not use an extension cord.

• Do not use an adapter.

• Check GFCI protection by pushing “TEST” button. If operating

properly, “RESET” button will pop out. Remember to press

“RESET” button after testing to use machine.

• Do not plug more than a total of 12 amps into the GFCI outlet.

• Turn unit on

• When ‘daisy-chaining’ the machines, turn one unit on at a

time to prevent excessive current ood from starting multiple

units at one time.

• If red LED begins to ash, the unit has lost GFCI protection

and should be replaced immediately.

Your Air Mover Provider

PAGE 6 PAGE 7

USER SERVICING

Never service or clean this unit while it is plugged into outlet.

SYMPTOM PROBLEM SOLUTION

Unit will not turn on • Not plugged in

• Switch is worn

• Tripped circuit

breaker

• Short in power cord

• Capacitor on motor is

damaged

• Plug unit into proper

outlet

• Replace switch

• Reset breaker

• Replace power cord

or replace cord end

• Replace motor

Air mover will not

operate on all speeds

• Switch is worn

• Capacitor on motor is

worn or damaged

• Replace switch

• Replace motor

Air mover runs or starts

slowly

• Capacitor terminal

may be shorting

• Replace motor

The fan is rubbing • Fan is off-center • Replace fan

• Turn off motor and

unplug unit then

remove foreign object

• Replace motor

• Replace fan

Your Air Mover Provider

PAGE 8

ref# ref# ref#

3. APSKNB

4. APSRB

5. APC-25

1. APSFH

cap

strain relief-lq tight

power cord

screw

qty qty

qty

3a. APSRT Rotary Switch (internal) 1

1/3 HP Air Mover

6. APNH

8. APMT-B

9. APH300RM

10. APRF

11. APRVT

7. APGA300E

14. APA300WS

15. APGFCI

16. APGA300S

13. APGA300S

12. APF-01

nut,hex

front guard

AC motor

housing - blower

rubber foot

rivet

blower wheel,cage

guard,intake

kickstand

GFCI Breaker 1

Guard, Intake,

switch plate A300 1

descriptiondescription description

11 10

119

HEPA FILTER COMPONENTS:

ref# description qty

110038 Filter-hepa 10" 2

390005 Gasket 2

740188 Toggle Switch 1

Your Air Mover Provider

PAGE 8 PAGE 9
