Introduction

Meet Minoru, meanin “Reality” in Japanese, the World’s first 3D webcam.

Connect Minoru to your PC and he will come alive, his eyes will li ht up and he will be

lookin at you in 3D.

Your friends and family will now be able to see you in 3D over your favourite messa in

pro ram like Windows Live Messen er, Skype, AOL instant messen er, OoVoo and many

others.

You will also be able to take 3D photos or even shoot 3D videos and upload them to

YouTube.

Installation

Hardware Installation

Carefully unpack Minoru and place on the desk in front of you or perch on the top of your

monitor as shown below. Ideally Minoru should be placed approximately 3 feet (1 metre)

away from you.

Plu Minoru into a high speed USB 2.0 port on your PC. If possible please use one of the

USB ports at the rear of your PC.

Note: Minoru will not work properly when connected to an older type USB 1 1 port!

A pop up should appear above the system tray, ‘New Hardware Found’ or ‘Installin Device

Driver Software’. Wait for this process to complete before installin the Minoru software.

M i n o r u 3 D W e b c a m U s e r ’ s G u i d e , R e v i s i o n 1 .

2 , F e b r

u a r y

2009

P a e | 5

Software Installation

Open your CD ROM drive and place the software CD in the drive. Close the CD ROM drive

and follow the onscreen instructions to complete the installation of the Minoru software.

M i n o r u 3 D W e b c a m U s e r ’ s G u i d e , R e v i s i o n 1 .

2 , F e b r

u a r y

2009

P a e | 6

Minoru Settings

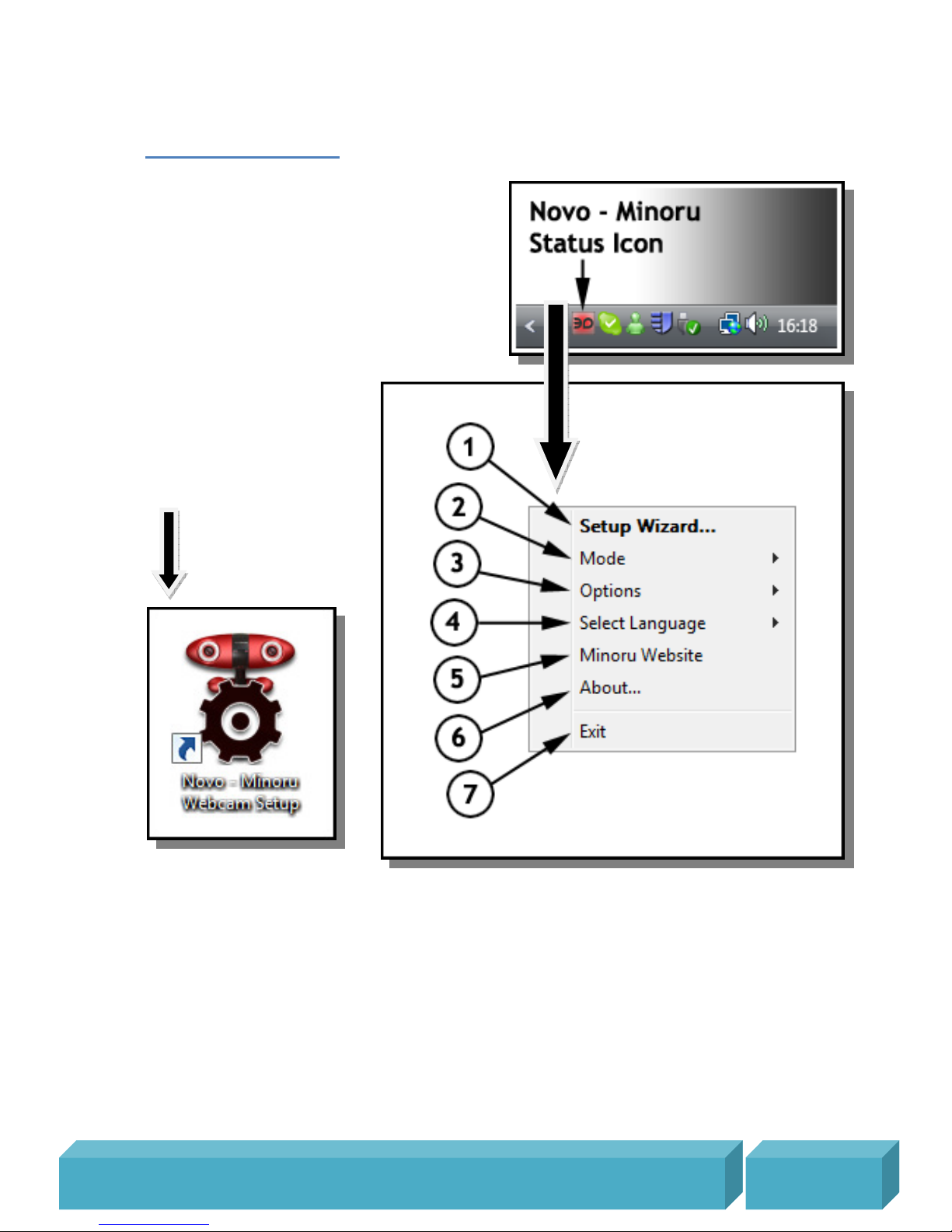

You can access Minoru’s settin s at any time by

ri ht clickin the Minoru status icon in the

system tray. You can access and chan e the

settin s even while Minoru is in the middle of a

video call or durin a video recordin session.

Double clickin the icon will start the Minoru

setup wizard.

If the Minoru status icon does

not appear in the system tray

then you should start ‘Minoru

Webcam Setup’ by double

clickin the desktop shortcut.

M i n o r u 3 D W e b c a m U s e r ’ s G u i d e , R e v i s i o n 1 .

2 , F e b r

u a r y

2009

P a e | 7

1 – Setup Wizard...

Before usin Minoru for the first time you should focus and then line up Minoru’s two eyes.

First place Minoru on the desk or on the top of your monitor at a distance of about 3 feet

(1 metre) from your face. At this sta e you should not wear the 3D lasses.

Focus Minoru’s left eye by turnin the lens rin until the ima e of your face appears sharp.

M i n o r u 3 D W e b c a m U s e r ’ s G u i d e , R e v i s i o n 1 .

2 , F e b r

u a r y

2009

P a e | 8

Focus Minoru’s ri ht eye by turnin the lens rin until the ima e of your face appears

sharp.

Vertical ali nment...At this point you should still not wear the 3D lasses. Look at Minoru

and you should see two ima es of your face on the screen, a blue ima e and a red ima e.

Adjust the vertical slider so that the red and blue ima es of your face are at exactly the

same hei ht on the screen. Sometimes it is easiest to look at the top or bottom of your

head or at your eyes in order to ali n the two ima es.

M i n o r u 3 D W e b c a m U s e r ’ s G u i d e , R e v i s i o n 1 .

2 , F e b r

u a r y

2009

P a e | 9

Horizontal ali nment...Still do not wear the 3D lasses, don’t worry you can put them on

very soon. Look at the two ima es of your face on screen and adjust the horizontal slider

so that the two ima es of your face mer e into one. Note that you will still see red and

blue ima es of the objects in front and behind you.

Now put on the 3D lasses for the first time. Spend some time experiencin the 3D effect

for yourself. Stretch your arms out ahead of you and they will appear to come out from

the screen. Put your arms behind your head and they will appear to o into the screen.

M i n o r u 3 D W e b c a m U s e r ’ s G u i d e , R e v i s i o n 1 .

2 , F e b r

u a r y

2009

P a e | 10

2 - Mode

You can select from three different operatin modes for Minoru

3D – The viewer of the 3D video will need to use the 3D lasses to see the 3D effect

Picture in Picture (PiP) – This mode is useful if you want to show some close up detail of

an item while maintainin the view of your face. Hold the item up to Minoru’s left eye and

the detailed ima e will appear in the lar e PiP window.

2D – You can use this mode if the viewer doesn’t have any 3D lasses.

Side by Side – For the real 3D enthusiast! Select from Left/Ri ht (LR) or Ri ht/Left (RL).

You can use these modes to record ‘Side by Side’ pictures. The recorded video can then be

played back usin a stereoscopic player, see ‘Recommended software to et the most

from Minoru’, pa e 20.

The current mode is indicated by the Minoru status icon in the system tray

– Minoru is workin in 3D mode

– Minoru is workin in Picture in Picture (PiP) mode

– Minoru is workin in 2D mode

- Minoru is workin in ‘Side by Side’ mode

– Minoru is not connected to the PC.

Please check that Minoru’s USB plu

is connected to the PC.

3 - Options

Start Minoru when Windows starts. If this is ticked then the Minoru Webcam Setup starts

automatically when Windows starts.
