Minolta MULTI GLOSS 268 Manuel utilisateur

MULTI GLOSS 268

UNI GLOSS 60

A wide array of display modes

(corresponding to six languages)

You can measure by selecting Basic

mode, Continuous, Statistics from

the Mode screen.

You can select the measurement

angle from the Geometry selection

screen and display two angles or

three angles at the same time.

(MULTI GLOSS 268)

You can select Mode,

Geometry selection,

Difference,

and Calibration

from the Main Menu screen.

Makes its debut with more multifunction to achieve

the effective gloss measurement.

Geometric selection selected two angles.

(MULTI GLOSS 268)

Geometric selection selected three angles.

(MULTI GLOSS 268)

PASS/FAIL Standard value name

Sample name

Large screen size and easily viewable liquid

crystal display.

Easy operation with mode scroll wheel.

By operating the mode scroll wheel in accordance with

easy-to-understand menu items, you can set a wide

array of functions easily.

Wide measurement range that can be

measured from plastic to metal surface

with a high gloss finish : 0.0~ 2,000 GU

(in the case of 20˚)

The gloss difference measurement of the

standard/sample and the PASS/FAIL evaluation.

You can make a pass/fail evaluation by setting the limit value.

You can enter the sample name and the standard value name in

the measurement result.

Autodiagnosis function of calibration

This means a little frequency of calibration and long-term stability.

In addition, if the calibration is required, the message will be

displayed.

Calibrating standard

Protective holder

• It has data compatibility

with the previous MULTI

GLOSS 268 / UNI GLOSS 60,

and improves repeatability

and reproducibility.

• Approx. 10,000 measure-

ments are available with one

AA(R6)size alkaline battery.

(20˚, 60˚, 85˚)

(60˚)

Mac OS 9.2J / Adobe Illustrator9J

MULTI_GLOSS_268_01.ai 2004.11.24

∗ Microsoft Excel®97 or higher.

Windows®, Windows NT®and Excel®is a trademark or registered trademark

of Microsoft Corporation of America or its subsidiaries.

Mac OS 10.3.9J / Adobe Illustrator10J

MULTI_GLOSS_268_02.ai 2007.7.5

AHIDPK

Printed in Japan9242-4890-11

2003 KONICA MINOLTA SENSING, INC. 9

OS Windows®98/2000/Me/XP, Windows NT®4.0

Certificate No : JQA-E-80027

Registration Date : March 12, 1997

Certificate No : YKA 0937154

Registration Date : March 3, 1995

Model

MULTI GLOSS 268 UNI GLOSS 60

Measurement geometry

 20˚, 60˚, 85˚ 60˚

Size of measurement

 20˚ : 10 X 10

spot

 60˚ : 9 X 15

 85˚ : 5 X 38

Standard compliance

 ISO 2813, ISO 7668, ASTM D 523,

 ASTM D 2457, DIN 67 530, JIS Z 8741,

 BS 3900, BS 6161(Part 12)

Measurement

 20˚ : 0.0~2,000 GU

range

 60˚ : 0.0~1,000 GU  60˚ : 0.0~1,000 GU

 85˚ : 0.0~160 GU

Resolution

 0.0~99.9 GU : 0.1 GU

 100~2,000 GU : 1 GU

Repeatability 0.0~99.9 GU : 0.2 GU

 100~2,000 GU : 0.2% of reading

Inter Instrument  0.0~99.9 GU : 0.5 GU

agreement 100~2,000 GU : 0.5% of reading

Memory

 999 measurements with date and time

Difference measurement

 Memory for 50 standard

Battery performance

 Approx. 10,000 measurements

 (when using 1.5 V AA(R6)size alkaline battery)

Measurement time

 0.5 seconds (each measurement)

Power OFF

 Auto : 10~99 seconds select

Languages

 English,Spanish,German,French,Italian,Japanese

Measurement mode

 Normal mode (Sample mode, Statistics, Continuous,

 Basic mode), Difference mode

Interface

 RS-232C format

Operating temperature  15 to 40˚C

/humidity range



relative humidity 85% or less (at 35˚C) with no condensation

Storage temperature

 -10 to 60˚C

/humidity range



relative humidity 85% or less (at 35˚C) with no condensation

Power supply

 1.5 V AA(R6)size alkaline battery

Dimensions

 155(W) X 73(H) X 48(D)

Weight

 400 g

Model

MULTI GLOSS

268

UNI GLOSS

Standard Calibration holder TRI Calibration holder 60˚

accessories (High gloss tile) (High gloss tile)

 PC-cable

 Carrying case

 Data transfer software (gloss-link)



1.5 V AA(R6)size alkaline battery

Optional Checking standard TRI  Checking standard 60˚

accessories

(3 semi gloss tiles 20, 60, 85˚) (High and semi gloss tile)

 Checking standard mirror

 (3 tiles 20, 60, 85˚)

 USB-adapter

 AC adapter

Note : The specifications described in this document are subject to change without notice.

Specifications Accessories

ASTM DIN ISO

MULTI GLOSS 268 / UNI GLOSS 60 conforms with

international specifications ASTM D 523, DIN 67 530,

ISO 2813.

SAFETY PRECAUTIONS

For correct use and for your safety, be sure to read the

instruction manual before using the instrument.

Always connect the instrument to the specified power supply

voltage. Improper connection may cause a fire or electric shock.

Be sure to use the specified batteries. Using improper batteries

may cause a fire or electric shock.

Dimensions Units : mm

155

With dedicated Data transfer software

(gloss-link), the data management such as

data transfer to Excel®∗is easy.

Ce manuel convient aux modèles suivants

Autres manuels Minolta Instrument de mesure

Minolta

Minolta Auto Meter IV F Manuel utilisateur

Minolta

Minolta AUTO METER IIIF - PART 2 Manuel utilisateur

Minolta

Minolta COLOR METER IIIF - PART 1 Manuel utilisateur

Minolta

Minolta Flash meter IV Manuel utilisateur

Minolta

Minolta AUTOMETER III - PART 3 Manuel utilisateur

Minolta

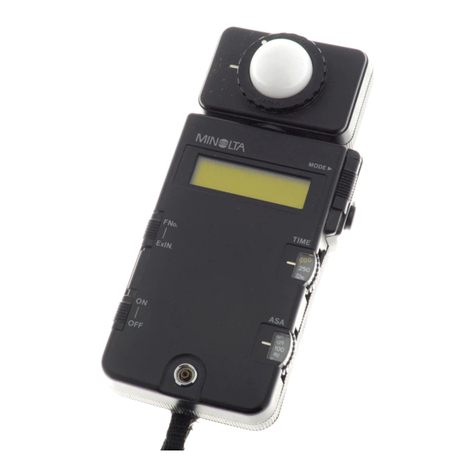

Minolta FLASH METER III - PART 2 Manuel utilisateur
