RIPTIDE ULTERRA™

BOW-MOUNT TROLLING MOTOR

Installation Instructions

INTRODUCTION

Made by Minn Kota

Johnson Outdoors

Marine Electronics, Inc.

121 Power Drive

Mankato, MN 56001 USA

Trolling Motors

Produced in 2015

SER NO R365 MK12345

RT_ULTERRA 80/IP-54"_BT

MODEL 1358955

EXAMPLE

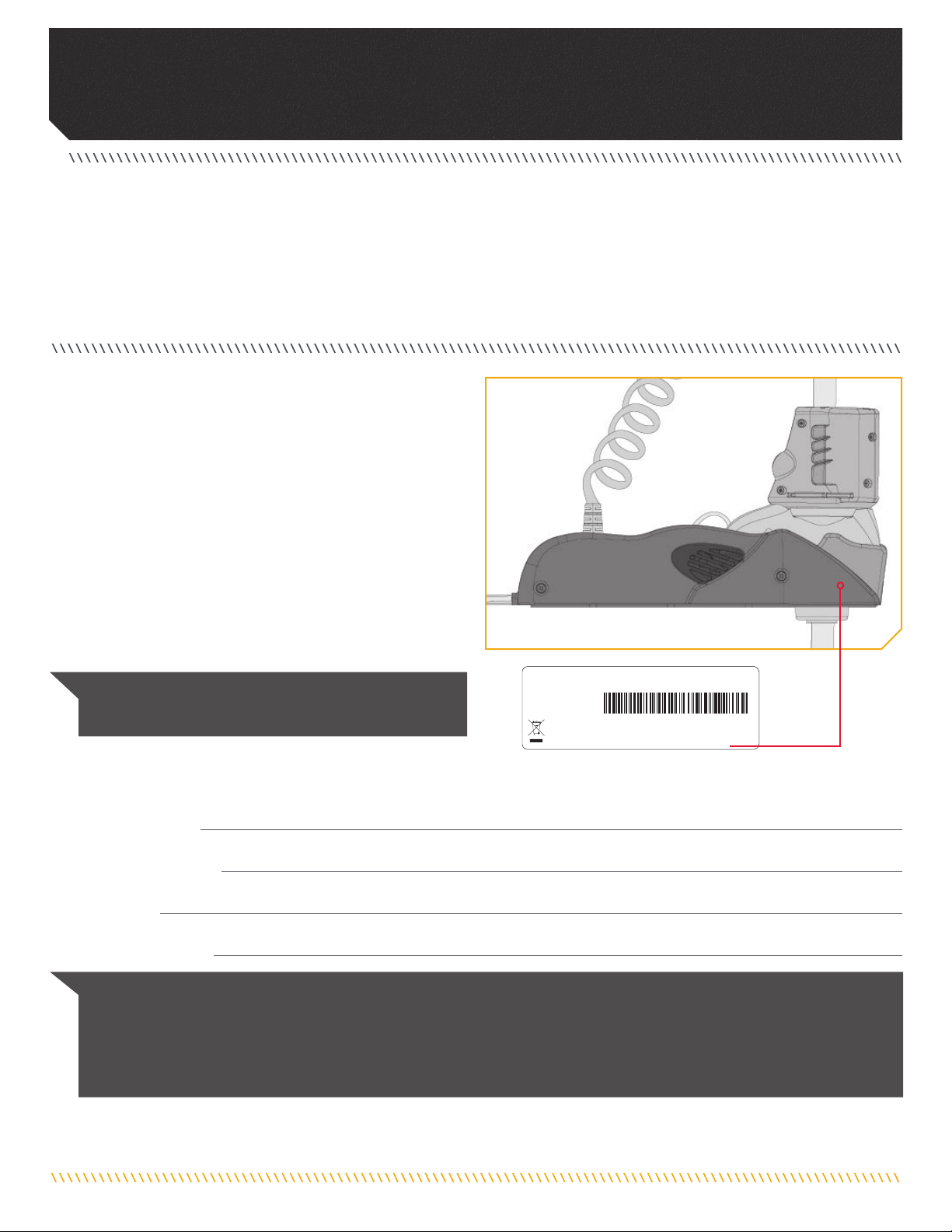

NOTICE: The serial number on your Riptide Ulterra is

located underneath the bracket.

THANK YOU

Thank you for choosing Minn Kota. We believe that you should spend more time ﬁshing and less time positioning your boat. That’s why

we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out

and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage

that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you

catch more ﬁsh.

Model Serial Number:

Controller Serial Number:

Purchase Date:

Store Where Purchased:

REGISTRATION

Remember to keep your receipt and immediately register

your trolling motor. A registration card is included with your

motor or you can complete registration on our website at

minnkotamotors.com.

SERIAL NUMBER

Your Minn Kota 11-character serial number is very important. It

helps to determine the speciﬁc model and year of manufacture.

When contacting Consumer Service or registering your product,

you will need to know your product’s serial number. We

recommend that you write the serial number down so that you

have it available for future reference.

NOTICE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace this unit. You

may obtain service by: calling Minn Kota at (800) 227-6433; returning your product to the Minn Kota Factory Service Center;

sending or taking your product to any Minn Kota authorized service center. A list of authorized service centers is available on our

website, at minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any

of the above options.

MOTOR INFORMATION (For Consumer Reference Only)

minnkotamotors.com | 3

SAFETY CONSIDERATIONS

Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor

is only permitted for persons that have read and understood these user instructions. Minors may use this motor only under

adult supervision.

WARNING

You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate

and reliable tool that will enhance boat operation and improve your ability to catch ﬁsh. This product does not relieve you from the

responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can

respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Minn

Kota product in an area free from hazards and obstacles.

WARNING

Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from

the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure

that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor

make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts

of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the

complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the

lower unit considerable damage to the motor can occur. This damage will not be covered by warranty.

WARNING

Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The

motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for ﬂoating

objects. Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are

not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor

during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2.

WARNING

It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved accessories

including to mount or control your motor may cause damage, unexpected motor operation and injury. Be sure to use the product and

approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected motor operation. Keep all

factory installed parts in place including motor and accessory covers, enclosures and guards.

WARNING

When stowing or deploying the motor, keep ﬁngers clear of all hinge and pivot points and all moving parts. In the event of unexpected

operation, remove power leads from the battery.

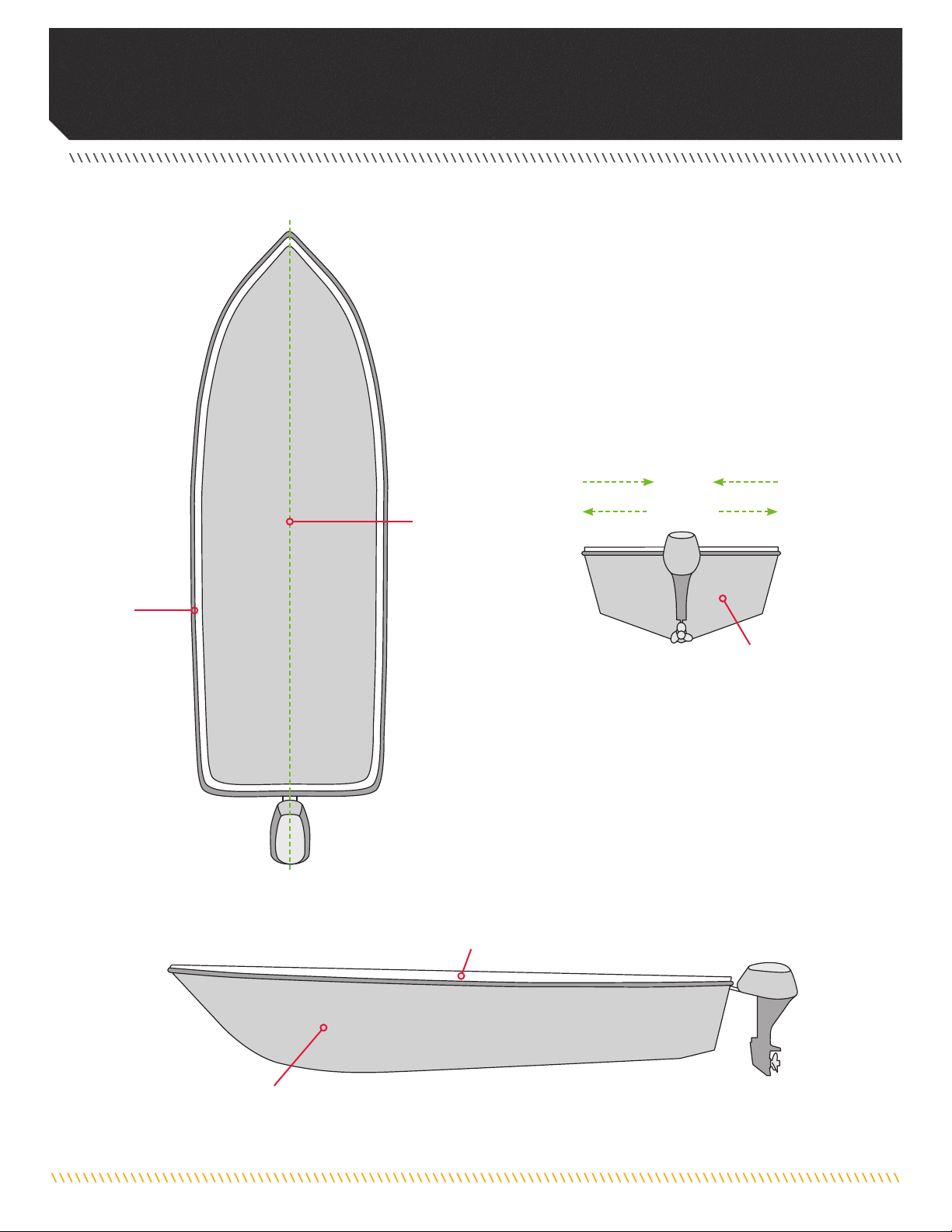

KNOW YOUR BOAT

Keel

Bow

Hull

Bow

Stern

Port

Port Starboard

Starboard

Gunwale

Transom

Inboard

Outboard

minnkotamotors.com | 5

INSTALLATION

19 20 18 17

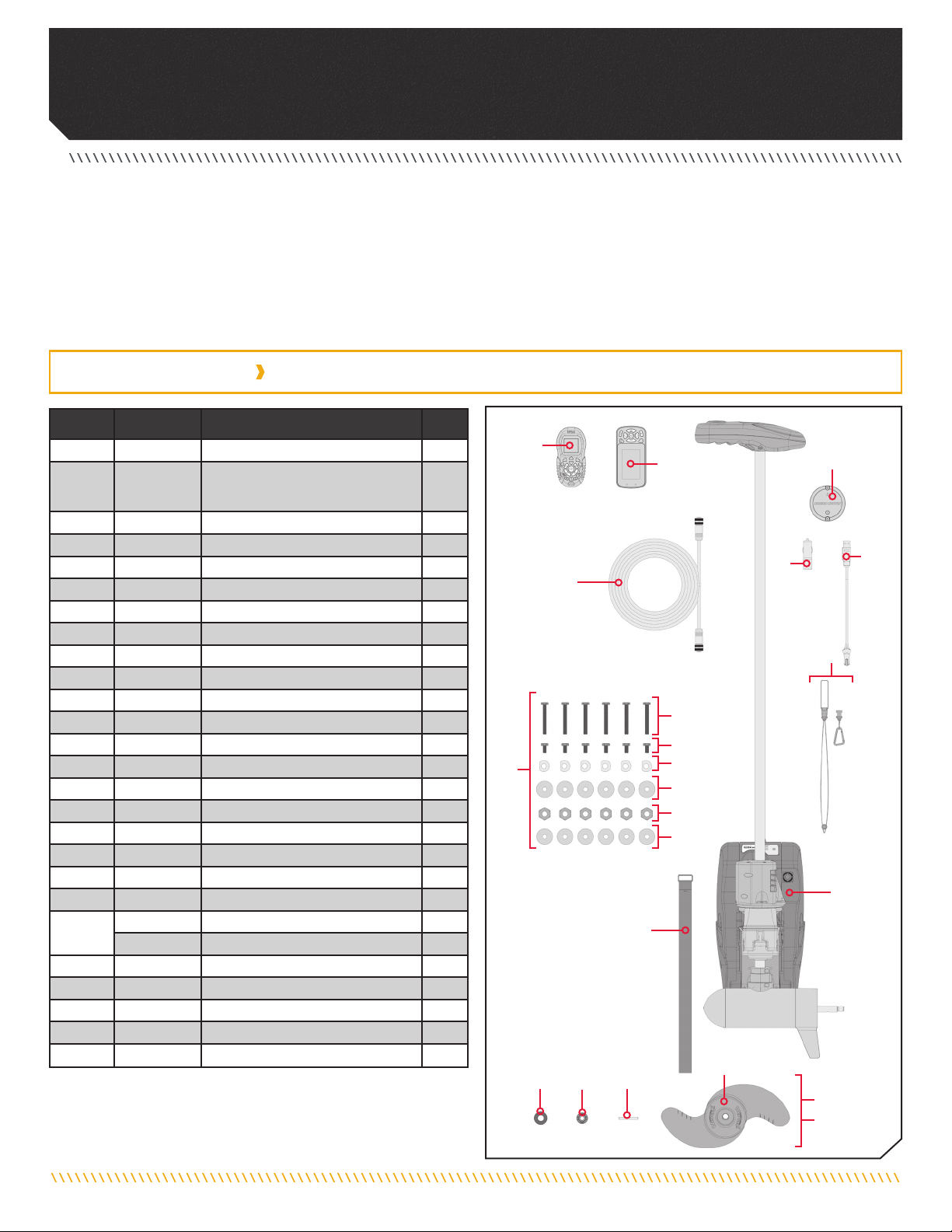

Item /

Assembly Part # Description Qty.

1✖MOTOR ASSEMBLY 1

Includes

2-7

2994917 BAG ASSY, ULTERRA MTG HARDWARE 1

2 2203430 SCREW-1/4-20 X 2.0 HHCS SS 6

3 2203431 SCREW-1/4-20 X 0.5 HHCS SS 6

4 2201725 WASHER-CLIPPED, 1/4", 1.00" OD 6

5 2261713 WASHER-1/4 FLAT 18-8 SS 6

6 2263103 NUT-1/4-20 NYLOCK SS 6

7 2301720 WASHER-MOUNTING - RUBBER 6

8 2994075 tREMOTE ASSEMBLY, iPILOT 1

9 2994076 ÂREMOTE ASSEMBLY LINK TOUCHSCREEN 1

p2397101 tMANUAL, QUICK REF., iPILOT 1.6 1

p2397103 ÂMANUAL-QUICK REF., iPILOT 3.0 1

10 2390800 tÂLANYARD, REMOTE W/ CARABEENER 1

11 2373241 ÂCABLE, USB REMOTE CHARGER LINK 1

12 2375901 ÂADAPTER, USB DC POWER LINK 1

13 2996400 tÂHEADING SENSOR ASSEMBLY 1

14 490389-1 ÂCABLE, ETH (M12-M-M12-F, 30' 1

16 2203801 STRAP, HOLD DOWN 1

BB 1378132 80# THRUST PROP KIT 1

CC 1378160 112# THRUST PROP KIT 1

17 2341160 PROP-WW2 (4.5) w/ADP.RING 1

2331160 PROP-WW2 (4") w/ADP.RING 1

18 2262658 PIN-DRIVE 1" X 3/16" S/S 1

19 2091701 WASHER-PROP (LARGE) 1

20 2093101 NUT-PROP, NYLOC, LG, MX101 3/8 SS 1

p2207114 MANUAL, INSTALL GUIDE, RT ULTERRA 1

p2394900 INSTRUCTIONS, HEADING SENSOR 1

INSTALLING THE RIPTIDE ULTERRA

Your new Riptide Ulterra comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the

boat or it may be coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release

bracket, refer to the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate

your nearest dealer, visit minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this

manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional

product support, please visit minnkotamotors.com.

INSTALLATION PARTS LIST

pNot shown on Parts Diagram.

✖This part is included in an assembly and cannot be ordered individually.

tOnly available with models factory installed with i-Pilot.

ÂOnly available with models factory installed with i-Pilot Link.

INSTALLING THE RIPTIDE ULTERRA

It is recommended that the motor be mounted as close to the keel or centerline of the

boat as possible. Make sure the area under the mounting location is clear to drill holes

and install nuts and washers. Make sure the motor rest is positioned far enough beyond

the edge of the boat. The motor must not encounter any obstructions as it is lowered into

the water or raised into the boat when stowed and deployed. Consider a quick release or

adapter bracket with the installation of your motor. To view a list of accessories, please visit

minnkotamotors.com.

a. Place the Motor on an elevated, level surface such

as a workbench or the tailgate of a pickup. The

motor, as removed from the box, should be in the

stowed position.

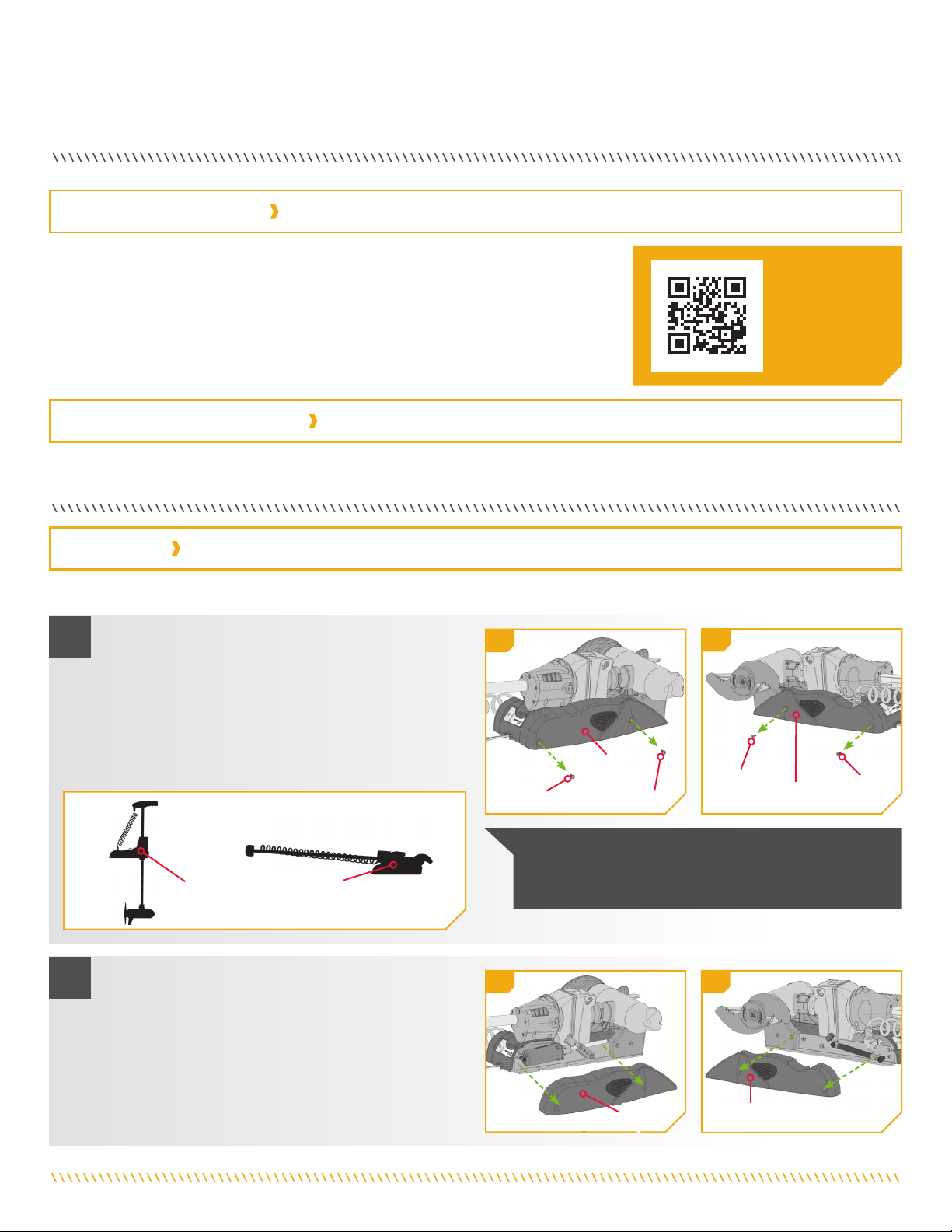

b. Remove the four sideplate screws using a #3 or #2

Phillips screwdriver. Two of these screws will be

located on each side of the Motor Mount.

c. Remove the Right Sideplate to access the

Mounting Slots.

d. Remove the Left Sideplate to access the

Mounting Holes.

NOTICE: This motor weighs approximately 70 lbs.

We recommend having a second person help with

the installation.

Deployed Stowed

Left Sideplate

Right

Sideplate

Right

Sideplate

Screw Screw Left

Sideplate

Screw Screw

INSTALLING THE RIPTIDE ULTERRA

• #2 Phillips Screwdriver

• #3 Phillips Screwdriver

• Drill

• 9/32" Drill Bit

• A person to help

with installation

MOUNTING CONSIDERATIONS

TOOLS AND RESOURCES REQUIRED

INSTALLATION

View accessories

available for your

trolling motor at

minnkotamotors.com.

1b 1b

2c 2d

minnkotamotors.com | 7

INSTALLING THE RIPTIDE ULTERRA

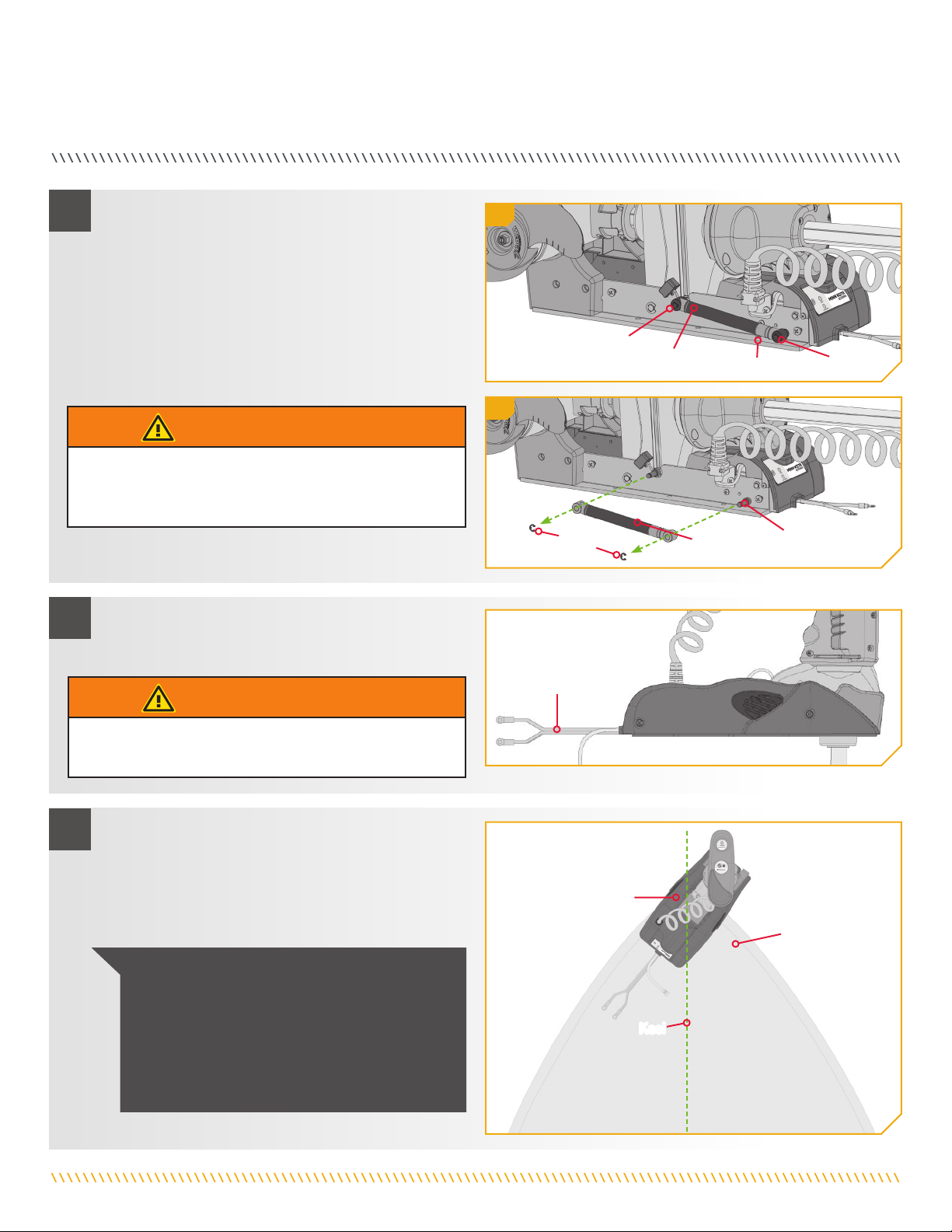

e. Under the Left Sideplate, the Extension Damper

obstructs access to the left front Mounting Hole.

f. Using a small Screw Driver, remove the two

5/16" e-clips holding the Extension Damper in place.

Once the e-clips are removed, slide the Extension

Damper off the Damper Pins to expose the left rear

Mounting Hole. Set the two e-clips and Extension

Damper in a safe place so they are not misplaced

before they are reassembled later in the installation.

g. Make sure the Power Cables from the battery

are disconnected, or that the breaker, if equipped,

is “off”.

E-clips Extension

Damper

Extension

Damper

E-clip

Mounting Hole

Power Cables

Deck of

Boat

Keel

Mount

h. Place the motor on the bow of the boat. Place the

motor as close to the centerline or keel of the boat

as possible. The motor can be installed on either the

Port or Starboard side of the boat based on personal

preference. Reviewing the mounting considerations

at the beginning of the installation section.

Damper Pins

NOTICE: The Emergency Strap (Item #16) is used

for Manually Stowing the Ulterra. The Emergency

Strap is not secured during installation. Store it on

your boat along with a #2 Philips screwdriver in the

event that you would need to manually stow the

motor. To learn how, please refer to the "Manually

Stowing the Ulterra" section of the Owner's Manual.

WARNING

Do not deploy the motor until it is fully mounted to the boat.

Illustrations are for reference only. Deploying your motor

before it is mounted to the boat may cause injury.

WARNING

Make sure the motor is mounted on a level surface and is

not connected to a power source.

INSTALLING THE RIPTIDE ULTERRA

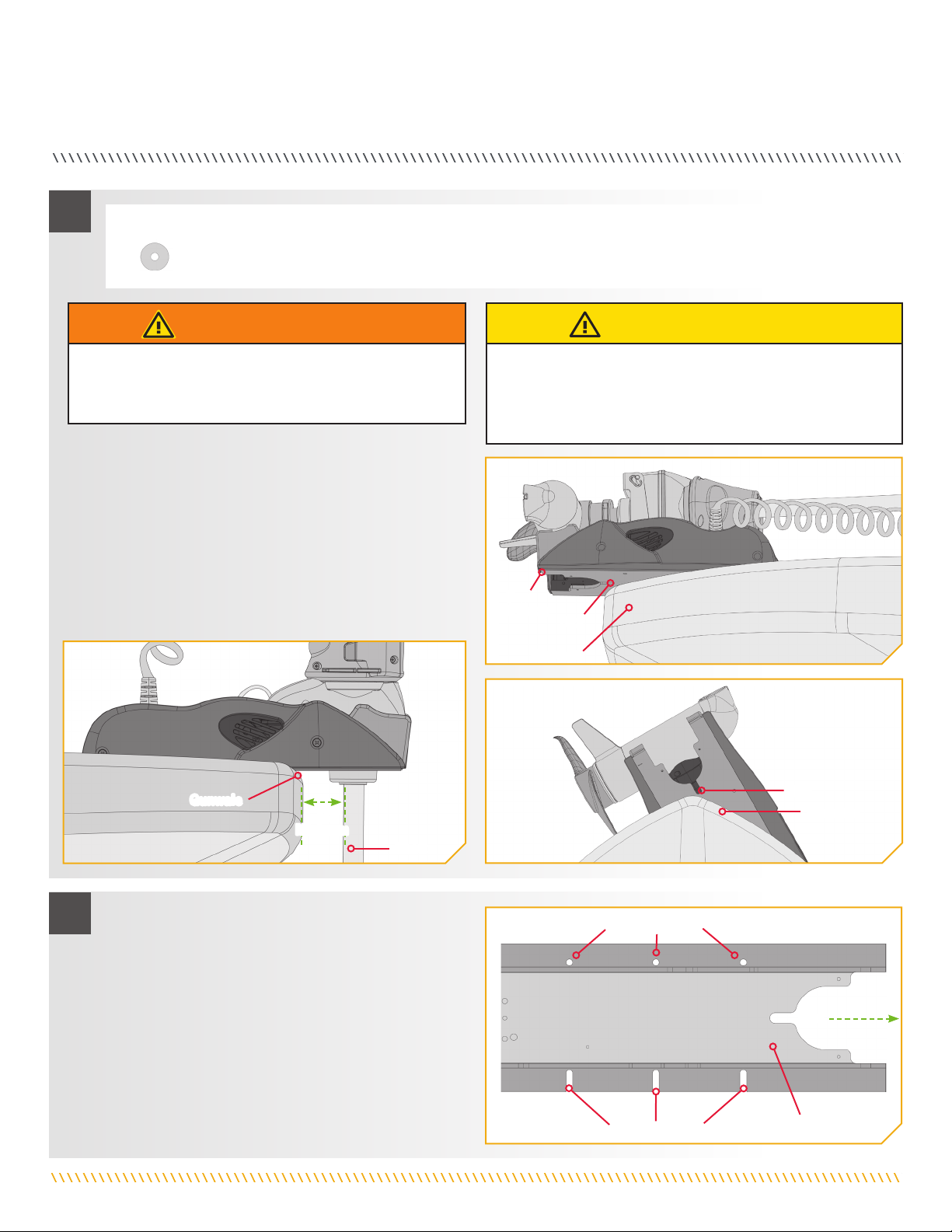

i. Make sure the slot on the underside of the Base

Extrusion is aligned with the outermost part of

the gunwale of the boat. This will ensure that the

Shaft has a minimum clearance of 1-1/2" when it is

deployed. The lower unit when stowed and deployed

must not encounter any obstructions.

j. Check to be sure that the Motor Mount is level. Use

the Rubber Washers (Item #7) provided to create a

level surface if necessary.

Bow

k. It is recommended to mark at least 4 of the 6 holes

in the Base Extrusion to have a minimum of two

bolts on each side that are located the farthest

apart. Ideal installation would allow for 6 bolts to

be used, with a minimum of 4.

l. Make sure the area under the mounting location is

clear to drill holes and install nuts and washers. Drill

through the marked holes using a 9/32" drill bit.

ITEM(S) NEEDED

Mounting Holes

Mounting Slots Base Extrusion

#7 x 6

Gunwale

Slot

Base

Extrusion

Shaft

Gunwale 1-1/2"

Minimum

WARNING

Do not deploy the motor until it is fully mounted to the boat.

Illustrations are for reference only. Deploying your motor

before it is mounted to the boat may cause injury.

CAUTION

Failure to allow 1-1/2" of clearance of the Shaft when mounting

may cause failures when the motor stows and deploys. Follow

recommended mounting considerations to avoid obstructions

when operating the motor.

minnkotamotors.com | 9

INSTALLING THE RIPTIDE ULTERRA

NOTICE: To prevent seizing of the stainless steel

hardware, do not use high speed installation tools.

Wetting the screws or applying an anti-seize may

help prevent seizing.

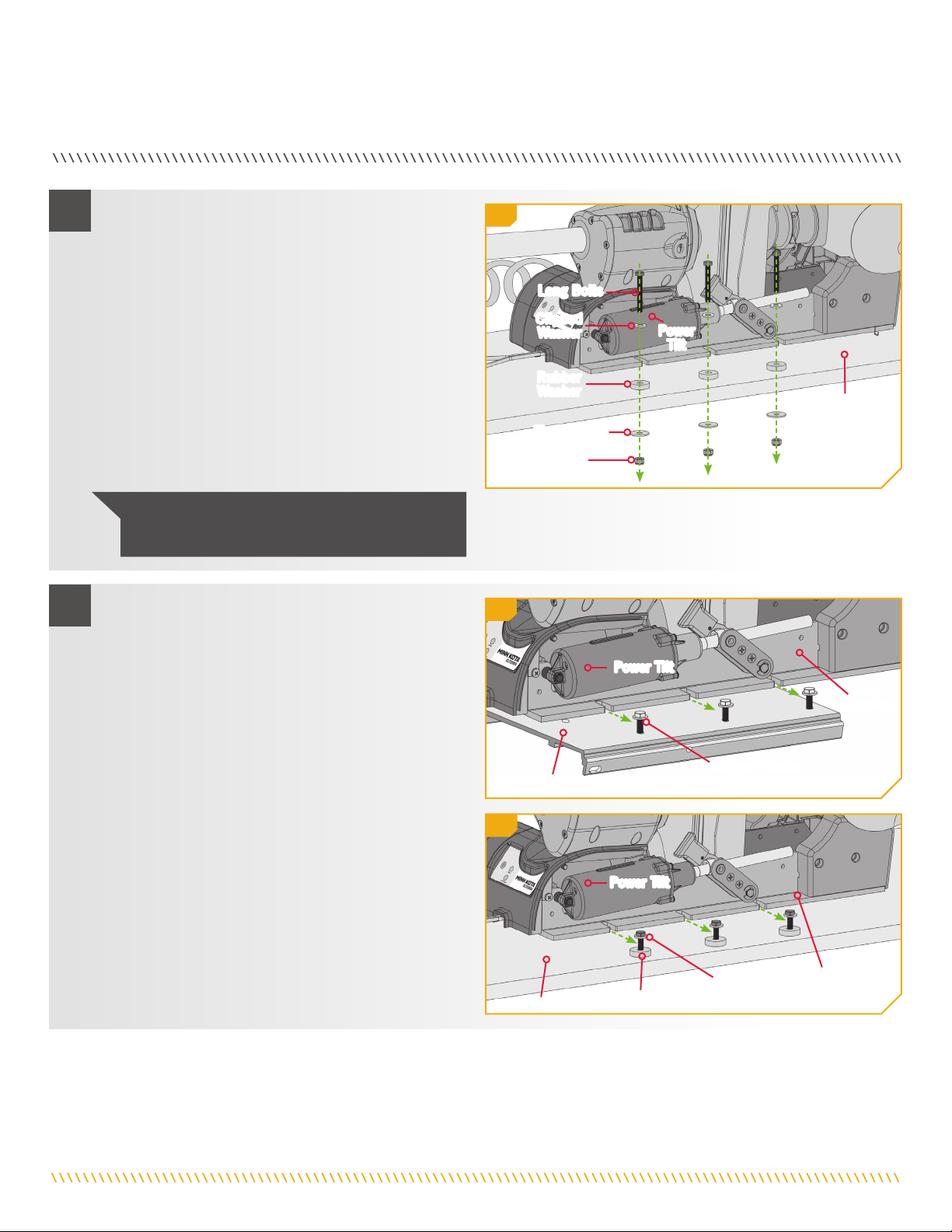

NOTICE: The Long Bolts, Flat Washers and Nylock

Nut are not used when installing the Riptide Ulterra

with a Quick Release Bracket.

Power Tilt Mounting Slots

Clipped

Washer Quick Release Bracket

Hex Head Bolt

#2 x 3 #5 x 3 #4 x 3 #6 x 3 #3 x 3

ITEM(S) NEEDED

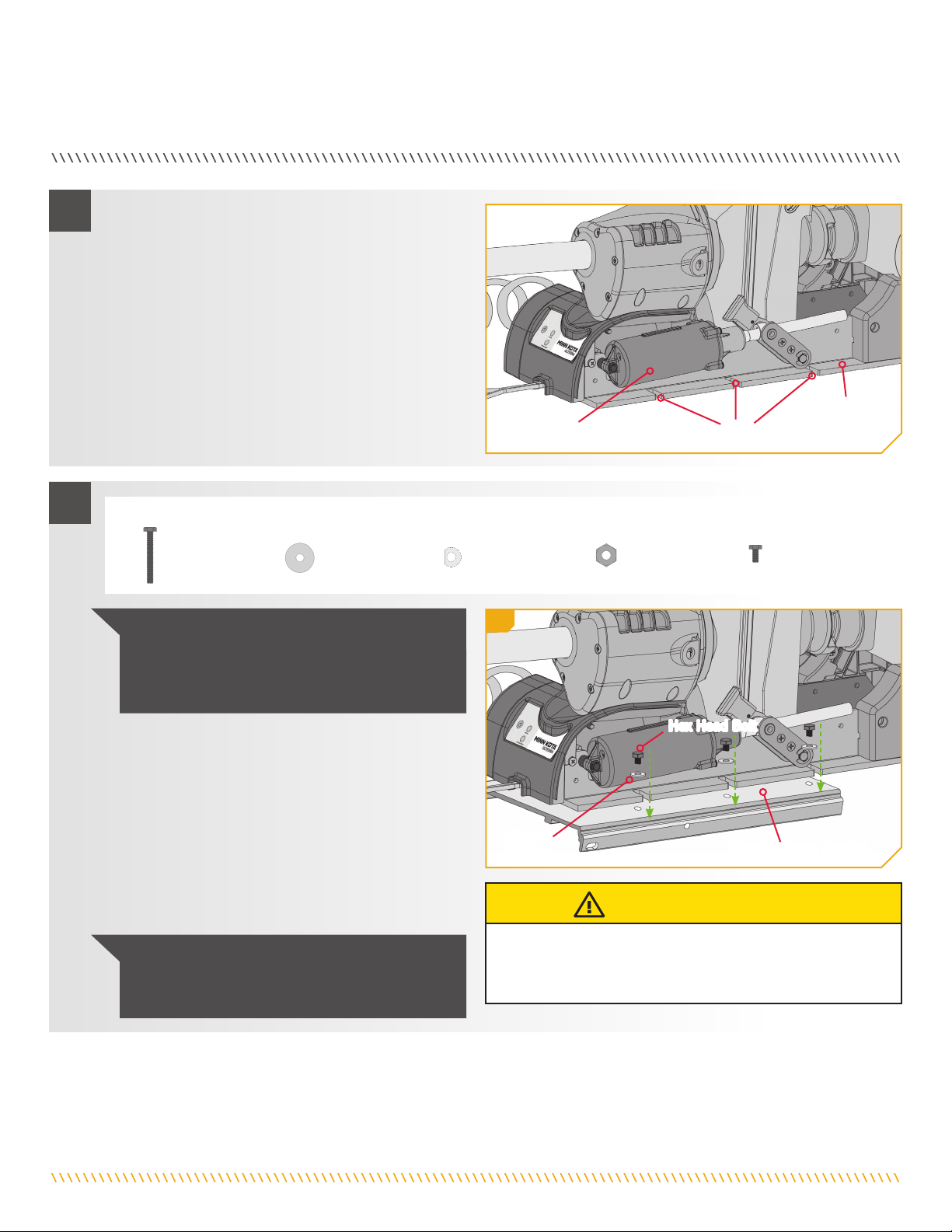

m. Mount the motor to the boat using the provided

hardware. Place the installation hardware for the

side of the Motor where the Power Tilt is located

ﬁrst. This is the opposite side of the Base Extrusion

from where the Extension Damper was removed.

The base of the Motor where the Power Tilt is

located has Mounting Slots and the side where the

Extension Damper is located has Mounting Holes.

n. If installing with a Quick Release Bracket, install

the motor with the Hex Head Bolts (Item #3)

and Clipped Washers (Item #4). Orientate the

Clipped Washers so that the ﬂat side of the washer

is towards the Base Extrusion. The Bolt should

pass through the Clipped Washer and into a

Quick Release Bracket. Leave at least 1/4" space

between the Hex Head Bolt and Clipped Washer in

order to slide the Base Extrusion under the Clipped

Washer and into place.

Base Extrusion

CAUTION

Use extra care to avoid pinching and damaging the sensor wires

that run along side of the Base Extrusion when installing and

tightening the motor mounting bolts.

INSTALLING THE RIPTIDE ULTERRA

o. If installing directly to the boat deck, install the

motor with the Long Bolts (Item #2), Clipped Washer

(Item #4), Flat Washer (Item #5) and Nylock Nut

(Item #6). Orientate the Clipped Washers so that the

ﬂat side of the washer is towards the Base Extrusion.

The Bolt should pass through the Clipped Washer,

the Rubber Washer and then through the Boat Deck.

The Bolt should be secured by ﬁrst adding the Flat

Washer (Item #5) to the Bolt and securing with a

Nylock Nut (Item #6). Leave at least 1/4" space

between the Hex Head Bolt and Clipped Washer and

the deck of the boat. This will leave enough space

to slide the Base Extrusion between the Clipped

Washer and Rubber Washer and into place.

p. Slide the Base Extrusion into place under the Bolts

that were just installed.

q. If installing with a Quick Release Bracket, the Base

Extrusion should slide between the Quick Release

Bracket and the Clipped Washers. Hold the Clipped

Washers up on the Hex Head Bolt, so the Clipped

Washer will sit on top of the

Base Extrusion.

r. If installing directly to the boat deck, the Base

Extrusion should slide between the Clipped Washer

and the Rubber Washer. Hold the Clipped Washers

up on the Long Bolt, so the Clipped Washer will sit

on top of the Base Extrusion.

Base Extrusion

Power Tilt

Boat Deck

Clipped

Washer

Rubber Washer

Boat Deck

Long Bolts

Clipped

Washer

Rubber

Washer

Flat Washer

Nylock Nut

Power

Tilt

NOTICE: The Short Bolts are not used when

installing the Riptide Ulterra directly to the boat.

Power Tilt

Base

Extrusion

Quick Release Bracket

Clipped Washer

10 10o

11 11q

11r

Autres manuels pour Riptide Ulterra

Table des matières

Langues :

Autres manuels MINN KOTA Moteur hors-bord

MINN KOTA

MINN KOTA TRAXXIS Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE INSTINCT QUEST Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE TERROVA Manuel utilisateur

MINN KOTA

MINN KOTA ENDURA MAX Manuel utilisateur

MINN KOTA

MINN KOTA Terrova 55 Guide de démarrage rapide

MINN KOTA

MINN KOTA ULTERRA Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE ST Manuel utilisateur

MINN KOTA

MINN KOTA MEGA LIVE Manuel utilisateur

MINN KOTA

MINN KOTA RT55SP Manuel utilisateur

MINN KOTA

MINN KOTA Ulterra Series Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE POWERDRIVE Manuel utilisateur

MINN KOTA

MINN KOTA POWERDRIVE V2 Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE TERROVA 80-CP Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE ST Manuel utilisateur

MINN KOTA

MINN KOTA TERROVA Manuel utilisateur

MINN KOTA

MINN KOTA ULTREX Manuel utilisateur

MINN KOTA

MINN KOTA RIPTIDE SP Manuel utilisateur

MINN KOTA

MINN KOTA FORTREX Manuel utilisateur

MINN KOTA

MINN KOTA ULTERRA i-Pilot Manuel utilisateur

MINN KOTA

MINN KOTA Endura C2 50 Manuel utilisateur

MINN KOTA

MINN KOTA ENDURA MAX Manuel utilisateur

MINN KOTA

MINN KOTA EDGE Manuel utilisateur

MINN KOTA

MINN KOTA PowerDrive Manuel utilisateur

MINN KOTA

MINN KOTA FORTREX Manuel utilisateur

Manuels Moteur hors-bord populaires d'autres marques

Yamaha

Yamaha VF150 Manuel utilisateur

Sleipner

Sleipner SEP-IP30 Manuel utilisateur

Suzuki

Suzuki DF 40 Manuel utilisateur

SELVA MARINE

SELVA MARINE Corse Manuel utilisateur

TOHATSU

TOHATSU BFT 250A Manuel utilisateur

KONRAD

KONRAD Series 600B Manuel utilisateur

Mercury

Mercury 8 Bigfoot 4-Stroke Guide d'installation

Sleipner

Sleipner E-Vision Electric Thruster E300 Manuel utilisateur

Suzuki

Suzuki DF40A Manuel utilisateur

IST

IST 18.BF200D Manuel utilisateur

Side-Power

Side-Power SP 155 TC i Manuel utilisateur

Mercury

Mercury 40 FourStroke Manuel utilisateur

Quick

Quick BTR250 Manuel utilisateur

Yamaha

Yamaha VF90 Manuel utilisateur

Yamaha

Yamaha D150H Manuel utilisateur

Yanmar

Yanmar ZT350 series Manuel utilisateur

MotorGuide

MotorGuide X3-40 Manuel utilisateur

Mercury

Mercury 30 - 60 HP Manuel utilisateur
