Explorer SE Pro

Field Test Report

There's nothing better for a new detector model owner than to have a crowd of

onlookers gather around to ogle your new purchase and ask about its performance

and abilities while admiring its sleek appearance and asking for "a quick burn"

around the field to try it out.

To achieve such a crowd-pulling feat these days requires either a prestige badge or

an eye-catching appeal. This year's crowd-puller has both and appears to be the

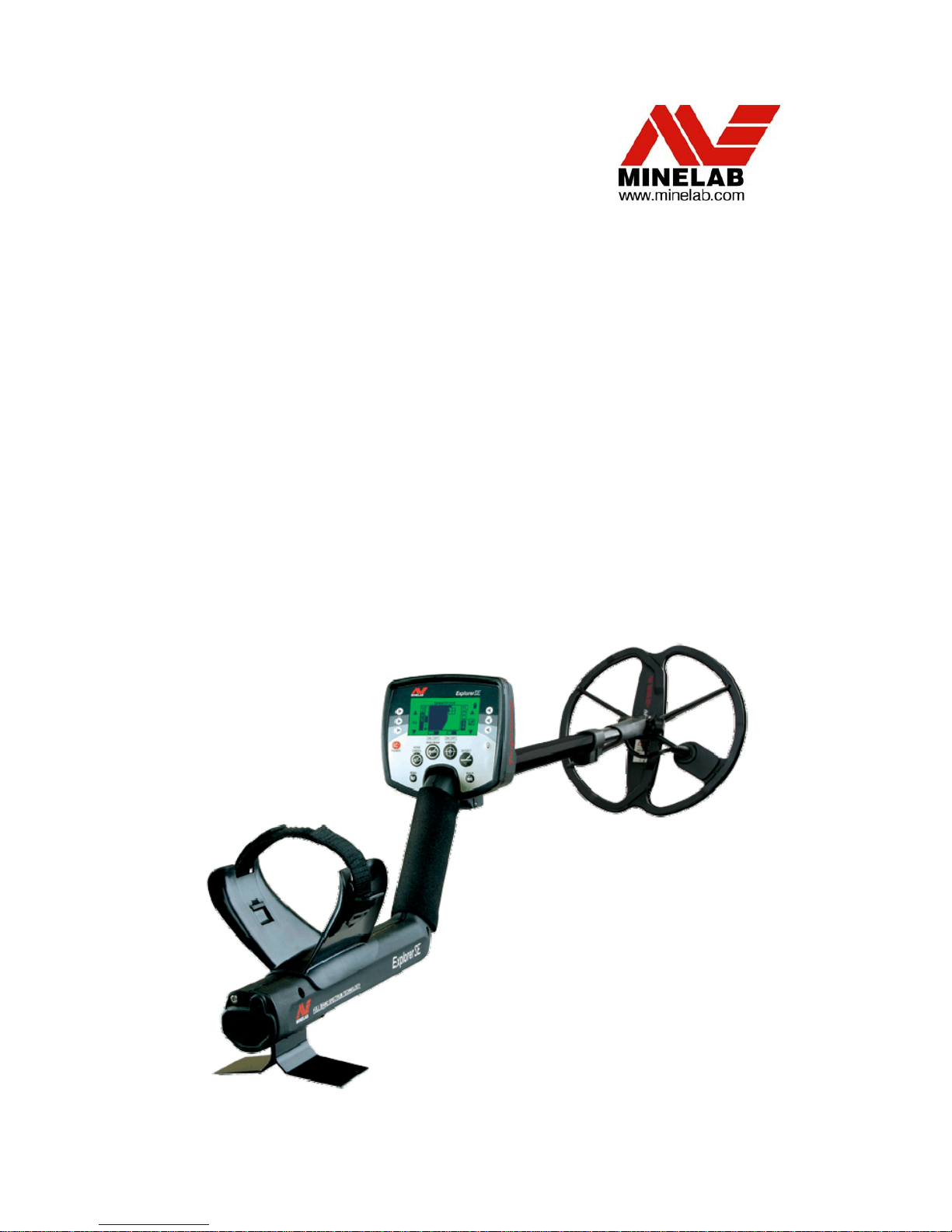

new all black Minelab Explorer SE.

Such was the interest recently in this new model at a one-day event it had to be

handed around on a ten minute loan basis as so many wanted to take a closer look.

The entire build of the new detector is made up entirely of all black plastics which

accentuate the striking sharp lines. This is truly a high-tech and high-spec machine

and one which will continue to dominate in the "serious detecting" arena.

Improvements & Features

"3rd generation" Software features include:

• New "logical" Main Menu format, re-arranged "selections" to make

browsing easier with one hand.

• Now displays two separate screens, Smartfind and Digital - Learn and Edit

screens now accessed through Main Menu.

• New pin point -VCO type rising sound with improved volume on deeper

targets.

• New Iron Mask scale - now displays Ferrous range from 0 - 31 and AM = All

Metal.

• Fast turn on, quieter/faster turn off.

• Audio 1, 2 & 3 are now Long, Smooth & Pitch Hold respectively. Pitch Hold

similar to the BBS series of detectors.

• Faster loading of User settings.

• Factory preset Gain now set to 8 (used be 5)

• Stabilized Threshold in high-trash environments.

• New larger fonts.

• New updated detection results on Fer and Cond in Pin Point mode.

• Improved behaviour of the Depth indicator during detection and pin

pointing.

Hardware changes include:

• New colour, style and appearance.

• New thinner, lighter coil with better balance (weight reduction 60grms)

• New front keypad decal

• Current consumption reduced by 8% approx. prolonging battery life

increasing run time by 1 - 2 hrs.

Focus on New Features

The most important software changes are listed above however there are some

more that are not. An example of one would be in the Digital display whilst using

the large zoom screen, the icons which showed in the previous Explorer models as

coins, rings and tabs do now not show on Explorer SE. Instead, the entire pixel

space is given over to four huge and very tall numbers for Fer and Cond to enable

easy viewing of the numeric values assigned to every detected target.

The major changes will be discussed in more detail here and they include the new

RESPONSE sounds although Normal, Audio 1 and Audio 2 have not changed but

instead have been re-named as Long (Audio 1), Smooth (Audio 2) and Pitch Hold

(Audio 3). Normal response remains the same and no changes to it have occurred.

The big change is to Pitch Hold which is, an exciting new innovative audio choice

method for Explorer SE users and a lot of information can be gleaned from it which

will be described in greater detail below.

The Response option allows you to select the way targets sound upon detection.

These are described below. Each Response sound may work better in different

scenarios and you should quickly develop your own personal preferences.

1. Normal - when the target signal drops the audio blanks, giving a crisp end to the

target response. Normal allows the greatest differentiation between the ground

and a target, but has the potential to miss small targets in areas littered with

objects producing a target response.

2. Long - long audio lasts until the end of detection. There is no blanking at the

end of the target response. Long allows less differentiation between the ground

and a target.

3. Smooth - as opposed to the sudden change in audio response in Normal and

Long, Smooth offers a more gradual change/rise in audio response from ground to

target detection.

4. Pitch Hold - is identical to the normal response during detection. After blanking,

the threshold will return to the same pitch of the peak target signal. The pitch of

the threshold will not change until a new detection is made. The Minelab

Sovereign series of detectors varies the pitch of an audio signal depending on the

conductivity of the target: i.e. a highly conductive target produces a high-pitched

tone, while a less conductive target item produces a lower-pitched tone. The

advantage of the Sovereign's threshold tonal reproductive range is that the tone of

the threshold also changes. After the target signal is heard, the threshold "hum,"

returns in a pitch similar to the pitch of the signal. When the target signal is

blanked (or nulls out) due to some positive discrimination, the threshold returns

again in the higher or lower pitch of the target's conductivity. The advantages of

Pitch Hold should become apparent in ground that is considered fairly clean and

also works very smoothly over salt wet sand.

The Iron Mask feature is an overall ferrous discrimination control, which can be

adjusted to reject a large amount of ferrous targets at one time. An increased level

of Iron Mask will reject more ferrous targets while a reduced level will accept more

ferrous targets - ideal for relic hunting.

Some improved Iron Mask functions have been implemented:

1. The new Iron mask has values in 0 - 31 range to match the range of Ferrous

numbers.

2. The Iron mask screen has been modified to show "FER" inside the slider and to

show "AM" when the All Metal is enabled.

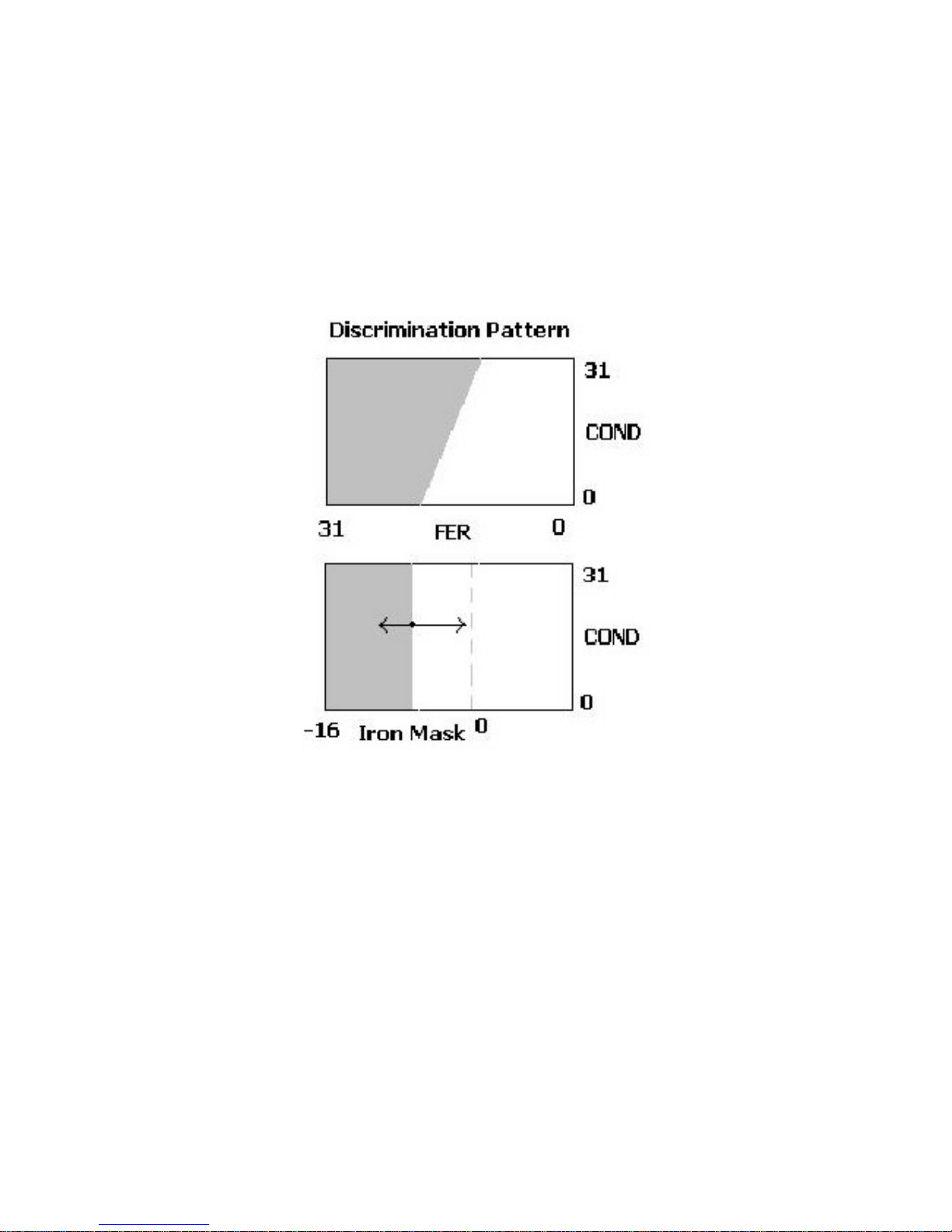

In Figure 1 (below) the new numbered Iron mask is seen while the old system is

shown directly beneath it.

All Metal - is the term used to describe a clear discrimination pattern - that is

accepting ALL targets whether ferrous or non-ferrous. To select All Metal press the

shift button next to the AM icon to reduce Iron Mask and clear the discrimination

pattern. Bear in mind that A.M. might be "noisy" on certain soils that might have

high levels of mineralization in them.

Gain - the Factory preset has been changed to 8, a higher setting from which it

used to be set at in both former Explorer models (used to be 5). This might become

noticeable right away as certain signals might be more pronounced with better,

faster, louder and sharper signals when compared to an older Explorer ll model.

Gain actually controls the amplification of target responses in respect to the

strength of the original signal. The theory is, with a high setting (8) even weak

target responses will initially be, easier to hear which could equate to more finds,

especially small low-conductive ones at the end of a day's detecting or increased

deeper finds from sites considered to be "worked out". On a modern site such as a

concert field looking for recent losses one could use a lower Gain setting coupled

with a Low sensitivity setting to deliberately look for surface/shallow finds as one

would not require the extra sensitivity to search for losses from a day or so ago.

Sensitivity - following along from an increased Factory Gain setting there is also a

noticeable increase to the Factory preset Sensitivity level - this is now set to 22 - an

increase of six sensitivity increments from a lower sixteen. As a result of these two

changes of (i) an increased sensitivity and (ii) gain setting it will appear the Explorer

SE is more powerful on turn-on compared to the older models. These Settings have

been increased at the factory and those settings were always present and

adjustable. There might be a trade-off from using higher settings and this could

result in unwanted noise and more ground signals. If this occurs simply lower the

settings via the Main Menu. However, bear in mind that, Semi-Auto Sensitivity can

be a good friend and will continuously monitor the environmental conditions and

will automatically adjust the detector's sensitivity as close as possible to the last

manually specified level of sensitivity - especially useful in those often difficult sites

with ever-changing ground conditions. Manual Sensitivity on the other hand

would be better suited to a trashy site or, where a very slow sweep is required or on

a beach.

Depth Indication - is improved over that of Explorer ll and now updates visible

information at the end of each detection and, updates in the new and improved

Pinpoint Mode also.

The clear portion of the depth indicator represents the approximate distance of a

target below the coil based on a single coin from 0 to 30cms. Try to think of the

clear area as the amount of soil you will have to remove to get down to the target.

Digital Fer Cond - as per the depth indicator, Fer and Cond now display and update

information on screen while in the Pinpoint Mode. Previously, this was not possible

and is one of the most significant changes to the Explorer SE software.

The four numbers in the Digital screen display both the ferrous and conductive

properties as perceived by the Explorer SE in magnetic response for ferrous and

conductive response for non-ferrous.

Fer or Ferrous shows from 0 - 31 the ferrous resemblance of targets while Cond

shows from 0 - 31 the non-ferrous conductivity properties of targets. So a display of

Fer 07 Cond 25 would indicate Fer 07 as being of a low ferrous nature (non iron

probability) and Cond 25 would show a high conductivity (copper/brass/silver) and

the target might produce a U.K. copper ID. Displays of Fer 04 Cond 28 could

indicate a U.S. dime while Fer 08 Cond 10 might indicate a gold coin.

Threshold - has been changed to a Factory Preset setting of 16. It has also been

improved so that finer adjustments may be made to it, especially at the lower end

so that one can set it to a very low level but that it shall still be audible whereas on

the previous models it may have been too quiet or may have gone silent. A silent

or non-existent threshold is not recommended as a small depth loss can actually

occur as one may not hear a very small target, nor should it be too loud that one

could not distinguish a false noise from a target response. As always, the threshold

will need to be adjusted when connecting and disconnecting headphones (also

recommended for privacy and extending battery life).

A Familiar Feel

When one picks up the new Explorer SE one can instantly feel that familiar solid

grip but with the new and lighter coil that feel is so much better and is very

noticeable when sweeping the detector in a location such as a wood or a stubble

field where there might be objects to be avoided - it handles very well. The unit is

noticeably better balanced and feels better "in the hand" while also easier to just

skim across the surface of the ground.

Performance - In The Lab

During development of the new "SE" many hundreds of hours were spent with the

new unit putting it through countless bench tests in order to guarantee the full

and authentic and by now legendary characteristic accuracy of target information

to ensure the new SE was consistent with known performance parameters.

Together with the added functional and performance related improvements, more

subtle improvements were also incorporated into the SE such as the featuring of

new and larger fonts designed to give a greater amount of pixel space to

reproducing much larger numeric displays on the Digital screen. Explorer SE is now

much easier to read even fully extended away from the body. Numeric consistency

for all target values has been carried over to Explorer SE whilst maintaining the

usual degree of perfect audio clarity of all appropriate conductive responses on

hundreds of targets.

With the added improvements to increase start-up sensitivity the Factory setting

does now sound sharper and crisper on targets.

Performance - Outside

Serious devotees of the Explorer detectors use it for absolute and extreme depth

and the sheer amount of information it provides on targets both audibly and

visually via the various detection screens. In this regard, Explorer SE does not

disappoint! It continues that tradition of sheer usability everywhere and, does so

with a level of electronic stability that has to be experienced to be appreciated. On

wet salt water beaches, pastures, woodland and industrial river foreshore areas it

excelled with such ease that it became almost second nature to use whilst

providing critical information to the senses. The stability and reliability of the

information provided proved foolproof and above all else, highly accurate. All the

electronic functions worked in tandem, seamlessly providing reliable, dependable

audio-visual information - there was no second-guessing - it did what has been

expected of such a high-calibre machine for years - providing an unsurpassed

detecting experience and was pleasurable in doing so - as trustworthy as an old

friend. With the new micro-processor especially designed for the new SE it is now

much faster as well and this is instantly obvious even on start-up.

Tips & Tricks with the SE

As with any metal detector it takes time to get to know it really well. Explorer SE

allows one to do this really quickly and it provides a wealth of information with just

a few button pushes to glean extra information for some signals that you may not

be quite sure about.

• Pitch Hold - The Pitch Hold mode, when combined with the updating of

ID's in Pin-point is a powerful tool, and a great aid in isolating a good from

a bad target. An advantage noted during the testing of the new SE was

that Pitch Hold just suddenly "grabs onto" targets which were audibly

quick, unmistakable and instantaneous signals.

• Digital Screen - should you have a signal you are undecided about, simply

engage Digital and hit Pinpoint - pass over the unknown target a few times

and it should reveal its identity very quickly by displaying four numbers e.g

Fer 31 Cond 31 (large ferrous) and in the new detector a depth estimation

as well all via the new VCO Pinpoint mode.

Conclusion

Originality is hard to come by in any format and it is Minelab, the company who

gave us ground breaking and earth-shattering performance with the introduction

of BBS technology many years ago who built on that solid foundation. Producing

cult favourites such as the Excalibur and Explorer II they are still at the forefront of

detector design today providing unparalleled performance to bring us the new

Explorer SE, truly deserving of a place of honour in the long lineage of Explorer

metal detector development.

Certainly Explorer SE is a lot of metal detector in a fantastically built package and

everyone is catered for from absolute beginners to very experienced users who will

customize it to obtain exacting results. Minelab's engineers deserve great credit for

their ability to take a great product and make it better, smarter and faster.

This detector truly expands the reputation of the company and I am delighted to

be able to report on such a classy machine. These people obviously know the

meaning of the word "heritage" but they also know the meaning of the word

"technology", and in this wonderful detector they have brought the two together.

Table des matières

Autres manuels Minelab Détecteur de métaux

Minelab

Minelab Quattro MP Manuel utilisateur

Minelab

Minelab Sovereign XS-2 Pro Manuel utilisateur

Minelab

Minelab X-TERRA705 Manuel utilisateur

Minelab

Minelab 3011-0301 Manuel utilisateur

Minelab

Minelab Explorer SE Manuel utilisateur

Minelab

Minelab VANQUISH 340 Manuel utilisateur

Minelab

Minelab CTX3030 Manuel utilisateur

Minelab

Minelab The Sovereign Manuel utilisateur

Minelab

Minelab X-Terra 305 Manuel utilisateur

Minelab

Minelab F3 Manuel utilisateur

Minelab

Minelab GPX-4000 Manuel utilisateur

Minelab

Minelab Gold Monster 1000 Manuel utilisateur

Minelab

Minelab XT 18000 Manuel utilisateur

Minelab

Minelab X-Terra 70 Manuel utilisateur

Minelab

Minelab Excalibur 800 Manuel utilisateur

Minelab

Minelab Gold Monster 1000 Manuel utilisateur

Minelab

Minelab Musketeer ADVANTAGE Manuel utilisateur

Minelab

Minelab X-Terra 705 Manuel utilisateur

Minelab

Minelab GPX-4500 Manuel utilisateur

Minelab

Minelab Sovereign XS-2a Pro Manuel utilisateur

Minelab

Minelab Explorer SE Manuel utilisateur

Minelab

Minelab GPX5000 Manuel utilisateur

Minelab

Minelab F3Ci Manuel utilisateur

Minelab

Minelab Quattro MP Manuel utilisateur

Manuels Détecteur de métaux populaires d'autres marques

Garrett

Garrett MAGNASCANNER CS 5000 Manuel utilisateur

Valex

Valex 1800200 Manuel utilisateur

Gauss

Gauss MIL MD Manuel utilisateur

Velleman

Velleman CS130 Manuel utilisateur

Sears

Sears 321.596370 Manuel utilisateur

Eriez

Eriez X8 Manuel utilisateur

Steinberg Systems

Steinberg Systems SBS-MD-22 Manuel utilisateur

Zircon

Zircon MetalliScanner m60c Manuel utilisateur

nalanda

nalanda MD027 Manuel utilisateur

REV Ritter

REV Ritter CB-7005 Manuel utilisateur

Fisher Research Labs

Fisher Research Labs F70 Manuel utilisateur

Steinberg Systems

Steinberg Systems SBS-MD-12 Manuel utilisateur

GOLDEN MASK

GOLDEN MASK 5 Manuel utilisateur

Grizzly

Grizzly YM 203 Manuel utilisateur

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Manuel utilisateur

Treasure Cove

Treasure Cove Vibra-Probe 560 Manuel utilisateur

Accurate Locators

Accurate Locators XL16 IMAGER Manuel utilisateur

Teknetics

Teknetics G2 Manuel utilisateur
