INTRODUCTION

Congratulations on your purchase of the Multi-Channel In-Out

Thermometer/HygrometerEMGR819LR(MRC800)witha433MHz

cable-free thermo-hygro sensor.

Enclosed with this package is one (1) main display unit and one (1)

cable-free remote thermo-hygro sensor unit.

The main unit has an extra-large multifunction 2-line LCD that

shows recordings for indoor and outdoor temperatures and

humidity, maximum and minimum recordings and trend indicators.

The unit supports up to three 433MHz remote thermo-sensors or

thermo-hygro sensors. A variety of additional sensors can be

purchased separately.

In addition to monitoring maximum and minimum temperature

and humidity readings, the unit also has an alarm that can be set to

activate once readings of channel 1 exceed a given variance.

No wire installation is required between the main and remote units.

AstheEMGR819LR(MRC800)operatesat433MHz,itcanbeused

in North America and most places in Continental Europe.

FEATURES: MAIN UNIT

A Extra large two-line Liquid Crystal Display (LCD)

Multifunction display showing temperature and humidity,

max./min. memory as well as trend indicators for the main

unit and remote sensors.

B CHANNELbutton

-Selects among different channels

-Activates remote sensor scanning mode

C IN/REMOTE

-Selects between the main-unit display and a selected

remote unit

-Activates search mode

D MEM/CLEARbutton

-Recalls the maximum or minimum temperature and

humidity readings

-Clears the maximum and minimum temperature and

humidity memory of remote sensor channels or the main

unit display

E HI/LObutton

-Set the upper or lower temperature alarm limits of

channel 1

-Confirms alarm settings

Fbutton

Sets the readings for the upper or lower temperature and

humidity channel 1

G ALON/OFFbutton

Activates or deactivates alarm

H RESET

Returns all settings to default values and erases all

memories

I °C/°F slide switch

Selects between degree Centigrade (°C) and Fahrenheit (°F)

J Batterycompartment

Accommodates two AA-size batteries

K Retractable table stand

For standing the main unit on a flat surface

L RecessedWall-mount hole

For mounting the main unit on a wall

M RetractableAntenna

For reception of remote signal

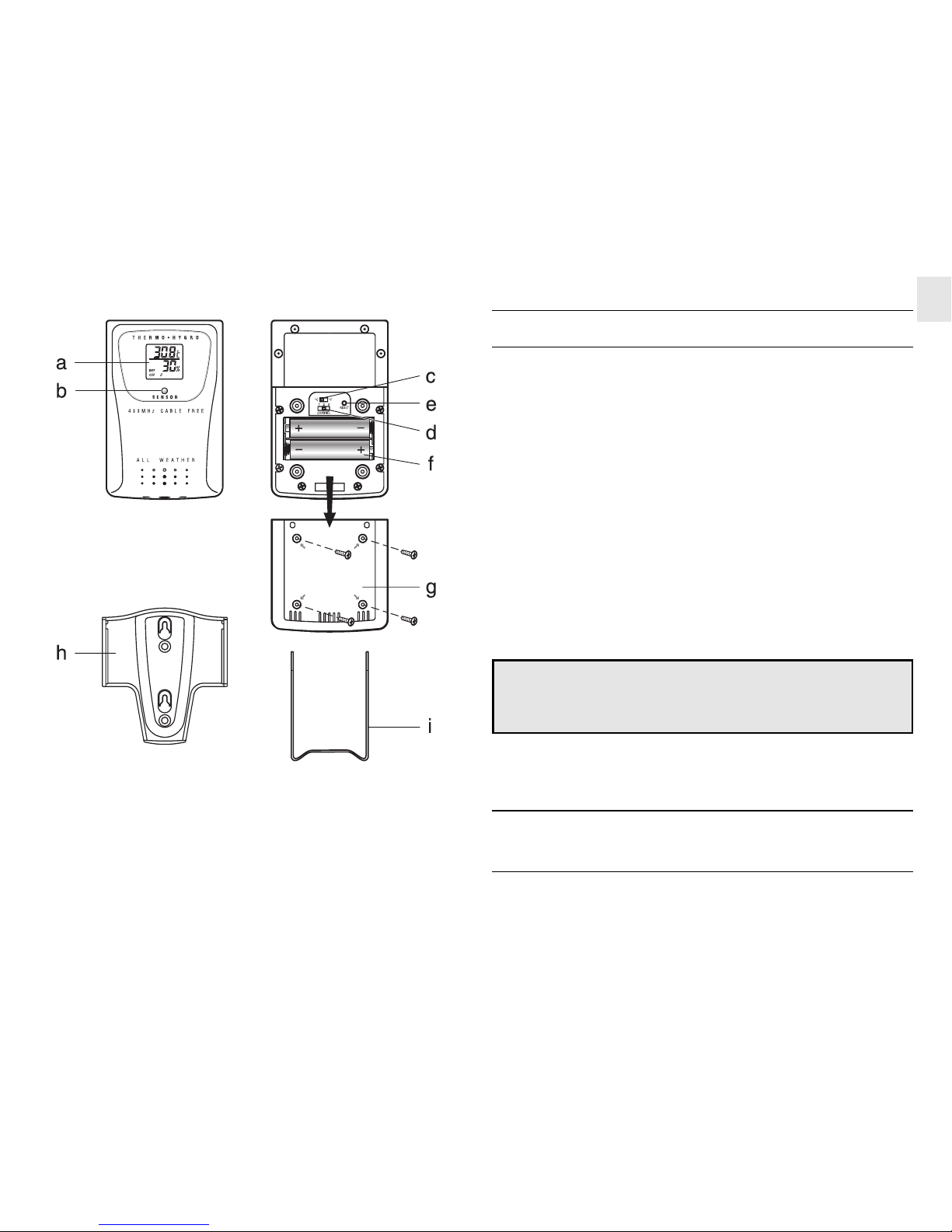

FEATURES: REMOTE

THERMO-HYGRO SENSOR

A Two-lineLCD

Displays the current temperature and humidity monitored by

the remote unit

B LEDindicator

Flashes when the remote unit transmits a reading

C °C/°F slide switch

Selects between Centigrade (°C) and Fahrenheit (°F)

D Channel slide switch

Designates the remote unit Channel 1, Channel 2 or

Channel 3

E RESET

Returns all settings to default values

F Batterycompartment

Accommodates two AA-size batteries

G Battery door

H Wall-mountholder

Supports the remote unit in wall-mounting

I Removable table stand

For standing the remote unit on a flat surface

BEFORE YOU BEGIN

ToensureproperfunctioningoftheEMGR819LR(MRC800)follow

this setup procedure.

For best operation:

1. Assign different channels to different remote units.

2. Insert batteries for remote units before doing so for the main

unit (see instructions for battery installation).

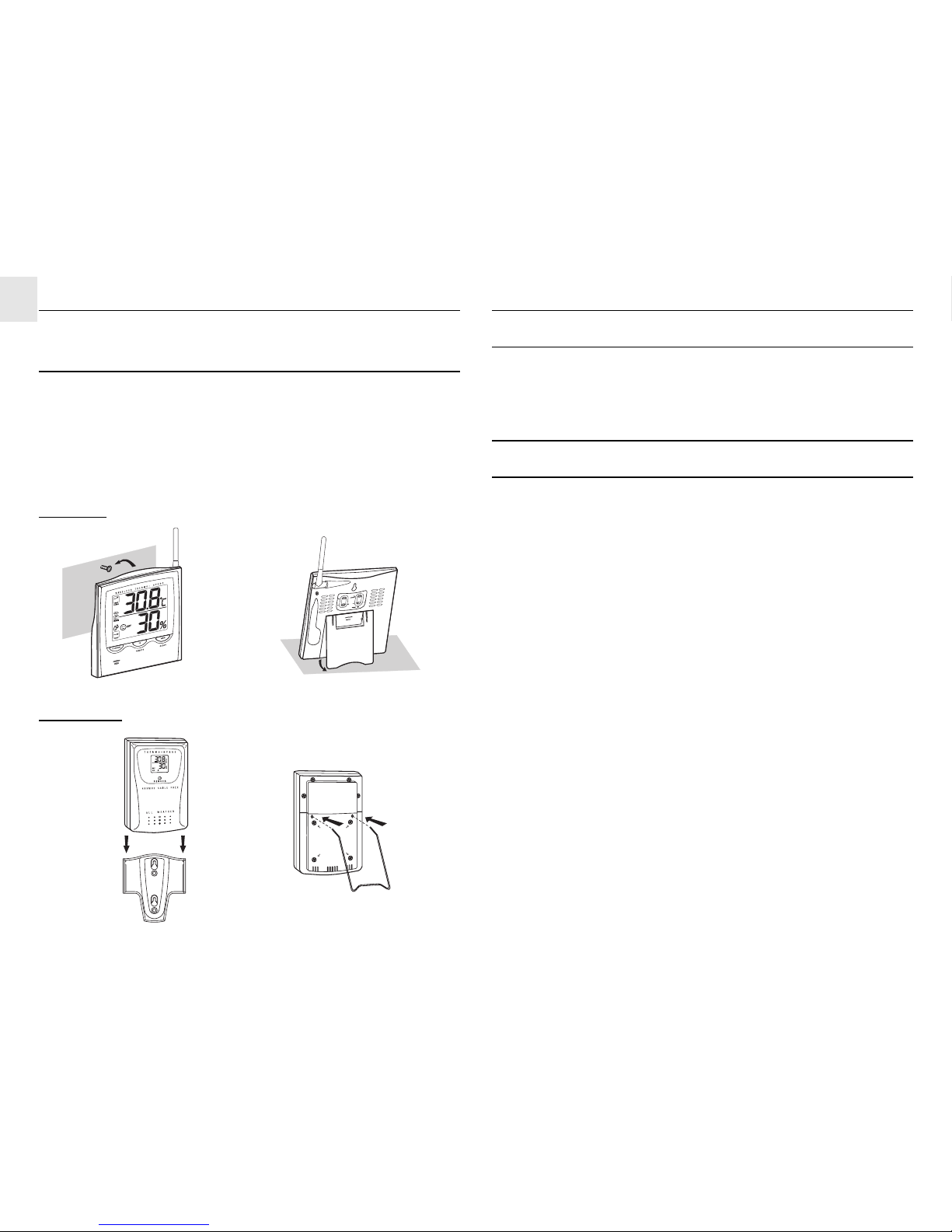

3. Place the main unit as close as possible next to the remote unit,

reset the main unit after installing batteries. This will ensure

easier synchronization between the transmission and reception

of signals.

4. Position the remote unit and main unit within effective

transmission range, which, in usual circumstances, is up to 100

meters.

Note that the effective range is vastly affected by the building

materials and where the main and remote units are

positioned. Try various set-ups for best result.

Though the remote units are weather proof, they should be placed

away from direct sunlight, rain or snow.

BATTERY AND CHANNEL

INSTALLATION: REMOTE UNIT

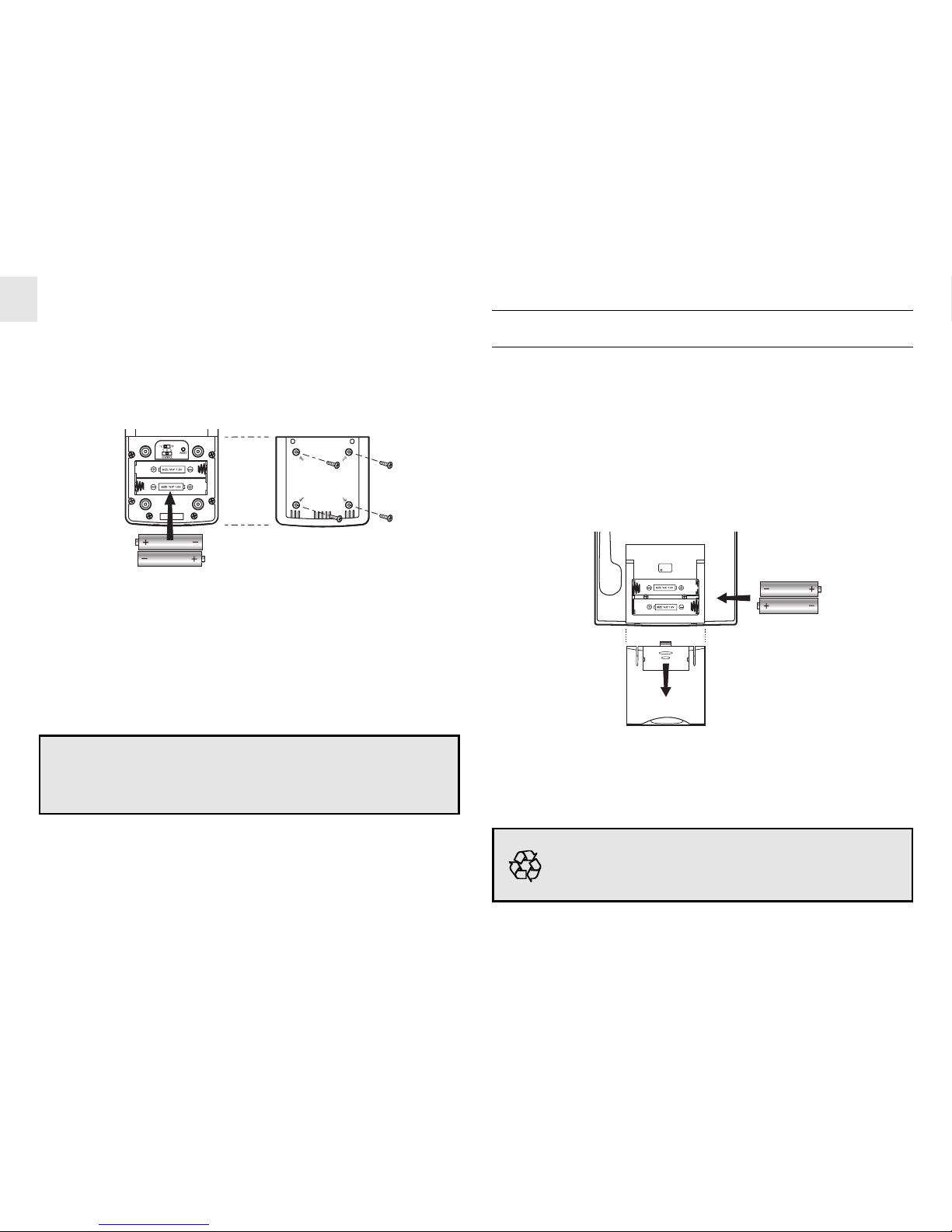

The remote thermo-hygro sensor unit uses two (2) UM-3 or “AA”

size batteries.

Follow these steps to install / replace batteries:

1. Remove the screws on the battery compartment.

2. Select the channel number on the CHANNEL slide switch.

3. Select the temperature display unit on the °C/°F slide switch.

4. Insert the batteries strictly according to the polarities shown

therein.

5. Replace the battery compartment door and secure its screws.

Replacethebatterieswhenthelow-batteryindicatoroftheparticular

channel lights up on the main unit. (Repeat the steps described in

section“BEFOREYOUBEGIN”)

Note that once a channel is assigned to a remote unit, you

can only change it by removing the batteries or resetting the

unit.

BATTERY INSTALLATION: MAIN UNIT

The main unit uses two (2) UM-3 or “AA” size batteries.

Follow these steps to install / replace batteries:

1. Slide open the battery compartment door.

2. Insert the batteries strictly according to the polarities shown

therein.

3. Replace the battery compartment door.

Replace the batteries when the low-battery indicator of the indoors

temperature lights up. (Repeat the steps described in section

“BEFOREYOUBEGIN”)

If not disposed of properly, batteries can be harmful.

Protect the environment by taking exhausted batteries

to authorized disposal stations.

GETTING STARTED

Once batteries are placed in a given remote sensor unit, it will start

transmitting information at 40-second intervals.

Also, for approximately a 3-minute duration, the main unit will

automatically search for signals once batteries are installed. Upon

successful reception, the individual channel temperature reading

will be displayed on the top line and the respective humidity

reading on the bottom line. The main unit will automatically

update its readings at about 40-second intervals.

If no signals are received, blanks “ --- ” will be displayed and the

kinetic wave icon will not show.

To force a signal search:

• Press and hold IN/REMOTE for 2-seconds to enforce a

3-minute search.

This is useful in synchronizing the transmission and reception of

the remote and main units.

Repeat this step whenever you find discrepancies between the

reading shown on the main unit and that on the respective remote

unit.

HOW TO CHECK REMOTE AND

INDOORS TEMPERATURES

Display of readings from a remote sensor or the main unit is a one-

step procedure. The remote sensor channel or the main unit display

is indicated in a box under the kinetic-wave icon.

Kinetic-wave

Icon

Designated Indoor Remote Remote Remote

Display Display Display Display Display

Channel One Channel Two Channel Three

Todisplaytemperature/humidityreadingsfromthemainunit:

• Press IN / REMOTE until a dot is displayed in the box under

the kinetic-wave.

To display temperature / humidity readings from a remote

sensor:

• PressCHANNELuntil theappropriateremotesensorchannelis

displayed in the box under the kinetic-wave.

If no readings are received from one particular channel for more

than 15 minutes, blanks “ --- ” will be displayed until further

readings are successfully searched. Check the remote sensor to

ensure that it is secure and that the correct channel has been

selected. Optionally, press and hold IN/REMOTEfor 2-seconds to

enforce a search.

HOW TO READ

THE KINETIC-WAVE DISPLAY

The kinetic-wave display shows the signal-receiving status of the

main unit. There are three possible forms:

The unit is in searching mode.

Transmission data are securely

registered.

No signals.

COMFORT LEVEL INDICATORS

ThecomfortlevelindicatorsCOMFORT,WETorDRYwilltellyou

if the curent environment is comfortable, too wet or too dry.

The comfort indicators will appear on the display of the main unit

when the following conditions are satisfied: TEMPERATURE AND HUMIDITY TREND

INDICATORS

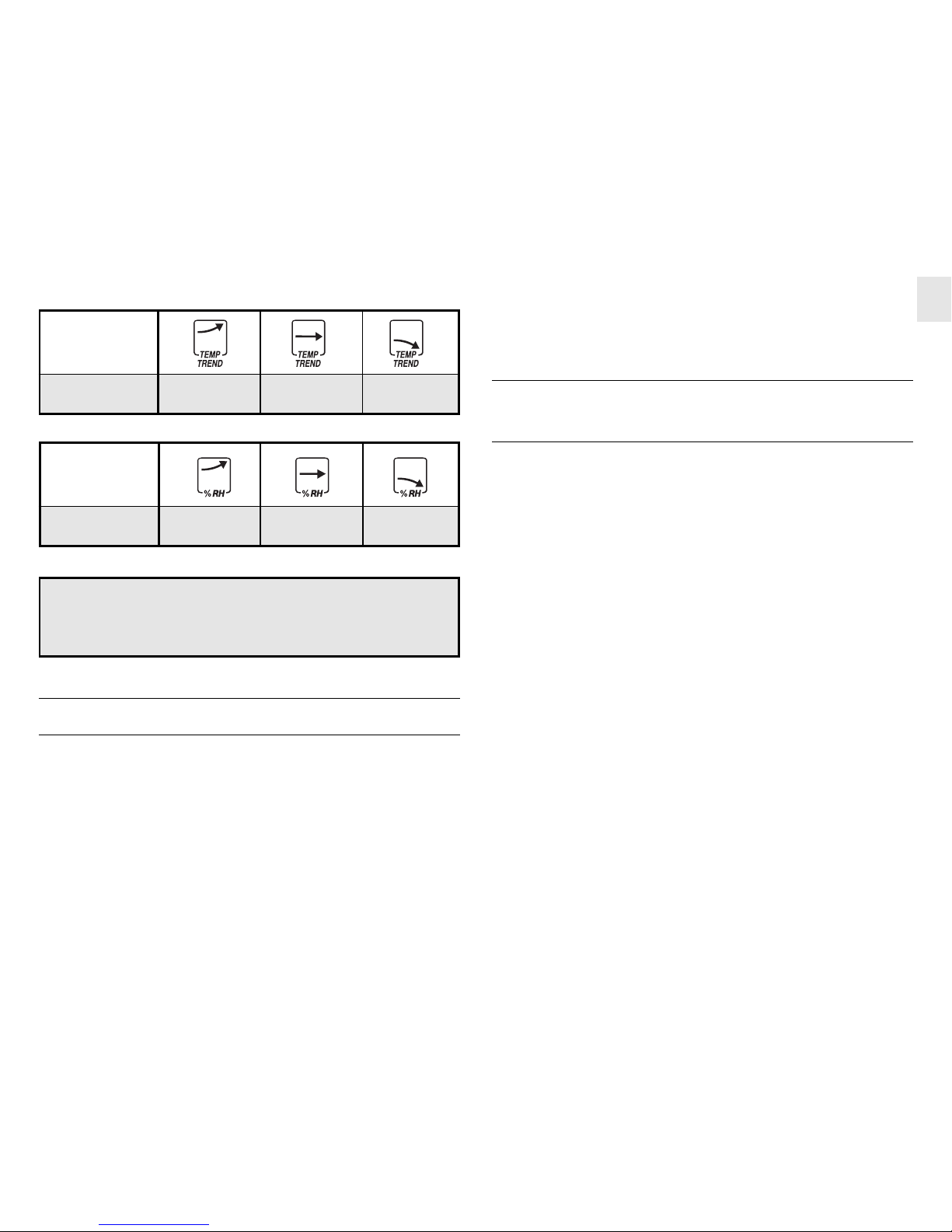

The temperature-trend and humidity-trend indicators show the

trends of collected readings. Arrows indicate a rising, steady or

falling trend.

Indicator

displays

on the unit

Temperature

Range

20°C to 25°C

(68°F to 77°F)

-5°C -+ 50°C

(23°F - 122°F)

-5°C -+ 50°C

(23°F - 122°F)

Humidity

Range

40%RH-

70%RH

OVER-

70%RH

Below

70%RH

Shows that

the Current

Environment

Ideal range for

both relative

humidity and

temperature

Contains excess

moisture

Contains

inadequate

moisture

Indicator

Less than

20°C( 68°F) or

More than

25°C (77°F)

40%RH

70%RH No comment

Note:Ifthe temperature goes aboveorbelowthetemperature

measuring range of the main unit or the remote unit ( stated

in specification), the display will show “HHH” or “LLL”.

REMOTE SENSOR SCANNING

The unit can be set to automatically scan and display readings from

the remote sensors. When the remote-sensor mode is active, the

display will show the readings from one channel for about 4-

second and then proceed to the next channel display.

To activate the remote-sensor scanning mode:

• Press and hold CHANNEL for 2-seconds.

Arrow

indicator

Temperature

Trend Steady FallingRising

To deactivate the remote-sensor scanning mode:

• Press any button.

MAXIMUM AND MINIMUM

TEMPERATURE AND HUMIDITY

The maximum and minimum recorded temperature and humidity

readings will automatically be stored in the memory.

Todisplaythe maximum andminimumdisplay memory:

1. Select the channel to be checked.

2. PressMEM/CLEARoncetodisplaythemaximumtemperature

and humidity and again the minimum temperature and

humidity. The respective indicators, MAX or MIN will be

displayed.

Toclearthememory:

• Press and hold MEM/CLEAR for 2-seconds.

If you press MEM/CLEAR now, the maximum and minimum

temperatures and humidity will have the same values as the current

ones until different readings are recorded.

Arrow

indicator

Humidity

Trend Steady FallingRising

HOW TO USE CHANNEL-1

TEMPERATURE/HUMIDITY ALARM

Upper and lower temperature and humidity limits for channel-1 can

be set so that an alarm activates when the limits are exceeded.

The high and low temperature and humidity displays are selected

by sequentially pressing HI/LO.

The high-low displays are as follows:

Sequence Respective Display

Pressing HI/LO once Enters HI temperature display

Pressing HI/LO twice Enters HI humidity display

Pressing HI/LO three times Enters LO temperature display

Pressing HI/LO a four time Enters LO humidity display

To set a high or low temperature or humidity alarm:

1. Press HI/LO, channel-1 will be displayed.

2. Press toset the temperature orhumidity limit. Each presswill

increase increments by one degree or percentage. Press and

hold the button for a rapid-scrolling sequence by increments of

five.

Note:

The temperature range is from -50°C (-58°F) to +70°C

(158°F).

If this is the first time you set the limits, the lower limit will

start from -50°C (-58°F) and the upper limit +70°C (158°F).

Otherwise, the reading will start from the temperature last

selected.

The humidity range is from 2% to 98%.

If this is the first time you set the limits, the lower limit will

startfrom 2%andtheupper limit98%Otherwise,the reading

will start from the humidity last selected.

3. Repeat the steps to set the upper humidity setting and the lower

temperature and humidity settings.

4. When finished, press HI/LO to set another limit or wait

16-seconds and the unit will automatically return to the normal

display. The respective HI, LO or both indicators will light up

to signify the status of the alarm.

If in another channel other than channel one is selected, when the

alarm activates the display will switch to channel-1 and the display

will flash. If left untouched, the alarm will activate for 1-minute.

Pressanykeytomomentarilystopthealarm.Thealarmwillactivate

again if the limit continues to be exceeded.

Note: If a second limit is passed while an alarm is active, the

first alarm will complete its 1-minute cycle and the alarm

will continue to activate for a second minute to indicate that

a second limit has been surpassed.

To disable an alarm:

1. Enter the setting mode by pressing HI/LO.

2. Then,pressALON/OFF.

The alarm has been disabled and will not sound at the previously

set limit.

To disable a sounding alarm:

• Press any button, the alarm sound will stop.

DISCONNECTED SIGNALS

If without obvious reasons the display for a particular channel

goes blank, press IN/REMOTE to enforce an immediate search.

If that fails, check:

1. The remote unit of that channel is still in place.

2. The batteries of both the remote unit and main unit. Replace as

necessary.

Note that when the temperature falls below freezing point,

the batteries of outdoor units will freeze, lowering their

voltage supply and the effective range.

3. The transmission is within range and path is clear of obstacles

and interference. Shorten the distance when necessary.

TRANSMISSION COLLISION

Signals from other household devices, such as door bells, home

security systems and entry controls, may interfere with those of

this product and cause temporarily reception failure. This is normal

and does not affect the general performance of the product. The

transmission and reception of temperature readings will resume

once the interference recedes.

NOTE ON °C AND °F

The unit of temperature display is selected on the °C/°F slide

switch. Select °C for Centigrade or °F for Fahrenheit.

Note that the remote temperature display on the main unit is

dominated by the selection on the °C/°F slide switch of the

main unit. Whatever the display units of the remote sensors

are, they will be automatically converted to the chosen one

of the main unit.

LOW BATTERY WARNING

When it is time to replace batteries, the respective low-battery

indicator will show up when the respective channel is selected. The

batterylevelofthemainunitwillbeshownontheindoortemperature

when it is running low.

HOW TO USE THE TABLE STAND OR

WALL MOUNTING

The main unit has a retractable table stand, which when flipped

open, can support the unit on a flat surface. Or you can flip the stand

close and mount the unit on a wall using the recessed screw hole.

As for the remote unit, it comes with a wall-mount holder and a

removable stand. Use either to hold the unit in place.

Main unit Wall-mount Table Stand

Remote unit Wall-mount Table Stand

THE RESET BUTTON

This button is only used when the unit is operating in an

unfavorable way or malfunctioning. Use a blunt stylus to hold

down the button. All settings will return to their default values.

MAINTENANCE

When handled properly, this unit is engineered to give you years

of satisfactory service. Here are a few product care instructions:

1. Do not immerse the unit in water. If the unit comes in contact

with water, dry it immediately with a soft lint-free cloth.

2. Do not clean the unit with abrasive or corrosive

materials.Abrasive cleaning agents may scratch the plastic

parts and corrode the electronic circuit.

3. Do not subject the unit to excessive: force, shock, dust,

temperature, or humidity. Such treatment may result in

malfunction, a shorter electronic life span, damaged batteries,

or distorted parts.

4. Do not tamper with the unit’s internal components. Doing so

will terminate the unit’s warranty and may cause damage. The

unit contains no user-serviceable parts.

5. Only use new batteries as specified in this instruction manual.

Do not mix new and old batteries as the old batteries may leak.

6. Read this instruction manual thoroughly before operating the

unit.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Minder Research Instrument de mesure

Minder Research

Minder Research TireMinder TM-A1A Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
