IMPORTANT
Please read this Operator’s Manual carefully•
and thoroughly before using the pedestal
Please retain this Operator’s Manual for future•
reference
COMBINATION PEDESTAL
Operator’s Manual
Including Dolly options & accessories

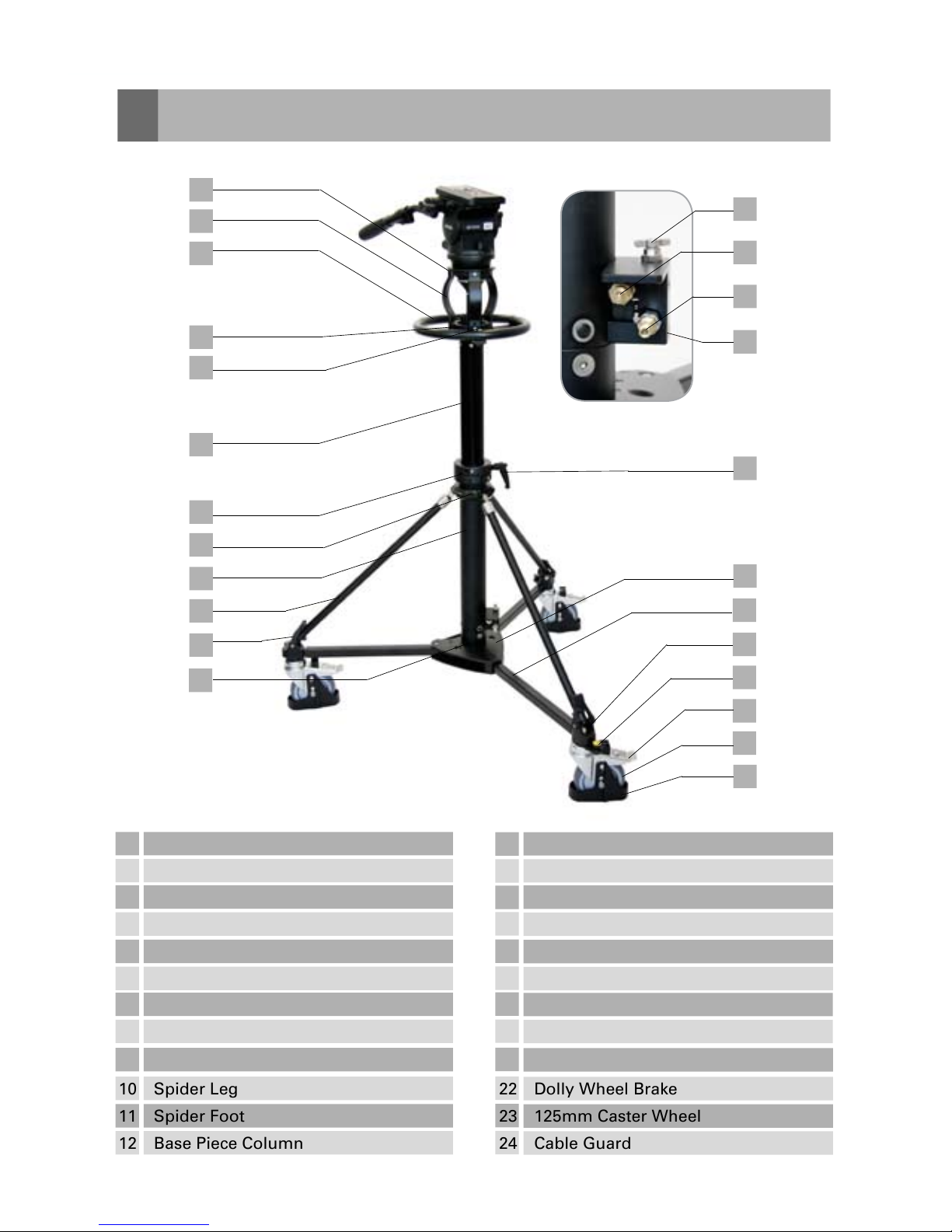

FEATURES AND CONTROLS
1 100mm Bowl 13` Air Pressure Set Knob
2 Bowl Brackets 14 Safety Valve
3 Steering Wheel 15 Schrader Valve
4 Central Piece Bowl Unit 16 Air Pressure Block
5 Locking Screws Bowl Unit 17 Column Clamp Handle
6 Inside Column Pedestal 18 Dolly Centre Hub
7 Clamp System Column 19 Dolly Arm
8 Spider Clamp Ring 20 Dolly End Ball
9 Outside Column 21 Tracking Lock (only for #483)
10` Spider Leg 22 Dolly Wheel Brake
11 Spider Foot 23 125mm Caster Wheel
12 Base Piece Column 24 Cable Guard
19
20
21
22
23
Fig 1.
18
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
17
24
12
INTRODUCTION
Thank you for purchasing the Miller Combination Pedestal. These instructions
give you a full mounting description and short information about the main func-
tions of the Combination Pedestal Column and the range of Miller Studio Dollies.
The Combination Pedestal combines design and affordability into a flexible new
Camera Support System available from your Miller dealer.
OPERATION MANUAL
Please read this manual carefully prior to using the Combination pedestal. Do
not omit any steps.
The manual contains important set-up, camera mounting information and should
be read in conjunction with the operating manuals of the fluid head and camera
you have chosen to complement your Combination pedestal.
SET-UP
These instructions build the Combination Pedestal Column on the Miller Studio
Dolly range in the most commonly used way.
NORMAL SET-UP:
Deploy Miller Studio Dolly and rotate dolly arms to locking position. Place the•
dolly on flat surface. (Fig 2.&3.)
Fig 2. Fig 3.

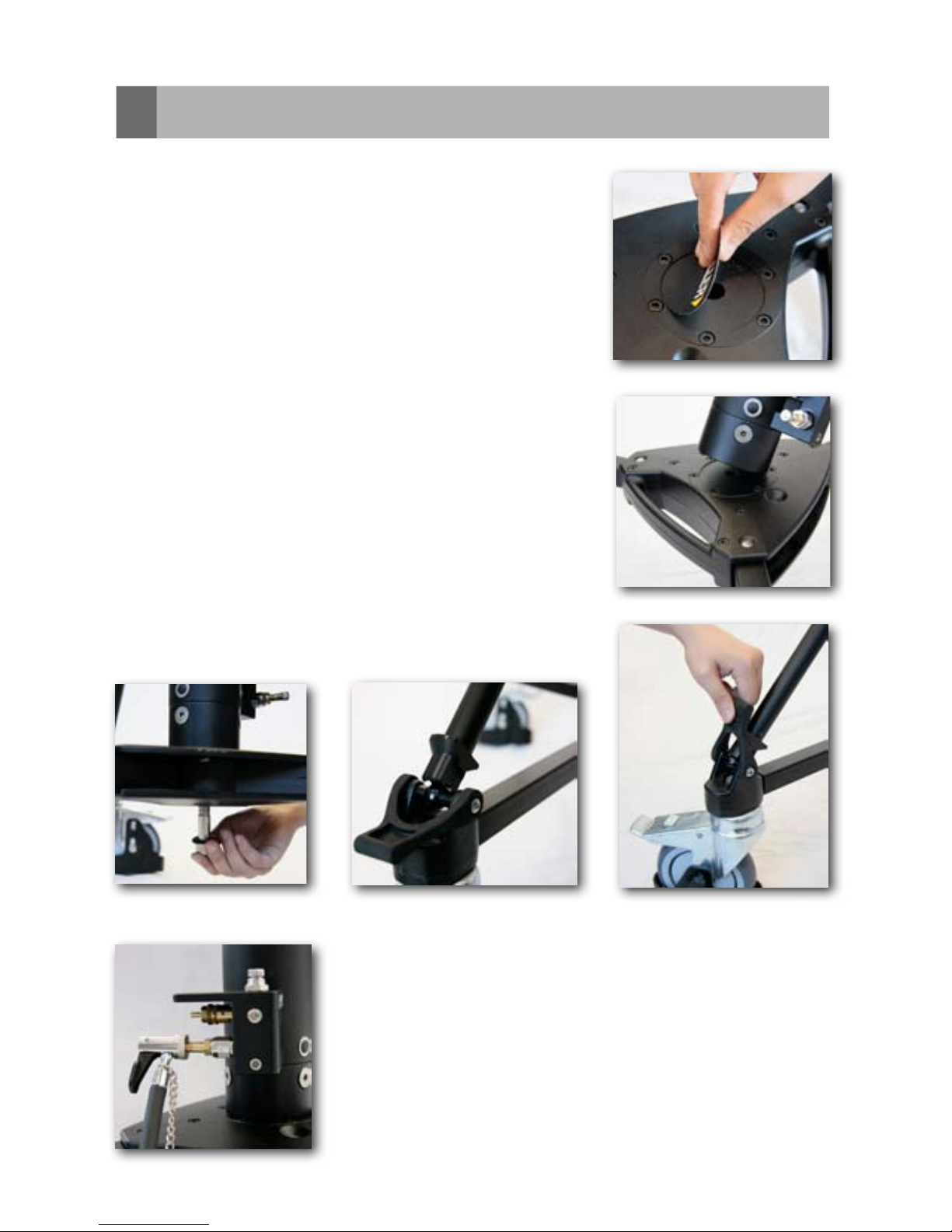

SET-UP (CONT)
Peel off Miller label (if applicable) from the dolly•
centre hub to reveal the 12.5mm hole. (Fig 4.)
Remove Pedestal Column and Spider Legs from•
the packing box.
Line up Column to the dolly centre hub, insert M12•
bolt into the 12.5mm hole. (Fig 5.&6.)
Tighten the bolt but not fully with the supplied•
10mm Hexagon Key.
Align the Spider Foot on to the ball of dolly end•
(Fig 7.). Pull the Rubber Stirrup up and over the
end shoulder of Spider Foot. (Fig 8.) Repeat for the
remaining two spider legs.
Fully tighten the bolt and check that the Column is•
secure.
Raise and lock the (airless) Pedestal Column in the•
highest position using the Column Clamp Handle.
Use a High Pressure Pump and connect it to the•
Schrader Valve on the Air Pressure Block. (Fig 9.)
Fig 4.
Fig 5.
Using pump bring the air pressure to the desired level
depending on the camera load that is going to be used.
During detaching of the pump there is some air leaving
the system, therefore, we recommend putting extra air in
the system and let some air out when fine tuning balance
of the camera with its accessories.
Now the Combination Pedestal is set up in its standard
configuration on the Miller Studio Dolly range.
Fig 7.
Fig 8.
Fig 6.
Fig 9.
SET-UP (CONT)
EXTENDED SET-UP (optional)
The Pedestal can be enlarged using the optional VPS-300 extension (Fig 10.). This
will extend the base height of your pedestal by 300mm.
Placing Extension:
• Removethethreelockingscrewsthatholdthecolumninthebasepieceusing
the supplied hexagon key.
• TakeofftheColumnwithspiderandlayitaside.
• Mounttheextensionyouneedusingthesamehexagonkey.
Take the Column and mount it on top of the extension.•
Fig 10.
Loosen the Spider Clamp Ring•
with the two locking screws and let
it slide down until the spider legs
fit the ball of dolly end. Then
fasten the Spider Clamp Ring
again with both screws.
MOUNTING THE VIDEO CAMERA
• Beforemountingcamera,besurethatColumnClampHandleistightandthe
wheels are locked.
• PlacethePedestalonastableandflatfloor.
• MountyourFluidHeadonthe100mmbowl.Whenusinga75mmHeada#378
100/75 bowl adaptor is available from your Miller dealer.
• MountthecameratotheFluidHeadusingthequickreleasecameraplate.
Apply all appropriate accessories to the camera up to the maximum of 30kg
total load (camera, head & accessories together). Refer to the Operator’s
Manual of the Fluid Head.
• IfnecessaryusethePumptoincreasepressuretotheairsystemorusethe
Set Knob to decrease the pressure. Use the complete vertical stroke of the
Pedestal Column to test what is the ideal situation.
• Iftoomuchairpressureisappliedthesafetyvalvewillopenandairwill
escape from the system to prevent it from being overloaded.
Fig 11. Fig 12.
LOW SET-UP ON DOLLY (Fig 11.)
• RemovethethreelockingscrewsthatholdtheBowlUnitontheinsidecolumn
using the supplied hexagon key.
• TakeofftheBowlUnitandlayitaside.
• Removethethreelockingscrewsthatholdthecolumninthebasepieceusing
the supplied hexagon key.
• TakeofftheColumnwithspiderandlayitaside.
• Mount,ifnecessarytheextensionyouneedusingthesamehexagonkey.Fix
them firmly but do not use too much force for there is a chance of damaging
the tool or the screws.
• TaketheBowlunitandmountitontopoftheextensionordirectlytotheBase
Piece of the Dolly.
• AspeciallowsetupispossibleusingonlytheBowlunit,placingitonitsrub-
ber feet on the ground or a table (Fig 12.).
SET-UP (CONT)
The Miller Studio Dolly range has all the strength and smooth flowing dolly
movesrequiredforstudioapplications.TheMillerStudioDollyrangehasrein-
forced centre hub with collapsible box tubing arms. New, smooth action castors
ensure the Miller Studio Dolly range offers sturdy, smooth support under all
Miller ENG and HD tripods.
Miller Combination Pedestal can be set up on the Miller Sudio Dolly range
available with #480, #481 and #483.
MILLER STUDIO DOLLY RANGE
#480 #481 #483
Cat# 480 481 483
Description Studio Dolly Studio Dolly with cable guards Studio Tracker Dolly
Weight 6.2 kg (13.7 lb) 6.6 kg (14.6 lb) 6.9 kg (15.2 lb)
Folded length 610 mm (24.0 in) 610 mm (24.0 in) 640 mm (25.2 in)
Wheel Diameter 125 mm (4.9 in) 125 mm (4.9 in) 125 mm (4.9 in)
Diameter open 1072 mm (42.2 in) 1072 mm (42.2 in) 1072 mm (42.2 in)
Tube type Alloy Alloy Alloy
SPECIFICATIONS
SERVICE AND SALES SUPPORT
Height Range
Normal Set-up: 900 mm - 1255 mm
(fluid head not included)
Extended Set-up: 1200 mm - 1555 mm
(utilizing VPS-300)
Stroke: 355 mm
Weight:
Combination Column: 6.3 kg
Extension: 0.8 kg
Maximum Load: 30 kg
Miller Authorised Service Agents must carry out all service and repair work
onMillerPedestal.Failuretoobservethisrequirementmayvoidwarranty.It
is advisable to notify Miller or a Miller Authorised Service Agent if a change of
performance is observed as a result of impact or rough usage. For information
regarding sales and service of Miller products, or for your nearest Miller repre-
sentative, please contact us via our websie or at the following:
MILLER CAMERA SUPPORT (Australia) MILLER CAMERA SUPPORT LLC (USA)
30 Hotham Parade, Artarmon, Sydney 216 Little Falls Road, Cedar Grove
NSW 2064 Australia New Jersey 07009-1231 USA
Tel: +61 2 9439 6377 Tel: (973) 857 8300
Fax: +61 2 9438 2819 Fax: (973) 857 8188
MILLER FLUID HEADS (Europe) LTD.
Unit A2, Ford Lane Industrial Estate
Ford Lane, Ford, West Sussex
BN18 0DF United Kingdom
Tel: +44 (0) 1243 555 255
Fax: +44 (0) 1243 555 001
Email: [email protected]
WEBSITE
www.millertripods.com
D5125-1
