Milesight EM320-TILT-868M Manuel utilisateur
Tilt Sensor
Featuring LoRaWAN®
EM320-TILT
User Guide
www.ime.de
2
Safety Precautions
Milesight will not shoulder responsibility for any loss or damage resulting from not following the
instructions of this operating guide.
The device must not be disassembled or remodeled in any way.
In order to protect the security of the device, please change device password when first
configuration. The default password is 123456.
Do not place the device close to objects with naked flames.
Do not place the device where the temperature is below/above the operating range.
The device is not intended to be used as a reference sensor, and Milesight will not should
responsibility for any damage which may result from inaccurate readings.
The battery should be removed from the device if it is not to be used for an extended period.
Otherwise, the battery might leak and damage the device. Never leave a discharged battery
in the battery compartment.
Make sure all batteries are newest when install, or battery life will be reduced.
The device must never be subjected to shocks or impacts.
Declaration of Conformity
EM320-TILT is in conformity with the essential requirements and other relevant provisions of the
CE, FCC, and RoHS.
Copyright © 2011-2023 Milesight. All rights reserved.
All information in this guide is protected by copyright law. Whereby, no organization or individual
shall copy or reproduce the whole or part of this user guide by any means without written
authorization from Xiamen Milesight IoT Co., Ltd.
For assistance, please contact
Milesight technical support:
Email: iot.support@milesight.com
Support portal: support.milesight-iot.com
Tel: 86-592-5085280
Fax: 86-592-5023065
Address: Building C09, Software Park III,
Xiamen 361024, China
www.ime.de
3
Revision History
Date
Doc Version
Description
Feb.14, 2023
V 1.0
Initial version
www.ime.de
4
Contents
1. Product Introduction ......................................................................................................................... 5
1.1 Overview ...................................................................................................................................5
1.2 Features ................................................................................................................................... 5
2. Hardware Introduction ...................................................................................................................... 5
2.1 Packing List ..............................................................................................................................5
2.2 Hardware Overview ................................................................................................................. 6
2.3 Dimensions(mm) .....................................................................................................................6
3. Operation Guide .................................................................................................................................7
3.1 NFC Configuration ................................................................................................................... 7
3.2 LoRaWAN Settings .................................................................................................................. 8
3.3 Basic Settings ........................................................................................................................10
3.4 Threshold Settings ................................................................................................................ 11
3.5 Maintenance .......................................................................................................................... 13
3.5.1 Upgrade ....................................................................................................................... 13
3.5.2 Backup .........................................................................................................................14
3.5.3 Reset to Factory Default .............................................................................................15
4. Installation ....................................................................................................................................... 15
5. Device Payload ................................................................................................................................ 16
5.1 Basic Information .................................................................................................................. 16
5.2 Sensor Data ........................................................................................................................... 17
5.3 Downlink Commands ............................................................................................................ 18
www.ime.de
5
1. Product Introduction
1.1 Overview
EM320-TILT is an LoRaWAN®tilt sensor mainly for angle measurement and asset movement
detection. With a compact size and 3-axis accelerometer, EM320-TILT can be installed to the
objects easily to measure its X,Y,Z tilt angles. In addition, EM320-TILT supports customizing
initial position to detect movement based on angle changes and send threshold alarms.
Compliant with Milesight LoRaWAN®gateway and Milesight IoT Cloud solution, users can know
the angles and tilt threshold alarms in real-time via browser or mobile app remotely.
EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.
1.2 Features
Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
Flexible threshold condition settings, suitable for different kinds of applications
Easy to install, suitable for various types of objects as trees, poles, grounds, etc.
IP67 waterproof enclosure for outdoor applications
Anti-theft design on back cover to secure firm and sturdy installation
Ultra-wide-distance wireless transmission up to line of sight of 15km
Equipped with NFC for one touch configuration
Function well with standard LoRaWAN®gateways and network servers
Compliant with Milesight IoT Cloud
2. Hardware Introduction
2.1 Packing List
1 × EM320-TILT
Sensor
2 × Wall
Mounting Kits
1 × Fixing Screw
1 × Quick Start
Guide
1 × Warranty
Card
If any of the above items is missing or damaged, please contact your sales Representative.
www.ime.de
6
2.2 Hardware Overview
When you install EM320-TILT on site, below is the angle number you can expect with
corresponding device gesture.
2.3 Dimensions(mm)
www.ime.de
7
2.4 Power Button
The LED indicator and power button are inside the device. Switch on/off and reset can also be
configured via NFC.
Function
Action
LED Indication
Turn On
Press and hold the button for more than 3 seconds.
Off →On
Turn Off
Press and hold the button for more than 3 seconds.
On →Off
Reset
Press and hold the button for more than 10 seconds.
Blink 3 times.
Check
On/Off Status
Quickly press the power button.
Light On: Device is on.
Light Off: Device is off.
3. Operation Guide

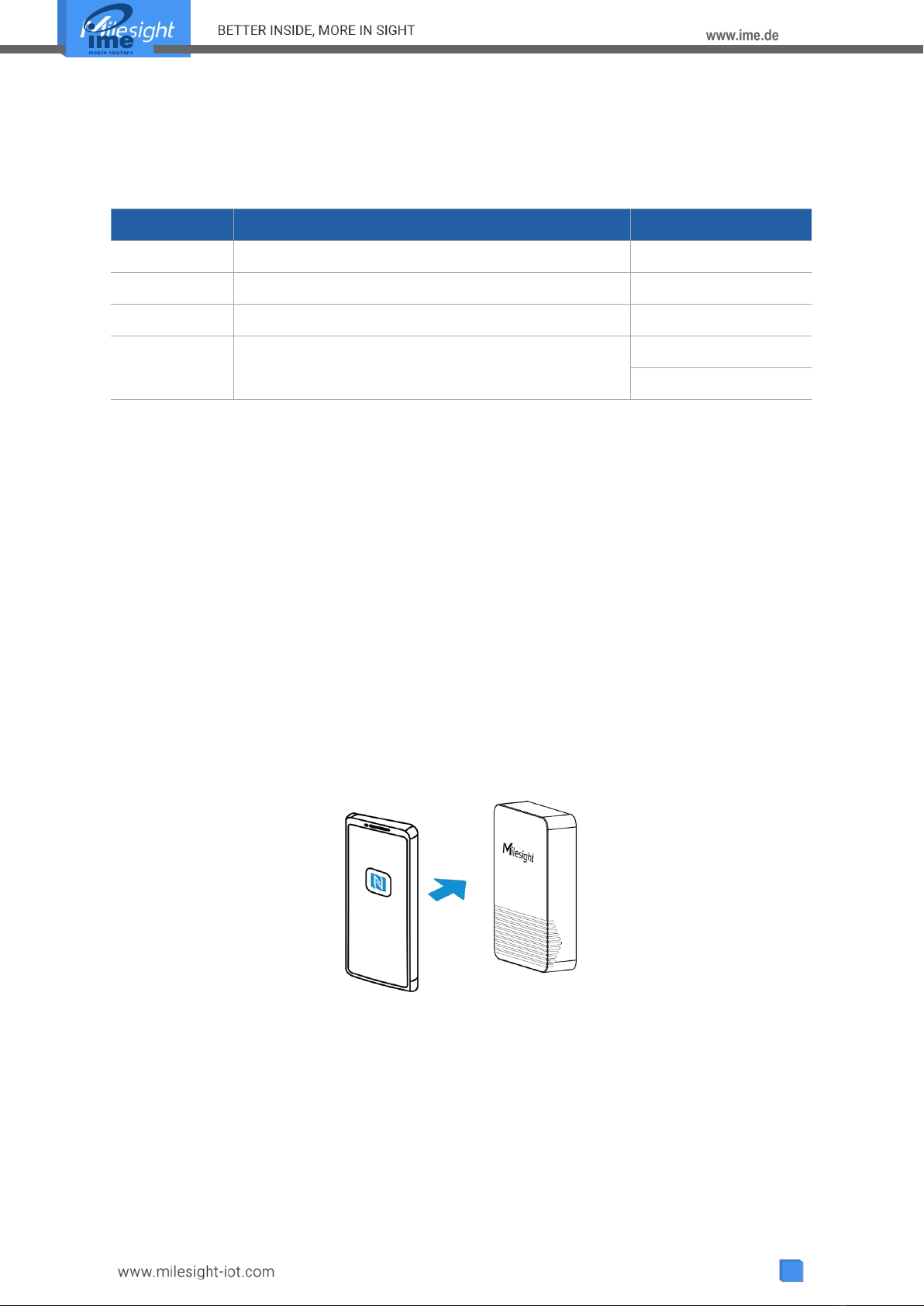

3.1 NFC Configuration
EM320-TILT sensor can be monitored and configured via NFC. Please refer the following steps
to complete configuration.
1. Download and install “Milesight ToolBox” App from Google Play or Apple App Store.
2. Enable NFC on the smartphone and launch Milesight ToolBox.
3. Attach the smartphone with NFC area to the device to read device information. Basic
information and settings of the device will be shown on ToolBox App if it’s recognized
successfully. You can read and configure the device by tapping the Read/Write device on the
App. In order to protect the security of the device, please change password when first
configuration. The default password is 123456.
Note:
1) Ensure the location of smartphone NFC area and it’s recommended to take off phone case.
2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back
to try again.
3) EM320-TILT sensor can also be configured by dedicated NFC reader, which can be
purchased from Milesight IoT.
www.ime.de
8

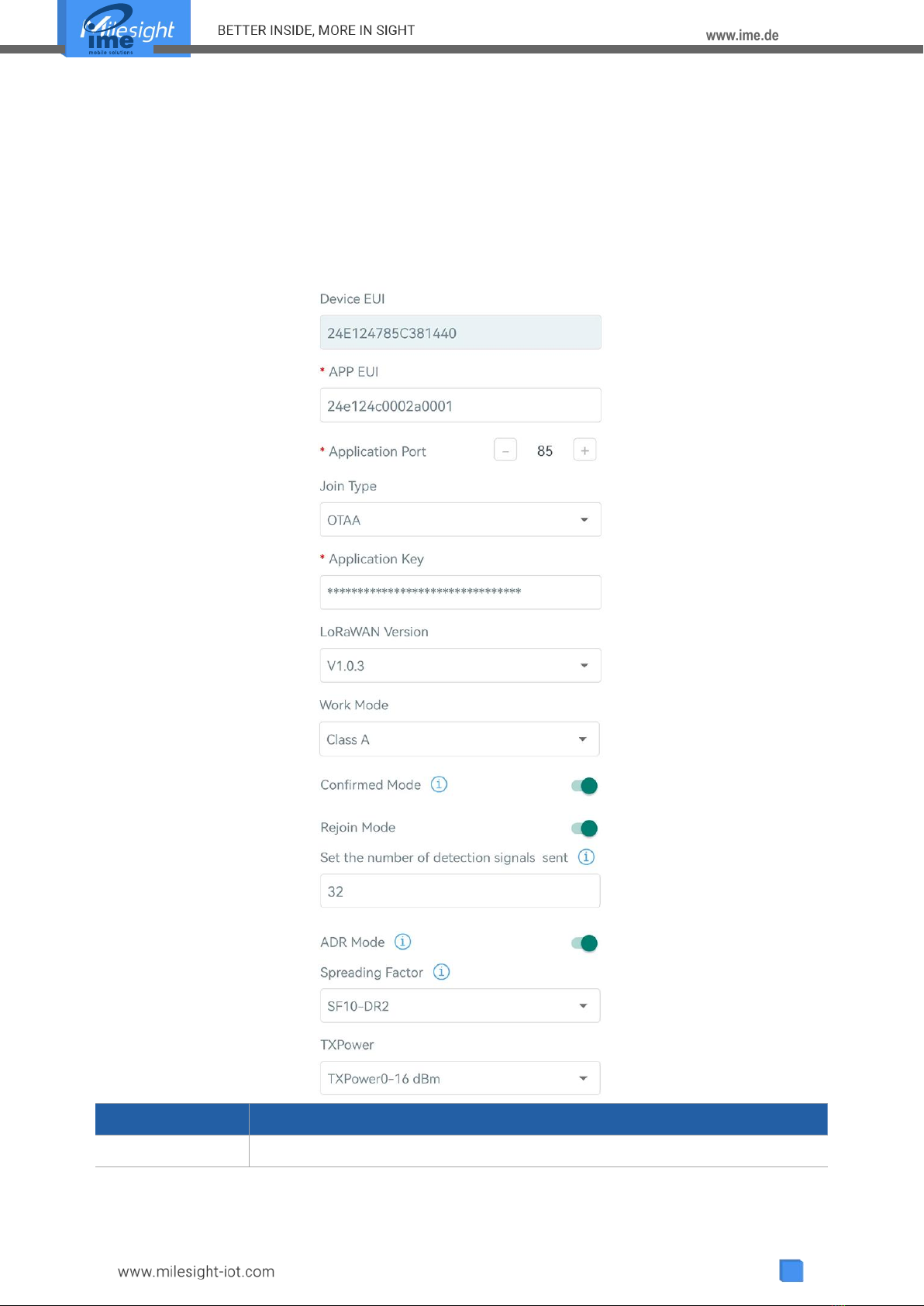

3.2 LoRaWAN Settings
LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN®network.
Basic LoRaWAN Settings:
Go to Device > Settings > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App
Key and other information. You can also keep all settings by default.
Parameters
Description
Device EUI
Unique ID of the device which can also be found on the label.
www.ime.de
9
App EUI
Default App EUI is 24E124C0002A0001.
Application Port
The port is used for sending and receiving data, default port is 85.
Join Type
OTAA and ABP mode are available.
Application Key
Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823.
Device Address
DevAddr for ABP mode, default is the 5th to 12th digits of SN.
Network Session
Key
Nwkskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.
Application
Session Key
Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.
LoRaWAN Version
V1.0.2, V1.0.3 are available.
Work Mode
It’s fixed as Class A.
RX2 Data Rate
RX2 data rate to receive downlinks.
RX2 Frequency
RX2 frequency to receive downlinks. Unit: Hz
Spread Factor
If ADR is disabled, the device will send data via this spread factor.
Confirmed Mode
If the device does not receive ACK packet from network server, it will resend
data once.
Rejoin Mode
Reporting interval ≤ 30 mins: the device will send a specific number of
LinkCheckReq MAC packets to the network server every 30 mins to validate
connectivity; If there is no response, the device will re-join the network.
Reporting interval > 30 mins: the device will send a specific number of
LinkCheckReq MAC packets to the network server every reporting interval to
validate connectivity; If there is no response, the device will re-join the
network.
Set the number of
packets sent
When rejoin mode is enabled, set the number of LinkCheckReq packets sent.
ADR Mode
Allow network server to adjust data rate of the device.
Tx Power
Transmit power of the device.
Note:
1) Please contact sales for device EUI list if there are many units.
2) Please contact sales if you need random App keys before purchase.
3) Select OTAA mode if you use Milesight IoT cloud to manage devices.
4) Only OTAA mode supports rejoin mode.
LoRaWAN Frequency Settings:
Go to Settings > LoRaWAN Settings to select supported frequency and select channels to send
www.ime.de
10
uplinks. Make sure the channels match the LoRaWAN®gateway.
If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you
want to enable in the input box, making them separated by commas.
Examples:
1, 40: Enabling Channel 1 and Channel 40
1-40: Enabling Channel 1 to Channel 40
1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60
All: Enabling all channels
Null: Indicates that all channels are disabled
3.3 Basic Settings
Go to Device > Settings > General Settings to change the reporting interval, etc.
www.ime.de
