Milesight LoRaWAN WS136 Manuel utilisateur
Smart Scene Panel
Featuring LoRaWAN®
WS136 & WS156
User Guide
2
Safety Precautions
Milesight will not shoulder responsibility for any loss or damage resulting from not following the
instructions of this operating guide.
The device must not be modified in any way.
In order to protect the security of the device, please change device the password when first
configuration. The default password is 123456.
Do not place the device close to objects with naked flames.
Do not place the device where the temperature is below/above the operating range.
When installing the battery, please install it accurately, and do not install the reverse or
wrong model.
Remove the battery if the device will not be used for a while. Otherwise, the battery will leak
and damage the device.
Make sure both batteries are newest when install, or battery life will be reduced.
The device must never be subjected to shocks or impacts.
Declaration of Conformity
WS136 & WS156 is in conformity with the essential requirements and other relevant provisions
of the CE, FCC, and RoHS.
Copyright © 2011-2023 Milesight. All rights reserved.
All information in this guide is protected by copyright law. Whereby, no organization or individual
shall copy or reproduce the whole or part of this user guide by any means without written
authorization from Xiamen Milesight IoT Co., Ltd.
For assistance, please contact
Milesight technical support:
Email: iot.support@milesight.com
Support portal: support.milesight-iot.com
Tel: 86-592-5085280
Fax: 86-592-5023065
Address: Building C09, Software Park III,
Xiamen 361024, China
3
Revision History
Date
Doc Version
Description
Oct. 19, 2021
V 1.0
Initial version
Aug. 1, 2022
V 1.1
1. Change insulating sheet place
2. Change RX2 setting place
Jan. 16, 2023
V 1.2
1. Add Single-Channel Mode;
2. Add Milesight D2D LoRa Uplink feature;
3. Add reboot downlink command.
4
Contents
1. Product Introduction......................................................................................................................... 5
1.1 Overview ...................................................................................................................................5
1.2 Features ................................................................................................................................... 5
2. Hardware Introduction ...................................................................................................................... 5
2.1 Packing List ..............................................................................................................................5
2.2 Hardware Overview ................................................................................................................. 6
2.3 Dimensions (mm) .................................................................................................................... 6
2.4 LED Patterns ............................................................................................................................ 6
3. Operation Guide .................................................................................................................................6
3.1 NFC Configuration ................................................................................................................... 6
3.2 LoRaWAN Settings .................................................................................................................. 7
3.3 General Settings .................................................................................................................... 10
3.4 Milesight D2D Settings ..........................................................................................................10
3.5 E-ink Screen Display Settings ............................................................................................... 11
3.6 Maintenance .......................................................................................................................... 12
3.6.1 Upgrade ....................................................................................................................... 12
3.6.2 Backup .........................................................................................................................13
3.6.3 Reboot and Reset ....................................................................................................... 14
4. Installation ....................................................................................................................................... 14
5. Device Payload ................................................................................................................................ 15
5.1 Basic Information .................................................................................................................. 15
5.2 Button Message .................................................................................................................... 16
5.3 Downlink Commands ............................................................................................................ 16
5
1. Product Introduction
1.1 Overview
WS136 & WS156 is a LoRaWAN®based smart panel for wireless controls, triggers and alarms.
Without any additional cable, WS136 & WS156 can be easily installed anywhere and control
devices via LoRaWAN or Milesight D2D communication protocol. Besides, it’s equipped a
user-definable E-ink screen to suit different scenes. WS136 & WS156 can be widely used in
smart home, smart office, hotel, school, etc.
1.2 Features
Equipped with a programmable E-ink screen for flexible display
Up to 6 scenes settable, each scene can consist of multiple devices
Easy configuration via NFC
Standard LoRaWAN®support
Milesight IoT Cloud compliant
Milesight D2D control without gateway
Compact design, easy to install
2. Hardware Introduction
2.1 Packing List
1 ×
WS136 or WS156
Device
1 ×
3M Tape
2 ×
Mounting Screws
1 ×
Warranty Card
1 ×
Quick Guide
If any of the above items is missing or damaged, please contact your sales representative.
6
2.2 Hardware Overview
Note: For WS136, the E-ink screen is replaced by PVC sticker and the icons on the sticker
supports customization.
2.3 Dimensions (mm)
2.4 LED Patterns
Indicator
Action
Indication
Button Light
Press the button
Always on until the button is
being released
Status Indicator
Send join network requests
Blinks as requests
Joined the network successfully
Blinks twice
Receive ACK packages from NS
Blinks once
3. Operation Guide
3.1 NFC Configuration
WS136 & WS156 can be configured via NFC-enabled smartphone.

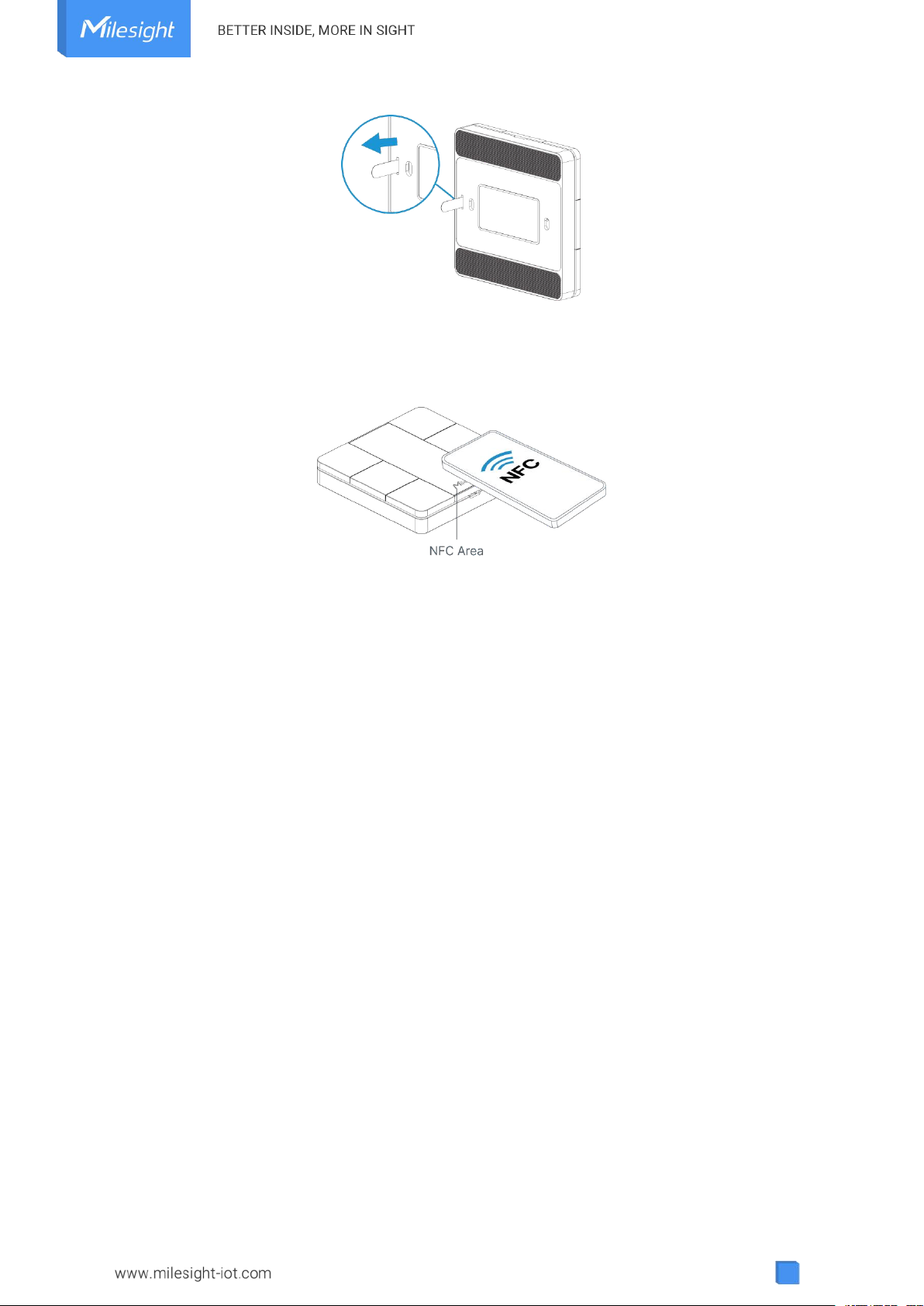

1. Pull out the battery insulating sheet to power on the device.
7
2. Download and install “Milesight ToolBox” App from Google Play or App Store.
3. Enable NFC on the smartphone and open Milesight ToolBox.
4. Attach the smartphone with NFC area to the device to read device information.
5. Basic information and settings of the device will be shown on ToolBox if it’s recognized
successfully. You can read and configure the device by tapping the Read/Write button on the
App. In order to protect the security of devices, password validation is required when first
configuration. The default password is 123456.
Note:
1) Ensure the position of smartphone NFC area and it’s recommended to take off phone case.
2) If the smartphone fails to read/write configurations via NFC, move the phone away and back
to try again.
3) WS136 & WS156 can also be configured by ToolBox software via dedicated NFC reader
provided by Milesight IoT.
3.2 LoRaWAN Settings
Go to Device > Setting > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App
Key and other information. You can also keep all settings by default.
8
Parameters
Description
Device EUI
Unique ID of the device which can also be found on the label.
App EUI
Default App EUI is 24E124C0002A0001.
Application Port
The port is used for sending and receiving data, the default port is 85.
Join Type
OTAA and ABP modes are available.
LoRaWAN Version
V1.0.2, V1.0.3 are available.
Work Mode
It’s fixed as Class A.
Application Key
Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823.
Device Address
DevAddr for ABP mode, default is the 5th to 12th digits of SN.
Network Session
Key
Nwkskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.
Application
Session Key
Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.
RX2 Data Rate
RX2 data rate to recieve downlinks or send D2D commands.
RX2
Frequency/MHz
RX2 frequency to receive downlinks or send D2D commands.
Channel Mode
Select Standard-Channel mode or Single-Channel mode. When Single-Channel
mode is enabled, only one channel can be selected to send uplinks. Please
enable Single-Channel mode if you connect device to DS7610.
Channel
Enable or disable the frequency to send uplinks.
9
If frequency is one of CN470/AU915/US915, enter the index of the channel
that you want to enable and make them separated by commas.
Examples:
1, 40: Enabling Channel 1 and Channel 40
1-40: Enabling Channel 1 to Channel 40
1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60
All: Enabling all channels
Null: Indicates that alll channels are disabled
Spread Factor
If ADR is disabled, the device will send data via this spread factor.
Confirmed Mode
If the device does not receive ACK packet from network server, it will resend
data once.
Rejoin Mode
The device will send a specific number of LinkCheckReq MAC packets to the
network server every 30 mins to validate connectivity; If there is no response,
the device will re-join the network.
Set the number of
packets sent
When rejoin mode is enabled, set the number of LinkCheckReq packets sent.
10
ADR Mode
Allow network server to adjust datarate of the device. This only works with
Standard-Channel Mode.
Tx Power
Transmit power of the device.
Note:
1) Please contact sales representative for device EUI list if there are many units.
2) Please contact sales representative if you need random App keys before purchase.
3) Select OTAA mode if you use Milesight IoT Cloud to manage devices.
4) Only OTAA mode supports rejoin mode.
5) For -868M model, the default frequency is EU868; for -915M model, the default frequency is
AU915.
3.3 General Settings
Go to Device > Setting > General Settings of ToolBox App to change the reporting interval, etc.
Parameters
Description
Reporting Interval
Reporting interval of battery level to network server. Default: 1080 min
Change Password
Change the password for ToolBox App to write this device.
3.4 Milesight D2D Settings
Milesight D2D protocol is developed by Milesight and used for setting up transmission among
Milesight LoRaWAN®devices without gateway. When the Milesight D2D setting is enabled,
WS136 & WS156 can work as a Milesight D2D controller for sending control commands to
trigger Milesight D2D agent devices.
1. Configure RX2 datarate and RX2 frequency in LoRaWAN®settings, it is suggested to change
the default value if there are many LoRaWAN®devices around.
Go to Device > Settings > D2D Settings to enable Milesight D2D feature, and define an unique
Milesight D2D key that is the same as Milesight D2D agent devices.
(Default Milesight D2D Key: 5572404C696E6B4C6F52613230313823)
