Milesight LoRaWAN WS136 Manuel utilisateur

Smart Scene Panel

Featuring LoRaWAN®

WS136 & WS156

User Guide

Safety Precautions

Milesight will not shoulder responsibility for any loss or damage resulting from not following the

instructions of this operating guide.

The device must not be modified in any way.

In order to protect the security of the device, please change device the password when first

configuration. The default password is 123456.

Do not place the device close to objects with naked flames.

Do not place the device where the temperature is below/above the operating range.

When installing the battery, please install it accurately, and do not install the reverse or

wrong model.

Remove the battery if the device will not be used for a while. Otherwise, the battery will leak

and damage the device.

Make sure both batteries are newest when install, or battery life will be reduced.

The device must never be subjected to shocks or impacts.

Declaration of Conformity

WS136 & WS156 is in conformity with the essential requirements and other relevant provisions

of the CE, FCC, and RoHS.

All information in this guide is protected by copyright law. Whereby, no organization or individual

shall copy or reproduce the whole or part of this user guide by any means without written

authorization from Xiamen Milesight IoT Co., Ltd.

For assistance, please contact

Milesight technical support:

Email: iot.supp[email protected]om

Tel: 86-592-5085280

Fax: 86-592-5023065

Address: Building C09, Software Park III,

Xiamen 361024, China

Revision History

Date

Doc Version

Description

Oct. 19, 2021

V 1.0

Initial version

Contents

1. Product Introduction.................................................................................................................................4

1.1 Overview........................................................................................................................................... 4

1.2 Features............................................................................................................................................4

2. Hardware Introduction..............................................................................................................................4

2.1 Packing List......................................................................................................................................4

2.2 Hardware Overview.........................................................................................................................5

2.3 Dimensions...................................................................................................................................... 5

2.4 LED Patterns.................................................................................................................................... 5

3. Operation Guide.........................................................................................................................................5

3.1 NFC Configuration.......................................................................................................................... 5

3.2 LoRaWAN Settings..........................................................................................................................6

3.3 General Settings..............................................................................................................................9

3.4 LoRa D2D Settings.......................................................................................................................... 9

3.5 E-ink Screen Display Settings......................................................................................................10

3.6 Maintenance.................................................................................................................................. 11

3.6.1 Upgrade...............................................................................................................................11

3.6.2 Backup.................................................................................................................................12

3.6.3 Reboot and Reset.............................................................................................................. 13

4. Installation................................................................................................................................................14

5. Device Payload........................................................................................................................................ 14

5.1 Basic Information..........................................................................................................................14

5.2 Button Message............................................................................................................................ 15

5.3 Downlink Commands................................................................................................................... 16

1. Product Introduction

1.1 Overview

WS136 & WS156 is a LoRaWAN®based smart panel for wireless controls, triggers and alarms.

Without any additional cable, WS136 & WS156 can be easily installed anywhere and control

devices via LoRaWAN or Milesight LoRa D2D communication protocol. Besides, it’s equipped a

user-definable E-ink screen to suit different scenes. WS136 & WS156 can be widely used in

smart home, smart office, hotel, school, etc.

1.2 Features

Equipped with a programmable E-ink screen for flexible display

Up to 6 scenes settable, each scene can consist of multiple devices

Easy configuration via NFC

Standard LoRaWAN®support

Milesight IoT Cloud compliant

LoRa D2D control without gateway

Compact design, easy to install

2. Hardware Introduction

2.1 Packing List

1 ×

WS136 or WS156

Device

1 ×

3M Tape

1 ×

Warranty Card

1 ×

Quick Guide

If any of the above items is missing or damaged, please contact your sales representative.

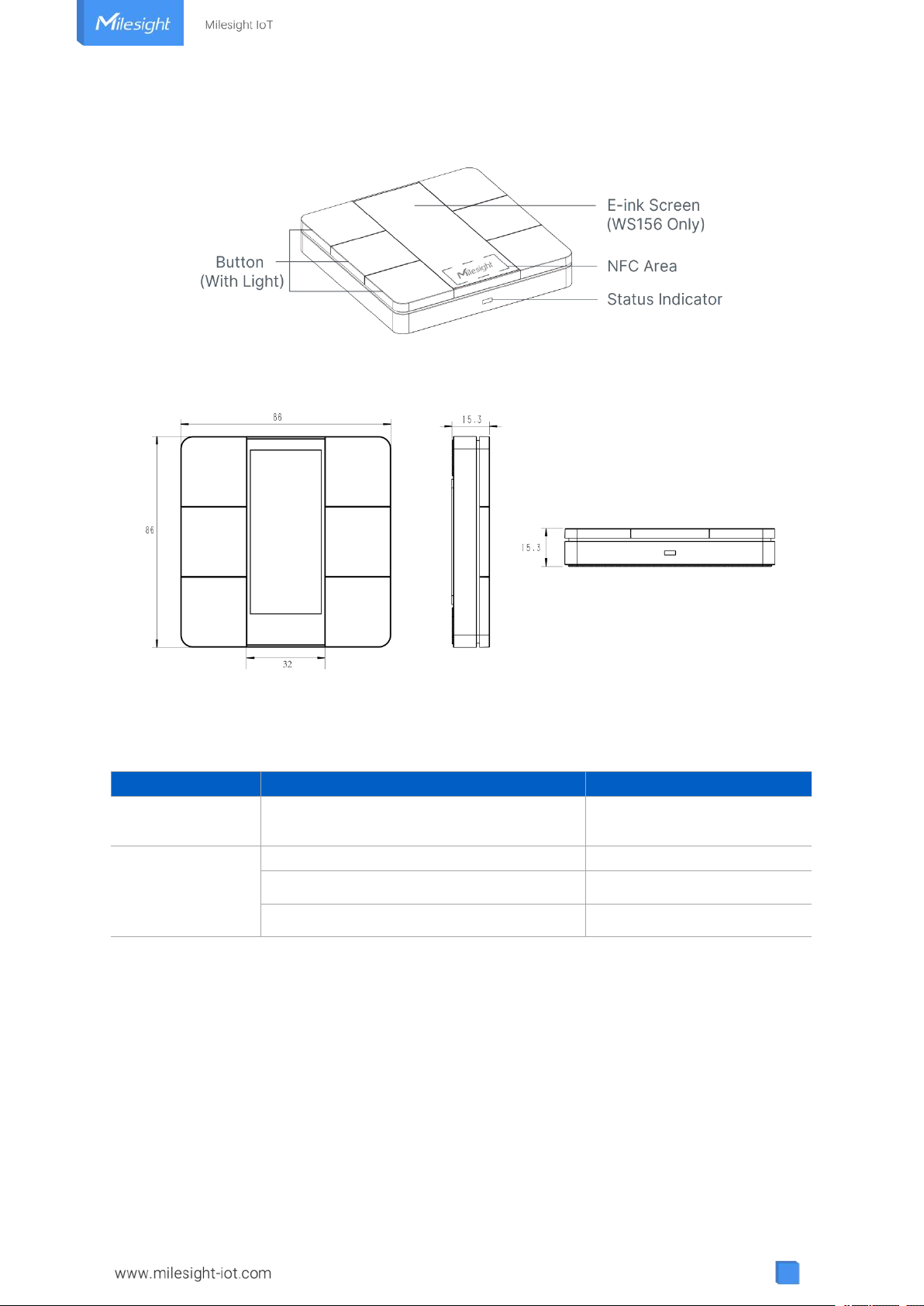

2.2 Hardware Overview

2.3 Dimensions (mm)

2.4 LED Patterns

Indicator

Action

Indication

Button Light

Press the button

Always on until the button is

being released

Status Indicator

Send join network requests

Blinks as requests

Joined the network successfully

Blinks twice

Receive ACK packages from NS

Blinks once

3. Operation Guide

3.1 NFC Configuration

WS136 & WS156 can be configured via NFC-enabled smartphone.

1. Open the enclosure of the device, pull out the inside battery insulating sheets to power on the device.

2. Download and install “Milesight ToolBox” App from Google Play or App Store.

3. Enable NFC on the smartphone and open Milesight ToolBox.

4. Attach the smartphone with NFC area to the device to read device information.

5. Basic information and settings of the device will be shown on ToolBox if it’s recognized

successfully. You can read and configure the device by tapping the Read/Write button on the

App. In order to protect the security of devices, password validation is required when first

configuration. The default password is 123456.

Note:

1) Ensure the position of smartphone NFC area and it’s recommended to take off phone case.

2) If the smartphone fails to read/write configurations via NFC, move the phone away and back

to try again.

3) WS136 & WS156 can also be configured by ToolBox software via dedicated NFC reader

provided by Milesight IoT.

3.2 LoRaWAN Settings

LoRaWAN settings are used for configuring the transmission parameters in LoRaWAN®network.

Basic LoRaWAN Settings:

Go to Device -> Setting -> LoRaWAN Settings of ToolBox App to configure join type, App EUI, App

Key and other information. You can also keep all settings by default.

Parameters

Description

Device EUI

Unique ID of the device which can also be found on the label.

App EUI

Default App EUI is 24E124C0002A0001.

Application Port

The port is used for sending and receiving data, the default port is 85.

Join Type

OTAA and ABP modes are available.

Application Key

Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823.

Device Address

DevAddr for ABP mode, default is the 5th to 12th digits of SN.

Network Session

Key

Nwkskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.

Application

Session Key

Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.

Spread Factor

If ADR is disabled, the device will send data via this spread factor.

Confirmed Mode

If the device does not receive ACK packet from network server, it will resend

data 3 times at most.

Rejoin Mode

Reporting interval ≤ 30 mins: the device will send specific mounts of

LoRaMAC packets to check connection status every 30 mins; If no reply after

specific packets are being sent, the device will re-join.

Reporting interval > 30 mins: the device will send specific mounts of

LoRaMAC packets to check connection status at every reporting interval; If no

reply after specific packets are being sent, the device will re-join.

ADR Mode

Allow network server to adjust datarate of the device.

Tx Power

Transmit power of the device.

Note:

1) Please contact sales representative for device EUI list if there are many units.

2) Please contact sales representative if you need random App keys before purchase.

3) Select OTAA mode if you use Milesight IoT Cloud to manage devices.

4) Only OTAA mode supports rejoin mode.

LoRaWAN Frequency Settings:

Go to “Setting->LoRaWAN Settings” of ToolBox App to select supported frequency and select

channels to send uplinks. Make sure the channels match the LoRaWAN®gateway.

If device frequency is one of CN470/AU915/US915, you can enter the index of the channel that

you want to enable in the input box, making them separated by commas.

Examples:

1, 40: Enabling Channel 1 and Channel 40

1-40: Enabling Channel 1 to Channel 40

1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60

All: Enabling all channels

Null: Indicates that all channels are disabled

Note:

For -868M model, default frequency is EU868;

For -915M model, default frequency is AU915.

3.3 General Settings

Go to “Device->Setting->General Settings” of ToolBox App to change the reporting interval, etc.

Parameters

Description

Reporting Interval

Reporting interval of battery level to network server. Default: 1080 min

Change Password

Change the password for ToolBox App to write this device.

3.4 LoRa D2D Settings

LoRa D2D protocol is developed by Milesight and used for setting up transmission among

Milesight LoRaWAN®devices without gateway. When the LoRa D2D setting is enabled, WS136 &

WS156 can work as a LoRa D2D controller for sending control commands to trigger LoRa D2D

agent devices.

1. Enable LoRa D2D feature.

2. Define a unique LoRa D2D key that is the same as LoRa D2D agent devices, then

select the frequency and spreading factor. (Default LoRa D2D Key: 5572404C696E6B4C6F

52613230313823)

3. Enable one of WS136 & WS156 button mode and configure a 2-byte hexadecimal command

(This command is pre-defined in LoRa D2D agent device). When you press this button, WS136 &

WS156 will send the control command to corresponding LoRa D2D agent devices.

Note: When this feature is enabled, the control command from this button will not send to

LoRaWAN®gateway.

3.5 E-ink Screen Display Settings

WS156 supports e-ink screen display content programming according to user requirements.

1. Every button shows 1 to 6 numbers by default. Users can modify these numbers to any

characters or click “Custom” to import pictures.

2. After modifying or importing, click “Preview” to check the display result on the upper picture.

3. Click “Write”, then attach the smartphone with NFC area to the device to complete the screen

programming.

4. Click “Save” to save the current display as a template in ToolBox App. You can import this

template to another device by clicking “Import Template”.
