Miglia TVMini Plus Instructions d'installation
Revision 1.0
(c) 2007, Miglia
TVMini+
Hardware Guide
Table of contents
Introduction and Overview of TVMini+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Introduction and System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview of TVMini+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Hardware and Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Hardware installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting your video source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Compression settings for TVMini+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Video Compression Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Warranty agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Introduction and Overview
of TVMini+
TVMini+™ User Guide
Page 1
Introduction
Thank you for choosing TVMini+ from Miglia. TVMini+ allows you to watch and record digital (DVB-T, Freeview)
and analogue TV and as well as capture video on your Mac. TVMini+ has been designed from the ground up for
your Mac.
System requirements:
• Mac with built-in USB 2.0 connectivity
• G5 or Intel processor
• 512 MB of RAM
• Mac OS X 10.4.x or 10.5.x
• QuickTime 7
Package contents
• TVMini+
• Infrared Remote Control
• CD-ROM with MigliaTV software and installation guide
• Portable digital antenna
• Video capture cable
• USB 2.0 extension cable
• Warranty card
• QuickStart Guide
User Guide Overview
This User Guide will guide you through the TVMini+ installation as well as explain as certain hardware specific
functions. The full MigliaTV user guide for the software functions is available on the CD-ROM that ships with
TVMini+ or via download from the Miglia website.
Technical Support
Should you ever have any questions regarding your product, please do not hesitate to contact Miglia.
The best way to contact technical support, is to fill out a ‘Technical Support Case Form’. Please go to
http://www.miglia.com/Support and click on the TVMini+ link.
TVMini+™ User Guide
Page 2
Overview of TVMini+™
Video inputs

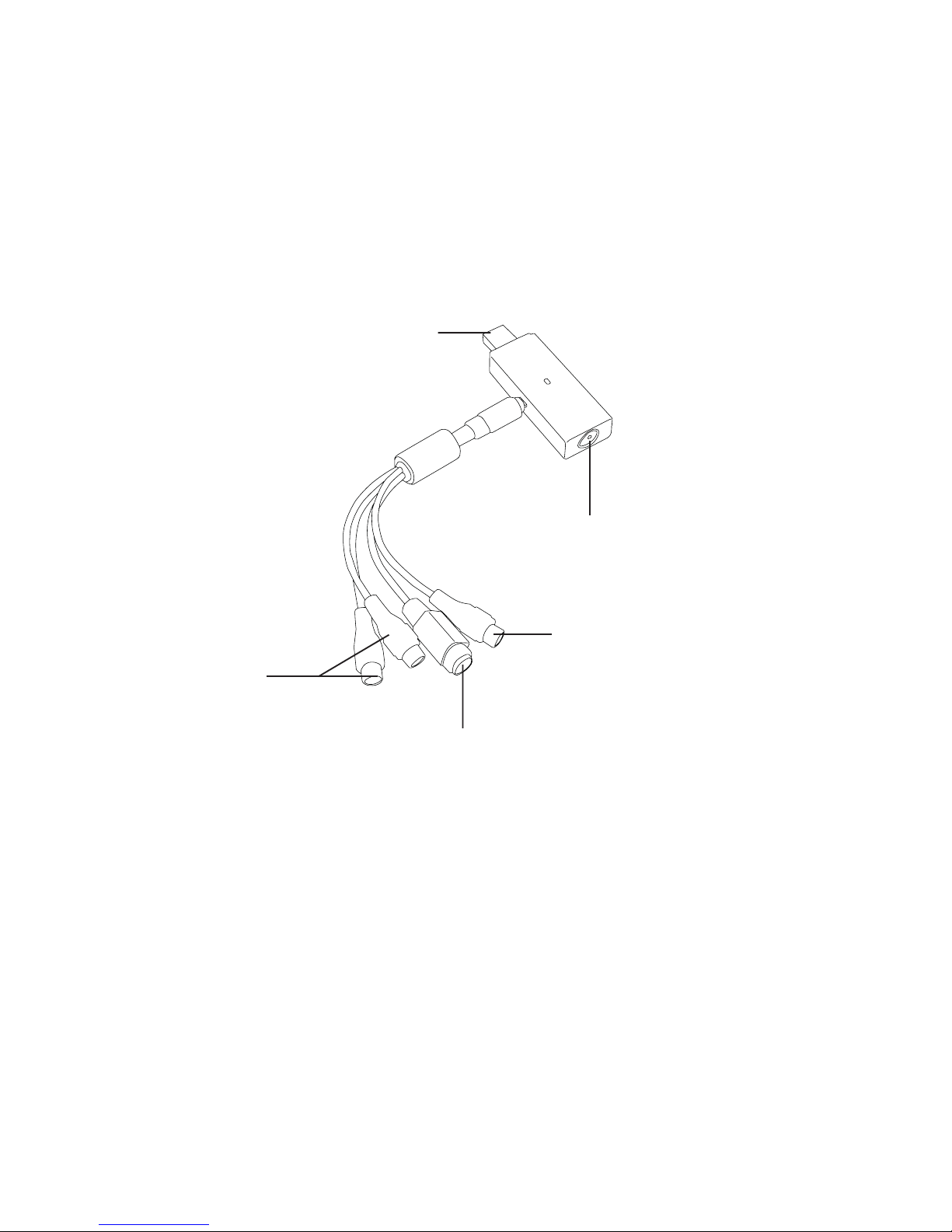

TVMini+™ features several video inputs:
• Coaxial TV input
• Composite input (via Breakout cable)
• S-Video input (via Breakout cable)
• RCA Stereo audio input (via Breakout cable)
•Coaxial connection: This is the TV Tuner connection, which can receive digital and analogue TV.
Connect the portable antenna, a cable from a roof-top antenna or a cable from a
CableTV outlet (the latter only works for analogue)
•Composite input: Composite is a widely used standard for connecting video
equipment. This type of connector is often found on camcorders and
VCRs.
•S-Video input: This connection gives a better image quality than composite and is
generally found on mid-range camcorders, VCRs and DVD players. If
you intend to capture video from an analogue source, use this
connection whenever you can.
• Stereo audio IN: TVMini+ card uses conventional RCA plugs
• USB 2.0: For the connection to your Mac
TVMini+™ User Guide
Page 3
Composite
S-Video
Audio
TV
USB 2.0
Hardware and Software
Installation
TVMini+™ User Guide
Page 4
I. Hardware Installation

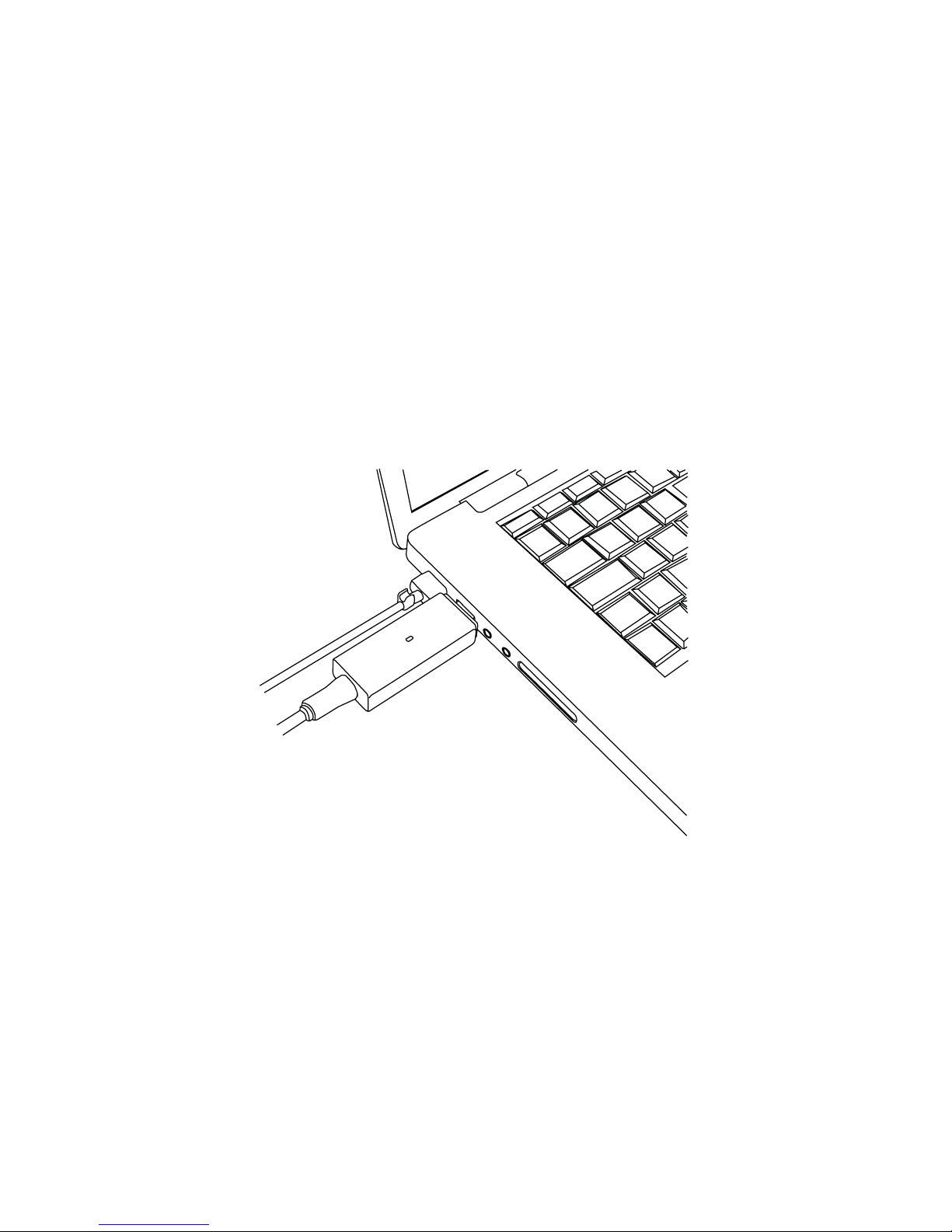

Connect TVMini+ to a USB 2.0 port of your computer. The stick is thin enough to be used on the left USB 2.0 port
of a MacBook Pro, without covering the Magsafe port.
II. Connecting your video source
1. Coaxial connection
If you receive TV channels via a roof-mounted antenna, an analogue cable service or a portableantenna, you
will most likely want to use the TV input on TVMini+.
Connect your coaxial cable as shown on the illustration below
TVMini+™ User Guide
Page 5
2. Composite Connection
Digital TV subscribers (Cable, Satellite) can use their digital receiver set top box with TVMini+. You can either
make a connection via S-Video or Composite.
If you wish to capture video footage from a Camcorder, VCR or DVD-Player, a connection with Composite or S-
Video is recommended over the coaxial input tuned to a certain channel.

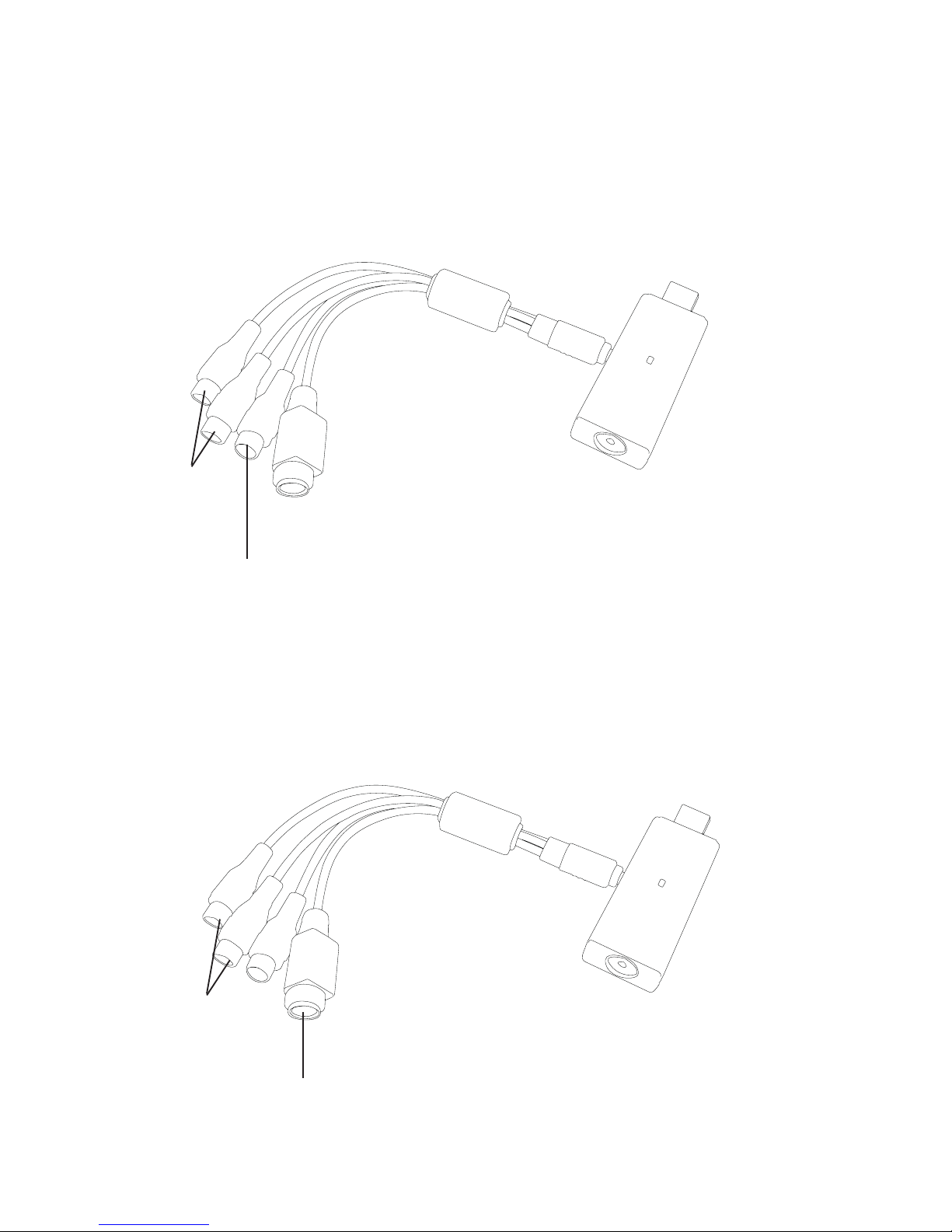

The diagram below shows a connection via Composite.
3. S-Video Connection
For digital TV subscribers and users wishing to capture video from an analogue source, an S-Video connection is
strongly recommended as it will usually give you a higher picture quality compared to Composite.
Note that S-Video do not carry audio signals, but only video signals. Using the left/right audio connectors and
cables is necessary.
The diagram below shows a connection via S-Video
TVMini+™ User Guide
Page 6
Audio
Composite
Audio
S-Video
TVMini+ Hardware Guide
Page 7

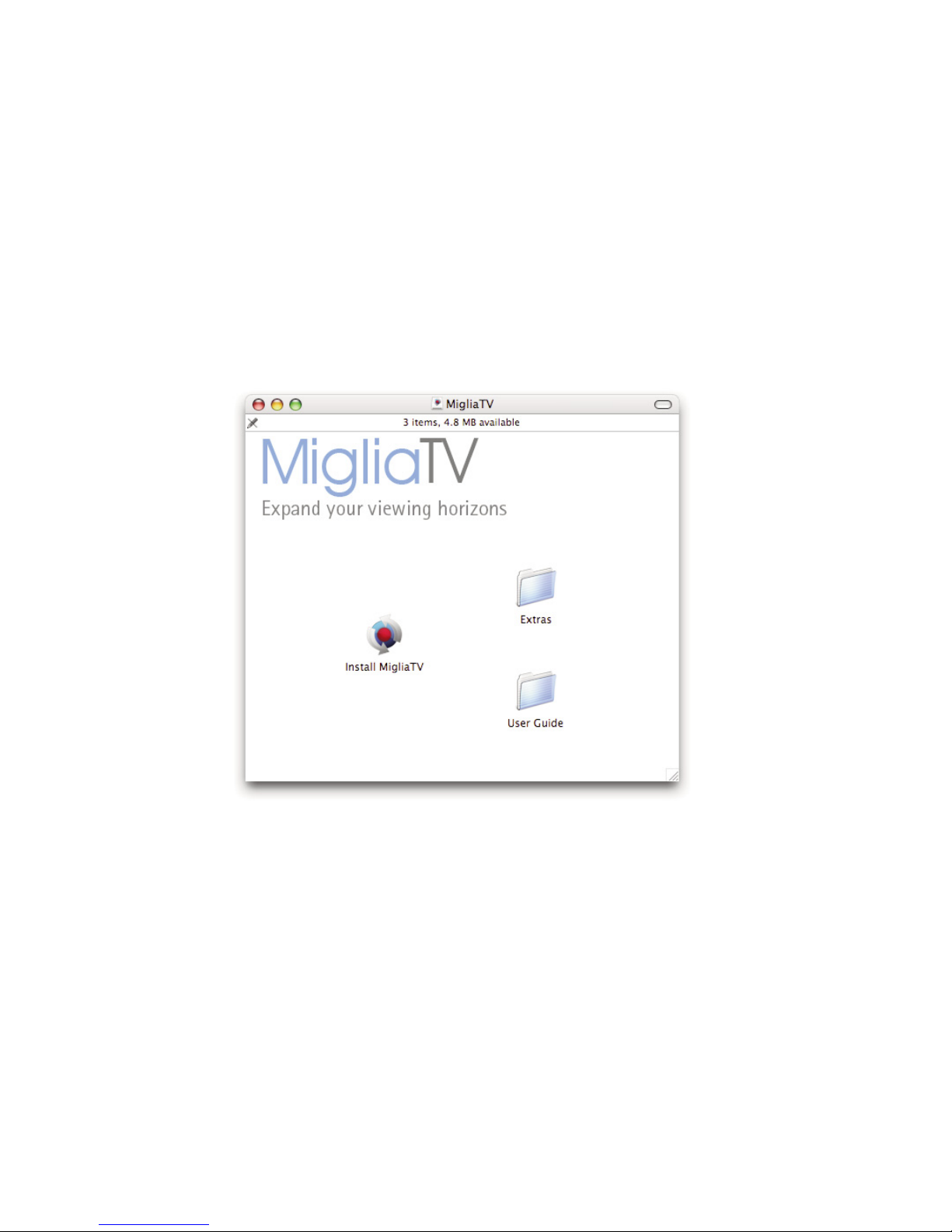

I. Installing MigliaTV
1. Insert the CD-ROM that ships with your product into the CD/DVD drive of your Mac
2. Double-click on the ‘’Install MigliaTV” icon to launch the installer. Select the startup drive of your choice and
click on ‘Install’. Note that you will be asked for your administrator password when performing the
installation.
Note: The administrator password is your Mac OS X password that you selected when you first ran Mac OS X.
It is not the software activation key.
4. Once the installation process is finished, quit the installer
5. The MigliaTV folder will be located in the ‘Applications’ folder of the volume containing
your system software.
Compression Settings
for TVMini+
TVMini+™ User Guide
Page 8
