Operating and Installation instructions

for Condensor Tumble Dryer

T 5205 C

It is essential to read these

operating instructions before Q

installing or using the machine,

to avoid the risk of accident

or damage to the machine. M.-Nr.: 04 076 300

Contents

Warning and safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Help to protect the environment

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disposal of your old machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Guide to the machine

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Explanation of control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Use of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparation of laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to dry correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1Prepare the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2Load the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3Select a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4Start a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Changing a programme

To cancel a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adding or removing items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

To select a different programme during drying . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Contents

Cleaning and care

Cleaning the fluff filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Casing and drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Problem solving guide

What to do if . . . ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

To change the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Installation

View from the front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

View from the rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Aligning the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Coin mechanism / Time counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

External drainage of the condensed water . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Contents

Warning and safety instructions

Please read the operating instruc-

tions before using the tumble dryer

for the first time. They contain im-

portant information about the safety,

use and maintenance of the ma-

chine. This way you will avoid the

risk of accidents and damage to the

machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer’s wash care label as

being suitable for tumble drying.

Any other applications may be dan-

gerous. The manufacturer is not liable

for damage resulting from improper

use or operation.

Do not let small children play with the

machine or its controls. Supervise its

use by the elderly or infirm.

Technical safety

Before setting up the machine

check it for any externally visible

damage. Do not install or use a dam-

aged machine.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and fre-

quency) matches the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this ma-

chine can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations. It is most import-

ant that this basic safety requirement is

regularly tested by a qualified electri-

can.

The manufacturer cannot be held re-

sponsible for the consequences of an

inadequate earthing system (e.g. elec-

tric shock).

Do not connect the machine to the

mains electricity supply by an ex-

tension lead. Extension leads do not

guarantee the required safety of the

machine (e.g. danger or overheating).

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for

which the manufacturer cannot accept

responsibility. Repairs should only be

undertaken by a Miele approved engin-

eer.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

Warning and safety instructions

In the event of a fault or for clean-

ing purposes, the machine is only

completely isolated from the electricity

supply either when:

– the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn.

The dryer must not be used with-

out the fluff filters in place or if the

fluff filters are damaged in any way.

The dryer must not be used with-

out the heat exchanger in place.

Do not install the machine in a

room where the temperature may

drop below freezing. At very cold tem-

peratures the machine may be difficult

to start. Laundry will not dry, and the se-

quence indicator light ~r Anti-crease

/ End will flash to indicate a problem.

There is a risk of damage if the con-

densed water is allowed to freeze in

the pump, hoses and / or condensed

water container.

Make sure the drain hose is se-

curely attached if you hang it in a

sink or basin (external drainage of con-

densed water) to avoid the hose slip-

ping and the water causing damage.

Condensed water is not drinking

water. It can cause health prob-

lems in both people and animals.

Always close the door after use.

This way you will avoid the danger

of:

– anyone sitting or leaning on the

door, which can cause the machine

to tip up.

– children climbing onto or into the

dryer or hiding things in it.

Always keep the area around the

machine free of dust and fluff.

Warning and safety instructions

There is a danger of fire with fab-

rics which:

– contain rubber, foam rubber or rub-

ber like materials

– have been treated with inflammable

cleaning agents

– have been splashed with hair lac-

quer, hair spray, nail varnish

remover or similar substances

– which contain padding or fillings

(e.g. pillows, jackets). If these were

damaged the filling could get out

with the risk of igniting in the dryer.

Avoid contact of stainless steel sur-

faces (front, lid, casing) with liquid

cleaning and disinfecting agents which

contain chlorine or sodium hypo-

chlorite. These agents can have a cor-

rosive effect on stainless steel. Ag-

gressive vapours containing chlorine

bleach can also be corrosive. Do not

store open containers or these agents

near the machine.

Using accessories

Accessory parts may only be fitted

when expressly approved by

Miele. If other parts are used, guaran-

tee, performance and product liability

claims may be invalidated.

Disposal of your old machine

Before discarding an old machine

unplug it and render the plug use-

less. Cut off the cable directly behind

the appliance to prevent misuse.

Warning and safety instructions

Help to protect the environment

Disposal of the packing

material

The transport and protective packing

has been selected from materials

which are environmentally friendly for

disposal and can normally be recycled.

Rather than just throwing these ma-

terials away, please ensure they are of-

fered for recycling.

Disposal of your old machine

Old machines contain materials which

can be reclaimed or recycled. Please

contact your dealer, your local waste

collection centre or scrap merchant

about potential recycling schemes.

Ensure that the machine presents no

danger to children while being stored

for disposal.

Energy saving tips

Make sure that your laundry is thor-

oughly spun before drying. You will

save up to 30% energy and time if

laundry is spun at 1200 rpm instead

of at 600 rpm.

Load according to the optimum

amount of washing recommended

for the programme being used.

Underloading is uneconomical. Over-

loading gives a poorer quality of

drying and may cause unnecessary

creasing.

To save energy and time:

– Make sure the room in which the

dryer is located is well ventilated.

– Make sure the fluff filter is clean be-

fore using the dryer.

Help to protect the environment

Guide to the machine

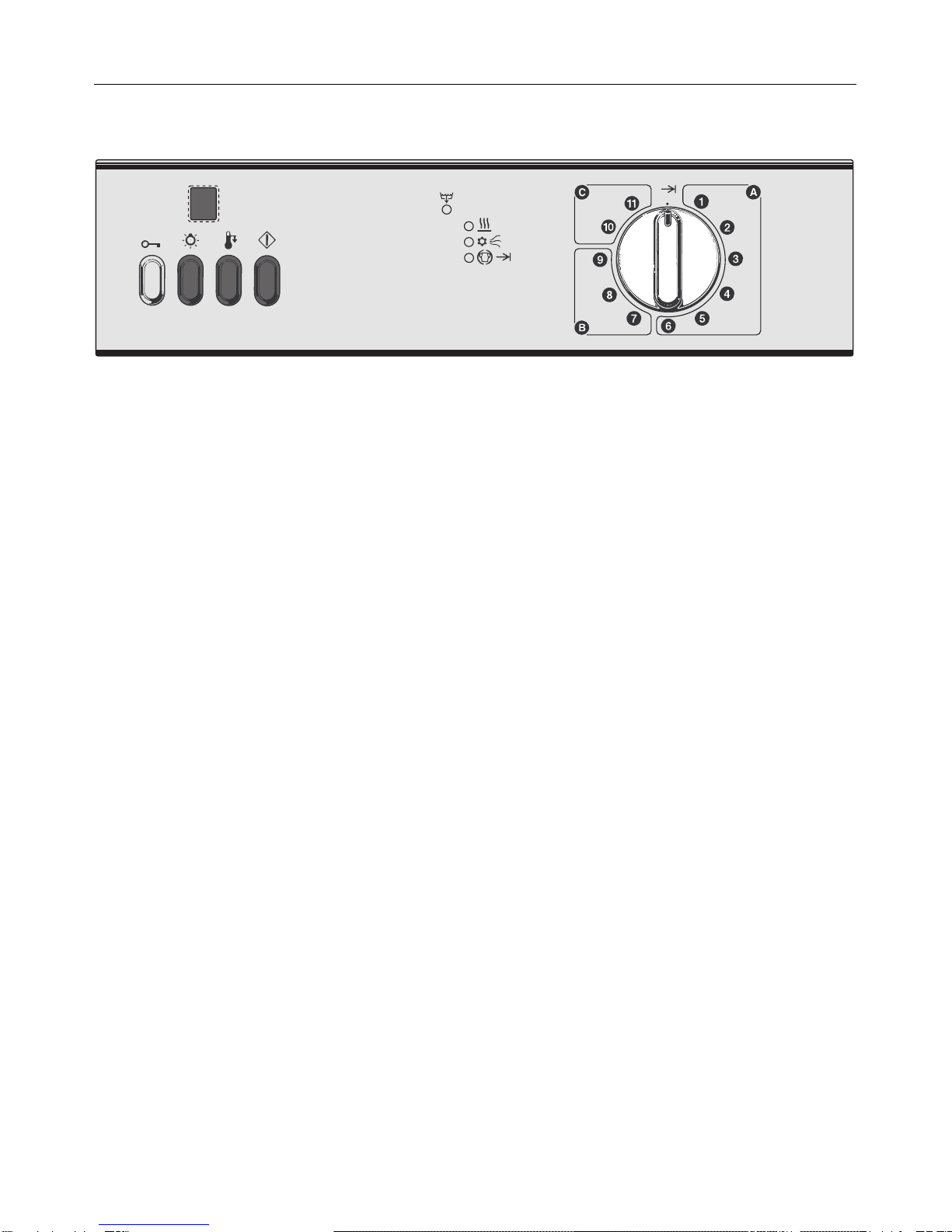

Control panel

Pushbutton switches

aDoor

Opens the drum door

nLight

Illuminates the drum

LLow temperature

Lower drying temperatures (for delicate

fabrics with the care label r, e.g. ac-

rylics)

hStart

Starts a programme

Additional display

( above the pushbutton switches)

Displays the drying stage reached.

Displays “0” at anti-crease stage.

Nothing is displayed with timed drying.

q“Check drain” indicator light

Programme sequence

!Drying

äCool air

~r Anti-crease/End

Programme selector

The programme selector can be turned

clockwise or anti-clockwise.

ACottons

1Extra dry

2Normal +

3Normal

4Hand iron r

5Hand iron rr

6Machine iron

BMinimum iron

7Normal +

8Normal

9Hand iron

CTimed drying

0Cool air 15 mins

!Hot air 20 mins

Guide to the machine

Explanation of control panel

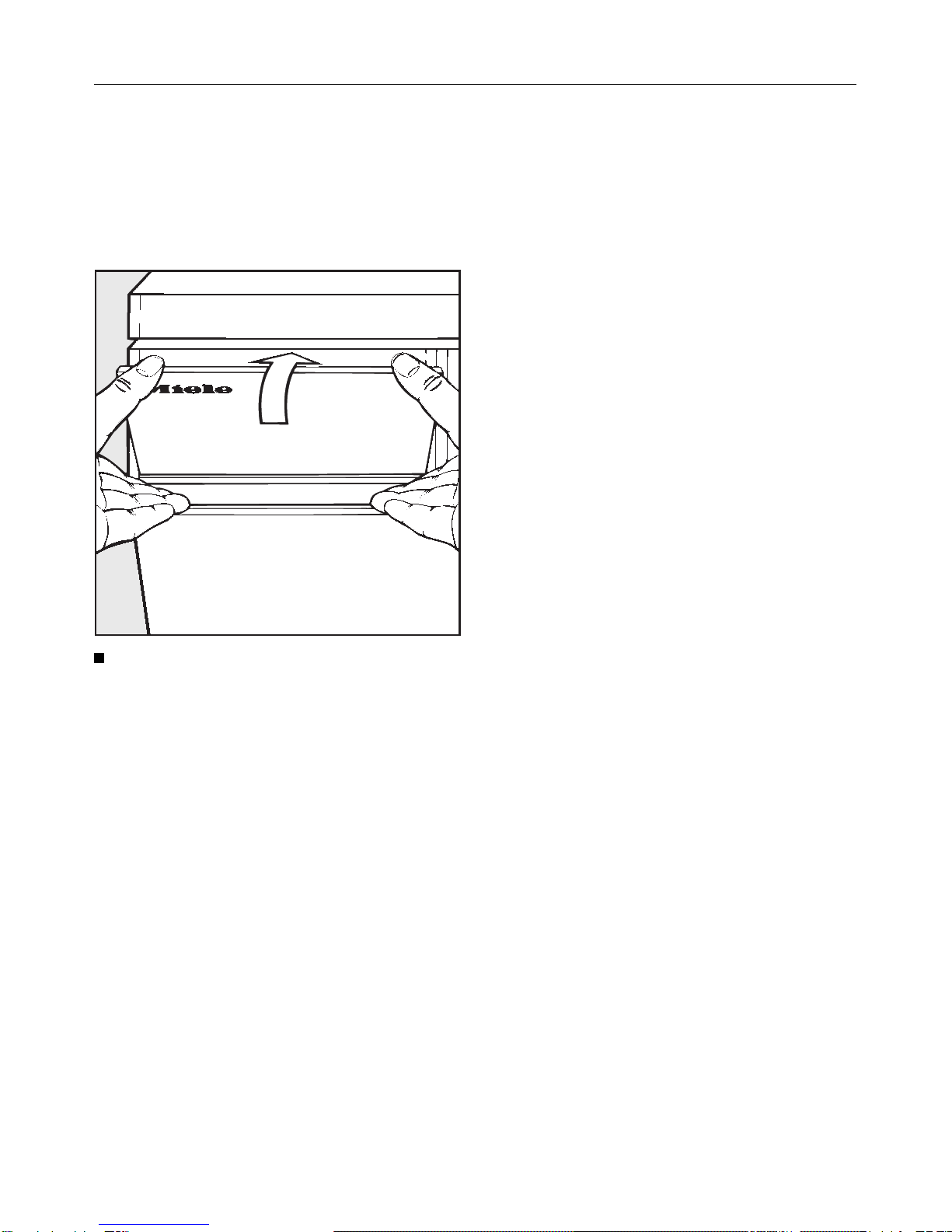

A small panel is supplied with the ma-

chine to explain the symbols on the

control panel. Position this on the left

hand side next to the control panel.

Set the small panel into the lower

guide, press downwards and at the

same time slot into the upper guide.

Use of the appliance

This automatic tumble dryer is particu-

larly suitable for use in communal

laundry rooms, laundrettes etc. where

considerable amounts of soiled laundry

are dealt with.

Guide to the machine

Preparation of laundry

Wash care labels

Before drying check the drying

symbol on the wash care label.

Significance of symbols:

q= Dry at normal temperature

r= Dry at low temperature

s= Do not tumble dry

If no symbol is featured dry at your own

risk applying the following principles:

Cottons and minimum iron items

should be dried at a normal tempera-

ture using the appropriate programme

setting.

Delicate fabrics with the following

wash care label r, e.g. acrylics should

be dried at a low temperature.

The following fabrics should

not be dried in a tumble dryer:

Woollens and wool blends

these fabrics tend to become matted

and shrink.

Items filled with down

the fine fabric interior tends to shrink,

depending on the quality involved.

Pure linen

should only be machine dried if speci-

fied as suitable by the manufacturer on

the wash care label, as the surface of

the fabric may otherwise tend to

roughen.

General notes

Woven and loopkit materials (e.g. T-

Shirts, knitted garments) tend to shrink

to varying extents depending on their

quality. This tendency is exaggerated

by over-drying. When purchasing

woven materials, it is advisable to take

their shrinkage properties into account.

Starched laundry can be dried in the

tumble dryer. To achieve the usual fin-

ish, double the amount of starch should

be used.

Minimum iron fabrics should be spun

briefly at the end of their wash pro-

gramme, or spun for 10 to 30 seconds

if hand washed before they are dried.

Some fabrics tend to crease if over-

dried. These items should be given

only a short period in the dryer, and

taken out slightly damp. Do not use the

BMinimum iron - 7Normal+ pro-

gramme for these fabrics.

Minimum iron shirts in 100% cotton

may crease during tumble drying de-

pending on the quality of the weave.

These should be dried using the Hand

iron 9setting. In extreme cases drip

dry on a coat hanger.

Minimum iron fabrics tend to crease

more the greater the load. This is par-

ticulary the case with delicate fabrics.

The load should be reduced to 2 kg or

if necessary to 1.5 kg.

New dark coloured garments should

be dried separately from light coloured

garments to avoid the danger of

colours running.

Preparation of laundry

Table des matières

Autres manuels Miele Séchoir

Miele

Miele PDR 908 HP Manuel utilisateur

Miele

Miele T 7944 C Manuel utilisateur

Miele

Miele TKG840 WP S Manuel utilisateur

Miele

Miele PT 7135 C Manuel utilisateur

Miele

Miele TOUCHTRONIC T 1405 Manuel utilisateur

Miele

Miele TOUCHTRONIC T 9820 Manuel utilisateur

Miele

Miele PDR 507 HP Marine Manuel utilisateur

Miele

Miele TOUCHTRONIC T 1303 Manuel utilisateur

Miele

Miele PT 7186 Vario Manuel utilisateur

Miele

Miele T 1576 Manuel utilisateur

Miele

Miele T 8164 WP Manuel utilisateur

Miele

Miele T 7944 C Manuel utilisateur

Miele

Miele PT 7136 Vario OS Manuel utilisateur

Miele

Miele PDR 914 Manuel utilisateur

Miele

Miele TEF 765 WP Manuel utilisateur

Miele

Miele PDR 914 Manuel utilisateur

Miele

Miele T 1323C CONDENSER DRYER Manuel utilisateur

Miele

Miele T 284 Manuel utilisateur

Miele

Miele T 9246 C Manuel utilisateur

Miele

Miele Novotronic T 220 Manuel utilisateur

Miele

Miele PT 7137 WP Vario Manuel utilisateur

Miele

Miele T 8812 C Manuel utilisateur

Miele

Miele T 1322C CONDENSER DRYER Manuel utilisateur

Miele

Miele Touchtronic T 9800 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
