Guide to the appliance

1 a.c. connection cable (2 m long) with plug

2 Control panel

3 Drum door

4 Exhaust connection rear, right and left

5 Height-adjustable screw feet

All manuals and user guides at all-guides.com

Guide to the appliance

Pushbuttons

Door

opens the door

On/Off

for switching the appliance on and off.

Low temperature

low temperatures for delicate fabrics,

e.g. acrylics.

Buzzer

sounds when the drum turns during the

intermittent anti-crease action period.

Start

starts a drying programme

Programme sequence indicator lights

Drying

Cooling down

Anti-crease/Finish

Programme selector switch

Cottons

Extra dry

Normal+

Normal

Hand iron r

Hand iron rr

Machine iron

Minimum iron

Normal+

Normal

Hand iron

Timed drying

15 mins cool air

20 mins warm air

Drying stage display

This shows the stage of drying

reached. For programmes “Normal +”

and “Extra dry” the indicator light re-

mains at the “Normal” position.

All manuals and user guides at all-guides.com

Guide to the appliance

Environmentally conscious

drying

The sensitive system automatically ad-

justs drying to suit the water quality.

The water conductivity is measured,

and registered by the control which

then compensates to achieve a uniform

residual moisture level. The Novotronic

control offers programmes with elec-

tronic moisture measuring and 2 timed

programmes. The automatic reversing

action turns the drum clockwise and

anti-clockwise to loosen the laundry

and prevent damp patches and thus to

ensure even drying results.

Energy saving tips

Make sure that your laundry is thor-

oughly spun before drying. You will

save up to 35% energy and time if

laundry is spun at full spin speed in-

stead of at 600 rpm.

Load according to the optimum amount

of washing for the programme to be se-

lected. Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

Before using for the first time

Important:

The appliance must be properly in-

stalled and connected to the elec-

tricity supply.

All manuals and user guides at all-guides.com

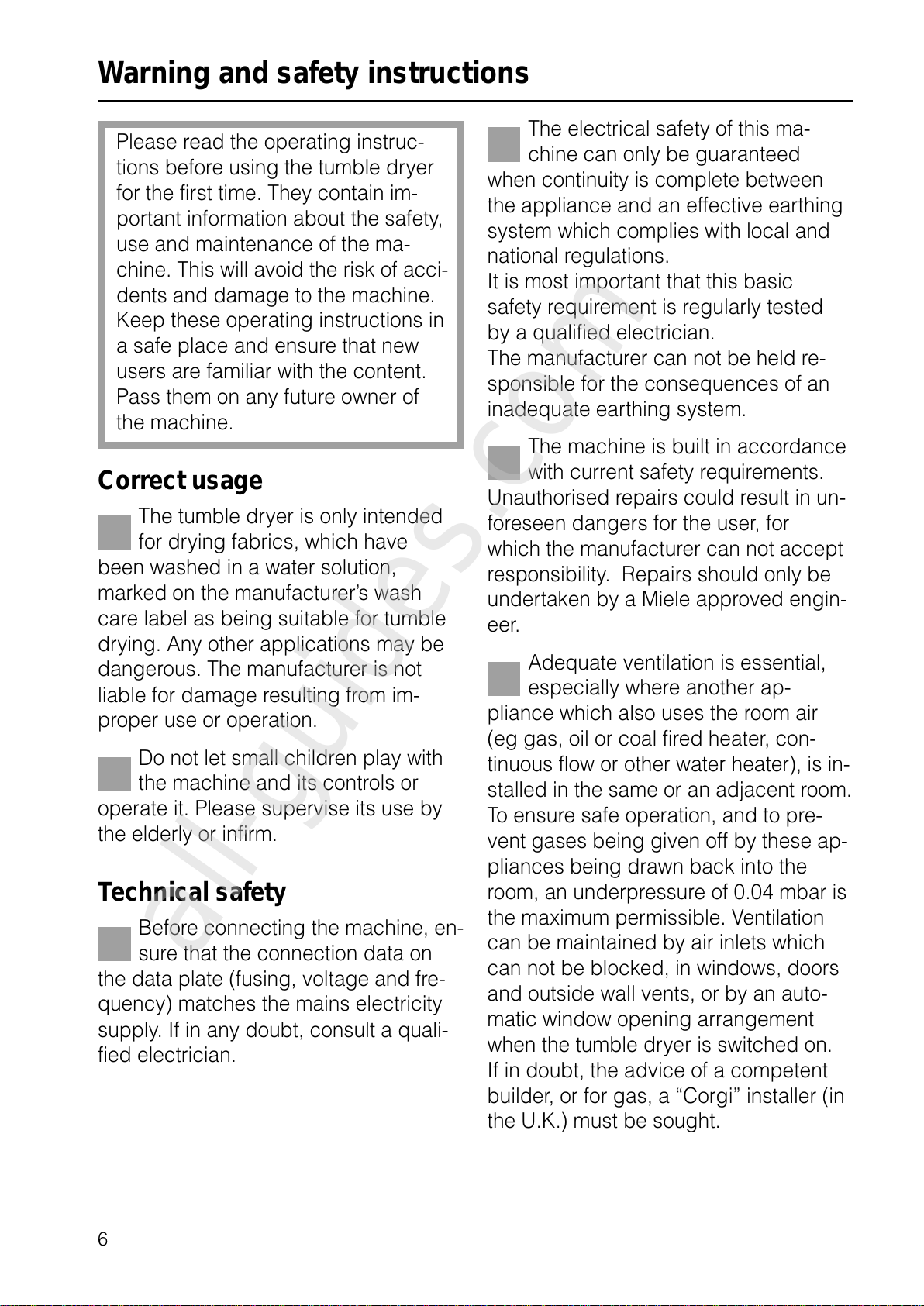

Warning and safety instructions

Please read the operating instruc-

tions before using the tumble dryer

for the first time. They contain im-

portant information about the safety,

use and maintenance of the ma-

chine. This will avoid the risk of acci-

dents and damage to the machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on any future owner of

the machine.

Correct usage

The tumble dryer is only intended

for drying fabrics, which have

been washed in a water solution,

marked on the manufacturer’s wash

care label as being suitable for tumble

drying. Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from im-

proper use or operation.

Do not let small children play with

the machine and its controls or

operate it. Please supervise its use by

the elderly or infirm.

Technical safety

Before connecting the machine, en-

sure that the connection data on

the data plate (fusing, voltage and fre-

quency) matches the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this ma-

chine can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations.

It is most important that this basic

safety requirement is regularly tested

by a qualified electrician.

The manufacturer can not be held re-

sponsible for the consequences of an

inadequate earthing system.

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for

which the manufacturer can not accept

responsibility. Repairs should only be

undertaken by a Miele approved engin-

eer.

Adequate ventilation is essential,

especially where another ap-

pliance which also uses the room air

(eg gas, oil or coal fired heater, con-

tinuous flow or other water heater), is in-

stalled in the same or an adjacent room.

To ensure safe operation, and to pre-

vent gases being given off by these ap-

pliances being drawn back into the

room, an underpressure of 0.04 mbar is

the maximum permissible. Ventilation

can be maintained by air inlets which

can not be blocked, in windows, doors

and outside wall vents, or by an auto-

matic window opening arrangement

when the tumble dryer is switched on.

If in doubt, the advice of a competent

builder, or for gas, a “Corgi” installer (in

the U.K.) must be sought.

All manuals and user guides at all-guides.com

all-guides.com

Warning and safety instructions

In the event of a fault or for clean-

ing purposes, the machine is only

completely isolated from the electricity

supply either when:

– the plug is withdrawn, or

– it is switched off at the mains

– the mains fuse is withdrawn.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

Use

There is a danger of fire with fab-

rics, which:

– contain rubber, foam rubber or rub-

ber-like materials

– have been treated with inflammable

cleaning agents

– have been splashed with hair lac-

quer, hair spray, nail varnish remover

or similar.

Always close the door after use.

This way you will avoid the danger

of anyone sitting or leaning on the door,

which can cause the machine to tip up.

Vented dryers must be installed

with a suitable venting system. If

the machine is not correctly ducted it

will draw damp exhaust air back into

the drum, increasing running time and

energy consumption quite consider-

ably. If moist air is passed back into the

room this may lead to long-term dam-

age of walls.

Do not install the machine in a

room where the temperature may

drop below freezing. At very cold tem-

peratures the machine may be difficult

to start. Laundry will not dry and the

"anti-crease"-indicator will flash to indi-

cate a problem.

The exhaust air must not be

vented into a chimney or vent flue

which is in use. Neither should it be

connected to ducting which ventilates

rooms with fireplaces.

It would be dangerous if smoke or ex-

haust fumes were drawn back into the

room.

Using accessories

Accessory parts may only be fitted

when expressly approved by

Miele. If other parts are used, guaran-

tee, performance and product liability

claims may be invalidated.

Disposing of your old machine

Before discarding an old machine

unplug it. Render the plug useless.

Cut off the cable directly behind the ap-

pliance to prevent misuse.

All manuals and user guides at all-guides.com

Notes on laundry care

Before drying, check the drying symbol

on the textile care label.

Significance of symbols:

q = Dry at normal temperature

r = Dry at low temperature

s = Do not tumble dry

If no symbol is featured dry at your own

risk applying the following principles:

– Cottons and minimum iron items

should be dried at a normal tempera-

ture at the appropriate programme

setting.

– For delicate fabrics, e.g. acrylic

fibres, the low temperature setting

should be selected.

The following fabrics should not be

dried in a tumble dryer:

– Woollens and wool blends

These fabrics tend to become

matted and shrink.

– Items filled with down

The fine fabric interior tends to

shrink, depending on the quality in-

volved.

– Pure linen

These items should only be machine-

dried if specified as suitable by the

manufacturer on the textile care

label, as the surface of the fabric

may otherwise tend to “roughen”.

Note

Some woven and loopknit materials

tend to shrink to varying extents de-

pending on their quality. This tendency

is exaggerated by over-drying.

When purchasing woven materials, it is

advisable to take their shrinkage

properties into account.

Starched washing can also be dried in

the tumble dryer. In order to achieve

the usual finish, double the amount of

starch should be used.

Select the most suitable programme for

hand or machine ironing.

Minimum iron items should be spun for

10 to 30 seconds before being tumble

dried. Such fabrics tend to crease if

overdried. These items should be given

only a short period in the dryer, and

taken out slightly damp. The “Minimum

iron Normal” programme is recom-

mended.

Minimum iron shirts in 100 % cotton

may crease during tumble drying de-

pending on the quality and weave.

Minimum iron fabrics tend to crease

more, the greater the load. This is par-

ticularly true of very delicate fabrics.

The load should be reduced to 1.5 kg

or, if necessary, to 1 kg. The “Hand

iron” setting is recommended for these

types of garment. In extreme cases do

not tumble dry these garments.

Dark-coloured garments should be

dried separately from light-coloured

garments.

All manuals and user guides at all-guides.com

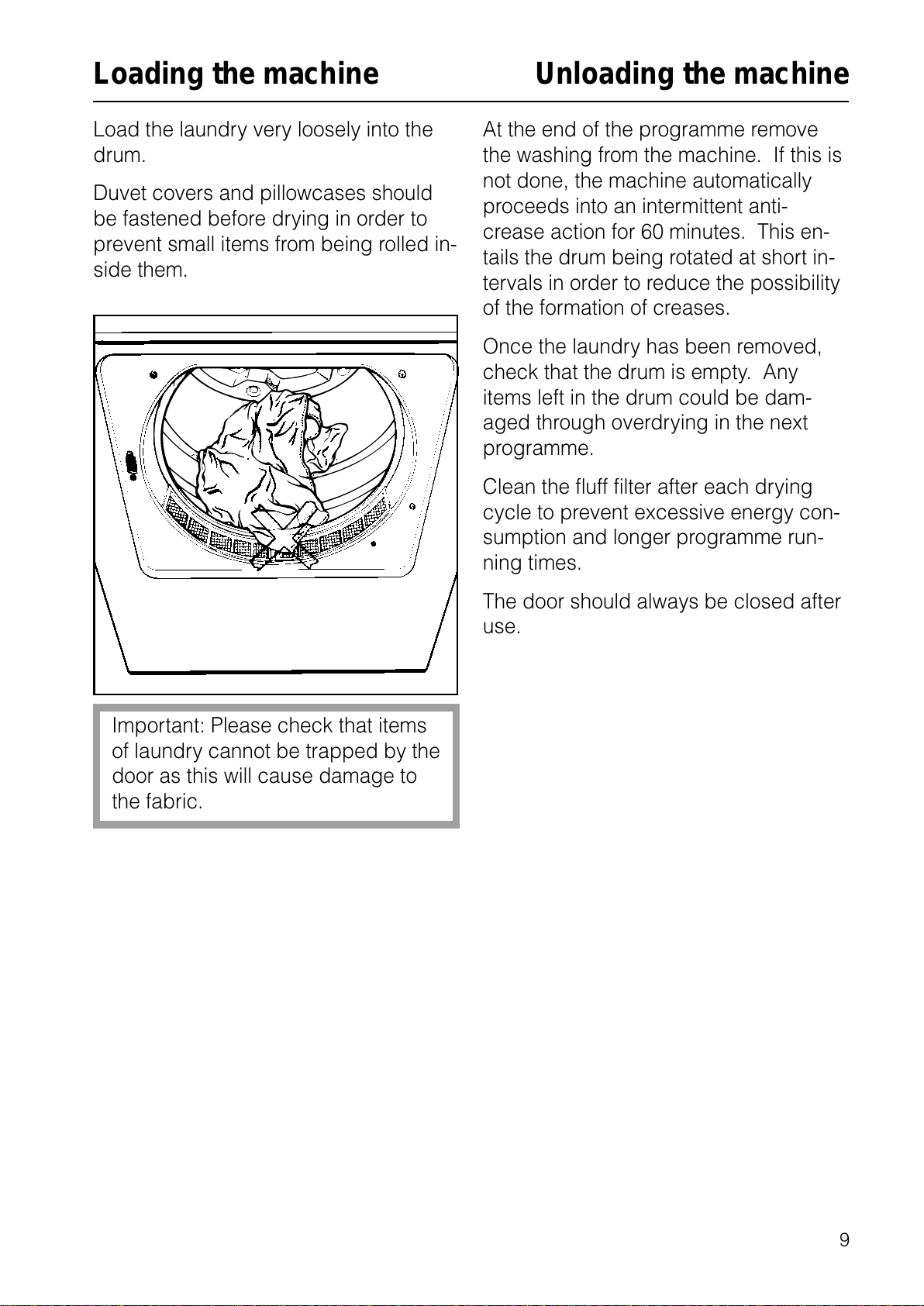

Loading the machine Unloading the machine

Load the laundry very loosely into the

drum.

Duvet covers and pillowcases should

be fastened before drying in order to

prevent small items from being rolled in-

side them.

Important: Please check that items

of laundry cannot be trapped by the

door as this will cause damage to

the fabric.

At the end of the programme remove

the washing from the machine. If this is

not done, the machine automatically

proceeds into an intermittent anti-

crease action for 60 minutes. This en-

tails the drum being rotated at short in-

tervals in order to reduce the possibility

of the formation of creases.

Once the laundry has been removed,

check that the drum is empty. Any

items left in the drum could be dam-

aged through overdrying in the next

programme.

Clean the fluff filter after each drying

cycle to prevent excessive energy con-

sumption and longer programme run-

ning times.

The door should always be closed after

use.

All manuals and user guides at all-guides.com

Programme selection

Selecting a programme

This tumble dryer is fitted with an elec-

tronic sensor system. The required de-

gree of dryness is measured and moni-

tored electronically so that the heating

element is switched off as soon as it is

reached. The drying cycle automat-

ically finishes with a cooling down

period. This may be followed by the

anti-crease action cycle.

The following drying programmes are

available:

Cottons

six drying levels from “Extra dry” to

“Machine iron”

Minimum iron

three drying levels from “Normal+” to

“Hand iron”

Timed drying

15 mins cool air and 20 mins warm air

Low temperature

By selecting “Low temperature” the

temperature can be lowered for deli-

cate fabrics (e.g. acrylic).

Correct procedure:

Press the "ON/OFF" button.

Press the "Door" button.

Open the door and load the drum.

Close the door.

Select a programme by turning the

selector switch clockwise or anti-

clockwise.

Select “Low temperature” if required.

Press “Start”.

After drying:

Turn the programme selector switch

to “Finish”.

Switch the machine off.

Clean the fluff filter.

Opening the door during a pro-

gramme

If the door is opened during a pro-

gramme the programme will have to be

started again:

Close the door.

Press “Start”.

The selected programme restarts.

The programme is not continued if:

– There is a power failure lasting more

than 30 minutes.

– The programme has already

reached the “Cooling down” or “Anti-

crease” stage.

To reselect a different pro-

gramme during drying:

Set the programme selector switch

to the required programme.

The new programme starts from the be-

ginning.

To cancel a programme

Turn the programme selector switch

to “Finish”.

All manuals and user guides at all-guides.com

Autres manuels pour T 430

Table des matières

Autres manuels Miele Séchoir

Miele

Miele TCF 640 WP Manuel utilisateur

Miele

Miele T 4888 C Manuel utilisateur

Miele

Miele T 471 VENT ED DRYER - OPERATING Manuel utilisateur

Miele

Miele TWR 780 WP Manuel utilisateur

Miele

Miele TEJ 665 WP Manuel utilisateur

Miele

Miele T 8023 C Fiche technique

Miele

Miele T 4322 Manuel utilisateur

Miele

Miele PT 8301 SL Manuel utilisateur

Miele

Miele TCB140 WP Manuel utilisateur

Miele

Miele T442C Manuel utilisateur

Miele

Miele T 4819 Ci Manuel utilisateur

Miele

Miele T 8685 C Manuel utilisateur

Miele

Miele T 8000 WP SUPERTRONIC Manuel utilisateur

Miele

Miele PT 8407 EL Manuel utilisateur

Miele

Miele T 4452 C Manuel utilisateur

Miele

Miele TOUCHTRONIC T 9820 Manuel utilisateur

Miele

Miele Touchtronic T 8019 C Manuel utilisateur

Miele

Miele TOUCHTRONIC T 8002 Fiche technique

Miele

Miele T 8929 WP Manuel utilisateur

Miele

Miele PDR 507 HP Marine Manuel utilisateur

Miele

Miele TWF 760 WP Manuel utilisateur

Miele

Miele PT 7251 Manuel utilisateur

Miele

Miele T 8000 WP SUPERTRONIC Manuel utilisateur

Miele

Miele T 1515 VENT ED DRYER - OPERATING Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
