Operating Manual

for the T 1520i

Vented Dryer

To prevent accidents and reduce

the risk of damaging the machine, |

read the Operating Manual

before installing or using

the machine. M.-Nr. 0471 560

NOVOT ONIC

Contents

Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Your contribution to the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OPERATING INSTRUCTIONS

Loading the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unloading the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Program selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

USER MAINTENANCE INSTRUCTIONS

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

After-sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

INSTALLATION INSTRUCTIONS

Grounding and Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Exhaust - venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Estinated drying times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Guide to the machine

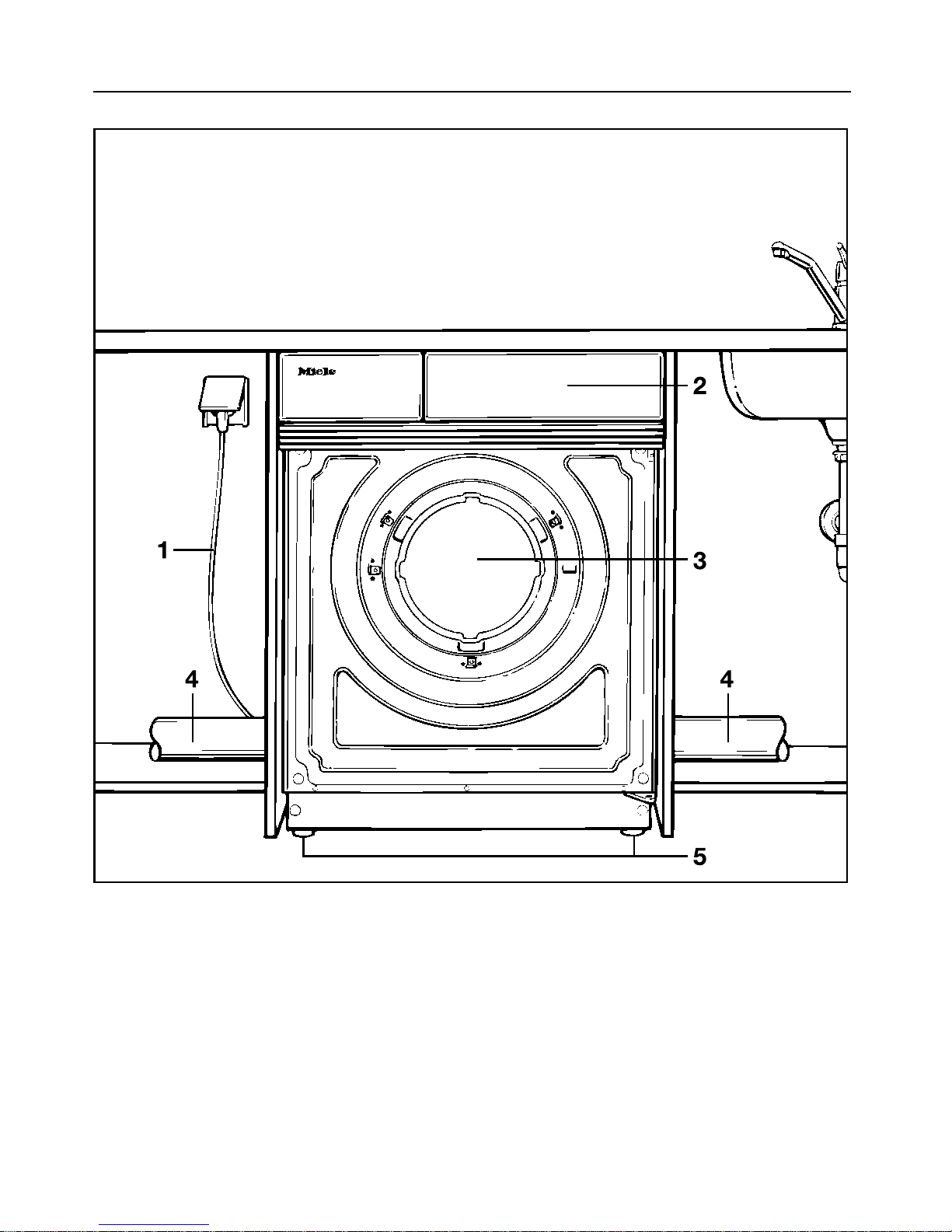

1 Supply cable with plug

2 Control panel

3 Drum door

4 Exhaust connections (right, left or rear)

5 Four height-adjustable legs

Guide to the machine

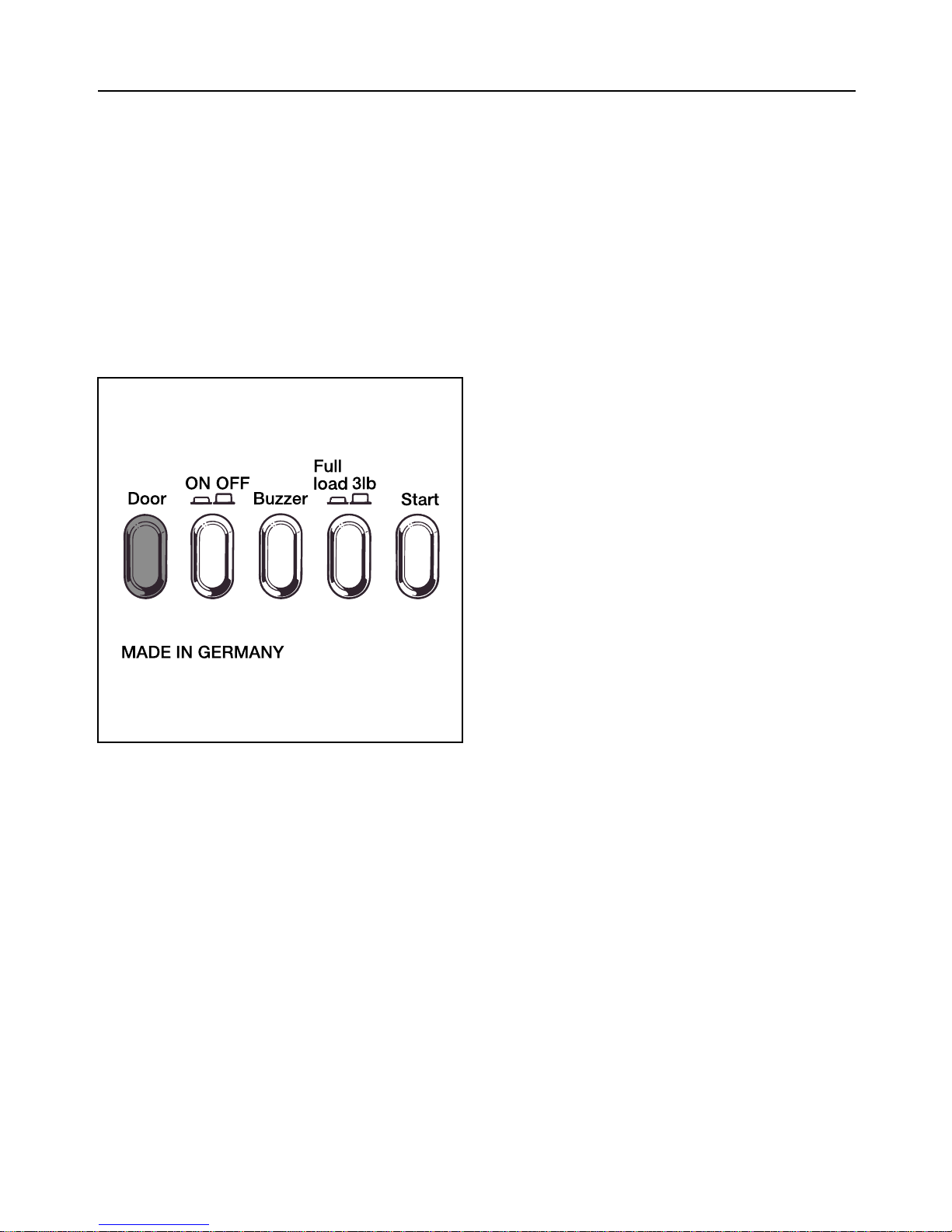

Pushbuttons

–Door

This button is used to open the door

(does not stay pushed in).

–j ON / kOFF

When the machine is turned on, the

“On” indicator will light up if the door is

closed. If the door is open, the drum

light will be on.

–Buzzer

Allows the buzzer to sound as the

drum rotates during the anti-crease

cycle.

–jFull load / k3 lb

To dry a standard size load (up to 11

lbs.) at peak efficiency, press this

button before starting the cycle.

–Start

Starts the selected program (does

not stay pushed in).

Indicator lamps

–PROGRAM SEQUENCE

The program sequence indicator

lamps show the current state of the

drying program.

–DRYING STAGE REACHED

These indicator lamps show which

drying stage the program has

reached. For program stages “Nor-

mal” and “Extra dry” the indicator

lamp remains at the “Normal” posi-

tion.

PROGRAM SETTING-SELECTOR

Set the desired program by turning the

knob either clockwise or counterclock-

wise.

–COTTONS

–PERMANENT PRESS

–TIMED DRYING

Items can be either dried for 20

minutes (incl. a cooling-down phase)

or cool air fluffed for 15 minutes.

IMPORTANT SAFETY INSTRUCTIONS

WARNING - To reduce the risk of

fire, electric shock, or injury to per-

sons when using your appliance, fol-

low basic precautions, including the

following:

1. For your own safety and for the pro-

tection of your machine read

these operating instructions care-

fully before using your dryer for

the first time.

2. Remember to remove the door

when disposing of an old machine

to prevent children from acciden-

tly locking themselves in.

3. Do not install or store this ap-

pliance where it will be exposed

to the weather.

4. Do not install your dryer in rooms

where freezing temperatures may

occur. The reliability of the elec-

tronic control system may be im-

paired.

5. This machine should only be used

for drying the following fabrics:

– Items which can be machine

dried as specified by the laundry

care label.

– Items which have been washed in

water.

6. The following fabrics pose a fire ha-

zard:

– Items which contain foam rubber,

rubber or rubberlike components.

– Items which have been treated

with flammable cleaning agents,

such as gasoline or dry-cleaning

solvents.

– Items containing, hairspray, nail

polish remover or similar sub-

stances.

7. Fabric softener sheets are not rec-

ommended for use in the tumble

dryer. Best results occur when a

liquid softener is used in the wash-

ing machine.

. Clean the lint filter before and after

each load.

9. Do not dry articles that have been

previously cleaned, washed,

soaked in, or spotted with ga-

soline, dry-cleaning solvents, or

other flammable or explosive sub-

stances. They give off vapors that

could ignite or explode.

10.Do not allow children to play on or

in the appliance. Close supervi-

sion is necessary when the ap-

pliance is used near children.

11.Always close the door after use to

prevent children from leaning on

the door and causing the dryer to

tilt.

12.Keep the area around the air in-

take (toekick) and adjacent sur-

rounding areas free from lint, dust

and dirt.

IMPORTANT SAFETY INSTRUCTIONS

13.The interior of the machine and ex-

haust duct should be cleaned peri-

odically by qualified personnel.

14.Do not reach into the dryer if the

drum is moving.

15.Do not tamper with the controls.

16.Do not repair or replace any part

of the appliance or attempt any

servicing unless specifically rec-

ommended in this Operations Ma-

nual.

Repairs to electrical appliances

should only be peroformed by

qualified personnel.

Incorrectly repaired machines

may pose a considerable risk to

the user.

17 Lint is principally the result of fric-

tion caused by items being worn

and washed. Machine drying

causes insignificant amounts of

lint to form and, as has been es-

tablished by research institutes,

has no detrimental effect on the

lifetime of fabrics.

1 .Do not place items exposed to

oils in your dryer. Items contaimed

with oils may contribute to a

chemical reactionthat could

cause a load to catchfire.

SAVE THESE INSTRUCTIONS

For grounding and electrical

connection instructions,

refer to the electrical connec-

tion section.

This dryer is only intended for

residential use!

Your contribution to the environment

Disposal of the packing ma-

terial.

The transport and protective packing is

mostly manufactured from the following

recycled or re-useable materials:

– corrugated paper/cardboard

– polystyrene - CFC-free

– polyethylene foil (transparent)

– untreated wood

– fiber board

Please check local environmental regu-

lations before disposing of packing ma-

terials and discarding the appliance.

Disposal of your old machine.

Old machines contain materials which

can be recycled. Please contact your

recycling center or scrap merchant

and render the machine inoperative as

per the “Important Safety Instructions”

before disposing of the appliance.

OPERATING INSTRUCTIONS

Loading the machine Unloading the machine

WARNING - To reduce the risk

of fire, electric shock, or injury

to persons,read the IMPORT-

ANT SAFETY INSTRUCTIONS

before operating this appliance.

Load the laundry loosely into the

drum.

Duvet covers and pillowcases

should be fastened before drying in

order to prevent small items from roll-

ing inside of them.

Important: Check that laundry can-

not be trapped by the door as this

may cause damage to the fabric.

If the wash is not removed at the end

of the drying program, the machine

will automatically enter the anti-

crease cycle for 60 minutes. This en-

tails the drum being rotated at short

intervals in order to reduce the forma-

tion of creases.

Once the laundry has been

removed, check that the drum is

empty. Any items left in the drum

could be damaged through over-

drying during the next program.

Clean the lint filter after each drying

cycle to prevent excessive energy

consumption, longer program times

and the risk of fire.

The door should always be closed

after use.

Notes on laundry care

Before drying, check the instructions

on the fabric care label.

The following fabrics should not be

dried in a tumble dryer:

– Woolens and wool blends

These fabrics tend to matt and shrink.

– Items filled with down

The fine fabric interior tends to shrink,

depending on the quality of the item

involved.

– Pure linen

These items should only be machine-

dried if specified as suitable by the

manufacturer on the textile care label.

The surface of the fabric may other-

wise tend to become “rough”.

Miele dryers have been designed to

dry laundry free of static cling, without

the use of dryer softener sheets or simi-

lar products. The dryer continuously

monitors the moisture content of the

laundry, and automatically shuts off the

heat when the selected degree of dry-

ness is reached. Through the use of a

cooling cycle, (where the machine oper-

ates without heat), cool, static free

laundry results. Dryer softener sheets

perform the same function by deposi-

ting a chemical residue on both the

clothes and the interior of the dryer.

Over time, this coating may lead to per-

formance reductions in the dryer.

If fabric softening is desired, it is more

convenient, economical and beneficial

to the clothing if a liquid softener is

automatically dispensed while the

clothes are in the washing machine.

Please see the washing machine opera-

ting instructions for directions on how

to automatically dispense a liquid sof-

tener.

Notes:

Knitted fabrics and flannel sheets tend

to shrink when washed for the first time

and also when dried. They should not

be overdried.

Starched laundry can also be dried in

the tumble dryer.

Permanent press items should be

briefly spun in the washing machine be-

fore drying. Items which are prone to

creasing should not be dried in the

“PERMANENT PRESS- Normal +” - Pro-

gram.

Drip-dry shirts made of pure cotton

may tend to crease, depending on the

quality of their finish.

These items should be dried in a

“Hand iron”program.

Permanent press fabrics tend to crease

more as the size of the load increases.

This is particularly true of very delicate

fabrics. The load should be reduced to

3 lbs or, if necessary, to 2 lbs.

Do not dry new dark-colored fabrics

together with light-colored items as

they may discolor.

Program selection

Functional description

An electronic sensor system monitors

the moisture content of the laundry.

Once the required degree of dryness is

reached, cold air enters the drum to

cool the laundry.

The drying program is then terminated.

Function of the pushbuttons

–Door

This button is used to open the door.

–ON/OFF

When the machine is turned on, the

“On” indicator lamp illuminates if the

door is closed. When the door is

open, the drum is illuminated.

–Buzzer

When activated, the buzzer will sound

as the drum rotates during the anti-

crease cycle.

–Full load/3 lb

To dry a standard size load (up to 11

lbs.) at peak efficiency, press this

button before starting the cycle.

–Start

Starts the selected program.

“PROGRAM SEQUENCE”

indicator

The program sequence indicator lamps

show the current status of the drying

program.

“DRYING STAGE REACHED”

indicator

This indicator shows which drying

stage the program has reached.

“PROGRAM SETTING”selector

There is a range of settings for both

"Cottons" and "Permanent Press".

In addition, items can be either dried

for 20 minutes (incl. a cooling-cycle

lasting mins.) or fluffed in cool air for

15 minutes.

Table des matières

Autres manuels Miele Séchoir

Miele

Miele T 1520 VENT ED DRYER - OPERATING Manuel utilisateur

Miele

Miele T 7634 Manuel utilisateur

Miele

Miele TWJ 660 WP Manuel utilisateur

Miele

Miele TOUCHTRONIC T 9820 Manuel utilisateur

Miele

Miele PT 8803 Manuel utilisateur

Miele

Miele TMB540 WP Eco Manuel utilisateur

Miele

Miele PT 7135 C Manuel utilisateur

Miele

Miele 11 588 800 Manuel utilisateur

Miele

Miele T 7944 C Manuel utilisateur

Miele

Miele T 1515 VENT ED DRYER - OPERATING Manuel utilisateur

Miele

Miele TOUCHTRONIC T 1312 Manuel de la liste des pièces

Miele

Miele T 4804 C Allerdry Manuel utilisateur

Miele

Miele T 7644 C Manuel utilisateur

Miele

Miele TOUCHTRONIC T 9820 Manuel utilisateur

Miele

Miele TOUCHTRONIC T 1312 Manuel utilisateur

Miele

Miele tmr640wp Manuel utilisateur

Miele

Miele T 1036 VENT ED DRYER - OPERATING Manuel utilisateur

Miele

Miele TWD260WP Manuel utilisateur

Miele

Miele Touchtronic T 1403 Manuel utilisateur

Miele

Miele T 5205 C Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Miele

Miele TOUCHTRONIC T 9820 Manuel utilisateur

Miele

Miele PT 5136 OS Manuel utilisateur

Miele

Miele T 8812 C Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
