Operating and installation instructions

Ceramic cooktops with induction

KM 6312

KM 6317

To avoid the risk of accidents or

damage to the appliance, it is

essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 07 839 991

en - AU, NZ

Description of the appliance.........................................4

Cooktops .........................................................4

KM 6312 .......................................................4

KM 6317 .......................................................5

Control panel ......................................................6

Cooking zone data..................................................8

Special feature.....................................................8

Warning and Safety instructions .....................................9

Caring for the environment.........................................15

Before using for the first time.......................................16

Cleaning for the first time............................................16

Before using for the first time.........................................16

Induction........................................................17

How the appliance works ...........................................17

Noises ..........................................................18

Pans ............................................................19

Use ............................................................20

Operation ........................................................20

Switching on .....................................................21

Settings .........................................................22

Auto heat-up .....................................................23

Booster function...................................................25

Keeping warm function .............................................28

Switching off and residual heat indicators...............................29

Tips on saving energy .............................................30

Timer ...........................................................31

Minute minder ....................................................32

To switch a cooking zone off automatically ..............................35

To use both timer functions at the same time ............................36

Contents

Safety features ...................................................37

Safety lock/System lock .............................................37

Stop and Go......................................................39

Safety cut-out.....................................................40

Overheating protection .............................................41

Cleaning and care ................................................42

Programming ....................................................44

Problem solving guide ............................................48

Optional accessories..............................................52

Safety instructions for installation...................................53

Safety clearances.................................................54

Notes on installation ..............................................57

Cooktop with frame or bevelled edge ................................58

Building-in dimensions .............................................58

Installation .......................................................59

Flush-fitted cooktops .............................................60

Building-in dimensions .............................................60

Installation .......................................................61

Electrical connection..............................................64

Wiring diagram ...................................................65

After sales service, data plate ......................................66

Contents

Cooktops

KM 6312

aCooking zone with TwinBooster

bc Cooking zones with Single Booster

dControl panel

Description of the appliance

KM 6317

ac Cooking zones with TwinBooster

bd Cooking zones with Single Booster

eControl panel

Description of the appliance

Control panel

Sensors

aCooktop ON/OFF

bControls for

- Setting the power level

- Setting the time

cSafety lock

dSingle Booster / TwinBooster

eFor selecting the cooking zones

fStop and Go

g- Selecting the timer

- Changing the timer functions

- Selecting the switch-off time (see "Auto switch-off")

hHour function

Description of the appliance

40123 56789

a b c

Indicator lamps

iSafety lock

jBooster

Cooking zone display

0= Cooking zone ready for use

^= Keeping warm function

1to 9= Power setting

f= Setting 1 TwinBooster

h= Booster / Setting 2 TwinBooster

ß= No pan on cooking zone or pan unsuitable (see "Induction")

#= Residual heat

A= Auto heat-up when the power setting range has been extended

lIndicator lamp for Auto heat-up or extending the

power setting range (see "Programming")

Timer display

mIndicator lamp for relevant zone, e.g. the rear right cooking zone

00 to 99 = Time in minutes

0.^ to 9^ = Time in hours

oIndicator lamp for half hours with a minute minder time of more than 99 minutes

Description of the appliance

Cooking zone data

Cooking

zone

KM 6317

Minimum to maximum Cin cm* Rating in watts for 230 V**

y16 - 23 normal

TwinBooster, setting 1

TwinBooster, setting 2

2300

3000

3700

w10 - 16 normal

Single Booster

1400

2200

x14-20/

20x30

normal

TwinBooster, setting 1

TwinBooster, setting 2

normal

TwinBooster, setting 1

TwinBooster, setting 2

1850

2500

3000

2300

3000

3700

z14 - 20 normal

Single Booster

1850

3000

Total: 7400

Cooking

zone

KM 6312

Minimum to maximum Cin cm* Rating in watts for 230 V**

f18 - 28 normal

TwinBooster, setting 1

TwinBooster, setting 2

2600

3000

3700

x14 - 20 normal

Single Booster

1850

3000

z10 - 16 normal

Single Booster

1400

2200

Total: 7400

* Pans of any diameter within the given range may be used.

** The wattage quoted may vary depending on the size and material of the pans

used.

Special feature

Cooktops bearing the <symbol in the top left-hand corner are suitable for

connecting to the Miele|home system (available in selected countries only).

Description of the appliance

This appliance complies with all

relevant local and national safety

requirements. Inappropriate use

can, however, lead to personal injury

and damage to property.

To avoid the risk of accidents and

damage to the appliance, please

read these instructions carefully

before using it for the first time.

They contain important notes on

installation, safety, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This cooktop is designed for

domestic use and for use in similar

environments by guests in hotel or

motel rooms, bed & breakfasts and

other typical living quarters. This does

not include common/shared facilities or

commercial facilities within hotels,

motels or bed & breakfasts.

~This appliance must only be used to

cook food and keep it warm.

Any other usage is at the owner's risk

and could be dangerous. The

manufacturer cannot be held liable for

damage resulting from incorrect or

improper use or operation.

~This cooktop is not suitable for

outdoor use.

~This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of

experience or knowledge, unless they

have been given supervision or

instruction concerning its use by a

person responsible for their safety.

~Do not modify this appliance.

Warning and Safety instructions

Safety with children

~Use the safety lock to prevent

children operating the appliance or

altering the settings.

~Keep children away from the

appliance at all times. This appliance is

not a toy! To avoid the risk of injury,

keep children well away and do not

allow them to play with it or to use the

controls. They will not understand the

potential dangers posed by it. They

should be supervised whenever you

are working in the kitchen.

~Older children may only use the

cooktop when its operation has been

clearly explained to them and they are

able to use it safely, recognising the

dangers of misuse.

~The appliance gets hot when in use

and remains hot for quite a while after

being switched off. To safeguard

against burning, keep children well

away from the appliance at all times.

~Do not store anything which might

arouse a child's interest in storage

areas above or next to the appliance.

Otherwise they could be tempted into

climbing onto the appliance with the

risk of burning themselves.

~Keep all pans out of reach of

children. Turn pan handles inwards

away from the edge of the cooktop.

Danger of burning or scalding. Special

cooktop guards are available from

good retail outlets.

~Packaging, e.g. cling film,

polystyrene and plastic wrappings,

must be kept out of the reach of babies

and young children. Danger of

suffocation! Dispose of or recycle all

packaging safely as soon as possible.

Warning and Safety instructions

Table des matières

Autres manuels Miele plaque de cuisson

Miele

Miele KM 5773 Manuel

Miele

Miele KM 443 Manuel utilisateur

Miele

Miele SmartLine Tepan Yaki Manuel utilisateur

Miele

Miele KM 7999 FR Manuel utilisateur

Miele

Miele KM 87-2 Manuel utilisateur

Miele

Miele INDUCTION WOK CS 1223 Manuel utilisateur

Miele

Miele KM 6344 Manuel utilisateur

Miele

Miele KM6357 Manuel utilisateur

Miele

Miele KM 406 Manuel utilisateur

Miele

Miele KM 5656 Manuel utilisateur

Miele

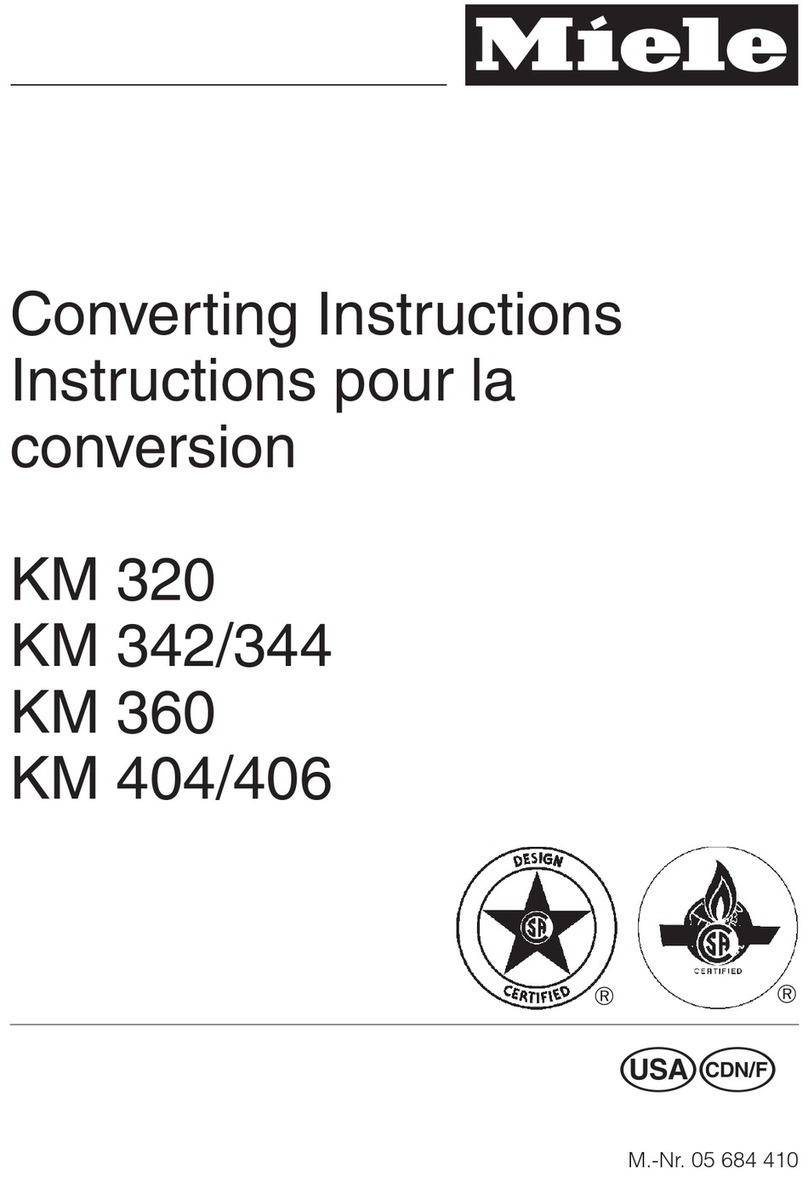

Miele KM 320 Manuel utilisateur

Miele

Miele MasterChef KM342 Manuel utilisateur

Miele

Miele KM 6520 FR Manuel utilisateur

Miele

Miele CS 1011 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur

Miele

Miele KM 5840 Manuel utilisateur

Miele

Miele CS 1028 Manuel utilisateur

Miele

Miele KM 6322 Manuel utilisateur

Miele

Miele KM 3034-1 Manuel utilisateur

Miele

Miele KM 7200 FR Manuel utilisateur

Miele

Miele KM 7678 FR Manuel utilisateur

Miele

Miele GAS COMBISET CS 1011 Manuel utilisateur

Miele

Miele ProLine CS 1212-1 Manuel utilisateur

Miele

Miele KM 5954 Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Casselin

Casselin CSASRE24 Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB00 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Whirlpool

Whirlpool SMP658CNEIXL Manuel utilisateur

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur

Jenn-Air

Jenn-Air CCE1400 Manuel utilisateur
