Installation

*INSTALLATION*

Safety instructions for installation

Risk of damage from incorrect installation.

Incorrect installation can cause damage to the cooktop.

The cooktop must only be installed by a qualified person.

Damage from falling objects.

Take care not to damage the cooktop when fitting wall units or a rangehood

above it.

Fit the wall units and the rangehood before the cooktop.

 The room in which the cooktop is installed must conform to all

relevant local and national building regulations and safety

regulations.

 The veneer or laminate coatings of worktops (or adjacent kitchen

units) must be treated with 100°C heat-resistant adhesive which will

not dissolve or distort. Any splashbacks must be of heat-resistant

material.

 The cooktop must not be installed over a fridge, fridge-freezer,

freezer, dishwasher, washing machine, washer-dryer or tumble dryer.

 A gas cooktop must not be installed directly next to a deep fat

fryer as the gas flames could ignite the fat in the fryer. It is essential

to maintain a distance of at least 300mm between these two

appliances.

 When installing the cooktop, make sure that the gas hose and

electrical connection cable cannot come into contact with hot

appliance parts.

 The electrical cable and any flexible gas connection pipes must be

installed in such a way so that they do not come into contact with

any moving kitchen parts (e.g. a drawer), and cannot become

trapped.

 Carefully observe the safety clearances listed on the following

pages.

11135230-03

Installation

*INSTALLATION*

Safety distances

Safety distance above the cooktop

A minimum safety distance must be

maintained between the cooktop and

the rangehood above it. See the

rangehood manufacturer's operating

and installation instructions for details.

If the manufacturer's instructions are

not available for the rangehood, a

minimum safety distance as per AS/

NZS 5601.1 must be maintained.

For any flammable objects, e.g. utensil

rails, wall units etc., a minimum safety

distance of 600mm must be

maintained between these objects and

the highest part of the cooktop below.

When two or more appliances which

have different safety distances are

installed together below a

rangehood, you should observe the

greatest safety distance.

11135230-03

Installation

*INSTALLATION*

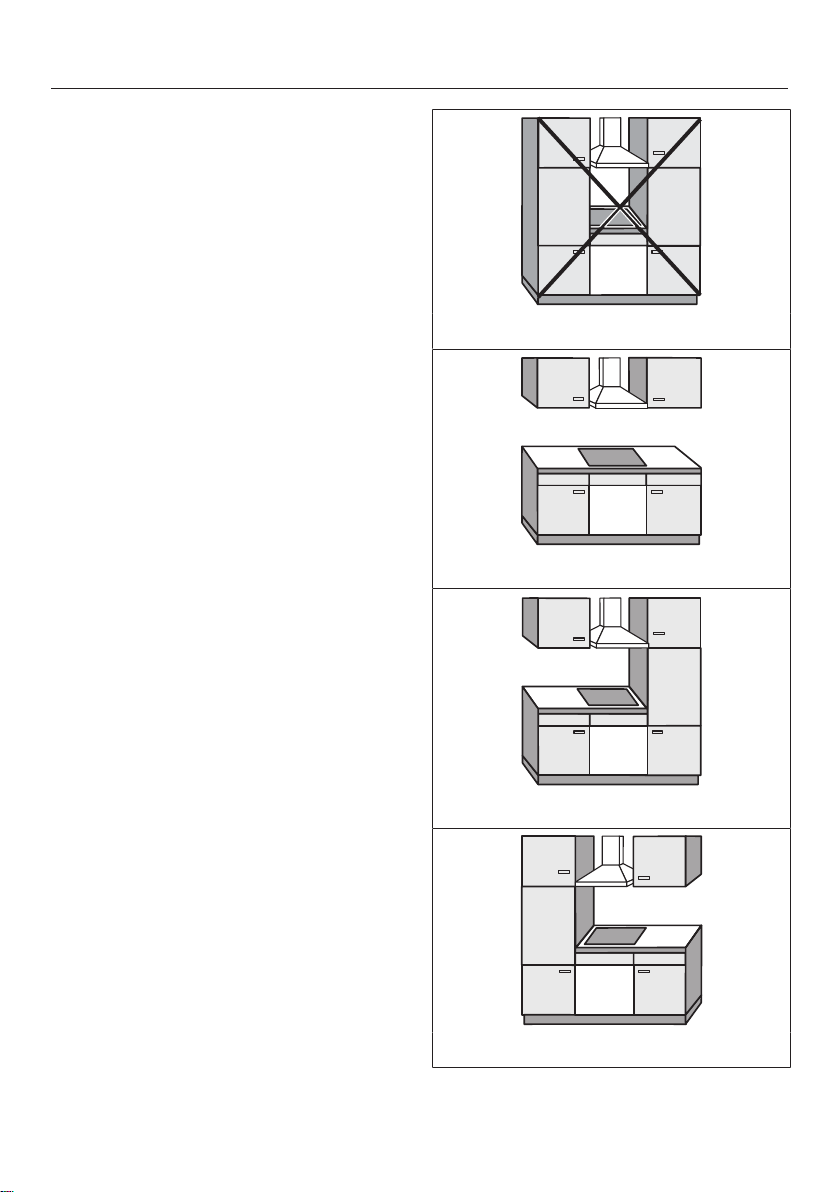

Safety distances to the sides and

back of the appliance

Ideally the appliance should be installed

with plenty of space on either side.

There may be a wall at the rear and a

tall unit or wall on one side (right or left).

On the other side, however, no tall unit

or wall should stand higher than the

appliance. Before installing the

appliance, check that the location

provides the required clearances from

combustible material and, if necessary,

provide protection to adjacent surfaces

as required by regulations.

Not allowed

Recommended

Not recommended

11135230-03

Installation

*INSTALLATION*

A gas appliance shall be installed such

that the surface temperature of any

nearby combustible surface* will not

exceed 65°C above ambient.

The minimum clearance from a

combustible surface shall be a 200mm

horizontal distance from the periphery

of any gas burner (AS/NZS 5601.1).

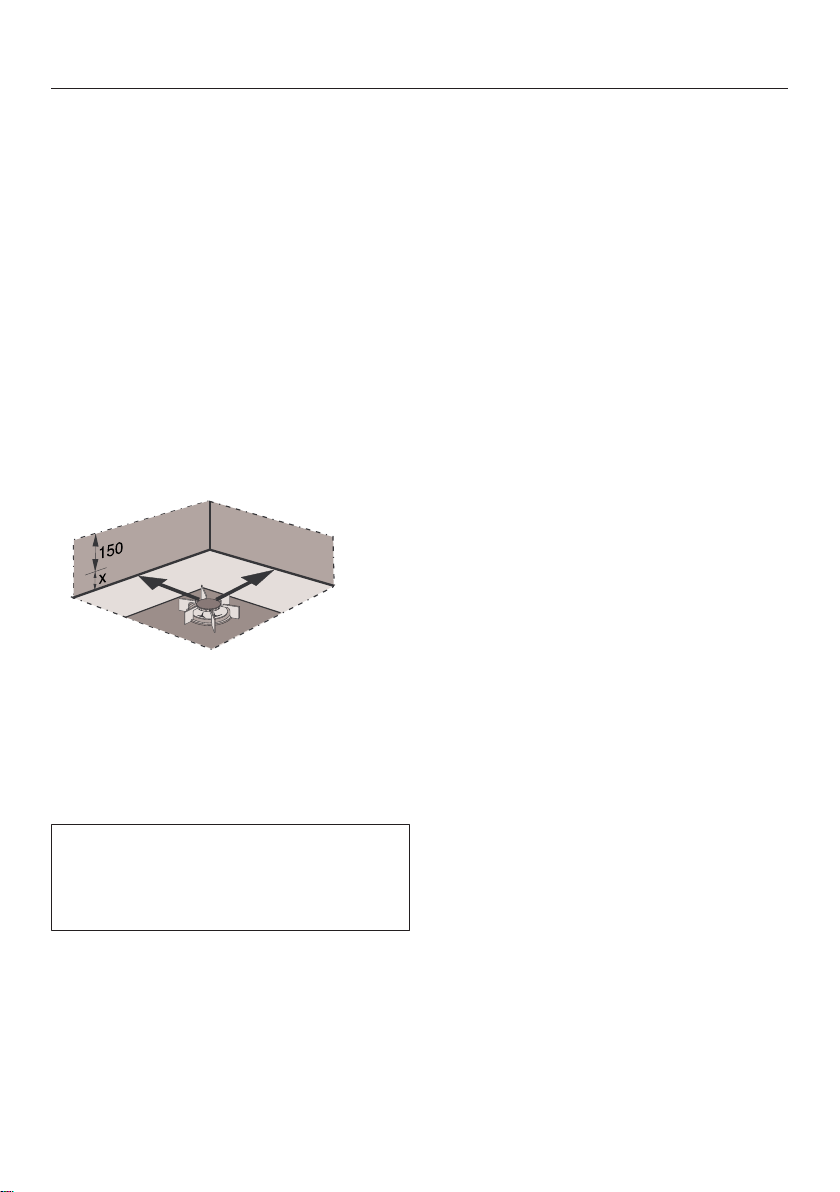

If that horizontal clearance is less than

200mm, that vertical surface must be

protected by a non-combustible

material for 150mm above the top of

the edge of the nearest burner for the

full dimension of the cooktop (depth,

width).

X Height from worktop surface to the

top of the edge of the burner

The shown area indicates the protected

surface, which may be ceramic tiles or

other approved material.

*Combustible surface:

A material which will ignite and burn,

and includes material which has been

flameproofed.

Clearance underneath the appliance

A minimum safety clearance of 15mm

must be provided underneath the

appliance.

Please note that clearance must also be

provided for the installation of the

flexible gas connection hose and mains

electrical cable if the appliance is to be

installed above a closed surface (e.g.

an oven).

11135230-03

Installation

*INSTALLATION*

Detailed dimensions

Height of pan supports above the worktop surface

aVertical distance

bWorktop surface

cPan support

The vertical distance from the top of the pan supports to the surface of the

worktop is 57mm.

11135230-03

Installation

*INSTALLATION*

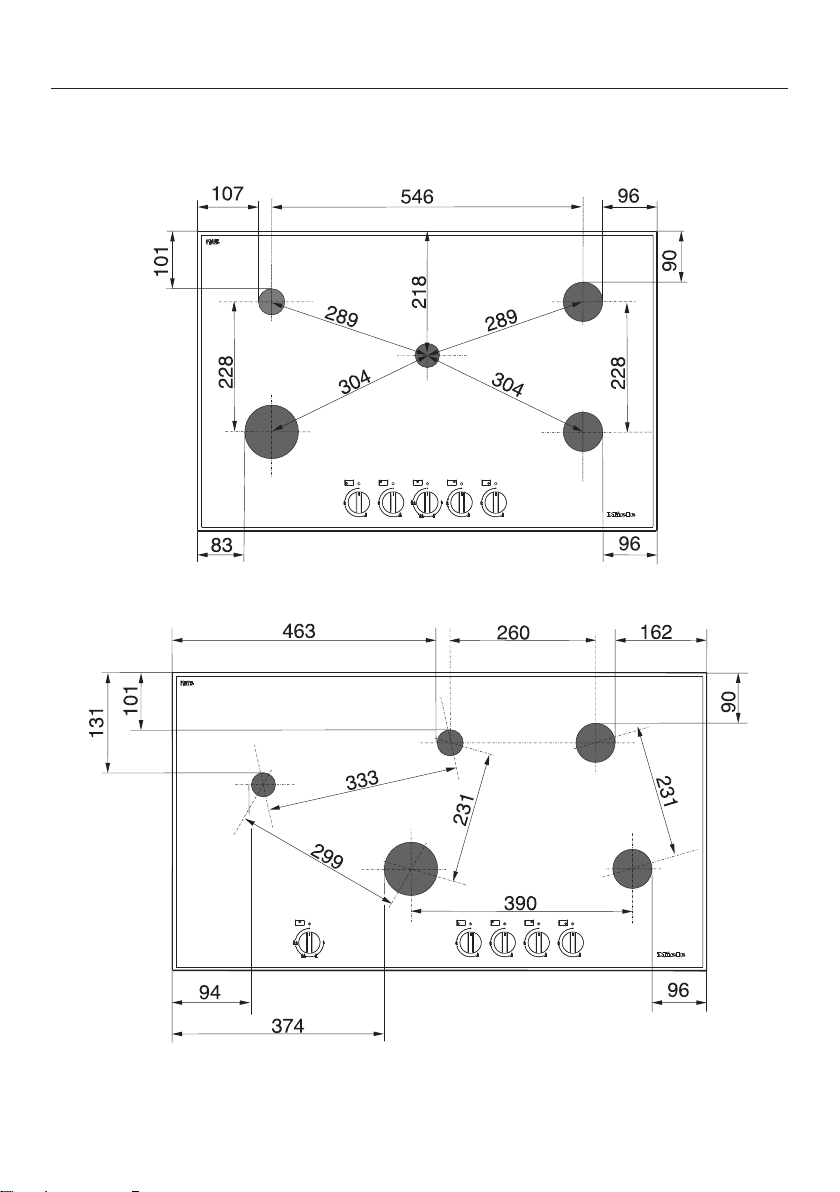

Distances from burner to the edge of the appliance

KM3034-1

KM3054-1

11135230-03

Installation

*INSTALLATION*

Installation notes

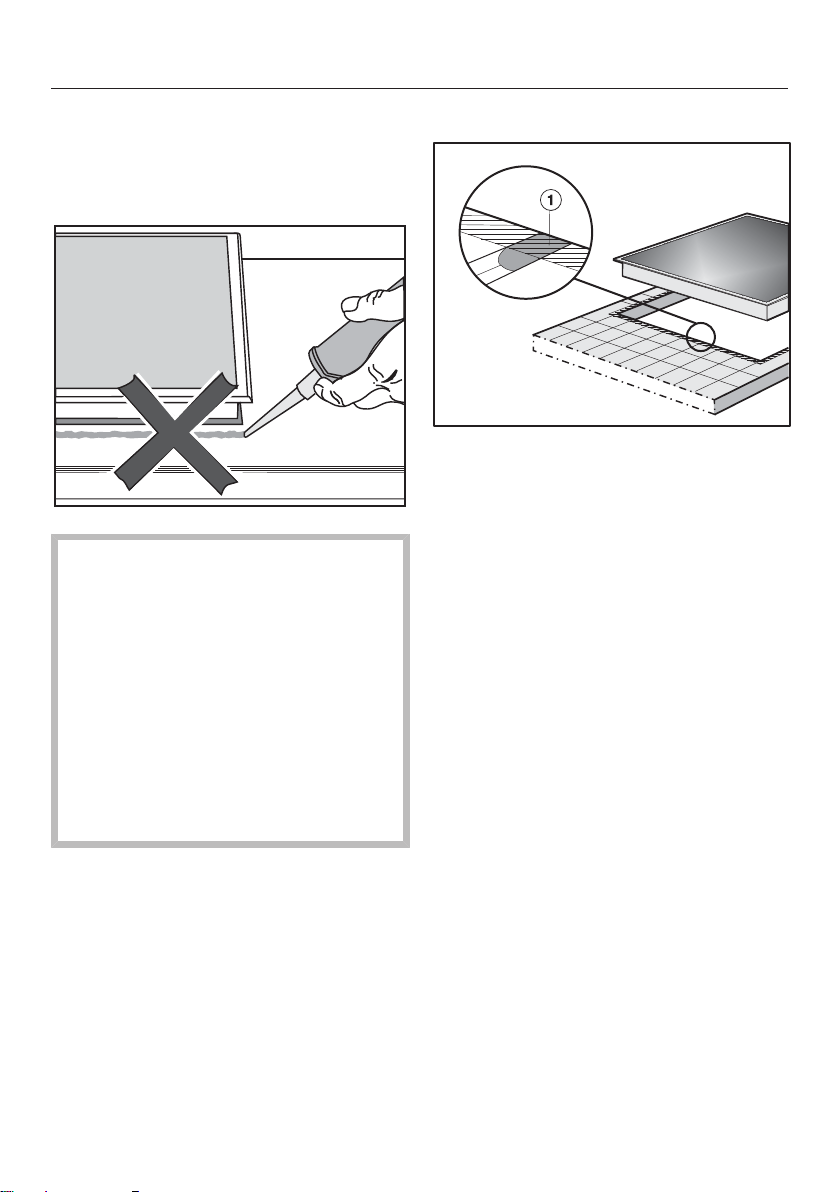

Seal between the cooktop and the

worktop

Damage caused by incorrect

installation.

Using sealant under the cooktop

could result in damage to the

cooktop and the worktop if the

cooktop ever needs to be removed

for servicing.

Do not use sealant between the

cooktop and the worktop.

The sealing strip under the edge of

the cooktop provides a sufficient seal

for the worktop.

Tiled worktop

Grout lines and the hatched area

underneath the cooktop frame must be

smooth and even. If they are not, the

cooktop will not sit flush with the

worktop and the sealing strip

underneath the cooktop will not provide

a good seal between the cooktop and

the worktop.

11135230-03

Installation

*INSTALLATION*

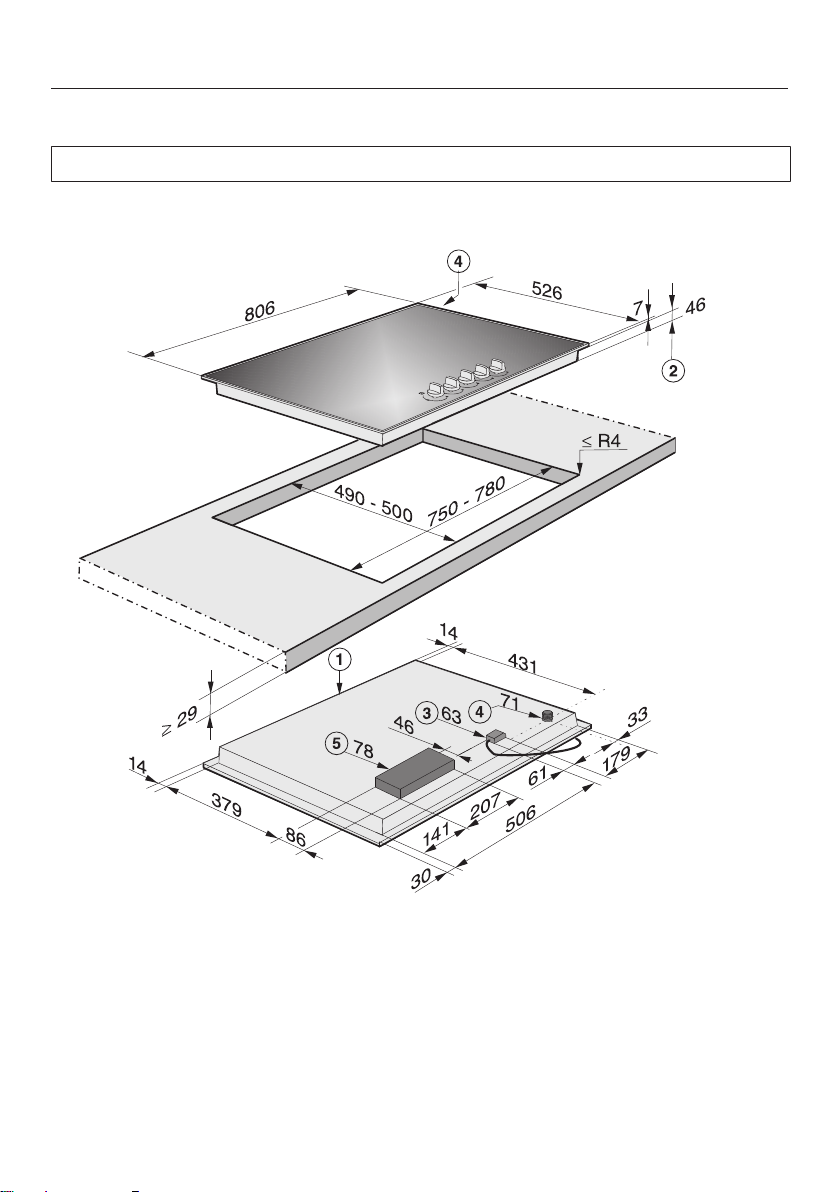

Installation dimensions

All dimensions in this instruction booklet are given in mm.

KM 3034-1

aFront

bBuilding-in depth

cMains connection box with mains connection cable, L = 2,000 mm

dGas connection R½ - ISO7-1

eElectronics housing - maximum building-in depth 78mm

11135230-03

Installation

*INSTALLATION*

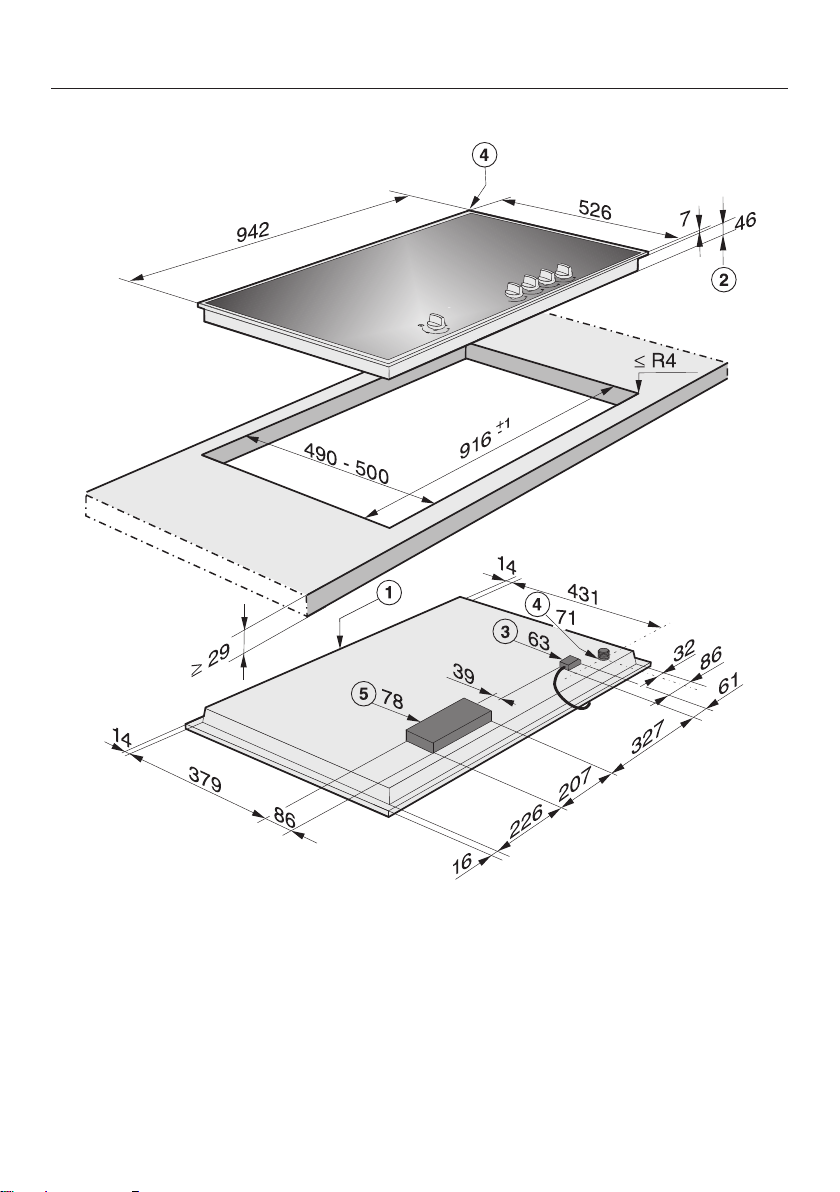

KM 3054-1

aFront

bBuilding-in depth

cMains connection box with mains connection cable, L = 2,000 mm

dGas connection R½ - ISO7-1

eElectronics housing - maximum building-in depth 78mm

11135230-03

Installation

*INSTALLATION*

Installation

Preparing the worktop

Create the worktop cut-out as shown

in the cooktop diagram. Remember

to maintain the minimum safety

distances (see “Installation – Safety

distances”).

Seal the cut surfaces of wooden

worktops with a suitable sealant to

avoid swelling caused by moisture.

The sealant must be heat-resistant.

Make sure the sealant does not

come into contact with the top

surface of the worktop.

The sealing strip ensures that the

cooktop will sit securely in the cut-out

without slipping. Any gap between the

frame and worktop will become

smaller over time.

Installing the cooktop

Attach the sealing strip provided

underneath the edge of the cooktop.

Feed the mains connection cable

down through the worktop cut-out.

Place the cooktop centrally in the

cut-out. When doing this make sure

that the seal of the appliance sits

flush with the worktop on all sides.

This is important to ensure an

effective seal with the worktop.

If the seal does not meet the worktop

correctly on the corners, the corner

radii (≤R4) can be carefully scribed to

suit.

Do not use any additional sealant

(e.g. silicone).

Connect the cooktop to the electricity

supply (see “Installation – Electrical

connection”).

Connect the cooktop to the gas

supply (see “Installation – Gas

connection”).
