Read this manual carefully before operation
INSTRUCT ON MANUALI
C O O K E R HO O D
Pictures in this manual are for reference only , the product in k ind prev ail.
90T01
Contents
Warnings...............................................................2
01
02
03
04
05
06
07
08
Measurement.......... .............................................. 4
Safety Warning......................................................3
Installation..............................................................6
Use........................................................................ 9
Maintenance.......................................................... 9
Contents
1
09 Main Parameters..................................................
Trouble Shooting..................................................
1
Contents................................................................1
10 Disposal................................................................
2
13
13
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
There shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels.
The filter is made of high density aluminum.
Please do not use corrosive detergent for cleaning. The
proper function of the unit is conditioned by the
regularity of the maintenance.
To protect the main body from corrosive of the long time
accumulation of dirt, the cooker hood should be
cleaned with hot water with non-corrosive detergent
every two months.
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
The minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part
of the range hood is 650 mm.
Regulations concerning the discharge of air have to be
fulfilled.
The appliance uses 4 hob elements at most.
CAUTION :
used with cooking appliances.
Warnings
2
Accessible parts may become hot when
Do not flame under the range hood.
3
The appliance is not intended for use by young children or infirm
persons without supervisions.
Young children should be supervised to ensure they do not play with
the appliance.
Plug the power cord to socket outlet with earthing continuity terminal.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purposes.
according to the instruction.
Do not use open flame, or allow oil to go beneath the appliance.
If there is any fault occurred with the appliance, please call after-sale
service department.
Please keep the kitchen room ventilated.
Prior to any maintenance, cleaning operation, ensure the power is cut
off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
If the plug or cord is damaged, please call after-sale service center.
There is a fire risk if cleaning is not carried out in accordance with the
instruction.
In case of damaged connecting wire, please refer to the manufacturer,
after-sale service personnel or other qualified technicians.
Use the unit according to the instructions to avoid any fire hazard.
The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
Follow the local laws applicable for external air evacuation.
Safety Warning
The cooker hood and its filter should be cleaned regularly
4

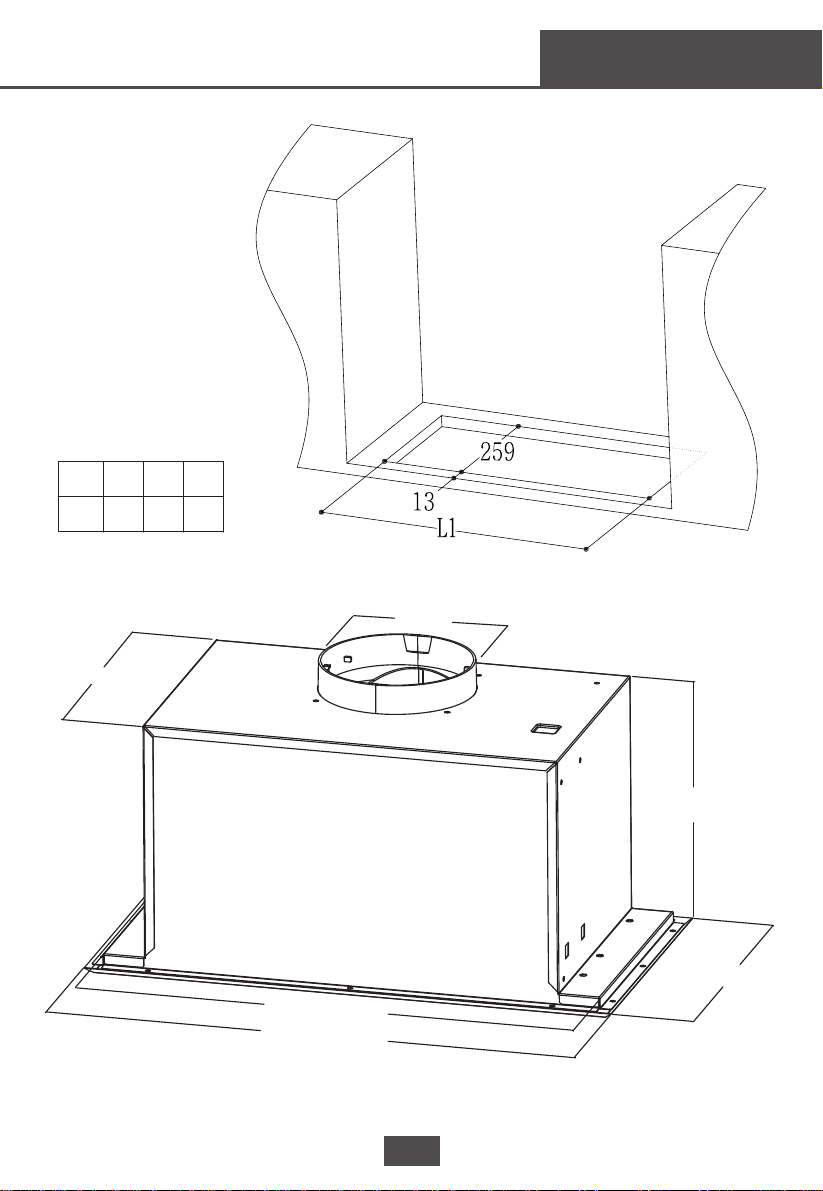

Measurement
A520 700 900
L1 497 677 865
Φ150
256
248
284
(A)
492/672/860
520/700/900
Measurement
5
6
Installation

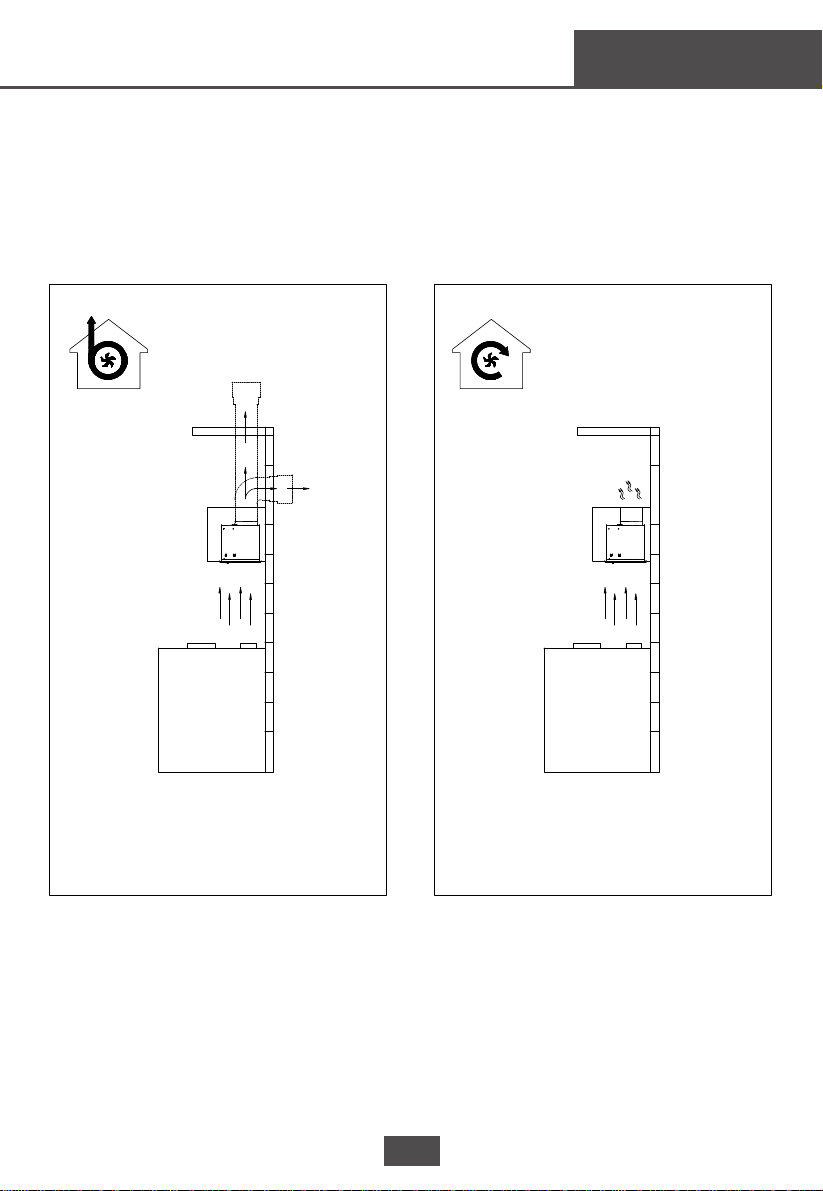

Here two venting modes, extraction-air mode and recirculation
mode, before installing， select one mode.
Extraction-air mode Recirculation mode
7
Press the lock catch of metal
Filter, remove the Filter.
Remove the stainless steel
frame by unfastening the 4
screw (M4*10).
Unfastening the screws (ST4*10),
remove the lid of terminal box,
disconnect the wires to the
Commands at the connectors.
Disconnect the wires to the
Light at the connectors.
Fasten the Hood in the cabinet
by using the 12 screws (ST4*18).
Installation
8
Reconnect the wires to the
Commands and Light.
Replace the metal Filter.
Install the air outlet pipe (optional).
Screw the stainless steel
frame back into place using
the 4 screws removed as
described above.
Installation
9
Use
Mid Low
Light
Speed adjustment. See below Fig.
Stop
High
Maintenance
Cleaning of the filter
Please do not use abrasive detergent for it will damage the hood.
Make sure that the hood is shut off before cleaning.
Removing the metal filter according to Installation (page ) .
Put it into a dishwasher with detergent, set the
temperature below 60 degrees.
7
Press Stop button, the motor will stop running.
Press the Low (speed) button, the motor runs at low speed.
Press the Mid (speed) button, the motor runs at mid speed.
Press the Light button, the two lighting lamps will come on.
Press it again and the lamps will be turned off.
Press the High (speed) button,the motor runs at high speed.
