Midea VHS01A17Z0A Manuel utilisateur

Service Manual

Cord Stick Vacuum Cleaner

VHS01A17Z0A

Midea LOGO

Contents

1Specifications…………………………………………………………1-2

2 Electrical Diagram…………..…………………………….…………..3

3 Schematic Diagram……………………………..…………………….4

4 Repair of Main Parts…………………………………….……………5

4.1 Upper and Lower Body……………………………………………6

4.2 Cord Reel Assembly…………………………………………..……7

4.3 Motor……………………………………………………………………..8

4.4 Connection Hose, Hose…………………………………………..9

5 Trouble Shooting Chart……………………………………..…….10

6 Replacement Parts List…………………………………………….11

7 Packing Instruction……………………………………………….…12

Follow caution information wherever you see this symbol.

1 Specifications

MODEL

VHS01A17Z0A

POWER SOURCE

21.6V DC

RATED POWER

140W（含地刷电机 30W）

BATTERY CAPACITY

2000mAh

MAX. VACUUM

CAPACITY

6.0kPa

RUNNING TIME

≥12 min

RECHARGING TIME

3.5hrs

DUST CAPACITY

0.3L

WEIGHT(MAIN BODY)

2.58kg

DIMENSION(WxLxH)

243.4*181*1110mm

Charging base

Tools

Furniture Brush(2 in 1 tool), Crevice Tool

ATTACHMENTS

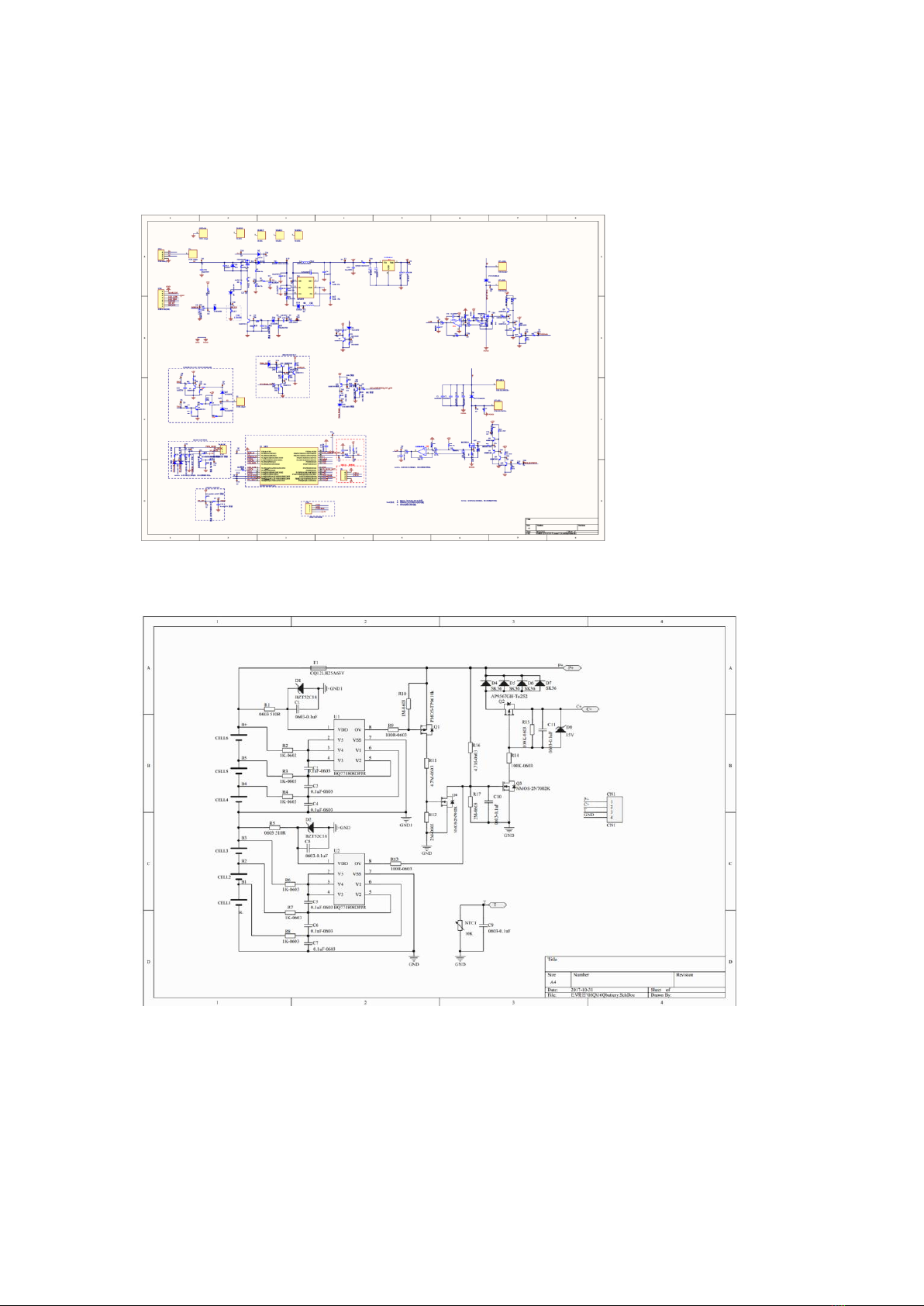

2 Electrical Diagrams

主控板原理图

电池保护板原理图

3 Schematic Diagrams

4 Repairs of Main Parts

4.1 Upper and Lower Body

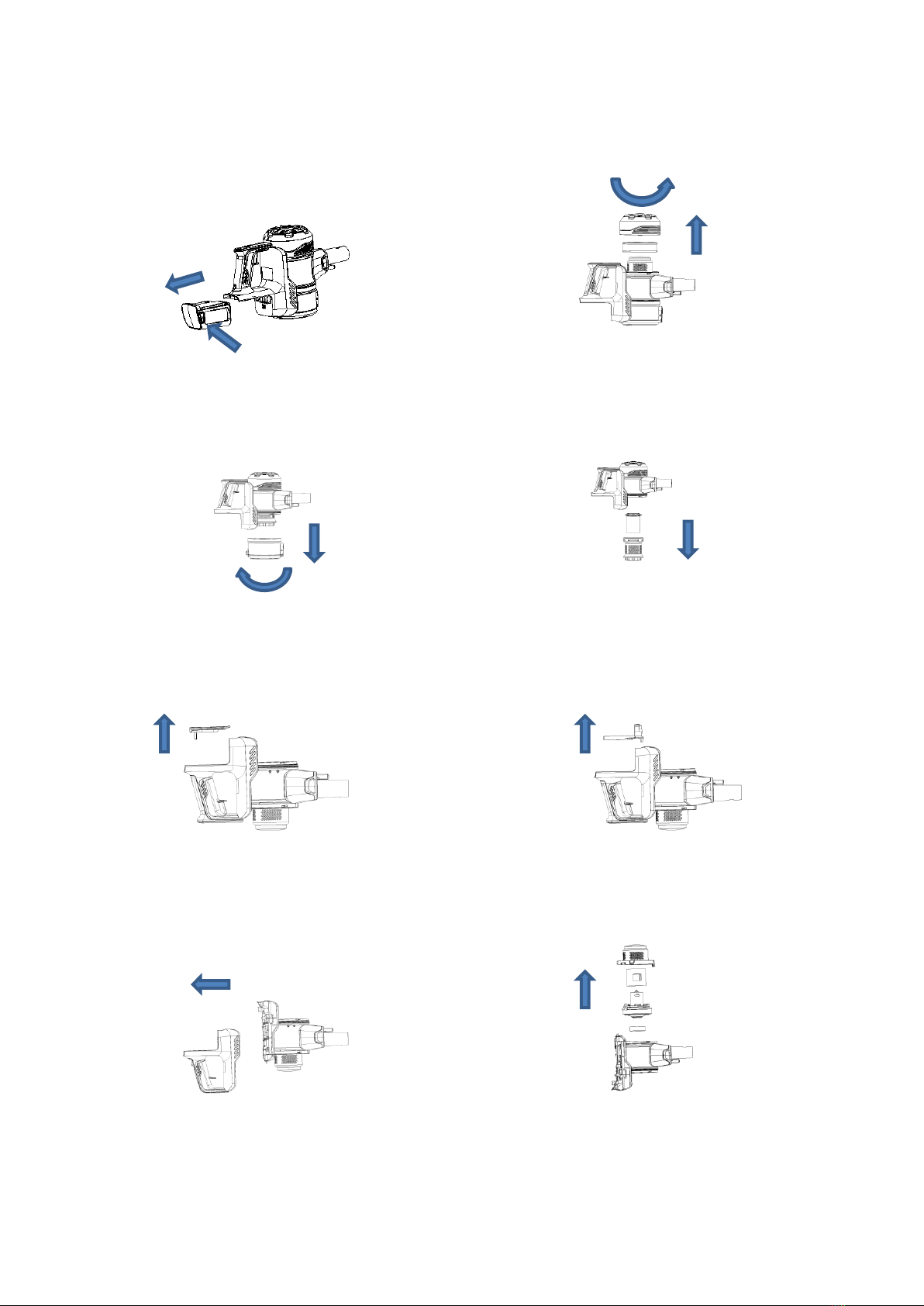

Detach the parts

1. Discharge the power brush from the connection tube (Fig1), and removes the connecton tube

from the unit body(Fig2).

2. Detach the battery package from the unit body(Fig3), and rotate the motor upper cover and

lift the cover and filter out from the body(Fig4).

Fig2

Fig1

3. Rotate the cup, and take the dust cup out from body(Fig5);

4. Rotate the inner separator, and take the inner separator out from body (Fig6)

5. Discharge the screws and take out the PCB assy cover from unit body (Fig7) , and take the PCB

assy out from unit body (Fig8)

6. Disassemble the handle assy from the unit body(Fig 9), discharge the screws and finally

take out the DC motor from separator frame assy(Fig 10).

Fig3

Fig4

Fig6

Fig5

Fig7

Fig8

Fig9

Assembly

1. Assemble the motor , motor frame into separator with screws, and fix the upper cup assy with

separator assy(Fig 11).

2. Assemble the PCB assy and PCB board cover to handle assy (Fig 12). Asseble the handle assy

with upper cup assy（Fig 13）

3. Assemble the dust cup to upper cup with handle assy(Fig 14). And Assemble the HEPA to upper

cup with handle assy (Fig 15).

4. Close the cover (Fig.16), and fix the battery pack to unit body (Fig.17)

Fig11

Fig12

Fig13

Fig14

Fig15

Fig16

Fig17

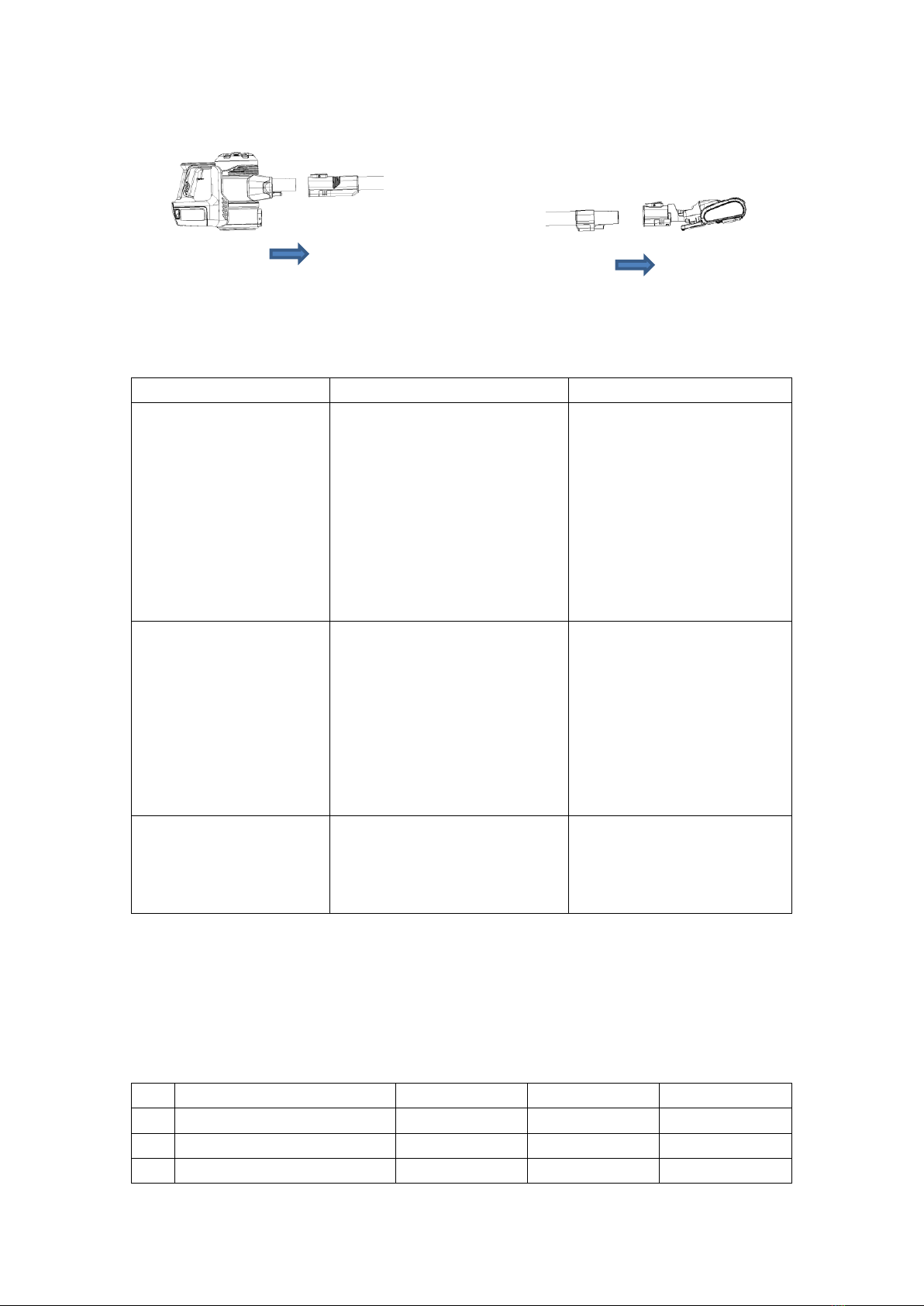

5. Connect the unit body with tube (Fig18), and tube with power brush(Fig 19)

5 Trouble Shooting Chart

Trouble

Possible Causes

Countermeasure

The vacuum cleaner does

not work, or power brush

does not work

1.The plug is not plugged in

2. The power switch didn’t open.

3.Internal wiring of loose

4.The motor burned out

5. Power brush broken

1.Re plug

2.Press the power switch

3.Re connect the internal

wiring

4.Repair or replacement of the

new machine

5. Check out if there is light

comes out from LED of power

brush

The suction become

smaller

1. No power of the battery pack

2. The channel blocked suction

head

3. Poor ventilation dust bag

4. Air inlet and

outlet filter blocked

5. Motor problems

1. Recharge the unit till battery

is full

2. Clean the suction

head channel

3.Clean up the dust bag

4.Cleaning filter

5. Repair replacement of

the motor

Full dust indicator of

adverse action

1. The dust suction channel block

2. The buoy stuck

3. Spring is broken

1.Clean up the dust absorption

channel

2. Repair full dust indicator

3. Repair full dust indicator

6 Replacement Parts List

（For basic model only）

No.

Part Name

Part Code

Specs.

QTY

Power brush

Stretch Metal tube

3…

Battery Pack

Fig18

Fig19

Separator

Bottom Cup

Upper Cup cover assy

PCB Cover

Mai PCB

Handle Assy

Upper cup Assy

Motor Assy

Please refers to SBOM for customer model.

7 Packing Instructions
