Midea PD Manuel utilisateur

Technical Support Department

PAC Installation

March 20

Product Line

PD PF PQ PH PHA

Series Adaptor

connecting to unit

Pipe size

Adaptor connecting to

window slider Window sealing board

PD/PF/PB

Round

150mm

150mm

pipe

to window slider

Window sealing

board

PH Square

150mm

150mm

pipe

to

window slider

Window sealing

board

PHA Square

130mm

130mm pipe

to

window slider

Window sealing board

PQ Round

180mm

180mm pipe

to

window slider

Window sealing

board

Window Kit Overview

Note: Just pick out one set of accessories to show the differences, this set isn’t suitable for all of the PAC models.

Window end adaptor Unit end adaptor Exhaust hose

Accessories

You will need

Sash Window Installation

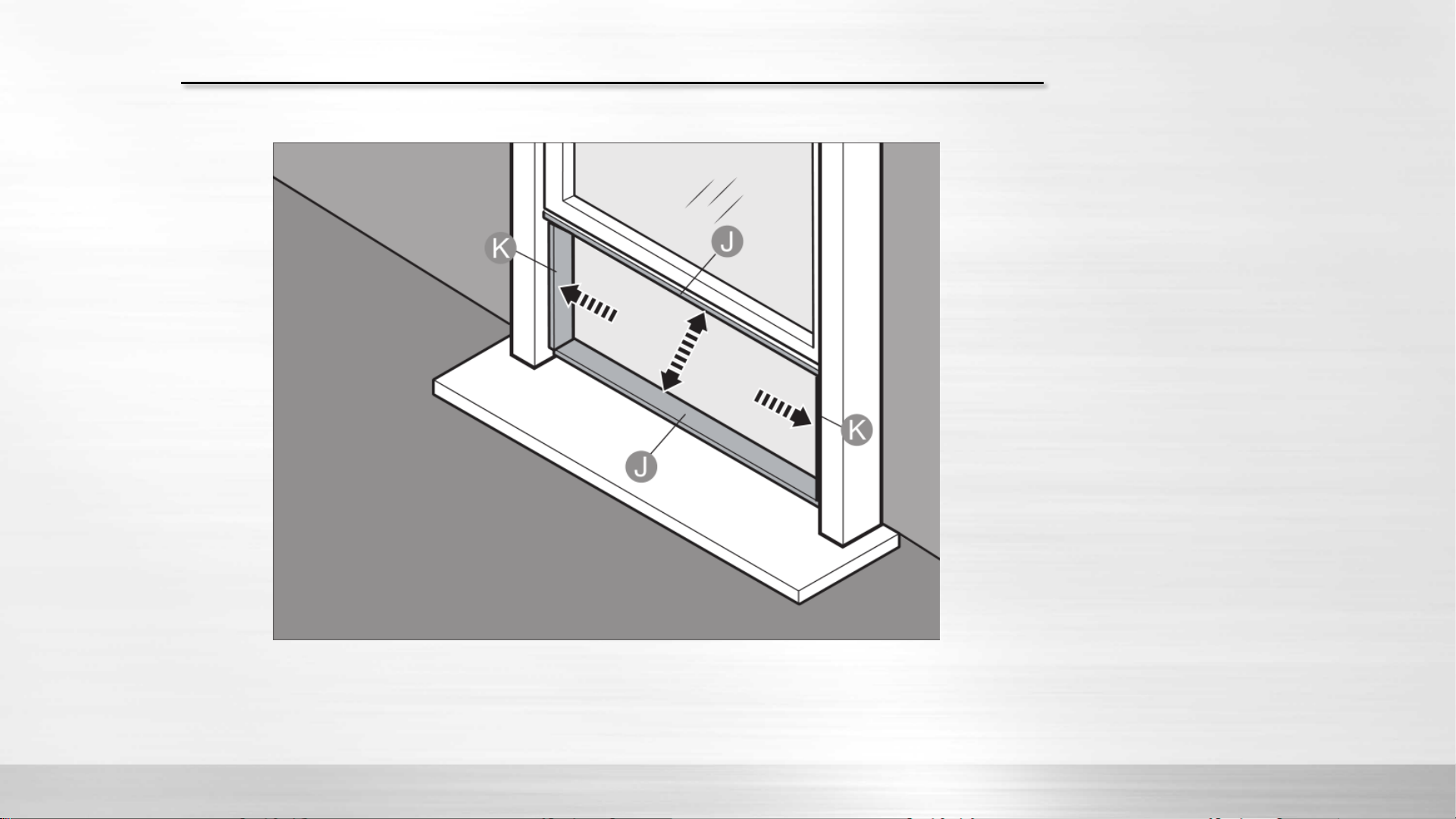

Step 1:

• Cut the adhesive seal foams (J) and (K) to the required lengths.

• Remove the strips from adhesive seal foams (J) and (K).

• Attach the adhesive seal foams (J) and (K) to the window sash and

frame.

Sash Window Installation

Step 2:

• Slide the window slider part (G) into part (F).

• Adjust the window slider to the width of the window assembly and secure with plastic bolt

(E).

Sash Window Installation

Step 3:

Before securing the window sash, mark and then drill the pilot holes in the window sill to prevent it

from splitting.

• Insert the window slider into the window opening. Close the window sash to secure the window slider in

place.

• Measure the width of the window sash.

• Cut the sash seal (L) so it fits the space between the lower and upper window sash.

• Place the sash seal (L) between the window sashes.

• Secure the position of the lower window sash using the bracket (M) and 2 screws (N).

Sliding Window Installation

Step 1:

• Cut the adhesive seal foams (J) and (K) to the required lengths.

• Remove the strips from adhesive seal foams (J) and (K).

• Attach the adhesive seal foams (J) and (K) to the window sash and frame.

Sliding Window Installation

Step 2:

• Slide the window slider part (G) into part (F).

• Adjust the window slider to the width of the window assembly and secure with plastic bolt

(E).
