One-way Cassette Type MCAC-VTSM-2014-06

One-way Cassette Type

1. Features............................................................................................. 2

2. Specifications ................................................................................... 4

3. Dimensions ....................................................................................... 7

4. Service Spaces ................................................................................. 9

5. Piping Diagrams ..............................................................................11

6. Wiring Diagrams............................................................................. 12

7. Capacity Tables............................................................................... 14

8. Electrical Characteristics............................................................... 19

9. Sound Levels .................................................................................. 20

10. Accessories................................................................................... 24

MCAC-VTSM-2014-06 One-way Cassette Type

1. Features

1.1 New panel and optimized evaporator

---- For capacity 1.8kW to 3.6 kW, the panel has digital display function, which can show

temperature ,warning message and check to consult parameters.

---- For capacity 4.5kW to 5.6kW, has a optimized evaporator.

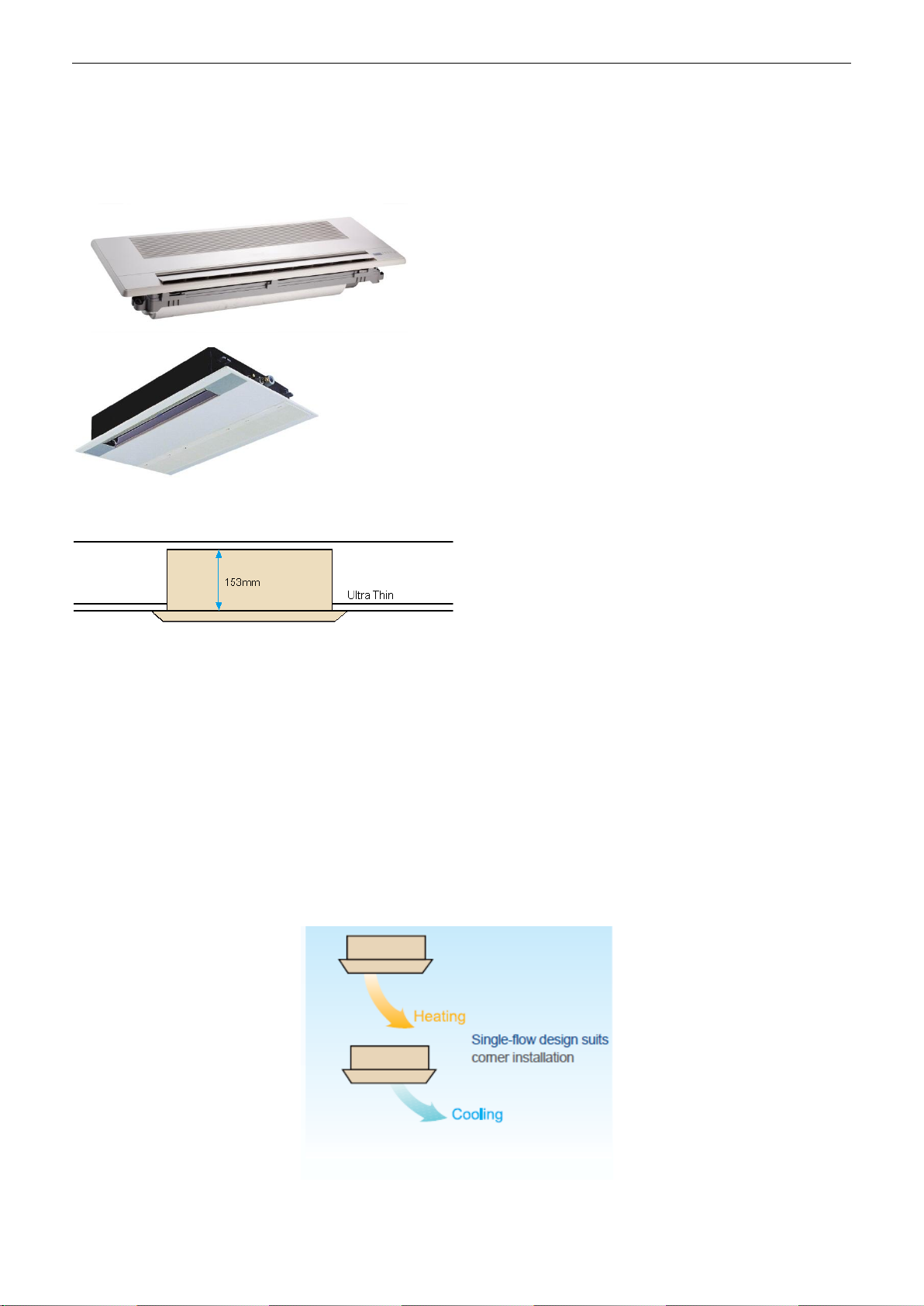

1.2 Compact design

---- For capacity 1.8kW to 3.6 kW,needs only 153 mm space above the ceiling.

1.3 Parts inside installation

---- The throttling components and water pump are internally installed which means lower cost, no extra

accessories or installation time.

1.4 Large airflow and low noise

---- Large airflow, for high ceiling application (installation height can reach up to 3.2m) guarantees comfort in

large space.

1.5 Improved air quality

---- For capacity 1.8kW to 3.6 kW, two folding type air filters and two standard formaldehyde absorption

nets improve the air quality greatly. The design of a long air outlet and a wide guide fan blade, which

enlarges the range of flow transportation.

1.6 Auto swing

---- Auto swing mechanism guarantees even airflow distribution and a better room temperature balance.

1.8kW-3.6kW

4.5kW-5.6kW

One-way Cassette Type MCAC-VTSM-2014-06

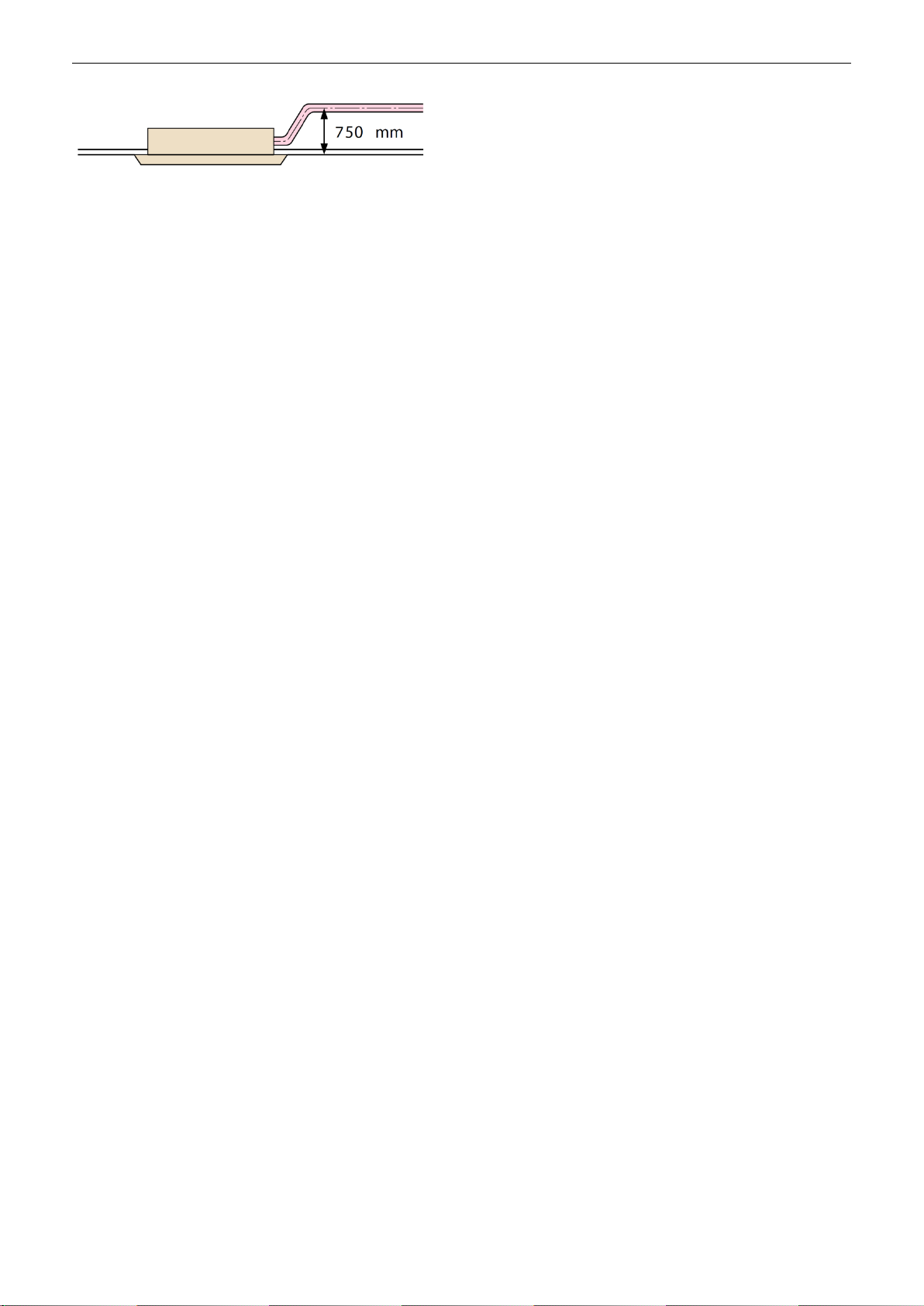

1.7 Built-in water pump with 750mm pump head.

1.8 Prevent condensation in air outlet by the patent of a new structure design

--- For capacity 1.8kW to 3.6 kW, by the adoption of this structure, the guide wing will always wrapped up by

dry cold air, cutting off the contact route of moist hot air and the cold guide wing. As a result, the water

vapour in mosit hot air gets no change to condense in the surface of guide wing.

1.9 Auto restart

--When the indoor unit is powered off, it will auto restart when powered on again after 3 minutes and

operate in the previous state.

MCAC-VTSM-2014-06 One-way Cassette Type

2. Specifications

Model

MDV-D18Q1/N1-D

MDV-D22Q1/N1-D

Power supply

V-Hz-Ph

220-240V-50Hz-1Ph

Cooling

Capacity

1.8

2.2

Input

Rated current

0.24

Heating

Capacity

2.2

2.6

Input

Rated current

0.24

Indoor fan motor

Model

RPS12N

Type

Single-phase AC motor

Brand

Welling

Input(H/M/L)

29.5/26.7/25.0

Capacitor

μF

0.8

Speed (H/M/L)

r/min

1180/955/710

Indoor coil

Number of rows

Tube pitch(a) ×row pitch(b)

21×13.37

Fin spacing

1.5

Fin type

Hydrophilic aluminum

Tube outside dia. and type

Ф7 Inner groove tube

Coil length ×height ×width

760×252.4×26.74

Number of circuits

Indoor air flow (H/M/L)

m3/h

523/404/275

Indoor noise level (H/M/L)

dB(A)

37/34/30

38/34/30

Indoor unit

Dimension (W×H×D)

1054×169×425

Packing (W×H×D)

1155×245×490

Net/Gross weight

12.5/16

panel

Dimension (W×H×D)

1180×36.5×465

Packing (W×H×D)

1232×107×517

Net/Gross weight

3.5/5.2

Refrigerant type

R410A

Throttle

Type

Electrical expand valve

Model

D20MISZ-1R(L)

Design pressure(H/L)

MPa

4.4/2.6

Refrigerant piping

Liquid side/ Gas side

Ф6.35/ Ф12.7

Connecting wiring

Power wiring

mm2

3×1.0

Signal wiring

mm2

3×0.75

Drainage water pipe diameter

OD Ф25

Controller

Wireless remote controller (RM05/BG(T)E-A)

Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature : 27°CDB,19°CWB,

outdoor temperature:35°CDB,equivalent refrigerant piping: 8m(horizontal).

2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,

outdoor temperature: 7°CDB,6°CWB,equivalent refrigerant piping: 8m(horizontal)

One-way Cassette Type MCAC-VTSM-2014-06

Model

MDV-D28Q1/N1-D

MDV-D36Q1/N1-D

Power supply

V-Hz-Ph

220-240V-50Hz-1Ph

Cooling

Capacity

2.8

3.6

Input

Rated current

0.25

Heating

Capacity

3.2

4.0

Input

Rated current

0.25

Indoor fan

motor

Model

RPS12N

Type

Single-phase AC motor

Brand

Welling

Input

31.0/27.2/25.3

Capacitor

μF

1.0

Speed (H/M/L)

r/min

1270/1050/790

Indoor coil

Number of rows

Tube pitch(a) ×row pitch(b)

21×13.37

Fin spacing

1.5

Fin type

Hydrophilic aluminum

Tube outside diameter and type

Ф7 Inner groove tube

Coil length ×height ×width

760×252.4×26.74

Number of circuits

Indoor air flow (H/M/L)

m3/h

573/456/315

Indoor noise level (H/M/L)

dB(A)

39/37/34

40/38/34

Indoor unit

Dimension (W×H×D)

1054×169×425

Packing (W×H×D)

1155×245×490

Net/Gross weight

13/16.5

panel

Dimension (W×H×D)

1180×36.5×465

Packing (W×H×D)

1232×107×517

Net/Gross weight

3.5/5.2

Refrigerant type

R410A

Throttle

Type

Electrical expand valve

Model

D20MISZ-1R(L)

Design pressure(H/L)

MPa

4.4/2.6

Refrigerant

piping

Liquid side/ Gas side

Ф6.35/ Ф12.7

Connecting

wiring

Power wiring

mm2

3×1.0

Signal wiring

mm2

3×0.75

Drainage water pipe diameter

OD Ф25

Standard Controller

Wireless remote controller (RM05/BG(T)E-A)

Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature : 27°CDB,19°CWB,

outdoor temperature:35°CDB,equivalent refrigerant piping: 8m(horizontal)

2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,

outdoor temperature: 7°CDB,6°CWB,equivalent refrigerant piping: 8m(horizontal)

MCAC-VTSM-2014-06 One-way Cassette Type

Model

MDV-D45Q1/N1-C

MDV-D56Q1/N1-C

Power supply

V-Hz-Ph

220-240V-50Hz-1Ph

Cooling

Capacity

4.5

5.6

Input

Rated current

0.37

0.39

Heating

Capacity

5.0

6.3

Input

Rated current

0.37

0.39

Indoor fan

motor

Model

YSK55-4

Type

asynchronous motor

Brand

Welling/Yongan

Input

84/76/71

Capacitor

μF

0.8μF/450V

2.0μF/450V

Speed (h/m/l)

r/min

950/885/760

1160/1105/970

Indoor coil

Number of rows

Tube pitch(a) ×row pitch(b)

21×13.37

Fin spacing

1.5

Fin type

Hydrophilic aluminum

Tube outside dia. and type

Ф7 Inner groove tube

Coil length ×height ×width

1040×210×26.74

Number of circuits

Indoor air flow (H/M/L)

m3/h

704/630/503

860/810/702

Indoor noise level (H/M/L)

dB(A)

41/39/35

42/40/36

Indoor unit

Dimension (W×H×D)

1147×200×640

Packing (W×H×D)

1380×265×775

Net/Gross weight

31.5/37.2

panel

Dimension (W×H×D)

1425×10×755

Packing (W×H×D)

1500×110×870

Net/Gross weight

9/12

Refrigerant type

R410A

Throttle

Type

Electrical expand valve

Model

BD20FKS(L)

Design pressure（H/L）

MPa

4.4/2.6

Refrigerant

piping

Liquid side/ Gas side

Ф6.35/ Ф12.7

Ф9.53/ Ф15.9

Connecting

wiring

Power wiring

mm2

3×2.5

Signal wiring

mm2

3×0.75

Drainage water pipe diameter

ODФ25

Controller

Wireless remote controller (RM05/BG(T)E-A)

Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature: 27°CDB,19°CWB,

outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)

2.Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor

temperature: 7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

One-way Cassette Type MCAC-VTSM-2014-06

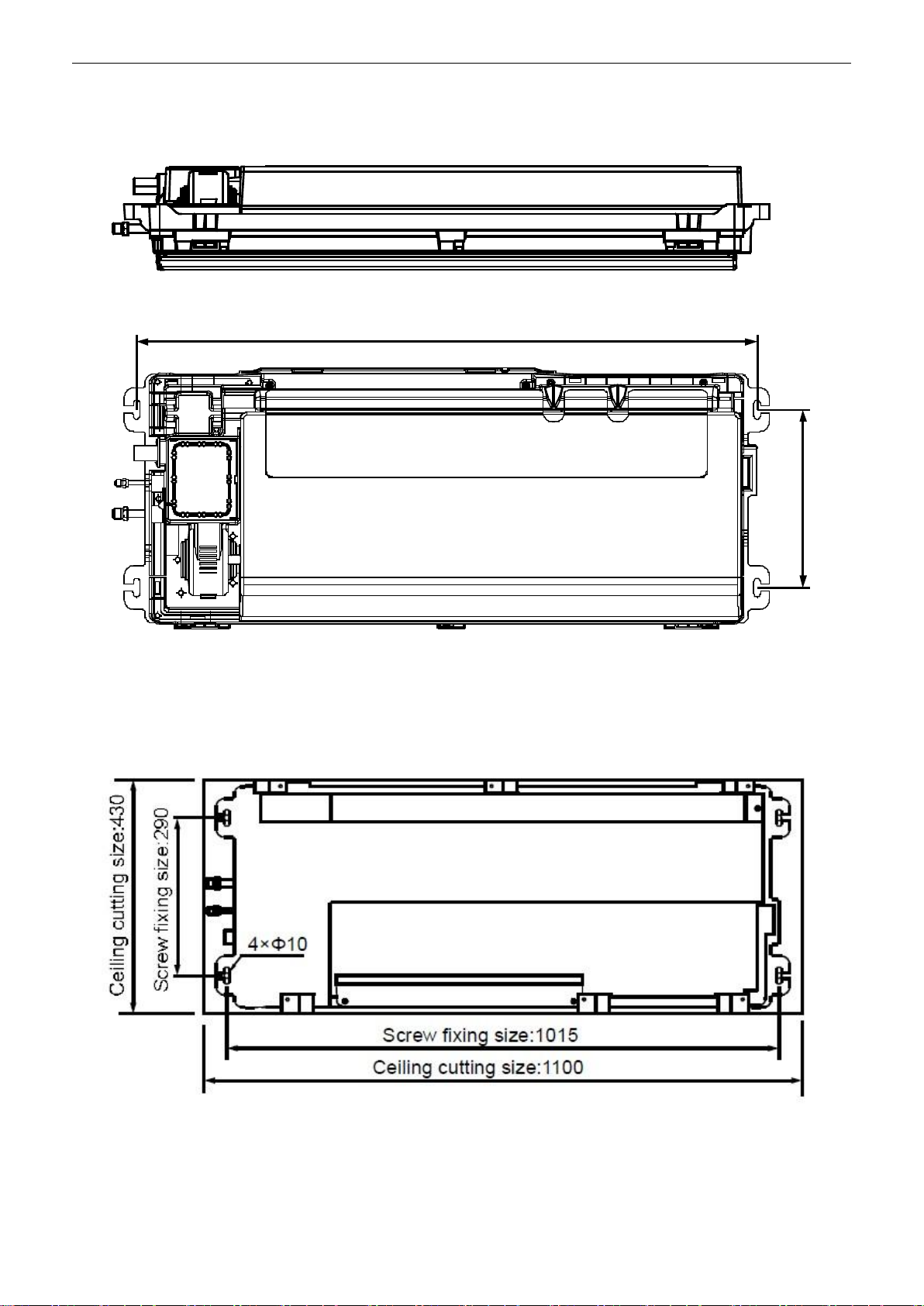

3. Dimensions

MDV-D18Q1/N1-D MDV-D22Q1/N1-D

MDV-D28Q1/N1-D MDV-D36Q1/N1-D

Please use the installation paper plate to make sure the position of the installation screws.

1015

290

MCAC-VTSM-2014-06 One-way Cassette Type

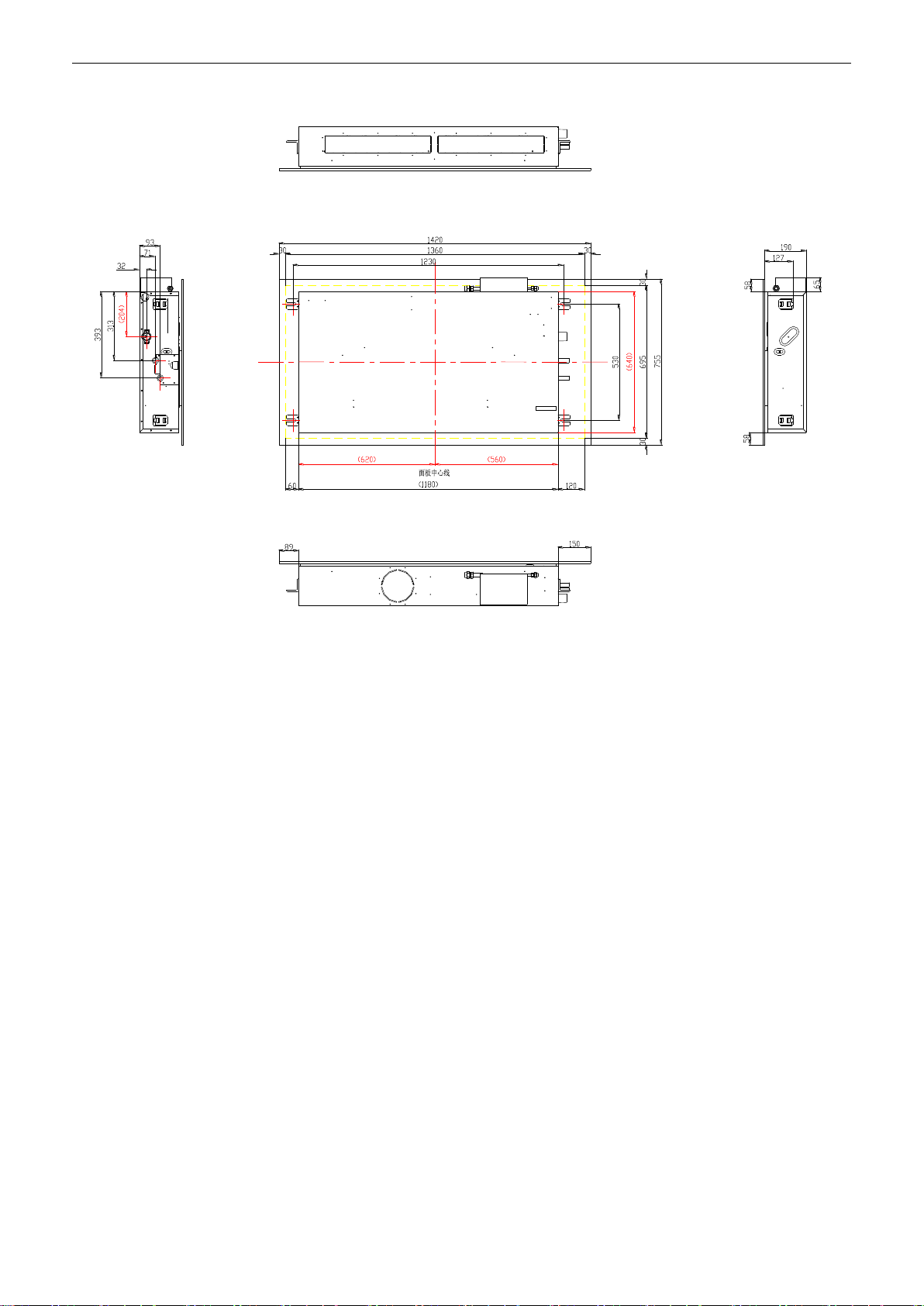

MDV-D45Q1/N1-C MDV-D56Q1/N1-C

One-way Cassette Type MCAC-VTSM-2014-06

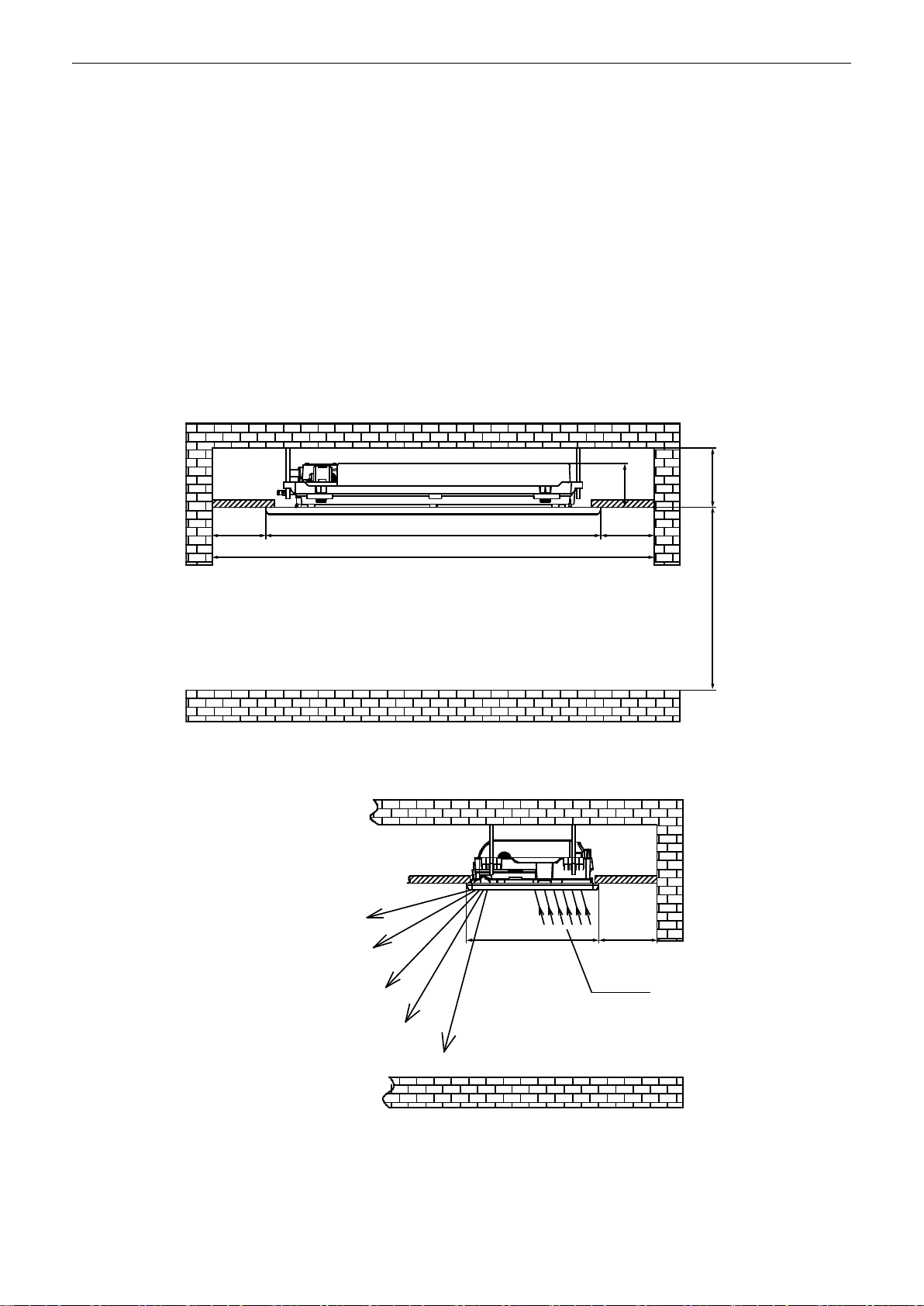

4. Service Spaces

MDV-D18Q1/N1-D MDV-D22Q1/N1-D MDV-D28Q1/N1-D MDV-D36Q1/N1-D

Please avoid installing in the following places :

A place with flammable gas or material.

A saline place such as a seashore vicinity.

A place with sulphur gas.

A place with oil gas,such as kitchen.

A place with high-humidity air.

An unbearable place.

A place where high-frequency waves are generated.

The appliance shall not be installed in the laundry.

Please comply with the related national eletric standard to make electric insulation for construction and metal

parts of air-conditioner.

Please choose the place where the ventilation is good.

Ceiling space repquires 153mm.

The installation height of the unit can not be higher than 3.2m,or it will affect the operation effect.

≥153

≥1400

1180

≥100 ≥100

153

≤3200

Unit：mm

465 ≥200

Unit：mm

Fan angle range

Air return port

MCAC-VTSM-2014-06 One-way Cassette Type

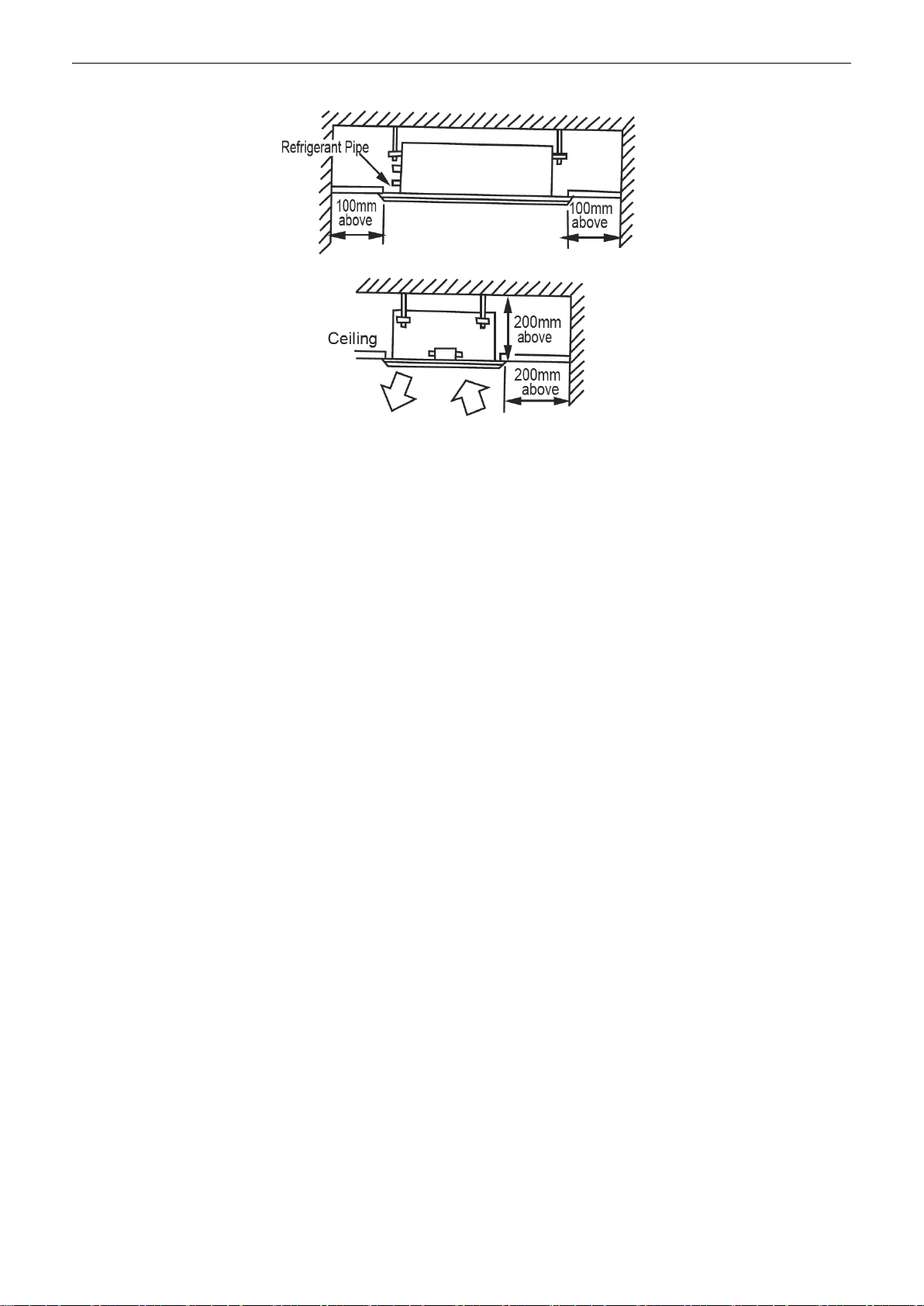

MDV-D45Q1/N1-C MDV-D56Q1/N1-C
