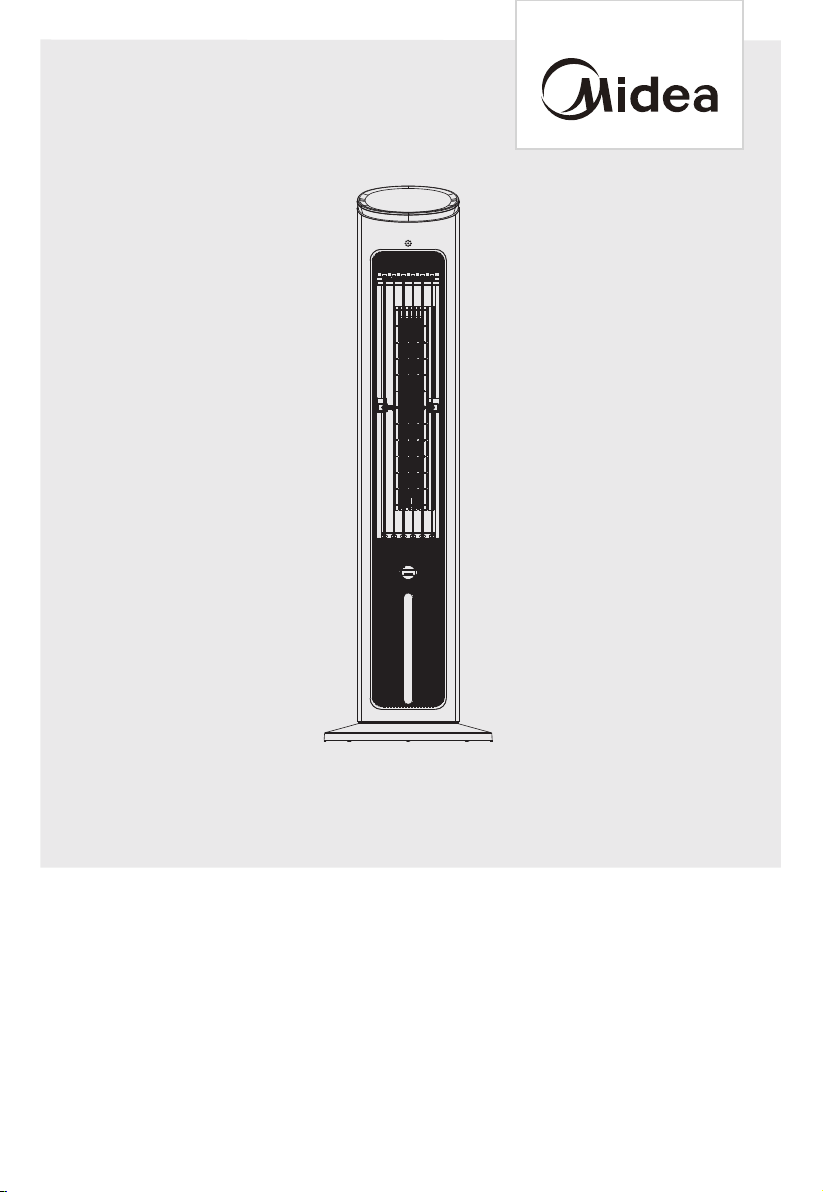

Midea 6000 Series Manuel utilisateur

MODEL 373019

USER MANUAL

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

AIR COOLER

6000 SERIES

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read

this manual thoroughly to ensure that you know how to operate the features and

functions that your new appliance offers in a safe way.

CONTENTS

1 1

1 8

1 7

1 6

1 5

1 8

THANK YOU LETTER

SAFETY INSTRUCTIONS

SPECIFICATIONS

PRODUCT OVERVIEW

PRODUCT INSTALLATION

Installation procedures

Guidance on feeding water and disassemble & washing of the water tank

Usage of the ice crystal box

OPERATION INSTRUCTIONS

Operating instructions of the machine body

Remote control button description

Batteries installation

Batteries warning as below

CLEANING AND MAINTENANCE

TROUBLESHOOTING

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

DATA PROTECTION NOTICE

MANUFACTURER DECLARATION

Danger

This symbol indicates that there are dangers to the life and health of

persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of

persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if

not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if

not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to

property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and

maintain this appliance in accordance with the operating instructions.

The following safety guidelines are intended to prevent unforeseen risks or damage from

unsafe or incorrect operation of the appliance. Please check the packaging and appliance

on arrival to make sure everything is intact to ensure safe operation. If you find any

damage, please contact the retailer or dealer. Please note modifications or alterations to

the appliance are not allowed for your safety concern. Unintended use may cause

hazards and loss of warranty claims.

Read these operating instructions carefully and attentively before using/commissioning the

unit and keep them in the immediate vicinity of the installation site or unit for later use!

Intended Use

Explanation of Symbols

SAFETY INSTRUCTIONS

Caution

If the supply cord is damaged, it must be replaced by

manufacturer, its service agent or a similarly qualified

person in order to avoid a hazard.

Household and indoor use only.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowl-

edge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety. Children should be super-

vised to ensure that they do not play with the appliance.

Unplug the appliance during filling and cleaning.

Prior to cleaning or other maintenance, the appliance

must be disconnected from the supply mains.

Non-specialized personnel or unauthorized repair per-

sonnel shall not to repair or modify the machine.

It is forbidden to operate with wet hands to avoid elec-

tric shock.

If the unit is not in use for a long time, unplug the

power cord.

●

Warning

●

Read rules for safe operation and instructions carefully.

Never insert fingers, pencils, or any other object through

the grille when fan is running.

Disconnect fan when moving from one location to another.

Be sure fan is on a stable surface when operating to

avoid overturning.

DO NOT use fan in window, rain may create electrical

hazard.

Household use only.

●

To prevent accidental injury or damage to the unit,

please do not insert any foreign matter into the air inlet

and outlet, because the unit incorporates a high-speed

wind rotor.

It is prohibited to use this unit in environments with

flammable and explosive gases and direct sunlight for a

long period shall be avoided.

Do not place this unit in an inclined or other uneven

place to prevent the unit from falling and causing

damage to the unit or internal parts.

At any time the water level in the tank shall not exceed

“max” (maximum) scale, and during humidification, the

total water level in the tank shall be controlled, and

shall not be below “min” (minimum) scale.

After the water tank is filled with water, do not tilt or

collide with the unit when placing or moving it. To

move the unit body, please drive it slowly from the side

to prevent water overflow.

In using the unit, prohibit overturning to avoid any

accident. If the unit topples over accidentally, and it

contains water, unplug the power cord immediately

and take it to repair store.

Do not place items on the unit, and covering the outlet

is strictly prohibited.

When wash the unit appearance, apply a damp cloth

(or add a little cleaning agent) to wipe, and never use

corrosive cleaning agent or solvent for cleaning. Never

rinse the unit with water.

Do not have the air inlet and outlet of the unit close to

walls, curtains and other objects, or they may block the

airflow and affect air supply.

When the unit is running, do not knock at or shock the

unit body forcibly or it may lead to automatic shut-

down, in which case simply restart the unit.

●

In summer, the water in the tank may easily deteriorate

and generate odor, please pay attention to regular

change of water; if the indoor temperature is below

zero in winter humidification, it is best to use warm

water for humidification.

Do not place the unit directly below the power outlet.

Do not use the unit around the tub, sprinkler or swim-

ming pool.

Product repair must be carried out in a designated

agency.

To protect against the risk of electrical shock, do not

immerse the unit, cord or plug in water or other liquid.

Use a soft cloth moisten with mild soap, and then use a

dry cloth to wipe it again.

Be aware that high humidity levels may encourage the

growth of biological organisms in the environment. Do

not permit the area around the appliance to become

damp or wet. If dampness occurs, turn the output of the

appliance down. If the appliance output volume cannot

be turned down, use the appliance intermittently. Do

not allow absorbent materials, such as carpeting, cur-

tains, drapes, or tablecloths, to become damp. Unplug

the appliance during filling and cleaning. Never leave

water in the reservoir when the appliance is not in use

Empty and clean the appliance before storage. Clean

the appliance before next use.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

supervision.

SPECIFICATIONS

373019Product Model

Voltage

Frequency

Power

220-240V~

50Hz

45W

PRODUCT OVERVIEW

NOTE

Pictures in the manual are for reference only, and real objects within the packaging box

will prevail in the end.

Component name

Control part

Ice crystal

box

Water tank

buckles Water tank

PRODUCT INSTALLATION

Installation procedures

Take the two parts of the base out of the box, align the centers of the two bases and

place them crosswise, then rotate one of the bases to align the holes and snap them

together.

Align the fuselage clip line with the base clip line, and press the fuselage into the base,

you can fix it with screws at the mark of the base.

Guidance on feeding water and disassemble & washing of the water tank

Pull the water tank buckle to the

horizontal state.

2 Pull out the water tank completely,

place it on a stable place, add water

and push the water tank into the

fuselage.

Unscrew the rotary knob in “—”

shape manually (90° anticlock-

wise) to separate the water tank

from the water pump module

(including the water pipe).

Position of clean water pump shown (It is recommended to clean every 3 months to

extend the service life.)

Pull out the water tank completely,

place it on a stable place, add water

and push the water tank into the

fuselage.

Water pump

module

Rotary knob

in “—” shape

Remove the

filter
