AIR CONDITIONER
Thank you very much for purchasing our air conditioner, please read this owner's
manual carefully before using your air conditioner.
,
OWNER S MANUAL
CONTENT
IMPORTANT SAFETY INFORMATION---------------------------------------------------------------------1
PARTS NAMES---------------------------------------------------------------------------------------------------2
ADJUSTING AIR FLOW DIRECTION-----------------------------------------------------------------------13
HINTS FOR ECONOMICAL OPERATION-----------------------------------------------------------------2
TEMPORARY OPERATIONS---------------------------------------------------------------------------------14
MAINTENANCE-------------------------------------------------------------------------------------------------14
AIR CONDITIONER OPERATIONS AND PERFORMANCE------------------------------------------16
INSTALLATION----------------------------------------------------------------------------------------------------17
TROUBLES AND CAUSES----------------------------------------------------------------------------------18
TROUBLES AND CAUSES(CONCERNING REMOTE CONTROLLER)-------------------------18
Danger
No
Household
Drain
Cleaner
IMPORTANT SAFETY INFORMATION
Do not attempt to install this unit by yourself. This unit requires
installation by qualified persons.
Do not use caustic household drain cleaners in the unit. Drain
cleaners can quickly destroy the unit components (drain pan and
heat exchanger coil etc).
CAUTION
CAUTION
NOTE
DANGER
DANGER
WARNING
WARNING
WARNING
Do not attempt to service the unit yourself. This unit has no user
serviceable components. Opening or removing the cover will
expose you to dangerous voltage. Tuning off the power supply will
not prevent potential electric shock.
To avoid the risk of serious electrical shock, Never sprinkle or
spill water or liquids on unit.
Ventilate the room regularly while the air conditioner is in use,
especially if there is also a gas appliance in use in this room,
Failure to follow these directions may result in a loss of oxygen
in the room.
To prevent electric shock, turn off the power or disconnect the
power supply plug before beginning any cleaning or other routine
maintenance. Follow the directions for cleaning in the Owner's
Manual.
1
!!
!!
!!
!!
!!
!!
!!
!!
!!
No
Thinner
DANGER
Never put hands or objects into the Air Outlet of indoor or outdoor
units. These units are installed with a fan running at high speed.
To touch the moving fan will cause serious injury.
Do not use liquid cleaners or aerosol cleaners, use a soft and dry
cloth for cleaning the unit. To avoid electric shock, never attempt
to clean the units by sprinkling water.
For proper performance, operate the unit in temperature and
humidity ranges indicated in this owner's manual. If the unit is
operated beyond these conditions, it may cause malfunctions
of the unit or dew dripping from the unit.
HINTS FOR ECONOMICAL OPERATION
The following should be noticed to ensure an economical operation. (Refer to corresponding chapter
for details)
Adjust the air flow direction properly to avoid winding toward your body.
Adjust the room temperature properly to get a comfortable situation and to avoid supercooling and
superheat.
In cooling, close the curtains to avoid direct sunlight.
To keep cool or warm air in the room, never open doors or windows more often than necessary.
Set the timer for the desired operating time.
Never put obstructions near the air outlet or the air inlet. Or it will cause lower efficiency, even a
sudden stop.
If you don't plan to use the unit for a long time, please disconnect power and remove the batteries
from the remote controller. When the power switch is connected, some energy will be consumed,
even if the air conditioner isn't in operation. So please disconnect the power to save energy. And
please switch the power on 12 hours before you restart the unit to ensure a smooth operation.
A clogged air filter will reduce cooling or heating efficiency, please clean it once two weeks.
PARTS NAMES
fb
d
e
im
n
l
p
o
c
CC
q
a
j
k
e
gdeDisplay Panel
The air conditioner consists of the indoor unit, the outdoor unit, the connecting pipe and the remote
controller.
Cassette Type
NOTICE!
This chart is based on 24000Btu/h type. So, a few differences may exist on the outlook and functions
from yours.
2
a) indoor unit b) outdoor unit
c) remote controller d) air-in
e) air-out f ) air outlet
g) air flow louver (at air outlet) h) connecting pipe
i ) drain hose j ) air inlet (with air filter in it)
k) drain pump (drain water from indoor unit) l ) infrared signal receiver
m) temporary button n) operation lamp
o) timer indicator
p) PRE-DEF indicator (cooling and heating type) or fan only indicator (cooling only type)
q) alarm indicator
NAMES AND FUNCTIONS
NAMES AND FUNCTIONS
h
b
d
e
i
mn
l
p
o
bc
f
a
de
ghi
j
k
m
o
p
l
n
c
C
k
f
d
j
a
k
g
Display Panel
High-static Pressure Parvis Split Type
NOTICE!
This chart is based on 24000Btu/h type. So, a little differences may exist on the outlook and functions
from yours.
indoor unit
air-inlet
heat exchanger
outdoor unit
air-out
connecting pipe
E-Box
remote controller
air outlet
drain hose
infrared signal receiver
operation lamp
timer indicator
temporary button
PRE-DEF indicator
(cooling and heating type) or fan only indicator (cooling
alarm indicator
only type)
3

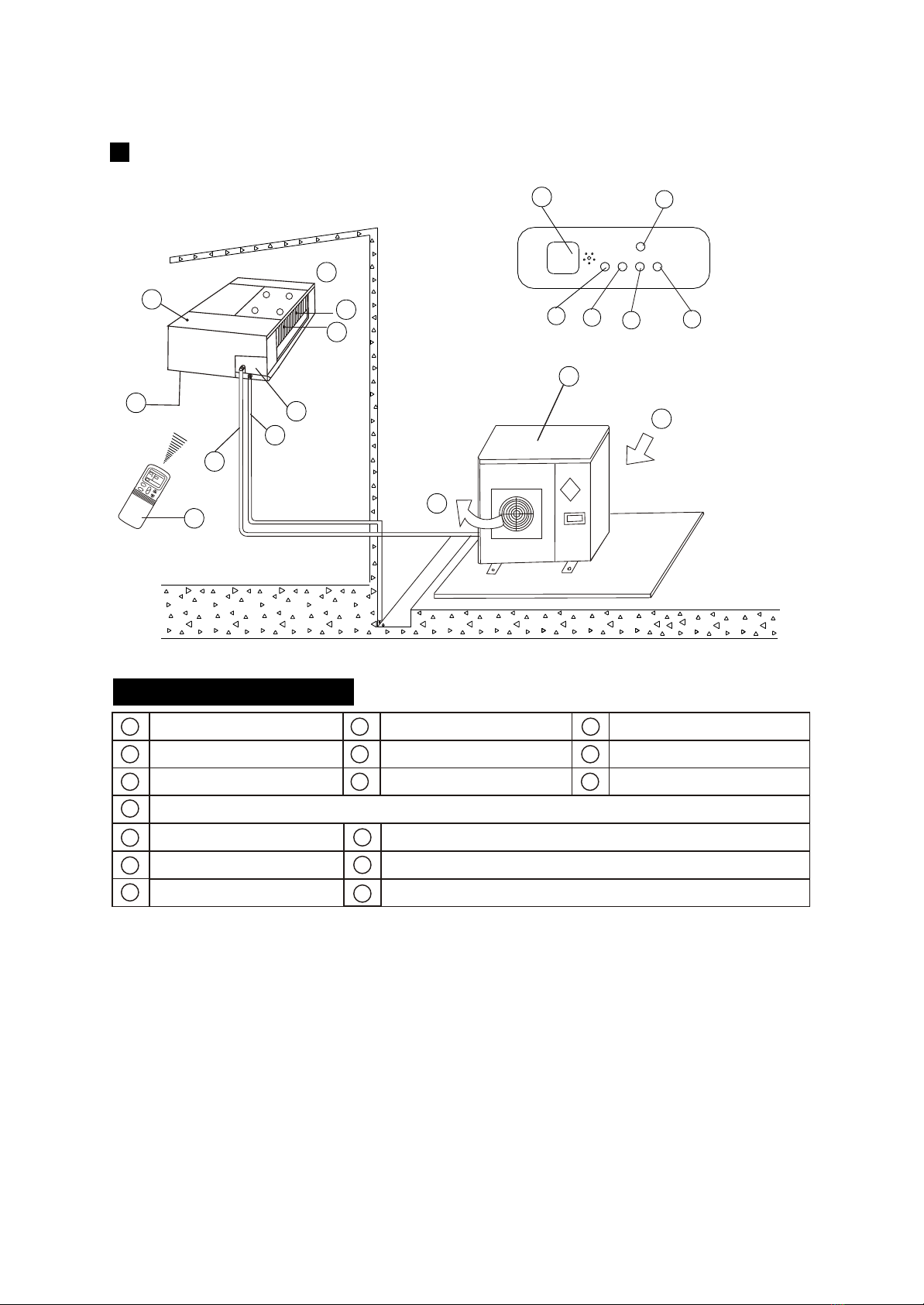

Duct and Ceiling Type
h
b
f
d
d
e
i
mn
l
p
o
c
CC
j
a
g
k
NOTICE!
This chart is based on 24000Btu/h type. So, a few differences may exist on the outlook and
functions from yours.
a) indoor unit b) outdoor unit
c) remote controller d) air-in
e) air-out f ) air outlet
g) air flow louver (at air outlet) h) connecting pipe
i ) drain hose j ) air inlet (with air filter in it)
k) infrared signal receiver l ) manual button
m) operation lamp n) timer indicator
o) PRE-DEF indicator p) alarm indicator
(NOTICE: In the case of "cooling only type", it is the "FAN ONLY" indicator.)
NAMES AND FUNCTIONS
4
d
i
mn
l
o
c
ÎÂ
¶È
ÎÂ
¶È
ʱ
ÖÓ
ʱ
ÖÓ
·ç
ËÙ
·ç
ËÙ
Ä£
ʽģ
ʽ
·çËÙ·çËÙ
¿ª¿ª
¹Ø¹Ø
ÎÂ
¶È
ÎÂ
¶È
×Ô
¶¯
×Ô
¶¯
C
C
a
Display Panel
h g
k
j
b
d
NAMES AND FUNCTIONS
bc
f
a
de
gh
i
k
m
o
l
n
NOTICE!
indoor unit
air-in
drain hose
outdoor unit
air flow louver (at air outlet)
remote controller
connecting pipe
infrared signal receiver
operation lamp
timer indicator
temporary button
Alarm Indicator
j
FAN/DEF indicator
,,
(For cooling and heating type, its D EF.,for cooling only type, its F AN)
Air-out
The chart based on one model of our product is for reference only, which may be different from
the unit you purchased.
5
For Slim Duct Type
e
f
E-Box
NOTICE!
This chart is based on 24000Btu/h. type. So, a few differences may exist on the outlook and functions from yours.
For Slim Duct Type
f
b
d
e
i
mn
l
p
o
c
ÎÂ
¶È
ÎÂ
¶È
ʱ
ÖÓ
ʱ
ÖÓ
·ç
ËÙ
·ç
ËÙ
Ä£
ʽģ
ʽ
·çËÙ·çËÙ
¿ª¿ª
¹Ø¹Ø
ÎÂ
¶È
ÎÂ
¶È
×Ô
¶¯
×Ô
¶¯
C
C
a
Display Panel
h
g
k
j
NAMES AND FUNCTIONS
bc
f
a
de
g
hi
j
k
m
o
p
l
n
indoor unit
air-out
outdoor unit
air-inlet
connecting pipe
E-Box
remote controller
air-outlet
drain hose
infrared signal receiver
operation lamp
timer indicator
temporary button
PRE./DEF.indicator
(cooling and heating type) or fan only indicator (cooling
alarm indicator
only type)
6
NAMES AND FUNCTIONS
h
b
d
e
i
mn
l
p
o
bc
f
a
de
ghi
j
k
m
o
p
l
n
c
ÎÂ
¶È
ʱ
ÖÓ
·çËÙ
ģʽ
·ç
ËÙ
¿ª
¹Ø
ÎÂ
¶È
×Ô
¶¯
C
k
f
d
j
a
f
g
Display Panel
indoor unit
air-out
heat exchanger
outdoor unit
air-outlet
connecting pipe
E-Box
remote Controller
air- inlet
drain hose
infrared signal receiver
operation lamp
timer indicator
temporary button
PRE./DEF.Indicator
(Coolingand heating type) or fan only indicator (cooling
alarm indicator
only type)

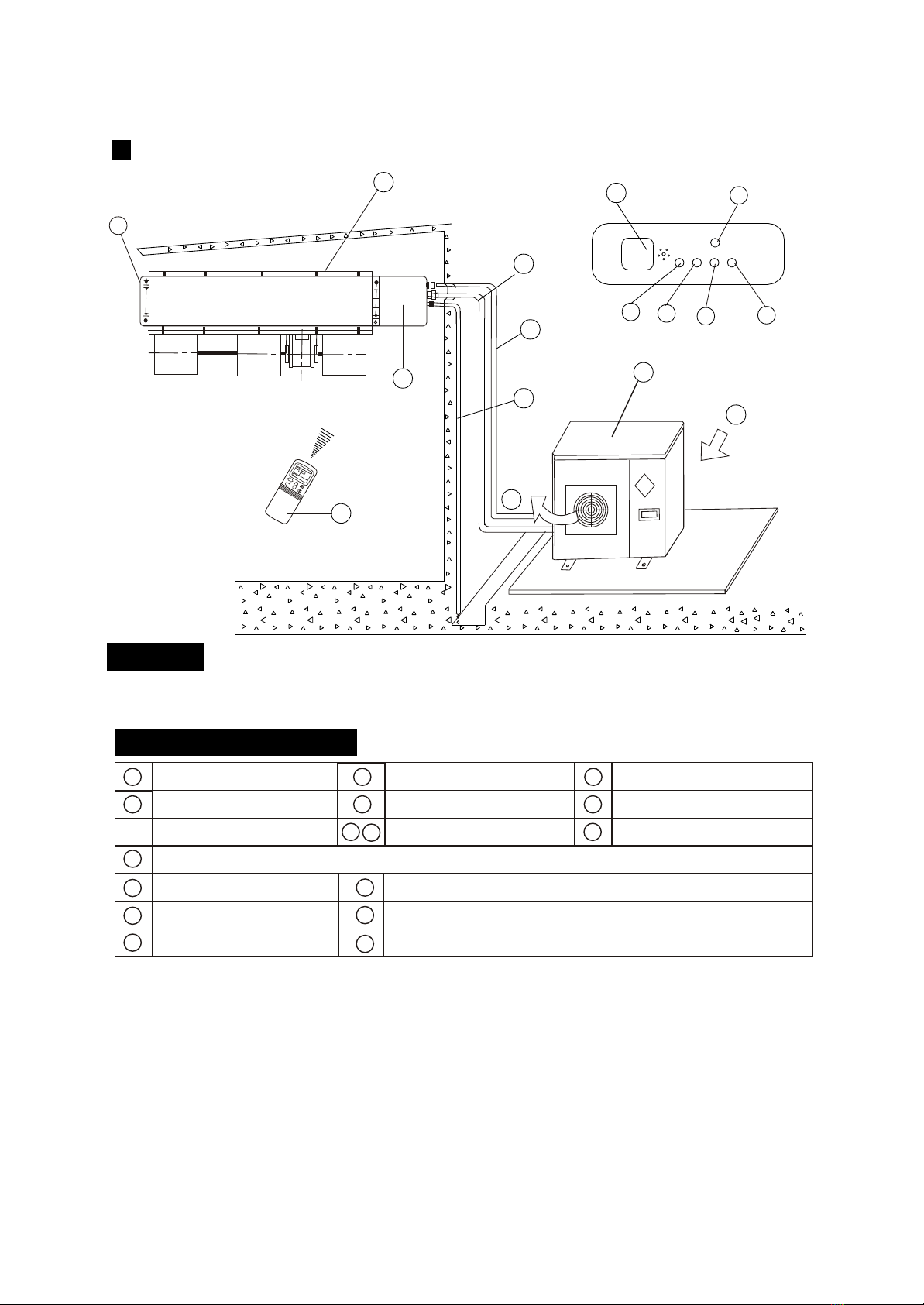

For Slim DUCT with air inlet box Type
7
This picture is based on the type of 18000Btu/h, So the appearance and function may be
different from the unit you purchased.slightly
12 13 14 15
2
6
7
4
3
8
5
19
11
10
Indoor Unit Assy
Outdoor Unit Assy
Control board
Inlet
Outlet
Manual
OPERATION
TIMER
DEF./FAN.
ALARM
Indoor Unit
Air outlet
Drain hose
Drain Pump (Internal installed),water drain from indoor unit.
Infrared Signal receiver
Timer indicator
Alarm indicator
Defrost indicator
heating/cooling type or fan indicator (cooling
only type)
Outdoor Unit
Vertical louver
Manual button
Remote Controller
Connecting pipe
Run lamp
1
7
10
4
9
13
15
2
3
Parts Names:
11 12
14
8
5
6
Air Inlet (Air filter installed inside to prevent the dust)
Four-way Cassette(slim) Type
8
