MicroVision SHOWWX+ Manuel utilisateur

Contents

4 Important Safety Information

8 Package Contents

9 SHOWWX+™Laser Pico Projector

10 Introduction

10 Getting Started

10 Install Battery

11 Charge Battery

11 Power ON or OFF

12 Connect to a Video Source

12 How To Connect To An iPod, iPhone, or iPad

13 Connecting To Other Composite (TV-Out) VideoSources

14 Usage Guidelines

15 Advanced Controls

15 Menu Controls

15 Onscreen Menu

16 How To Adjust Brightness

16 How To Change Color Mode

16 How To Adjust Aspect Ratio

16 How To Adjust The Image Alignment

17 How To Adjust The Color Alignment

17 How To Reset Default Settings

18 How To Check Remaining Battery Life

18 How to Adjust The Green and Magenta Color

19 Troubleshooting

20 LED Status & Meaning

20 Customer Support

20 Register Your Product Online

20 Care & Maintenance

20 How To Clean The Window

20 How To Store & Transport

20 How To Use The Audio Jack

Intended Use Statement

The SHOWWX+™ laser pico projector is designed to operate with the MicroVision

speciﬁed battery and MicroVision battery charger in a normal ofﬁce and home

environment within the following parameters:

» Operating Temperature: 10° - 30° C, ( 50° - 86° F)

» Storage Temperature: non-operating: - 20° - 60° C, (- 4° - 140° F) with battery

» Humidity: 10 - 85 % relative humidity (without condensation)

» Altitude: - 152 M - 4572 M (- 500 - 15,000 ft.)

AS WITH ANY BRIGHT LIGHT SOURCE, DO NOT STARE INTO THE BEAM.

STARING INTO THE BEAM COULD CAUSE EYE DISCOMFORT AND IMPAIR VISION.

AS WITH ANY PRODUCT CONTAINING LASERS, DO NOT DISASSEMBLE THE PROJECTOR

FOR ANY REASON. DISSASSEMBLING THE PROJECTOR MAY RESULT IN HAZARDOUS LASER

RADIATION EXPOSURE.

EXCEPT FOR OPENING THE BATTERY DOOR AS DIRECTED IN THIS USER GUIDE

TO REPLACE THE BATTERY, THERE ARE NO USER SERVICABLE PARTS INSIDE

THE PROJECTOR.

For service or repair the product must be returned to an authorized repair facility.

See Customer Support section within this User Guide for details.

To avoid risks associated with laser exposure:

» Not recommended for use by children under 14 unless supervised by an adult.

The SHOWWX+ is not a toy.

» Use of controls or adjustments or performance of procedures other than those

speciﬁed in this User Guide may result in hazardous laser radiation exposure

To avoid risks associated with hazardous voltage:

» Do not modify this product in any way.

Use only MicroVision approved replacement components.

» Do not use the AC adapter in a wet environment.

» No not use with a damaged AC adapter. Replace damaged AC adapter prior to use.

Important Safety Information

PLEASE READ, UNDERSTAND AND FOLLOW ALL SAFETY INFORMATION IN THIS

USER GUIDE BEFORE YOU USE THIS PROJECTOR. FAILURE TO PROPERLY SET UP, USE,

AND CARE FOR THIS PROJECTOR CAN INCREASE THE RISK OF INJURY, OR DAMAGE

TO THE PROJECTOR. KEEP THIS USER GUIDE FOR FUTURE REFERENCE.

Indicates a potentially hazardous situation, which

if not avoided, may result in death or serious injury

and/or property damage.

Warning

To avoid risks associated with ﬁre and explosion:

» Do not immerse the projector or battery in any liquid or allow either to get wet.

» Use only AC adapter and battery provided by MicroVision.

» Do not disassemble the battery or modify it in any way.

» Do not attempt to short out the battery.

» Do not expose the battery to temperatures under -20°C or above 60°C.

» Do not crush the battery.

» Do not overcharge or rapidly discharge the battery.

» Do not dispose of the battery by incineration or ﬁre.

» Do not expose the projector or battery to direct sunlight in a closed space such

as a vehicle.

To avoid risks of other injuries:

» Do not handle a damaged or leaking battery pack.

» Do not handle a battery that has been handled in an inappropriate or dangerous manner.

To avoid risks associated with driver distraction in a moving vehicle:

» Do not use this projector in a moving vehicle in a manner that may distract the driver.

» Do not point the projected image at people, vehicles, or aircraft.

» Risk of explosion if battery is replaced by an incorrect type.

» Dispose of used batteries according to the instructions contained within this guide.

To avoid risks associated with environmental contamination:

» Dispose of all system components in accordance with applicable government regulations.

To avoid risks associated with tripping and falling:

» Position the charging cord and data cables so that they can not be tripped over.

Photosensitive Seizure Warning

A very small percentage of people may experience seizures or blackouts that are triggered

by exposure to light ﬂashes or certain visual images including ﬂashing lights or patterns

that may appear in video games or other video images. Even people who have no history

of seizures or blackouts could experience “photosensitive epileptic seizures” while watching

some video images.

Immediately stop watching projected video images and consult a physician if you experience

symptoms such as lightheadedness, altered vision, eye or face twitching, convulsions,

disorientation, confusion or momentary loss of awareness.

Taking the following precautions while watching video may help reduce

the risk of photosensitive epileptic seizures.

» Avoid use while tired or fatigued.

» Take frequent breaks.

» Look away from the screen from time to time.

» Sit further away from the projected image.

Indicates a potentially hazardous situation,

which if not avoided, may result in minor or moderate

injury and/or property damage.

caution

Laser Speciﬁcations

The SHOWWX+™ Laser Pico Projector is a CLASS 2 LASER PRODUCT as deﬁned in IEC 60825-1,

2007-03. MicroVision has designed the SHOWWX+ to be safe for general use as a mobile

projector.

IEC and CDRH Statements of Compliance

The SHOWWX+ complies with IEC 60825-1, 2007-03. The device also complies with

21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50

dated June 24, 2007.

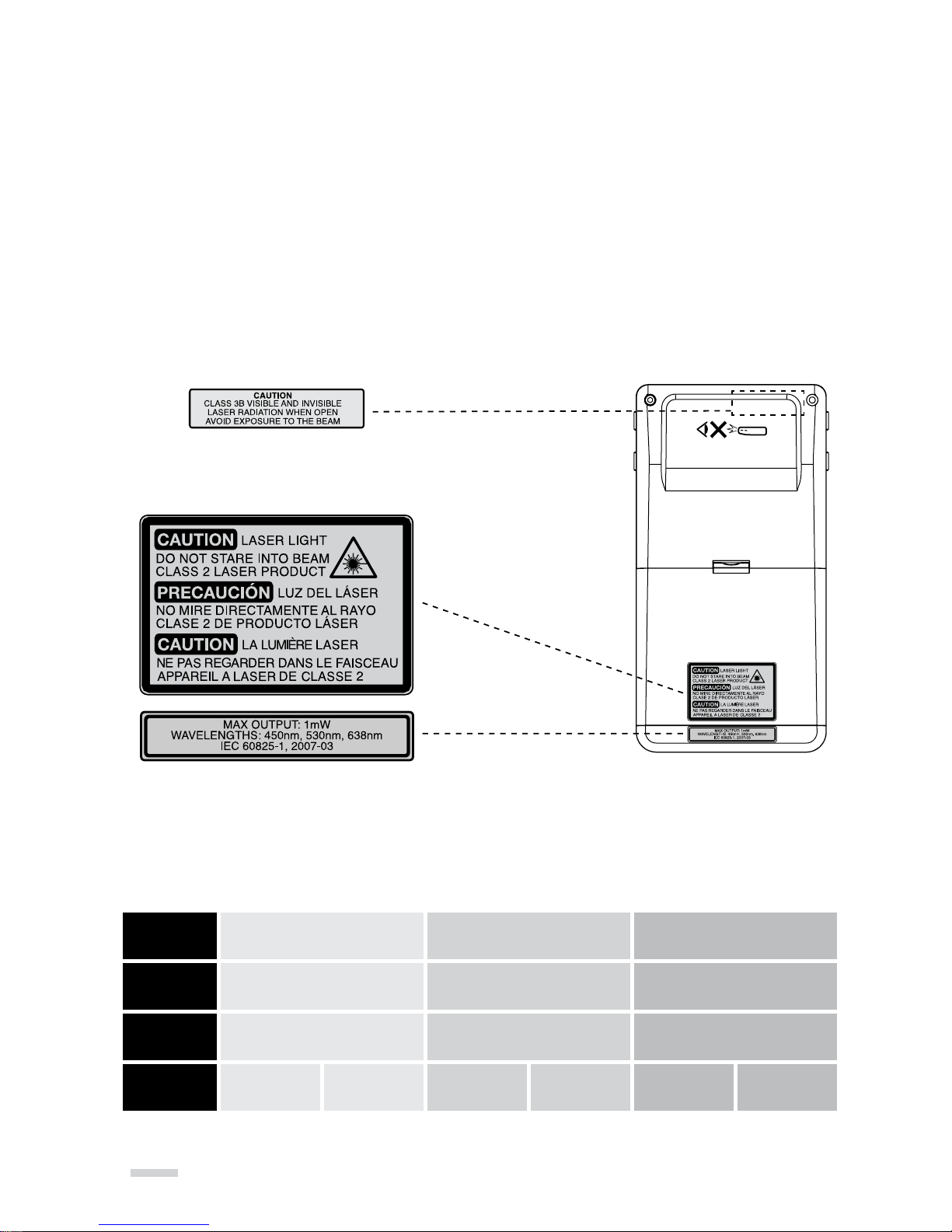

The following safety labels are afﬁxed at the factory.

THESE LABELS CONTAIN IMPORTANT SAFETY INFORMATION. DO NOT REMOVE THEM.

Safety Labels

Located inside the SHOWWX+.

Do not attempt to disassemble

the SHOWWX+.

Bottom View

Laser

Color Red Green Blue

AlGalnP

laser diode

Frequency doubled

IR laser diode

GaN

laser diode

120 mW 72 mW 50 mW

632 nm 526 nm 440 nm650 nm 537 nm 460 nm

Laser

Type

Max CW

Output

Wave-

length

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference (2) this device must accept any

interference received including interference that may cause undesired operations. This applies

to all product options.

FCC Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

» Reorient or relocate the receiving antenna.

» Increase the separation between the equipment and receiver.

» Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

» Consult the dealer or an experienced radio/TV technician for help. To comply with FCC

RF exposure compliance requirements, a separation distance of at least 20 cm must be

maintained between the antenna of this device and all persons. This transmitter

must not be collocated or operating in conjunction with any other antenna or transmitter.

Caution: Changes or modiﬁcations to this equipment not expressly approved

by manufacturer could void the user’s authority to operate this equipment.

CE Statement

This product complies with the requirements of the Low Voltage Directive 2006/95/EC

and the EMC Directive 2004/108/EC and carries the CE mark accordingly.

Directions for Recycling Battery

Recycle battery in accordance with local laws. In the United States and Canada,

visit www.call2recycle.org or call 1-800-8-BATTERY (1-800-822-8837)

or 1-877-2-RECYCLE (1-877-273-2925) for the nearest recycling center.

Product Disposal

The SHOWWX+™ laser pico projector should not be placed in household waste bins.

Please check local regulations for information about the disposal of electronic products

in your area.

Made for iPod, iPhone, and iPad

“Made for iPod, iPhone, and iPad” mean that an electronic

accessory has been designed to connect speciﬁcally to iPod,

iPhone, or iPad, respectively, and has been certiﬁed by the

developer to meet Apple performance standards. Apple is not responsible for the operation

of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless

performance. Speciﬁcations subject to change without notice.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered

in the U.S. and other countries. iPad is a trademark of Apple Inc.

FCC Declaration of Conformity

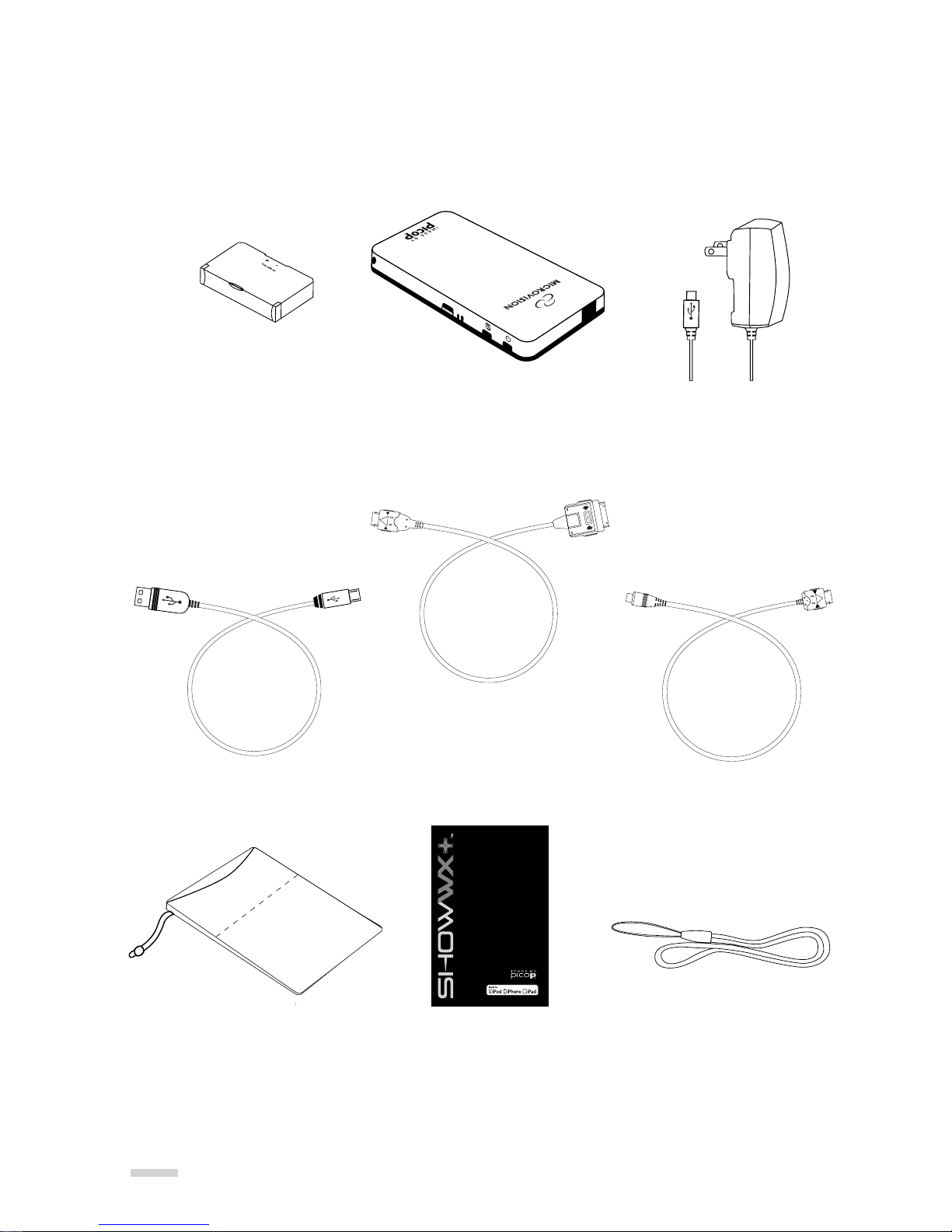

Package Contents

Please make sure you have received all items included with the product.

For missing items contact customer support.

SHOWWX+

Laser Pico Projector

SHOWWX+

Cable for iPod,

iPhone, and iPad

SHOWWX+

Wall Charger

SHOWWX+

Composite Adapter

Wrist Strap

SHOWWX+

Rechargable Battery

Micro-USB Cable

Storage Pouch User Guide

and Warranty Card

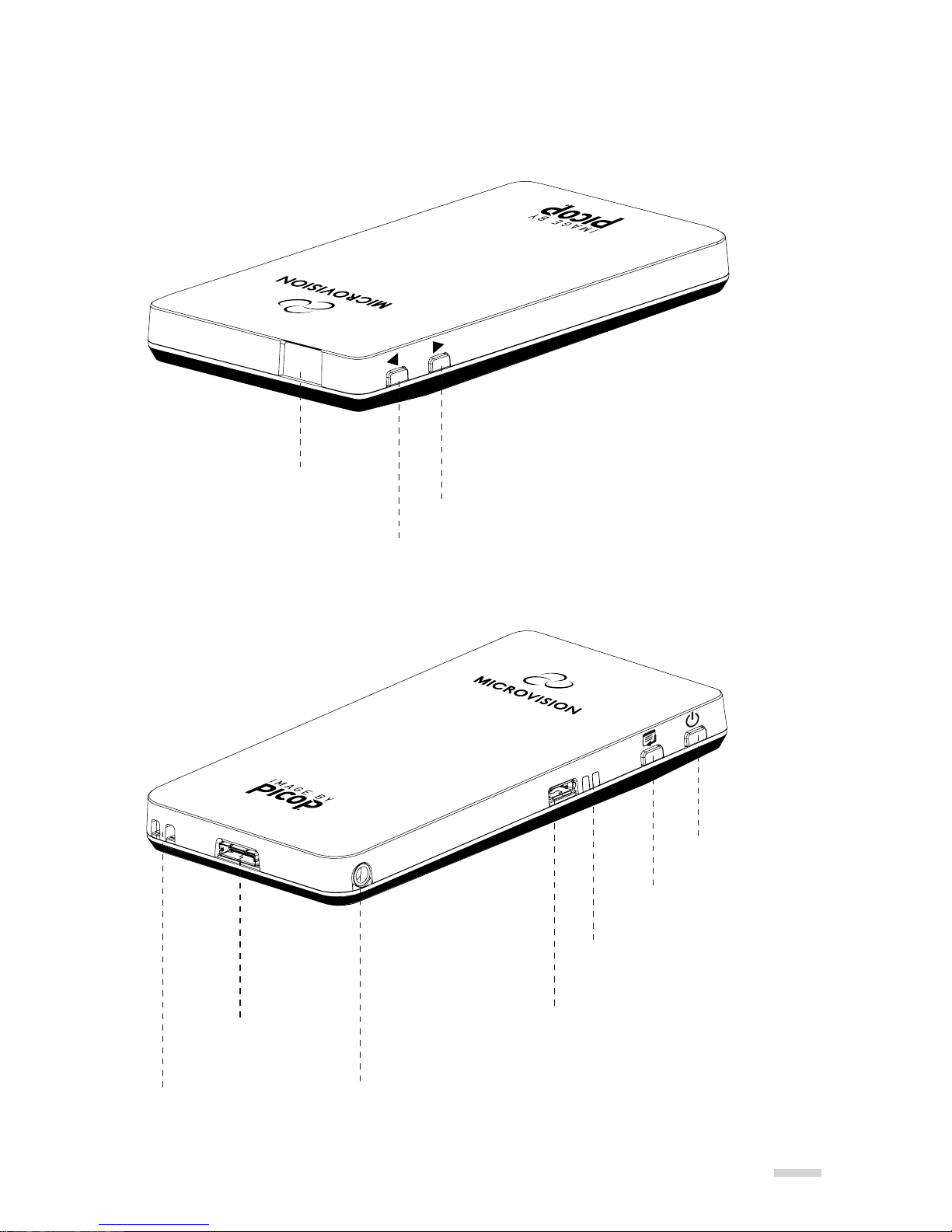

Window

Up/Hot Key 1

Down/Hot Key 2

Power Button

Menu/Select Button

LED Indicators

Micro-USB/Power Input

3.5 mm Audio Jack

Video Input

Wrist Strap Holder

SHOWWX+™ Laser Pico Projector

Introduction

Thank you for purchasing the MicroVision SHOWWX+™laser

pico projector. The SHOWWX+ projects big, bright, and colorful

images that are always in focus, yet is small enough to ﬁt in your

pocket. Connect the SHOWWX+ to a video output-capable device to

spontaneously share photos and videos, presentations

and more, in a big screen experience.

What is the PicoP®Display Engine?

The PicoP display engine is the world’s ﬁrst ultra miniature

laser-based projector engine. It uses red, green and blue laser light

sources, electronics, optics, and a unique, tiny mirror-like device that

“paints” the image line-by-line on the projection surface.

Getting Started

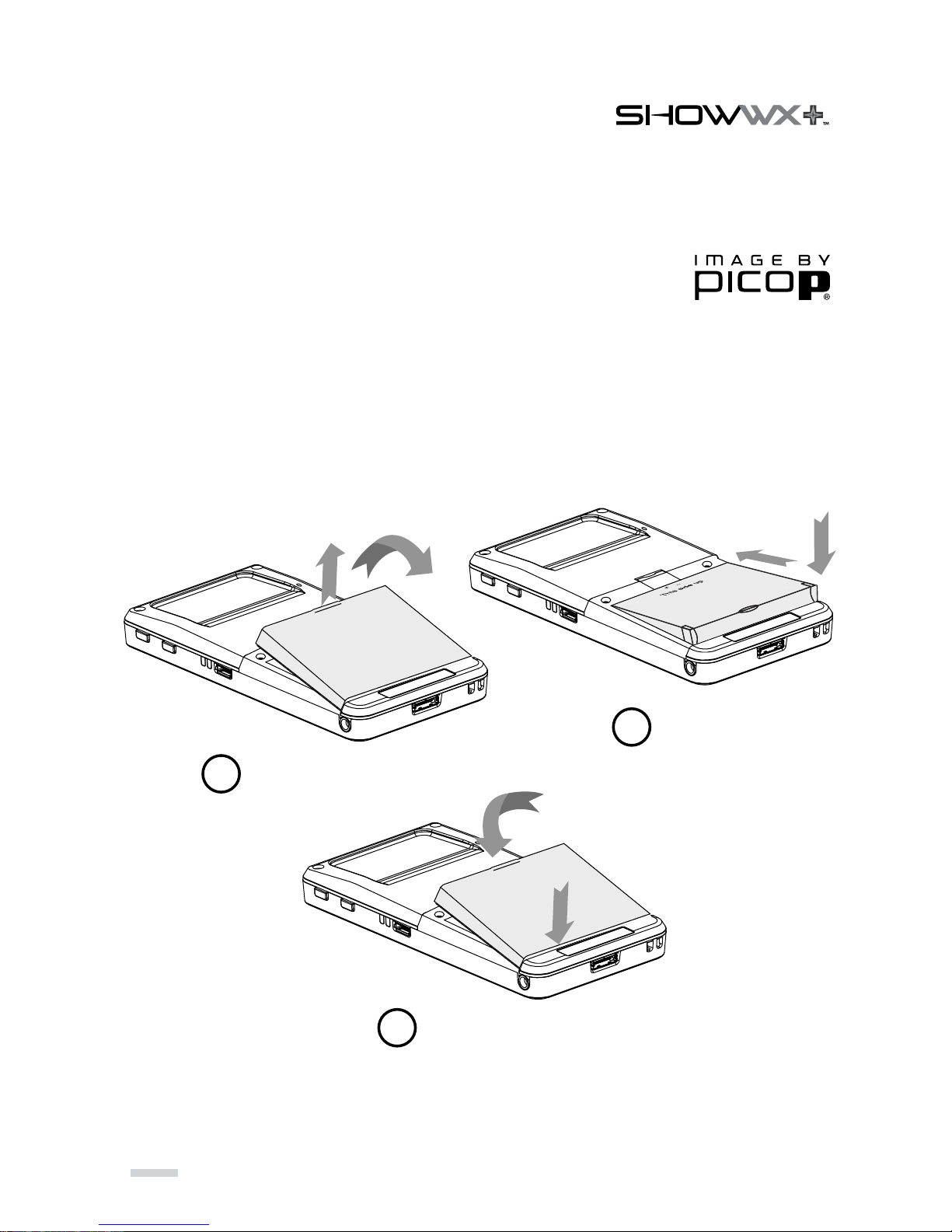

Install Battery

» Make sure the projector is OFF and unplugged before replacing battery.

» Do not force the battery in. Make sure the battery + / - symbols are lined up.

Remove Battery Door

Insert Battery

Close Battery Door

112

Autres manuels pour SHOWWX+

Table des matières

Autres manuels MicroVision Projecteur

MicroVision

MicroVision SHOWWX+ Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
