Projector
CP-D31N
User's Manual (detailed)
Network Guide
Thank you for purchasing this projector.
This projector has the network function that brings you the following main features.
►Before using this product, be sure to read all manuals for this
product.
After reading them, store them in a safe place for future reference.
WARNING
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
NOTE
This manual is only intended to explain Network function only.
For safety, operations or any other issues, refer to the Safety Guide and User’s
Manual (concise and detailed).
Trademark acknowledgment
Web control
The projector can be controlled and monitored by a web browser software on
your computer, which can help you to setup and maintain the projector.
MY IMAGE (Still Image Transfer) Display
The projector can display still images that are transferred via the network.
Messenger Function
The projector can display the text data transferred via the network on the
screen.
2
Content
Content
Content .......................................................................................... 2
1. Main functions .......................................................................... 3
1.1 Configuring and controlling via a web browser ........................................... 3
1.2 MY IMAGE (Still image Transfer) Display ................................................... 3
1.3 Messenger Function ................................................................................... 4
2. Equipment connection and network setting ............................ 5
2.1 Required equipment preparation ................................................................ 5
2.2 Manual network connection setting............................................................. 6
2.2.1 Equipments connection.........................................................................6
2.2.2 Network settings....................................................................................6
2.2.3 “Internet Option” setting......................................................................... 9
2.2.4 Check connection................................................................................ 10
3. Network Functions ................................................................. 11
3.1 Configuring and controlling the projector via a web browser .................... 12
3.1.1 Logon .................................................................................................. 14
3.1.2 Network Information ............................................................................15
3.1.3 Network Settings .................................................................................16
3.1.4 Port Settings........................................................................................17
3.1.5 Mail Settings........................................................................................19
3.1.6 Alert Settings ....................................................................................... 20
3.1.7 Schedule Settings ...............................................................................22
3.1.8 Date/Time Settings..............................................................................24
3.1.9 Security Settings ................................................................................. 26
3.1.10 Projector Control ............................................................................... 28
3.1.11 Projector Status................................................................................. 32
3.1.12 Network Restart................................................................................. 33
3.1.13 Logoff ................................................................................................ 33
3.2 E-mail Alerts.............................................................................................. 34
3.3 Projector Management using SNMP......................................................... 36
3.4 Event Scheduling...................................................................................... 37
3.5 MY IMAGE (Still Image Transfer) Display................................................. 40
3.6 Messenger Function ................................................................................. 42
3.7 Command Control via the Network........................................................... 44
3.8 Controlling the external device via the projector
(using the NETWORK BRIDGE function) ................................................. 49
3
1. Main functions
1. Main functions
1.1 Configuring and controlling via a web browser
You can adjust or control the projector via a network from a web browser on a
computer that is connected to the same network.
Logon the network from the web browser and it offers the menus to configure the
network settings, monitor the projector and so on.
1.2 MY IMAGE (Still image Transfer) Display
Image files can be sent via the network, and up to 4 image data can be stored in
the projector and displayed on screen one by one. (40)
Transfer
image data
Display image data ( 1- 4)
4
1. Main functions
1.3 Messenger Function
The text data can be sent via the network and displayed on the screen. You can
display the transferred text on real time or choose one from ones once stored in
the projector and display it. (
42)
1
4
3
2
Transfer text data
Display text data (ex. 4)
5
2. Equipment connection and network setting
2.1 Required equipment preparation
2. Equipment connection and network setting
The following equipments are required to connect the projector to your computer
through the network.
Computer : 1) equipped with the network feature
2) installed a web browser software (12)
LAN cable : CAT-5 or greater
• The system for using the network function of the projector requires
communication environment conforming 100Base-TX or 10Base-T.
•
The network communication control is disabled while the projector is in standby
mode if the STANBY MODE item is set to SAVING. Please connect the network
communication to the projector after setting the STANDBY MODE to NORMAL.
(SETUP menu in the User’s Manual – Operating Guide
)
NOTE
6
2. Equipment connection and network setting
2.2 Manual network connection setting
2.2.1 Equipments connection
Connect the projector and computer with a LAN cable.
* Before connecting with an existing network, contact the network administrator.
Next, please check the computer setting as explained below.

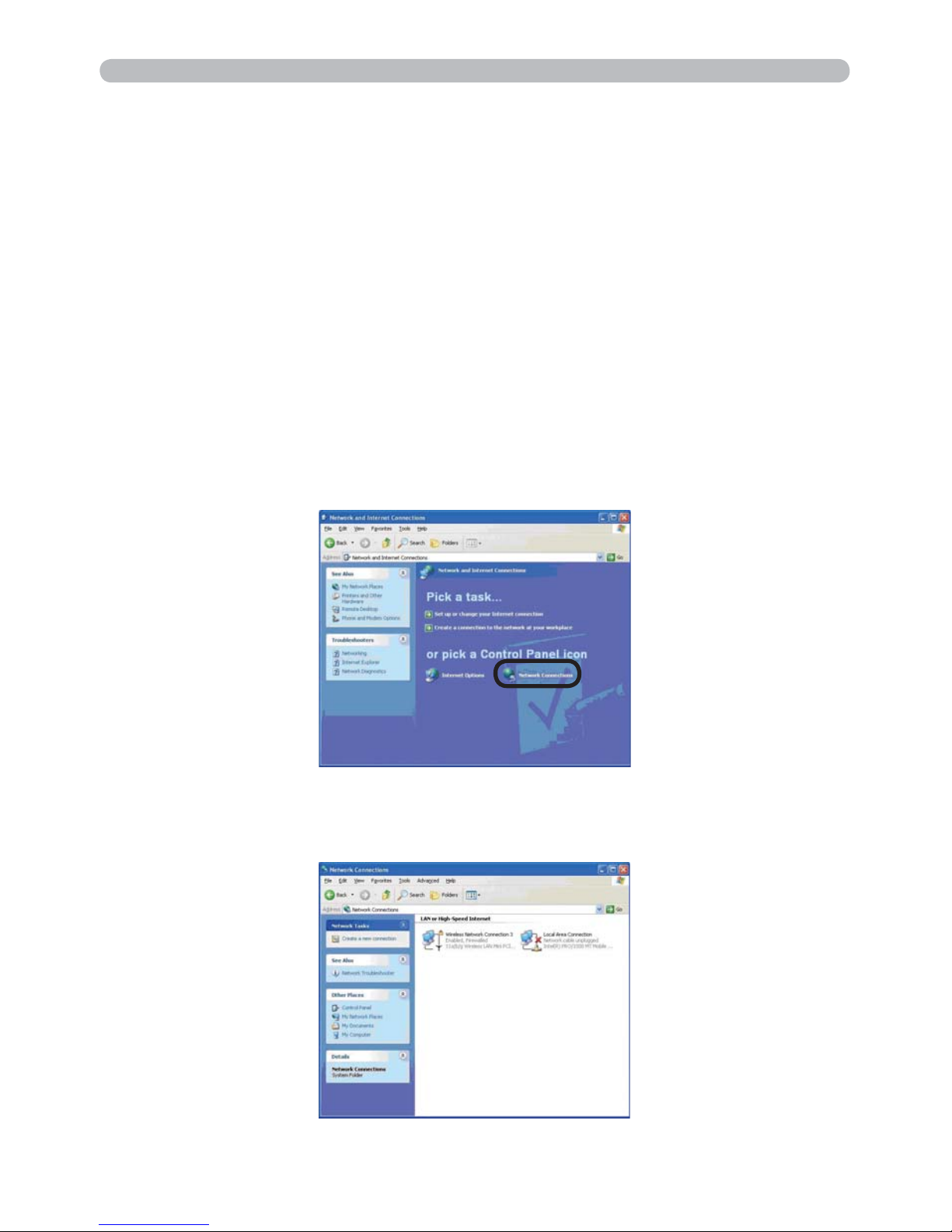

2.2.2 Network settings
This is the explanation of network connection settings for Windows®XP and
Internet Explorer®.
1) Log on to Windows®XP as administrator authority. (*)
2) Open “Control Panel” from “Start” menu.
3) Open “Network and Internet Connections” in “Control Panel”. (Fig. 2.2.2.a)
* Administrator authority is the account, which can access to all functions.
4) Open “Network Connections”. (Fig.2.2.2.b)
Fig. 2.2.2.a “Network and Internet Connections” window
Fig. 2.2.2.b “Network Connections” window
7
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)
7) Set IP address, subnet mask and default gateway for computer.
Fig. 2.2.2.d “Internet Protocol (TCP/IP) Properties” window
5) Open “Local Area Connection Properties” window you use for network device.
(Fig. 2.2.2.c)
6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties”
window.
Fig. 2.2.2.c “Local Area Connection Properties” window
8
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)
[About IP address]
■ Setting manually
The Network address portion included in the IP address set into your computer
should be common with projector’s one. And the entire IP address in the computer
should not be overlapped with other equipments in the same network, including
the projector.
The projector’s initial settings are as follows.
IP address: 192.168.1.10
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
Therefore, specify computer’s IP address as follows.
IP address: 192.168.1.xxx (xxx shows decimal number.)
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
For example
Select from 1 to 254 for “xxx” not duplicating with any other equipments.
In this case, projector has “192.168.1.10” IP address, specify from 1 to 254
except 10 for computer.
• “0.0.0.0” cannot be set to the IP address.
• The projector’s IP address can be changed by using the configuration utility
via a web browser. (12)
• If the projector and computer exist in the same network (i.e. network address
is common), default gateway can be blank.
• When the projector and computer exist in different networks, default gateway
setting is necessary. Contact the network administrator in detail.
NOTE
■ Setting automatically
When DHCP server exists in network, it is possible to assign IP address to the
projector and computer automatically.
* DHCP is abbreviation for “Dynamic Host Configuration Protocol” and has the
function to provide necessary setting for network like IP address from server to
client. A server that has DHCP function is called DHCP server.
9
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)
2) Click “Connections” tab and then click [LAN Settings] button to open “Local
Area Network (LAN) settings”. (Fig. 2.2.3.c)
Fig. 2.2.3.b “Internet Properties” window
2.2.3 “Internet Option” setting
1) Click “Internet Options” in “Network and Internet Connections” window
(Fig. 2.2.3.a) to open “Internet Properties” window. (Fig.2.2.3.b)
Fig. 2.2.3.a “Network and Internet Connections” window
Click
Click
10
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)
Fig. 2.2.4 “Logon Menu”
2.2.4 Check connection
Check computer and projector are connected properly here. If it is not connected,
check cable connections and settings are properly or not.
1) Start browser in computer and specify following URL, then click “ ” button.
Fig. 2.2.3.c “Local Area Network (LAN) Settings” window
3) Uncheck all boxes in “Local Area Network (LAN) Settings” window. (Fig. 2.2.3.c)
URL: http://(Projector IP address)/
For example, if projector IP address is 192.168.1.10, specify
2) If Fig. 2.2.4 appears, it succeeds.
URL: http://192.168.1.10/
