Microsoft RM-1116 Manuel utilisateur

Quick Guide

Lumia 950 XL Dual SIM

x Issue x EN RM-1116

Keys and parts

1Microphone

2 Audio connector

3Earpiece

4 Front camera

5 Volume up key

6 Power/Lock key

7Volumedownkey

8 Camera key

9 Charger connector

10 Main camera

11 Loudspeaker

Remove the back cover and

battery

1. With the phone facing down, at the bottom right

corner of the phone, put your fingernail in the small

recess.

2. Press the middle of the back cover, bendthe cover

open, and remove it.

3. If the battery is in, put your fingernail in the recess

on its bottom edge, and lift it out.

Insert the SIM and memory card

Note: Your SIM card has an effect on important

settings. Insert the SIM card before switching the

phone on.

1. Slide the nano-SIM card into the SIM slot with the

metal contact area down until it locks into place.

2. If you have a second SIM card, slide it into the

SIM2 slot.

3. If you have a memory card, slide the card into the

memory card slot.

The blue cards shown in the picture are in actual size.

Use only original nano-SIM cards. Use of

incompatible SIM cards may damage the card or the

device, and may corrupt data stored on the card.

Replace the battery and back cover

1. Line up the battery contacts, and put the battery

in.

2. Press the top edge of the back cover against the

top edge of your phone, and snap the cover into

place.

Charge the battery and switch your

phone on

Note: Your SIM card has an effect on important

settings. Insert the SIM card before switching the

phone on.

Plug a compatible charger into a wall outlet, and

connect the cable to your phone. Your phone

supports the USB-C

™

cable. You can also charge

your phone from a computer with a USB cable, but

it may take a longer time.

If the battery is completely discharged, it may take

several minutes before the charging indicator is

displayed.

1. To switch your phone on, press and hold the

power key until the phone vibrates.

2. Make sure you select your language and region

correctly. You may not be able to change some of

the settings later on. The phone guides you through

the rest of the setup.

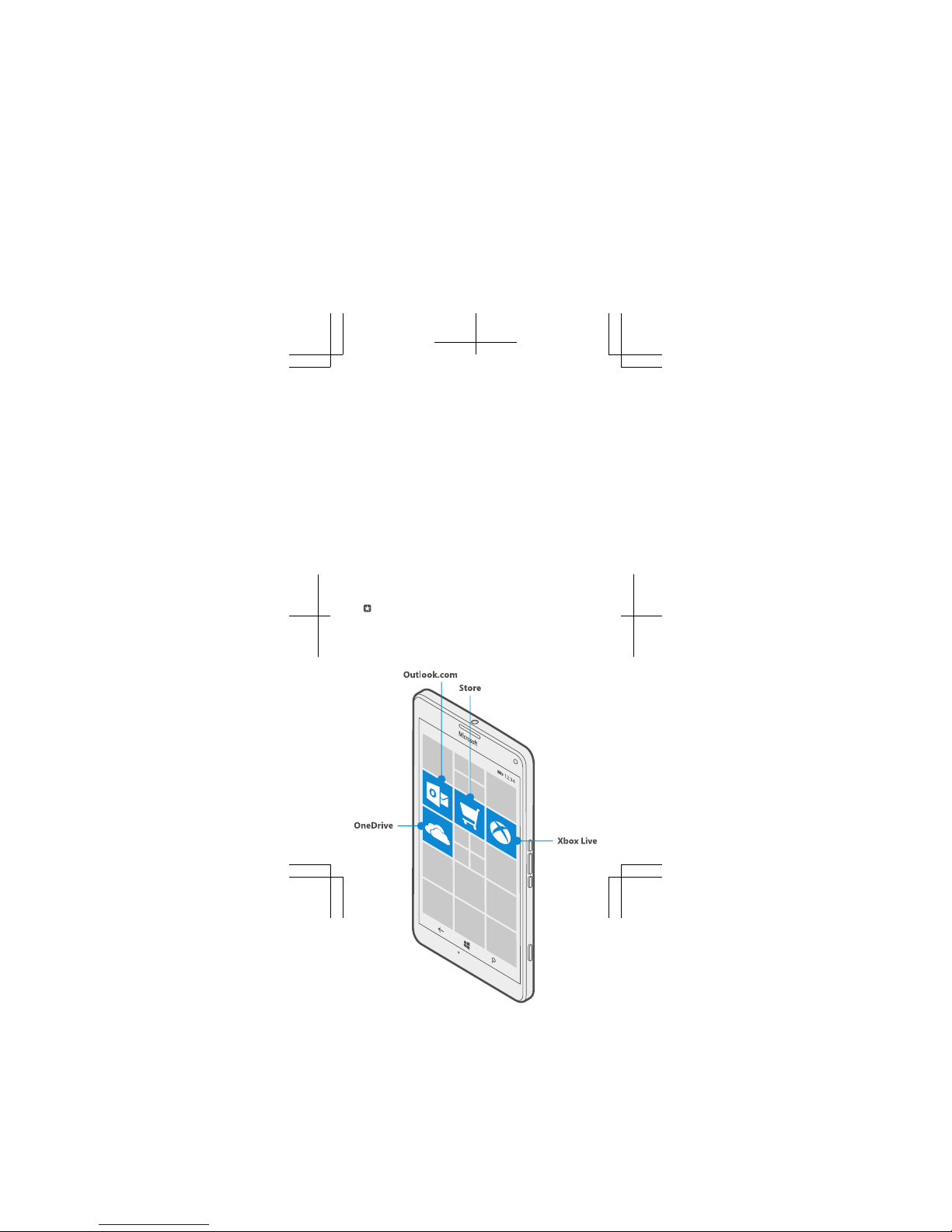

Set up your Microsoft account

When you connect your Microsoft account to your

phone, you can get all the cool apps and games

from Windows Store and keep your stuff safe with

automatic backups to the cloud with OneDrive.

During the setup, you can create a new account. If

you sign in to any Microsoft service, such as

Outlook.com (or Hotmail), Office, OneDrive, or

Xbox, you already have a Microsoft account. Sign in

with the same username and password.

When asked, fill in your account details, and select

how you want to get your one-time verification

code. Type in your mail address or the last 4 digits

of your phone number. Make sure you remember

your credentials for the account. You may need

them later.

Tip: If your screen switches off, press the power

key, and drag the lock screen up.

Navigate by touch

Go back to the start screen

In any view, tap the start key .

Switch between open apps

Tap and hold the back key , and choose the app

you want.

To close an app, tap .

Check the available options

Depending on the app, tap at the

bottom right corner or at the top left corner.

Discover all your apps

On the start screen, swipe left to see the apps menu.

To go back, swipe right.

View notifications and access settings

To quickly view missed calls and unread mails and

messages, and to access settings, open the action

centre. Place a finger at the top of the screen, and

slide it down.

Zoom in or out

Place 2 fingers on an item, such as a photo or a web

page, and slide your fingers apart or together.
