Microlife FR1MF1 Manuel utilisateur

Microlife AG

Espenstrasse 139

9443 Widnau - Switzerland

www.microlife.com IB FR1MF1 EN 2113

Microlife NON CONTACT - FR1MF1

FR1MF1

sec.

Read the instructions carefully before using this device

Microlife FR1MF1

1Measuring Sensor

2 Tracking light

3 Display

4 Start Button

5 ON/OFF Button

6 Mode Switch

7 Battery Compartment Cover

8 Memory Button

9 All Segments displayed

AT Memory

AK Ready for Measuring

AL Measurement complete

AM Body Mode

AN Object Mode

AO Low Battery Indicator

AP Changing between Celsius and Fahrenheit

AQ Recall Mode

AR Recall the last 30 Readings

AS Measured Temperature too high

BT Measured Temperature too low

BK Ambient Temperature too high

BL Ambient Temperature too low

BM Error Function Display

BN Blank Display

BO Flat Battery

BP Date and Time Settings

BQ Beeper Function Setting

BR Replacing the Battery

FR1MF1

Type BF applied part

Read the instructions

carefully before using this device.

This Microlife Thermometer is a high quality product incorporating

the latest technology and tested in accordance with international

standards. With its unique technology, this thermometer can provide

a stable, heat-interference-free reading with each measurement. The

instrument performs a self-test every time it is switched on to always

guarantee the specied accuracy of any measurements.

This Microlife Thermometer is intended for the periodic measurement

and monitoring of human body temperature at home. It is intended for

use on people of all ages.

This thermometer has been clinically tested and proven to be

safe and accurate when used in accordance to the operating

instruction manual.

Please read through these instructions carefully in order for you to

understand all functions and safety information.

Table of Contents

1. The Advantages of this Thermometer

2. Important Safety Instructions

3. How this Thermometer measures Temperature

4. Control Displays and Symbols

5. Set Date, Time and Beeper Functions

6. Changing between Body and Object Mode

7. Directions for Use

8. Changing between Celsius and Fahrenheit

9. How to recall 30 readings in Memory Mode

10. Error Messages

11. Cleaning and Disinfecting

12. Battery Replacement

13. Guarantee

14. Technical Specications

15. www.microlife.com

Guarantee Card (see Back Cover)

1.The Advantages of this Thermometer

Measurements in a matter of seconds

The innovative infrared technology allows measurement without

even touching the object. This guarantees safe and sanitary

measurements within seconds.

Multiple Uses (Wide Range Measurement)

This thermometer offers a wide measurement range from 0

°C to 100.0 °C (32.0 °F to 212.0 °F), meaning the unit can

be used to measure body temperature or it can be used to

measure surface temperature of the following examples:

• Milk surface temperature in a baby’s bottle

• Surface temperature of a baby’s bath

• Ambient temperature

Accurate and reliable

The unique probe assembly construction, incorporates an

advanced infrared sensor, ensuring that each measurement is

accurate and reliable.

FR1MF1

Gentle and Easy to Use

• The ergonomic design enables simple and easy use of the

thermometer.

• This thermometer can even be used on a sleeping child without

causing any interruption.

• This thermometer is quick, therefore child-friendly.

Multiple Reading Recall

Users will be able to recall the last 30 readings within the date

and time record when entering the recall mode,

enabling efcient tracking of temperature variations.

Safe and Hygienic

• No direct skin contact.

• No risk of broken glass or mercury ingestion.

• Completely safe for use on children.

• Cleaning of the sensor can be done with an alcohol-moistened

cotton tissue.

Fever Alarm

10 short beeps and a red LCD backlight alert the patient that he/

she may have a temperature equal to or higher than 37.5 °C.

2. Important Safety Instructions

• This instrument may only be used for the purposes described in

this booklet. The manufacturer cannot be held liable for

damage caused by incorrect application.

• Never immerse this instrument in water or other liquids.

For cleaning please follow the instructions in the

«Cleaning and Disinfecting» section.

• Do not use the instrument if you think it is damaged or notice

anything unusual.

• Never open the instrument.

• A basic physiological effect called vasoconstriction can occur

in the early stages of fever, resulting in a cool skin effect. The

recorded temperature using this thermometer can, therefore,be

unusually low.

• If the measurement result is not consistent with the patient’s

finding or unusually low, repeat the measurement every

15 minutes or double check the result by another core body

temperature measurement.

•This instrument comprises sensitive components and must be

reated with caution. Refer to the storage and operating condi-

tions described in the «Technical Specications» section.

•Ensure that children do not use the instrument unsupervised; as

some parts are small enough to be swallowed.

• Protect it from:

− extreme temperatures

− impact and dropping

− contamination and dust

− direct sunlight

− heat and cold

• If the instrument is not going to be used for a prolonged period

the batteries should be removed

3. How this Thermometer measures Temperature

This thermometer measures infrared energy radiated from the

forehead as well as objects. This energy is collected through the

lens and converted to a temperature value.

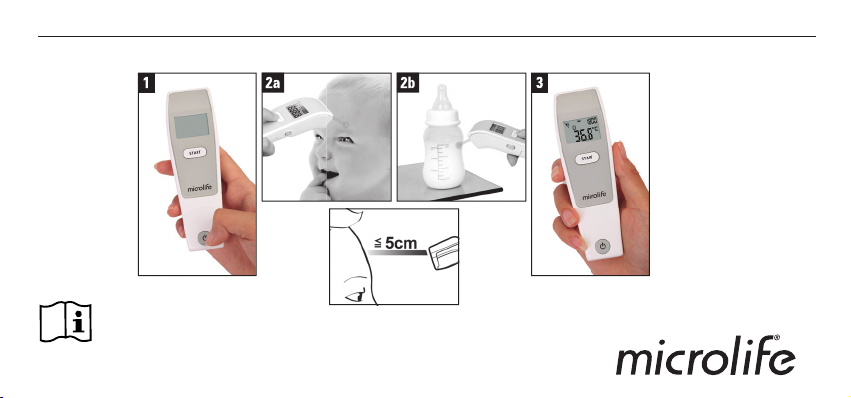

Temperature readings obtained by scanning above the eyebrow

area will provide the greatest accuracy.

4. Control Displays and Symbols

• All segments displayed 9 : Press the ON/OFF button 5to

turn on the unit; all segments will be shown for 1 second.

•Ready for measurement AK : When the unit is ready for

measurement, the «°C» or«°F» icon will keep ashing while the

WARNING: Use of this instrument is not intended as

a substitute for consultation with your physician This

instrument is NOT waterproof so do not immerse in

liquids.

FR1MF1

mode icon (body or object) will be displayed.

•Measurement complete AL : The reading will be shown on

the display 3 with the «°C»or«°F» icon and the mode icon

steady.

The unit is ready for the next measurement as soon as the

«°C» or «°F» icon is ashing again.

• Low battery indicator AO : When the unit is turned on, the

triangle icon will keep ashing to remind the user to replace the

battery.

5. Set Date, Time and Beeper Functions

•After the new batteries are tted, the year number ashes in

the display BP. You can set the year by pressing the START

button 4.To conrm and then set the month, press the M button

• Press the START button 4to set the month. Press the M

button 8 to conrm and then set the day.

• Follow the instructions above to set the day, 12 or 24 hours

System mode, hours and minutes.

• Once you have set the minutes and pressed the M button 8,

the date and time are set and the time is displayed.

•If you want to change the date and time, press and hold the

M button 8down for approx. 3 seconds until the year number

starts to ashBP.Now you can enter the new values as

described above.

•Clicking the ON/OFF button 5during time setup(after battery

insertion) will remove the device from time setting Mode, the

LCD will show Date/ TIME icons respectively with “--:--”After

that press the ON/OFF button 5to start the test or if no further

action is taken within 20 seconds, the device will automatically

turn off.

•When the device is switched off, press and hold the ON/OFF

button 5for 5 seconds to set the beeper BQ. Press the ON/

OFF button5to turn the beeper on and off. The thermometer
