1Microlife BP W1 Basic EN

Display

Microlife BP W1 Basic EN

1ON/OFF button

2Display

3Battery compartment

4Cuff

5M-button (memory)

6Time button

7Systolic value

8Diastolic value

9Pulse rate

AT Date/Time

AK Traffic light indicator

AL Stored value

AM Irregular heartbeat (IHB) symbol

AN Pulse indicator

AO Battery display

AP Arm movement indicator

AQ Cuff check indicator

AR LED positioning indicator

Read the important information in these

instructions for use before using this device.

Follow the instructions for use for your safety

and keep it for future reference.

Type BF applied part

Manufacturer

Batteries and electronic devices must be

disposed of in accordance with the locally

applicable regulations, not with domestic

waste.

Authorized representative

in the European Community

Reference number

Serial number

(YYYY-MM-DD-SSSSS;

year-month-day-serial number)

Intended use:

This oscillometric blood pressure monitor is intended for measuring

non-invasive blood pressure in people aged 12 years or older.

It is simple to use, accurate and comes highly recommended for

blood pressure monitoring in your home.

Dear Customer,

Your new Microlife blood pressure monitor is a reliable medical

device for taking measurements on the wrist. This device was devel-

oped in collaboration with physicians and clinical tests prove its

measurement accuracy to be very high.*

If you have any questions, problems or want to order spare parts

please contact your local Microlife-Customer Service. Your dealer or

pharmacy will be able to give you the address of the Microlife dealer

in your country. Alternatively, visit the internet at www.microlife.com

where you will find a wealth of invaluable information on our products.

Stay healthy – Microlife AG!

* This device is tested according to the ESH protocol.

Table of contents

1. Important facts about blood pressure

How do I evaluate my blood pressure

2. Using the device for the first time

Inserting the batteries

Setting the date and time

3. Taking a blood pressure measurement

Checklist for taking a reliable measurement

4. Appearance of the irregular heartbeat (IHB) symbol

5. Traffic light indicator in the display

Caution

Humidity limitation

Temperature limitation

Medical device

Protected against vertically falling water drops

when enclosure tilted up to 15°.

Keep away from children of age 0 - 3

CE Marking of Conformity

IP22

3Microlife BP W1 Basic EN

6. Data memory

Viewing the stored values

Memory full

Clearing all values

How not to store a reading

7. Battery indicator and battery change

Low battery

Flat battery - replacement

Which batteries and which procedure?

Using rechargeable batteries

8. Error messages

9. Safety, care, accuracy test and disposal

Device care

Cleaning the cuff

Accuracy test

Disposal

10. Guarantee

11. Technical specifications

1. Important facts about blood pressure

Blood pressure is the pressure of the blood flowing in the arteries

generated by the pumping of the heart. Two values, the systolic

(upper) value and the diastolic (lower) value, are always

measured.

The device indicates the pulse rate (the number of times the heart

beats in a minute).

Permanently high blood pressure values can damage your

health and must be treated by your doctor!

Always discuss your values with your doctor and tell them if you

have noticed anything unusual or feel unsure. Never rely on

single blood pressure readings.

There are several causes of excessively high blood pressure

values. Your doctor will explain them in more detail and offer

treatment where appropriate.

Under no circumstances should you alter the dosages of

drugs or initiate a treatment without consulting your doctor.

Depending on physical exertion and condition, blood pressure is

subject to wide fluctuations as the day progresses. You should

therefore take your measurements in the same quiet condi-

tions and when you feel relaxed! Take at least two readings

every time (in the morning: before taking medications and eating /

in the evening: before going to bed, bathing or taking medication)

and average the measurements.

It is quite normal for two measurements taken in quick succession

to produce significantly different results.

Deviations between measurements taken by your doctor or in the

pharmacy and those taken at home are quite normal, as these

situations are completely different.

Several measurements provide much more reliable information

about your blood pressure than just one single measurement.

Leave a small break of > 5 minutes between two measurements.

If you suffer from an irregular heartbeat (arrhythmia, see Section

«Appearance of the irregular heartbeat (IHB) symbol»), measure-

ments taken with this device should be evaluated with your doctor.

The pulse display is not suitable for checking the frequency

of heart pacemakers!

If you are pregnant, you should monitor your blood pressure

regularly as it can change drastically during this time.

A number of factors can affect the accuracy of measure-

ments taken on the wrist. In some cases, the result may

differ from the measurement taken on the upper arm. We

therefore advise you to compare these values with those

produced by the upper arm measurement and discuss them

with your doctor.

How do I evaluate my blood pressure

Table for classifying home blood pressure values in adults in accor-

dance with the international Guidelines (ESH, ESC, JSH). Data in

mmHg.

The higher value is the one that determines the evaluation. Example:

a blood pressure value of 140/80 mmHg or a value of 130/90 mmHg

indicates «blood pressure too high».

2. Using the device for the first time

Inserting the batteries

After you have unpacked your device, first insert the batteries. The

battery compartment 3 is at the top of the device. Insert the

batteries (2 x 1.5 V, size AAA), thereby observing the indicated

polarity.

Range Systolic Diastolic Recommendation

1. blood pressure

normal < 120 < 74 Self-check

2. blood pressure

normal 120 - 129 74 - 79 Self-check

3. blood pressure

slightly high 130 - 134 80 - 84 Consult your doctor

4. blood pressure

too high 135 - 159 85 - 99 Seek medical advice

5. blood pressure

far too high ≥ 160 ≥ 100 Seek medical advice

5Microlife BP W1 Basic EN

Setting the date and time

1. After the new batteries are fitted, the year number flashes in the

display. You can set the year by pressing the M-button 5. To

confirm and then set the month, press the time button 6.

2. Press the M-button to set the month. Press the time button to

confirm and then set the day.

3. Follow the instructions above to set the day, hour and minutes.

4. Once you have set the minutes and pressed the time button, the

date and time are set and the time is displayed.

5. If you want to change the date and time, press and hold the time

button for approx. 3 seconds until the year number starts to flash.

Now you can enter the new values as described above.

3. Taking a blood pressure measurement

Checklist for taking a reliable measurement

1. Avoid activity, eating or smoking immediately before the measure-

ment.

2. Sit down on a back-supported chair and relax for 5 minutes. Keep

your feet flat on the floor and do not cross your legs.

3. Always measure in a sitting position and on the same wrist. Use

the wrist which usually shows higher blood pressure values.

4. Remove any items of clothing and your watch, for example, so

that your wrist is free.

5. Always ensure that the cuff is positioned correctly, as shown in the

pictures illustrated on the short instruction card.

6. Fit the cuff comfortably but not too tight. The cuff will cover a wrist

circumference according to the information in the «Technical

specifications».

7. Press the ON/OFF button 1 to start the measurement.

8. The LED Positioning Indicator AR is activated. Support your arm

in a relaxed position with the device at the same height as your

heart, move your arm until the LED light is at its brightest and

appears to be in the center of the indicator.

9. After 5-8 seconds, the cuff will pump up automatically. Relax, do

not move and do not tense your arm muscles until the measure-

ment result is displayed. Breathe normally and do not talk.

10.The measurement is performed during the inflation. The inflation

speed may vary, this is a normal occurence.

11.During the measurement, the pulse indicator AN flashes in the

display.

12.The result, comprising the systolic 7 and the diastolic 8 blood

pressure and the pulse rate 9 are displayed. Note also the expla-

nations on further display symbols in this booklet.

13.Remove and switch off the monitor and enter the result in the

enclosed blood pressure pass. (The monitor does switch off auto-

matically after approx. 1 min.).

You can stop the measurement at any time by pressing the

ON/OFF button (e.g. if you feel uneasy or an unpleasant

pressure sensation).

4. Appearance of the irregular heartbeat (IHB) symbol

This symbol

indicates that an irregular heartbeat was detected. In

this case, the measured blood pressure may deviate from your actual

blood pressure values. It is recommended to repeat the measurement.

5. Traffic light indicator in the display

The bars on the left-hand edge of the display AK show you the range

within which the indicated blood pressure value lies. Depending on

the height of the bar, the readout value is either within the optimum

(green), elevated (yellow), too high (orange) or dangerously high

(red) range. The classification corresponds to the 4 ranges in the

table as defined by the international guidelines (ESH, ESC, JSH), as

described in «Section 1.».

6. Data memory

At the end of each measurement, this device automatically stores the

result, including date and time.

Viewing the stored values

Press the M-button 5 briefly, when the device is switched off. The

display first shows «M» AL and then a value, e.g. «M 17». This

means that there are 17 values in the memory. The device then

switches to the last stored result.

Pressing the M-button again displays the previous value. Pressing

the M-button repeatedly enables you to move from one stored value

to another.

Memory full

Pay attention that the maximum memory capacity of 30

memories per user is not exceeded. When the 30 memory is

full, the oldest value is automatically overwritten with the

31th value. Values should be evaluated by a doctor befor the

memory capacity is reached – otherwise data will be lost.

Clearing all values

If you are sure that you want to permanently remove all stored

values, hold down the M-button (the device must have been switched

off beforehand) until «CL» appears and then release the button. To

Information for the doctor in case of repeated appearance of

the IHB symbol:

This device is an oscillometric blood pressure monitor that also

measures the pulse during blood pressure measurement and

indicates when the heart rate is irregular.

7Microlife BP W1 Basic EN

permanently clear the memory, press the M-button while «CL» is

flashing. Individual values cannot be cleared.

How not to store a reading

As soon as the reading is displayed press and hold the ON/OFF

button 1 until «M» AL is flashing. Confirm to delete the reading by

pressing the M-button 5.

7. Battery indicator and battery change

Low battery

When the batteries are approximately ¾ empty the battery symbol AO

will flash as soon as the device is switched on (partly filled battery

displayed). Although the device will continue to measure reliably, you

should obtain replacement batteries.

Flat battery - replacement

When the batteries are flat, the battery symbol AO will flash as soon

as the device is switched on (flat battery displayed). You cannot take

any further measurements and must replace the batteries.

1. Open the battery compartment 3 by pulling off the cap.

2. Replace the batteries – ensure correct polarity as shown by the

symbols in the compartment.

3. To set date and time, follow the procedure described in Section

«2. Using the device for the first time».

The memory retains all values although date and time must be

reset – the year number therefore flashes automatically after

the batteries are replaced.

Which batteries and which procedure?

Use 2 new, long-life 1.5 V, size AAA alkaline batteries.

Do not use batteries beyond their date of expiry.

Remove batteries if the device is not going to be used for a

prolonged period.

Using rechargeable batteries

You can also operate this device using rechargeable batteries.

Only use «NiMH» type reusable batteries.

Batteries must be removed and recharged when the flat

battery symbol appears. They should not remain inside the

device as they may become damaged (total discharge as a

result of low use of the device, even when switched off).

Always remove the rechargeable batteries if you do not intend

to use the device for a week or more.

Batteries cannot be charged in the blood pressure monitor.

Recharge batteries in an external charger and observe the

information regarding charging, care and durability.

8. Error messages

9. Safety, care, accuracy test and disposal

mSafety and protection

Follow instructions for use. This document provides important

product operation and safety information regarding this device.

Please read this document thoroughly before using the device and

keep for future reference.

This device may only be used for the purposes described in these

instructions. The manufacturer cannot be held liable for damage

caused by incorrect application.

This device comprises sensitive components and must be treated

with caution. Observe the storage and operating conditions

described in the «Technical specifications» section.

The cuffs are sensitive and must be handled with care.

Error Description Potential cause and remedy

«ERR 1» Signal too

weak The pulse signals on the cuff are too

weak. Re-position the cuff and repeat the

measurement.*

«ERR 2»

Error signal During the measurement, error signals

were detected by the cuff, caused for

instance by movement or muscle

tension. Repeat the measurement,

keeping your arm still.

«ERR 3»

No pressure

in the cuff An adequate pressure cannot be gener-

ated in the cuff. A leak may have

occurred. Check that the cuff is correctly

connected and is not too loose. Replace

the batteries if necessary. Repeat the

measurement.

«ERR 5» Abnormal

result The measuring signals are inaccurate

and no result can therefore be displayed.

Read through the checklist for

performing reliable measurements and

then repeat the measurement.*

«HI» Pulse or cuff

pressure too

high

The pressure in the cuff is too high (over

299 mmHg) OR the pulse is too high

(over 200 beats per minute). Relax for 5

minutes and repeat the measurement.*

«LO» Pulse too low The pulse is too low (less than 40 beats

per minute). Repeat the measurement.*

Error Description Potential cause and remedy

Autres manuels pour BP W1 Basic

Table des matières

Langues :

Autres manuels Microlife Moniteur de pression artérielle

Microlife

Microlife BP 3AG1 Manuel utilisateur

Microlife

Microlife WatchBP Office Targe Manuel utilisateur

Microlife

Microlife BP W100 Manuel utilisateur

Microlife

Microlife WatchBP O3 Manuel utilisateur

Microlife

Microlife WatchBP Home Manuel utilisateur

Microlife

Microlife BP A1 Easy Manuel utilisateur

Microlife

Microlife BP A80 Manuel utilisateur

Microlife

Microlife BP3MQ1 Manuel utilisateur

Microlife

Microlife BPB1 Classic Manuel utilisateur

Microlife

Microlife BP B2 Basic Manuel utilisateur

Microlife

Microlife BP B2 Basic Manuel utilisateur

Microlife

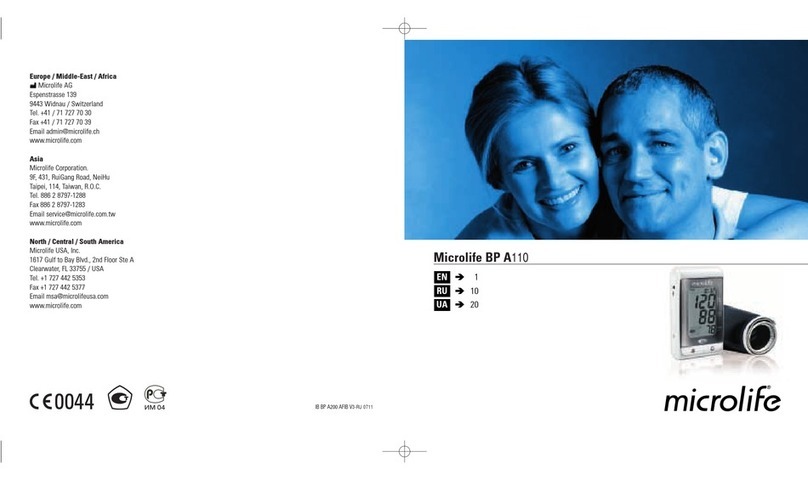

Microlife BP A110 Manuel utilisateur

Microlife

Microlife aponorm Manuel utilisateur

Microlife

Microlife BP W1 Basic Manuel utilisateur

Microlife

Microlife BP W100-MAM Wrist Manuel utilisateur

Microlife

Microlife BP3GX1-5N Manuel utilisateur

Microlife

Microlife BP W90 Manuel utilisateur

Microlife

Microlife BP W90 Manuel utilisateur

Microlife

Microlife BPB2 Basic Manuel utilisateur

Microlife

Microlife BP3AQ1-1 Manuel utilisateur

Microlife

Microlife BP A6 PC Manuel utilisateur

Microlife

Microlife BP A50 Manuel utilisateur

Microlife

Microlife BP B1 Classic Manuel utilisateur

Microlife

Microlife WatchBP office Manuel utilisateur

Manuels Moniteur de pression artérielle populaires d'autres marques

Mediblink

Mediblink M520 Manuel utilisateur

Harbor Freight Tools

Harbor Freight Tools 62220 Instructions de montage

Veridian Healthcare

Veridian Healthcare SmartHeart 01-518 Manuel utilisateur

Melissa

Melissa Automatic Blood Pressure Monitor Manuel utilisateur

Little Doctor

Little Doctor LD7 Manuel utilisateur

Panasonic

Panasonic EW3003 - WRIST BP MONITOR Manuel utilisateur

Omron

Omron HEM-9210T Manuel utilisateur

Medisana

Medisana 51043 Manuel utilisateur

HoMedics

HoMedics BPW-710-CA Mode d’emploi

TechLine

TechLine Z-40 Manuel utilisateur

MABIS

MABIS SmartRead 04-235-001 Manuel

Avita

Avita BPM82 Manuel utilisateur

VISIOMED

VISIOMED TensioFlash KD-595 Manuel utilisateur

Omron

Omron R2 Manuel utilisateur

Medicura

Medicura m255 Manuel utilisateur

Hartmann

Hartmann Tensoval Manuel utilisateur

BIOS Diagnostics

BIOS Diagnostics BD240 Manuel utilisateur

boso

boso medicus vital Manuel utilisateur
