GPS Navigation System

The GPS-1 is a powerful 16 channel GPS navigation system. It is a panel mount GPS which

easily fits into a standard 3.5” cutout. The GPS-1 boasts most of the features only found in

high end GPS navigation equipment.

Features amongst others include:

•Panel mount 3.5” standard aviation footprint

•16 Channel highly sensitive GPS receiver

•WAAS (Wide Area Augmentation System) compatible

•20 user defined routes

•150 user defined waypoints

•Quick and easy to create and manage waypoints and routes

•Quick to find the nearest waypoint to the current position

•5 navigation and information displays

•Sunrise/Sunset calculator

•NMEA output to interface to other GPS based instrumentation

•TTFF (Time to First Fix) within 45 seconds

•Graphic LCD display with adjustable contrast

•Large non-reflective ultra high impact acrylic lens with rear backlight

•Active antenna for even higher sensitivity

•3.5” standard ABS enclosure

•Low power consumption

•PC interface to manage waypoints and routes

•CD included with various GPS applications

GPS Introduction

The GPS System was originally developed by the U.S. Department of Defense where the

primary use was to provide accurate position data for military applications.

This system consists of a constellation of 24 satellites which orbit the earth twice a day. Each

satellite accurately transmits its position and time data. All GPS satellites are synchronized so

that these repeating signals are transmitted at the same instant. The GPS receiver receives

these signals at slightly different times based on where the location of the satellite is. By using

this information the receiver can work out exactly its position from the satellites and can

achieve a position fix on the earth’s surface to within 1m.

Note: Please be aware that the GPS-1 is for VFR only. Please make sure that you

understand the instrument thoroughly before using it for navigation purposes

The GPS-1 and WAAS (Wide Area Augmentation System)

The GPS-1 also supports WAAS. WAAS is a FAA funded project to improve the accuracy of

GPS receivers. There are 2 satellites in a geo-stationary orbit currently over North America

providing additional correction data. The GPS-1 receives these additional signals to make a

more accurate computation of position. Please see http:gps.faa.gov for more information.

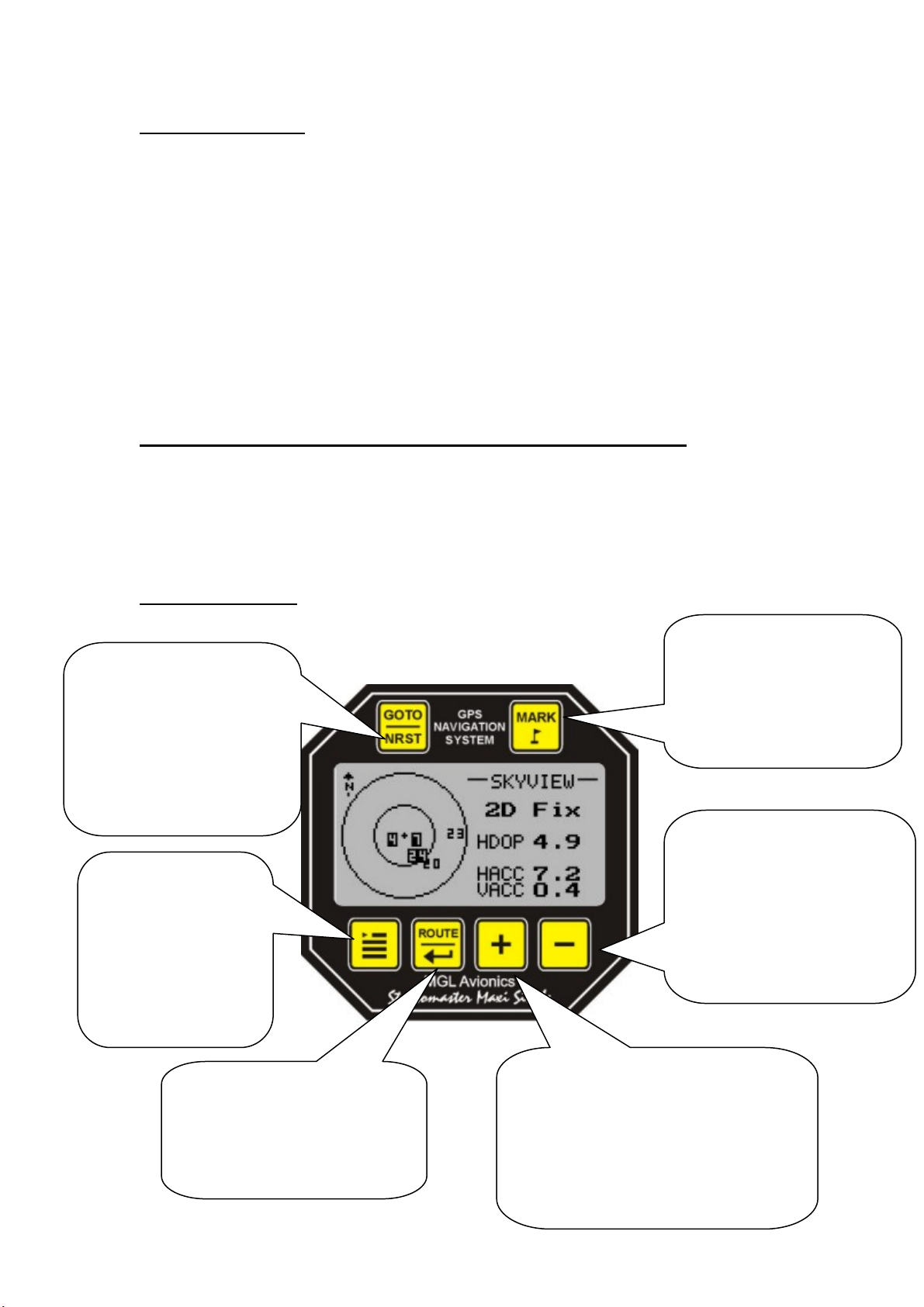

Key Assignment

Minus Key

Normal Operation: This key is

used to go back one waypoint

within a route when a route is

selected.

Menu Operation:

This key is used to go up

through the menu system or to

decrement a value.

Screen Select Key

Normal Operation:

Press this key to

toggle between the

various operating and

navigation screens.

Menu Operation:

Used to cancel or exit

the current menu.

Mark Waypoint

Normal Operation:

Press this key to mark the

current position as a new

waypoint.

Menu Operation:

No function

Goto

Nearest Waypoint

Normal Operation:

Press this key once to select

a waypoint to navigate to.

Press it twice to show the

nearest waypoint to the

current position.

Menu Operation:

No Function

Ente

Route Key

Normal Operation:

This key is used to select a

route for navigation.

Menu Operation:

This key serves as an enter key.

Plus Key

Normal Operation:

This key is used to go forward one

waypoint within a route when a route is

selected.

Menu Operation:

This key is used to go down through the

menu system or to increment a value.

Operating Screens

The GPS-1 has 6 individual display screens. There are 3 information screens, 2 navigation

screens and 1 menu system screen.

Satellite Signal Screen (Information Screen)

This screen shows information such as the number of

satellites used in the fix data, the fix type, the satellite PRN

(ID) number as well as the carrier to noise signal strength in

dbHz.

SkyView Screen (Information Screen)

This screen shows information such as the horizontal/vertical

accuracies, PDOP (position dilution of precision) and satellite

position relative to the current position and the fix type.

GPS Information Screen

This screen is useful to display position data when no route or

waypoint has been selected. It displays information such as a

bearing tape, altitude, ground speed and latitude and

longitude as well as time.

Primary Navigation Screen

This screen is your primary navigation screen when a route or

waypoint has been selected. Information such as waypoint

name, current heading, ground speed, distance to waypoint,

ETE (Estimate Time Enroute), as well as an arrow indicating

your direction to the selected waypoint is displayed.

Secondary Navigation Screen

This screen is your secondary navigation screen displaying

information such as waypoint name, current heading,

distance to waypoint, current ground speed, ETE (Estimate

Time Enroute), as well as your track and a CDI (Course

Deviation Indicator).

Menu System

Satellite Signal Screen

This screen shows the satellites carrier to noise ratio (Signal strength), PRN (ID) number as

well as how many satellites are used in the fix data.

The bars height represents the carrier to noise ratio in dbHz (Signal Strength). This value can

vary from 0 to 60 dbHz.

Skyview Information Screen

This screen is useful to determine the satellites orientation in relation to the GPS-1.

Horizon

Position fix type

HDOP Value (2D Fix) or

PDOP Value (3D Fix).

North Indicator

45 Degrees above

Horizon

Vertical Accuracy

in meters

Horizontal Accuracy

in meters

Satellite PRN Number and position

Directly Overhead

Fix type

The number of

satellites used in the

osition data. Shaded bars indicate that the

GPS-1 is still negotiating with

the satellite and this satellites

data is not yet being used for

a position fix.

Satellite PRN (ID) number

Solid bars indicate that

this satellite is currently

been used for the fix

data.

Description of items:

North Indicator: This is the direction of true north.

Horizon, 45 Degrees above horizon and directly overhead: These 3 rings show the

elevation of the satellite from the horizon (outer ring).

Horizontal Accuracy (HACC): This is a value expressed in meters (m) indicating what the

horizontal accuracy is of the position fix.

Vertical Accuracy (VACC): This is a value expressed in meters (m) indicating what the

vertical accuracy is of the position fix.

HDOP Value: This is a unit less value representing the horizontal precision of dilution. A

value of 1 indicates optimum satellite constellation and high-quality data. This value is shown

when the GPS-1 does not have a 3D Fix.

PDOP Value: This is a unit less value representing the position precision of dilution which is a

combination on the horizontal precision of dilution (HDOP) and the vertical precision of

dilution (VDOP). A value of 1 indicates an optimum satellite constellation and high-data

quality. This value is shown when a 3D fix is achieved. PDOP values in excess of 8 are

considered poor.

Note: A position fix with a PDOP of 30 could be as much as 150m from its true location.

Satellites that are dispersed throughout the sky will achieve low PDOP values while satellites

that are in a straight line will achieve a high PDOP value.

Position Fix Type: This can vary from “Acquiring” (When the GPS-1 is trying to obtain

position fix data) to a 2D Fix (No altitude data is valid) to a 3D Fix (Altitude data is valid).

Satellite PRN Number and Position: The PRN (Pseudo-Random Number) number is the

satellites ID number and the position within the circles is a function of the satellites elevation

and azimuth.

GPS Information Screen

This screen is useful to display when no route or waypoint has been selected. It displays

information such as a bearing tape, altitude, ground speed and latitude and longitude as well

as time.

Heading Magnifier

Moving Heading

Tape

This field toggles between

Time & Date and a latitude

/longitude readout. This field

toggles at 5 second

intervals.

Current ground speed.

Units configurable under

the setup section in the

menu system.

Altitude Readout. The

altitude units can be

changed under the

setup section in the

menu system.

Primary Navigation Screen

This screen is your primary navigation screen when a route or waypoint has been selected.

Information such as waypoint name, current heading, ground speed, distance to waypoint,

ETE (Estimate Time Enroute), as well as an arrow indicating the direction to your desired

destination is displayed. Note: This screen will be automatically shown when the GPS-1 has

a 2D or 3D fix.

Secondary Navigation Screen

This screen is your secondary navigation screen displaying information such as waypoint

name, current heading, distance to waypoint, current ground speed, ETE (Estimate Time

Enroute), as well as your track and a CDI (Course Deviation Indicator).

Waypoint Descriptor

Fix Indicator

2D: 2D Fix has been achieved

3D: 3D Fix has been achieved

AQ: Acquiring a fix

Current Heading

True/Magnetic North

Indicator

Distance

remaining to

selected waypoint ETE (Estimated Time

Enroute) based on

current ground speed

Direction to waypoint pointer Graphical heading display

CDI (Course Deviation

Indicator

Waypoint Descriptor Fix Indicator

2D: 2D Fix has been achieved

3D: 3D Fix has been achieved

AQ: Acquiring a fix

Distance remaining to

selected waypoint Graphical heading display

ETE (Estimated Time

Enroute) based on

current ground speed

Ground Speed

Current Heading

Track to Waypoint

The Menu System

Waypoint Setup

This menu allows the user to create and manage their

waypoint database.

Note: The GPS-1 can store up to 150 waypoints.

New Waypoint

The user can create a new waypoint by entering a unique

identifier up to 10 characters long. By default the latitude and

longitude is the current position. The distance and track is

referenced to the current position.

Move the highlight over ***save*** and press to save

once you have finished entering a waypoint name and latitude

and longitude. Press to cancel and return to the waypoint

menu.

Delete Waypoint

Select “Delete Waypoint” to delete a waypoint.

Use the and keys to highlight the waypoint that must

be deleted. Press over the desired waypoint to be

deleted.

Note: The waypoint will also be deleted out of the route

memory if it is assigned to a route.

View Waypoint

Select “View Waypoint” to view a waypoint.

Use the and keys to highlight the waypoint that you

want to view. Press to view it. The distance and track is

referenced to the current position.

Edit Waypoint

Select “Edit Waypoint” to edit a waypoint.

Use the and keys to highlight the waypoint that you

want to edit. Press to edit the waypoint.

Move the highlight over ***save*** and press to save

once you have finished editing the waypoint name and

latitude and longitude. Press to cancel and return to the

waypoint menu. The distance and track is referenced to the

current position.

Delete All

Note: Use this with caution. All waypoints and routes in the

GPS-1 memory will be deleted.

Press to delete all waypoints and route information.

Press to cancel and return to the waypoint menu.

Waypoint Alert

The GPS-1 will notify the user when he is approaching the

selected waypoint. Use the and keys to adjust the

distance to the waypoint when the message alert must

appear.

Marking a Waypoint

Use the key during the normal operation to mark a

waypoint. The mark waypoint menu will appear. This allows

the user to enter a unique waypoint name up to 10 characters

long and also allows the user to change the latitude and

longitude if desired. The waypoint name will default to the

next available number and the latitude and longitude will

default to the present position on entering the function. The

distance and track is relative to your current position.

Goto a Waypoint

Press the key once during normal operation to go to a

predefined waypoint. The goto waypoint menu will appear.

This will display all pre-stored waypoints. Use the and

keys to scroll up and down and press to select a

waypoint.

Note: Any pre-selected route or waypoint will be ignored and

the new selected waypoint will be used for navigation.

Finding the nearest waypoint

Press the key twice to display the nearest waypoint to

the current position. The distance and track to the nearest

waypoint is also shown.

Arriving at a Waypoint

The arriving message box will be displayed if the distance to

the selected waypoint is less then the waypoint alert value.

Press the key to acknowledge the message.

Note: The arriving at a waypoint message box will only

appear when either of the navigation displays is shown.

Waypoint Messages

This message box will appear when an operation on a

waypoint is performed and there are no waypoints stored in

the waypoint memory.

Route Setup

New Route

The user can create a new route by entering a unique

identifier up to 10 characters long. A route can contain upto

30 waypoints.

Move the highlight over ***save*** and press to save

once you have finished entering a route name and latitude

and longitude. Press to cancel and return to the route

menu.

Add/Insert Waypoint

Select “Add/Ins Waypoint” to add or insert a waypoint into a

route.

Select a route to add/insert a waypoint into.

Use the and keys to select where to insert the

waypoint into. Press to insert the waypoint into the route.

Table des matières

Autres manuels MGL Avionics Affichage avionique

MGL Avionics

MGL Avionics Stratomaster Maxi Single FF-3 Manuel utilisateur

MGL Avionics

MGL Avionics Stratomaster Enigma Manuel utilisateur

MGL Avionics

MGL Avionics iEFIS Lite Manuel utilisateur

MGL Avionics

MGL Avionics EFIS G2 Manuel utilisateur

MGL Avionics

MGL Avionics Stratomaster Smart Single EMS-503 Manuel utilisateur

MGL Avionics

MGL Avionics Blaze ASV-2 Manuel utilisateur

MGL Avionics

MGL Avionics AV-2 Manuel utilisateur

MGL Avionics

MGL Avionics BAT-1 Manuel utilisateur

MGL Avionics

MGL Avionics Stratomaster Maxi Single VSI-2 Manuel utilisateur

MGL Avionics

MGL Avionics Vega TP-3 Manuel utilisateur

MGL Avionics

MGL Avionics Vega ASV-1 Manuel utilisateur

MGL Avionics

MGL Avionics FF-1 Manuel utilisateur

MGL Avionics

MGL Avionics Blaze EMS-2 Manuel utilisateur

MGL Avionics

MGL Avionics Stratomaster Maxi Single Flight II Manuel utilisateur

MGL Avionics

MGL Avionics Stratomaster Maxi Single ALT-3 Manuel utilisateur

MGL Avionics

MGL Avionics Stratomaster Ultra L Guide de dépannage

MGL Avionics

MGL Avionics FF-1 Manuel utilisateur

MGL Avionics

MGL Avionics Blaze FLIGHT-3 Manuel utilisateur

MGL Avionics

MGL Avionics Blaze TP-4 Manuel utilisateur

MGL Avionics

MGL Avionics XTreme - EMS Manuel utilisateur

Manuels Affichage avionique populaires d'autres marques

Smart Avionics

Smart Avionics PB-4 Manuel utilisateur

Midcontinent

Midcontinent SAM MD302 Manuel

Garmin

Garmin GI 275 Manuel utilisateur

Mid-Continent Instruments

Mid-Continent Instruments 4300 Series Manuel

Avidyne

Avidyne 700-00182 Series Manuel de service

Flybox

Flybox Oblo Manuel utilisateur

Garmin

Garmin GMA 350H Manuel

Garmin

Garmin G3X Touch Manuel

SANDIA aerospace

SANDIA aerospace SAFE 328 Manuel utilisateur

Lynx

Lynx Micro System Manuel utilisateur

SAC

SAC SA100 Manuel utilisateur

Garmin

Garmin GNC 420 Manuel utilisateur

Avidyne

Avidyne Entegra Manuel

Dynon

Dynon SkyView HDX System Document technique

Garmin

Garmin Cessna Caravan G1000 Guide de configuration

Barco

Barco MDU-254 Manuel utilisateur

PROXALERT

PROXALERT R5 Manuel

Garmin

Garmin Cessna Caravan G1000 Manuel utilisateur
