51033777EN/AB - Page 1

www.mgeups.com MGE UPS SYSTEMS

Comet

EXtreme CLA

12 kVA

Installation manual

Page 2 - 51033777EN/AB

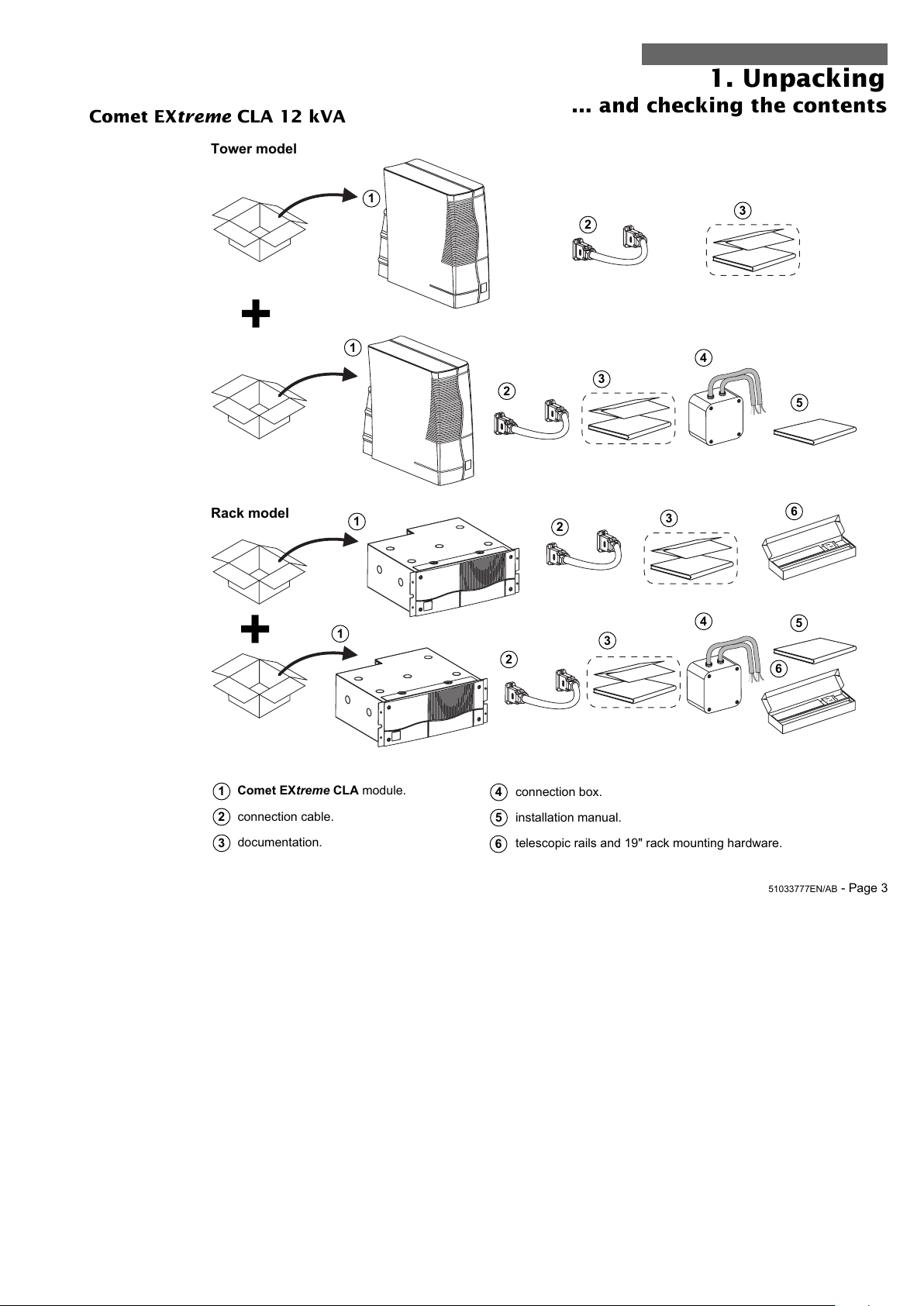

51033777EN/AB - Page 3

... and checking the contents

1. Unpacking

Comet EXtreme CLA module.

connection cable.

documentation.

connection box.

installation manual.

telescopic rails and 19" rack mounting hardware.

Comet EXtreme CLA 12 kVA

Tower model

Rack model

Page 4 - 51033777EN/AB

Mounting the rails in the rack

The rails and the screws required to mount them are included in the box.

To mount the connection box in a rack, use the mounting brackets and screws packed with the connection box.

2.1 Mounting (Rack model)

2. Installation

51033777EN/AB - Page 5

2.2 Checking equipment compatibility

Check that the UPS and CLA modules are compatible:

UPS no.

Comet EXtreme CLA 12kVA 51033120 or 51033121

Comet EXtreme CLA 12kVA (Rack) 51033602

CLA no. (x2)

51033069

51033569

Conn. box no.

51033772

2.3 Batteries to be used

Use only 12 Volt/65 Ah lead-acid batteries.

Connect them as indicated below to obtai n the required backup time:

2 hours

Comet EXtreme CLA

12kVA

2 parallel-connected strings of 20

12V / 65Ah batteries

4 hours 8 hours

2. Installation

2.4 Connecting the Comet EXtreme CLA modules to the connection box

4 parallel-connected strings of 20

12V / 65Ah batteries

6 parallel-connected strings of 20

12V / 65Ah batteries

Backup time

L +

BATTERIE/BATTERY

L -

This operation may be carried out only by qualified electricians using the

necessary safety equipment for work on live parts (insulated tools,

gloves, goggles).

The connection of each module to the electrical supply

must be protected by an easily accessible circuit breaker

(not supplied). A module can be isolated from the

electrical supply by opening this circuit breaker.

Before making any connections or working on the

equipment, make sure the battery circuit breaker is in OFF

position and that the main contacts of the upstream

protective devices of the electrical installation are open

(OFF position).

For maximum battery life, Comet EXtreme CLA modules must be

installed in the same room as the UPS so that the automatic regulation

of the charge voltage as a function of temperature can work correctly.

Two cables exit the connection box. Do not modify the length of these

cables. Each of these cables must be connected to a Comet EXtreme

CLA module as indicated below.

1. Unscrew the plate and dismantle the metal cable glands on the

Comet EXtreme CLA modules.

2. Cut and remove the retainers on the shielded cables of the connection

box.

3. Mount the cable glands on the shielded cables.

4. Connect the 3 conductors of each cable and remount the plate.

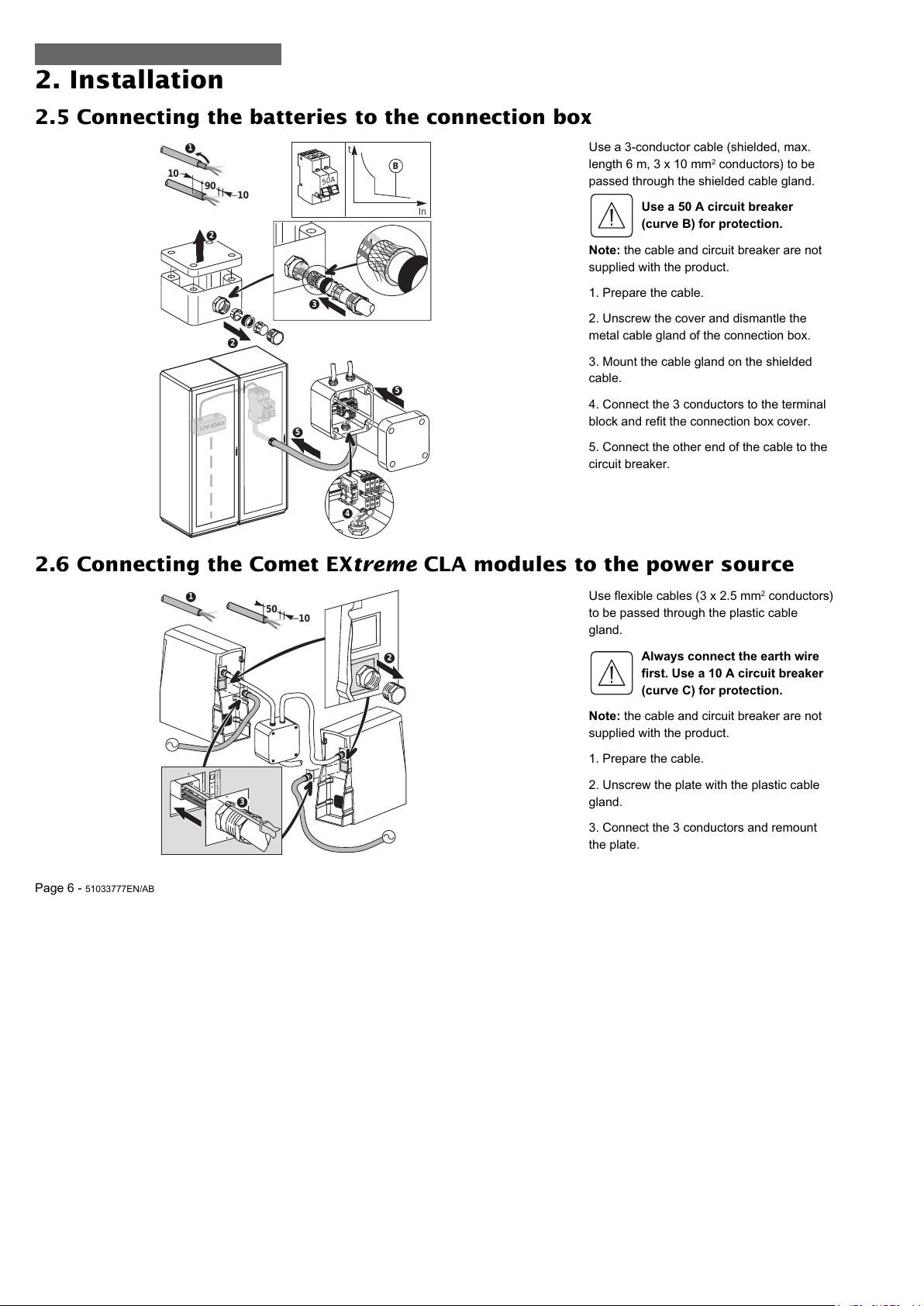

Page 6 - 51033777EN/AB

2.5 Connecting the batteries to the connection box

Use a 3-conductor cable (shielded, max.

length 6 m, 3 x 10 mm2conductors) to be

passed through the shielded cable gland.

Use a 50 A circuit breaker

(curve B) for protection.

Note: the cable and circuit breaker are not

supplied with the product.

1. Prepare the cable.

2. Unscrew the cover and dismantle the

metal cable gland of the connection box.

3. Mount the cable gland on the shielded

cable.

4. Connect the 3 conductors to the terminal

block and refit the connection box cover.

5. Connect the other end of the cable to the

circuit breaker.

2.6 Connecting the Comet EXtreme CLA modules to the power source

Use flexible cables (3 x 2.5 mm2conductors)

to be passed through the plastic cable

gland.

Always connect the earth wire

first. Use a 10 A circuit breaker

(curve C) for protection.

Note: the cable and circuit breaker are not

supplied with the product.

1. Prepare the cable.

2. Unscrew the plate with the plastic cable

gland.

3. Connect the 3 conductors and remount

the plate.

2. Installation

50A

12V-65Ah

L +

RESEAU/MAINS/NETZ

51033777EN/AB - Page 7

2. Installation

2.7 Connecting the UPS to the two Comet EXtreme CLA modules

Use the connection cables supplied with the

modules.

2.8 Setting the UPS

Before connecting the loads to be protected

and starting the system, the UPS must be

reconfigured using the UPS Driver software

supplied on a diskette with the UPS.

1. Switch the battery circuit breaker to ON

position.

2. Connect a PC to the UPS using an RS232

cable.

3. Run the UPS Driver software installed on

a diskette. Go to the "battery" menu and

select the battery backup time (2, 4 or 8

hours) corresponding to the new

configuration.

Once the backup time has been set, click to

save the settings and exit UPS Driver. This

procedure is necessary for fast recharge of

the batteries by the Comet EXtreme CLA.

The installation is now ready and you can

connect the equipment to be protected.

50A

12V-65Ah

50A

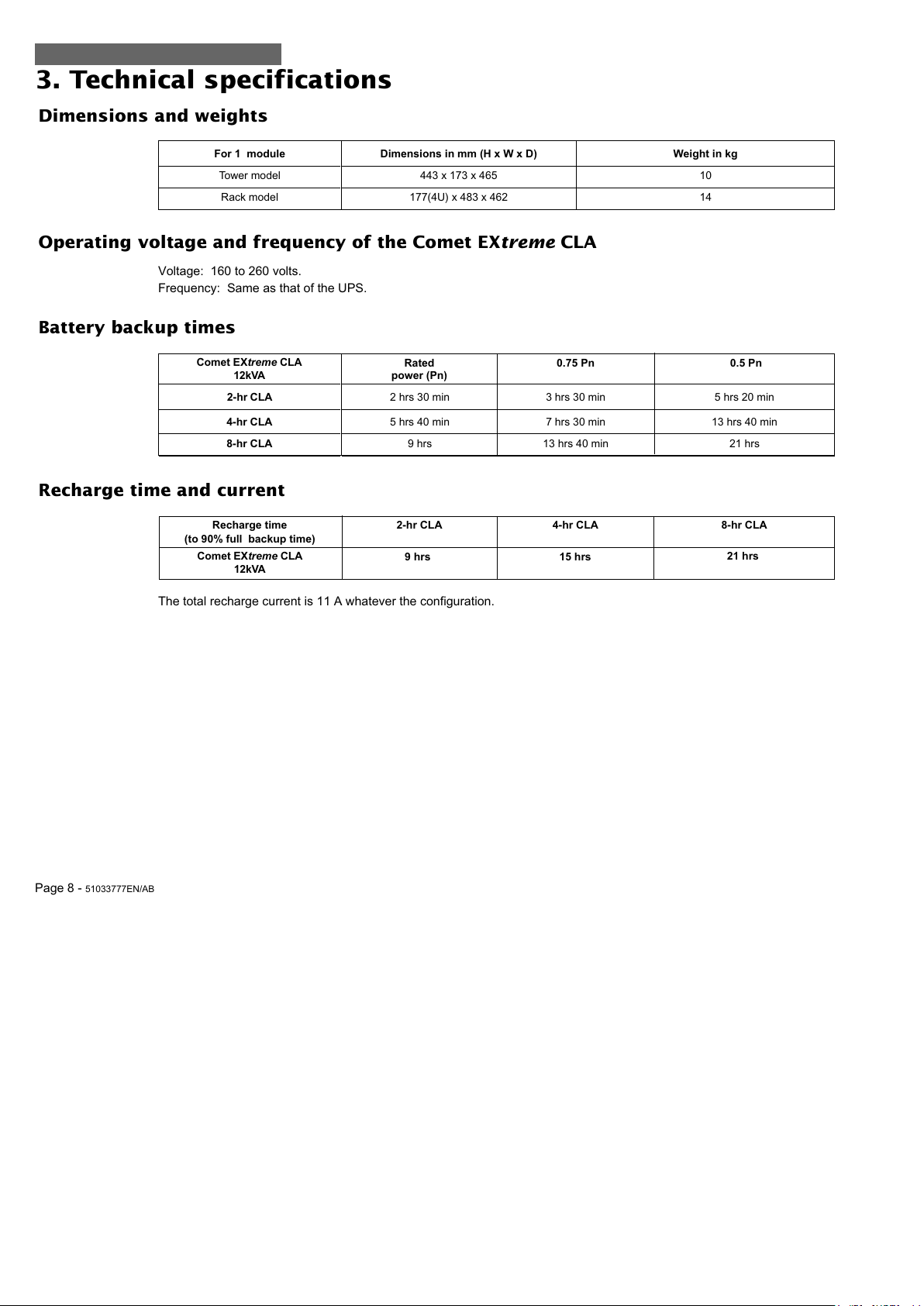

Page 8 - 51033777EN/AB

Weight in kg

Dimensions and weights

3. Technical specifications

For 1 module

Tower model

Rack model

0.75 Pn 0.5 Pn

Dimensions in mm (H x W x D)

443 x 173 x 465

177(4U) x 483 x 462

Rated

power (Pn)

Comet EXtreme CLA

12kVA

2-hr CLA

4-hr CLA

8-hr CLA

2hrs 30 min

5 hrs 40 min

9 hrs

3 hrs 30 min

7 hrs 30 min

13 hrs 40 min

5 hrs 20 min

13 hrs 40 min

21 hrs

Recharge time

(to 90% full backup time)

Comet EXtreme CLA

12kVA

2-hr CLA

9 hrs

4-hr CLA 8-hr CLA

15 hrs 21 hrs

Operating voltage and frequency of the Comet EXtreme CLA

Battery backup times

Voltage: 160 to 260 volts.

Frequency: Same as that of the UPS.

Recharge time and current

The total recharge current is 11 A whatever the configuration.

5103377700/AB
