Meyer Sound SIM 3 Manuel utilisateur

SIM®3 Remote

Guide to controlling a SIM 3 Audio Analyzer remotely

over a network connection from a laptop

SETUP GUIDE INTEGRATION TOOLS

SIM 3 Remote Setup Guide, PN 05.136.042.01 B

The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should

not be con- strued as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability

for any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of

this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,

mechanical, recording or otherwise, without prior written permission from Meyer Sound.

SIM, Meyer Sound and the Meyer Sound wave logo are registered trademarks of Meyer Sound Laboratories Inc. (Reg. U.S.

Pat. & Tm. Off.) All third-party trademarks mentioned herein are the property of their respective trademark holders.

Printed in the USA.

iii

CONTENTS

Section 1: Overview 1

What is SIM 3 Remote? 1

Section 2: Preparation 2

Acquiring the Software CD and X11 Utilities 2

Network Infrastructure / Hardware Error Handling Change 3

Section 3: Setup 6

Wireless Router Setup 6

Physical Setup With Router 8

Physical Setup Without Router 10

Section 4: Starting SIM 3 Remote 11

Starting SIM 3 Remote (OS X – All Physical Setups) 11

First Time Setup (Windows – All Physical Setups) 12

Starting SIM 3 Remote (Windows – All Physical Setups) 13

Frequently Asked Questions (FAQ) 14

OS X Keyboard Tips 14

sim 3 remote startup Guide

SECTION 1: OVERVIEW

WHAT IS SIM 3 REMOTE?

SIM 3 Remote is an application that makes it possible to control SIM 3 hardware on a remote computer via an Ethernet

network. Before using SIM 3 Remote it is important to note that SIM 3 Remote is not a standalone measurement software

and does not do anything without connection to actual SIM 3 hardware.

For simplicity we will refer to the SIM 3 machine as the local computer and the laptop/desktop as the remote

computer.

SIM 3 Remote is single client only: multiple clients cannot connect to the SIM 3 hardware at the same time.

SIM 3 Remote comes as a bootable live CD. This CD will not make any permanent changes to the SIM 3 machine. When

the SIM is booted without the disc it will be in its normal state.

SIM 3 Remote has been developed as a temporary solution in order to provide added mobility for current SIM 3 systems

while a fully integrated version of the SIM 3 software is currently under development.

section 2: preparation

ACQUIRING THE SOFTWARE CD AND X11 UTILITIES

Before you get started you will need to download some files and you will need to have one blank recordable CD (CD-R)

available to burn the Software CD.

Meyer Sound Software CD File(s) Downloads:

www.meyersound.com/products/sim/sim3/remote/SIM3_1.7.2_Remote_IP_192.168.1.160.iso

(ISO image for 192.168.1.160)

www.meyersound.com/products/sim/sim3/remote/SIM3_1.7.2_Remote_IP_192.168.1.161.iso

(optional - ISO image for 192.168.1.161)

www.meyersound.com/products/sim/sim3/remote/SIM3_1.7.2_Remote_IP_192.168.1.162.iso

(optional - ISO image for 192.168.1.162)

Burn the SIM3_1.7.2_Remote_IP_192.168.1.16x.iso file to a blank CD-Rom to make the Software CD. (see below)

Third party files not maintained or updated by Meyer Sound

For OS X (10.5 or later):

• TorunSIM3RemoteonunderOSX(10.5orlater)youshouldhaveX11installed.Itusuallyisbydefault.

• ToburntheSoftwareCDopenDiskUtility,selectthedownloaded.isoimageviaImages/Burn...

then push the Burn Icon.

For Windows:

• TorunSIM3RemoteunderWindowsXP,WindowsVista,orWindows7youneedandXmingandPuTTYinstalledon

your PC to use X11 protocol.

Xming (XWindow Server) Homepage:

www.straightrunning.com/

 PuTTY(SSHClient)Homepage:

www.chiark.greenend.org.uk/~sgtatham/putty/

• ToburntheSoftwareCDyouwillneedanyprogramthatcanburnan.isoimage.Hereisoneexample:

ImgBurn (CD Image Burner) Homepage:

www.imgburn.com/

To burn the Software CD open ImgBurn, select operation “Write image ﬁle to disc”,

select the downloaded .iso image as the “Source”, select the drive the blank CD-R is in as the “Destination”, push the

Burn Icon.

NOTE: Other operating systems can run SIM 3 Remote, however they are not supported.

SECTION 2: PREPARATION

sim 3 remote startup Guide

Network Infrastructure

In order to setup SIM 3 Remote an Ethernet 100Mbps or faster network needs to be created. While it is much easier to

have this set as a wired network SIM 3 Remote really becomes much more flexible when used in a wireless network.

To set up a wireless network the following equipment will be required:

• Wireless router capable of 802.11g or better (Linksys WRT-54GC)

• CAT5 or better cabling

SIM 3 BIOS Modiﬁcation

If you want to use SIM 3 Remote you may ship the SIM 3 machine without a keyboard, mouse and monitor. To do so you

need to enter the SIM 3 BIOS by pressing F1 at start up and under Start-up options/POST Error handling change from

“Invoke Setup” to “Ignore all“. Exit the bios saving your options.

NOTE: Shipping a SIM 3 machine without a keyboard, mouse and monitor while relying on SIM 3 Remote will

leave you no options if the CDROM drive gets damaged during transportation. So even if you don’t pack the

keyboard, mouse and monitor in the same rack it is advisable to have it on stand by in another flight case or at

least carry a USB to PS2 adapter for both the keyboard and mouse. This way you will be able to use another computer’s

keyboard, mouse and monitor to use or troubleshoot your SIM 3 machine.

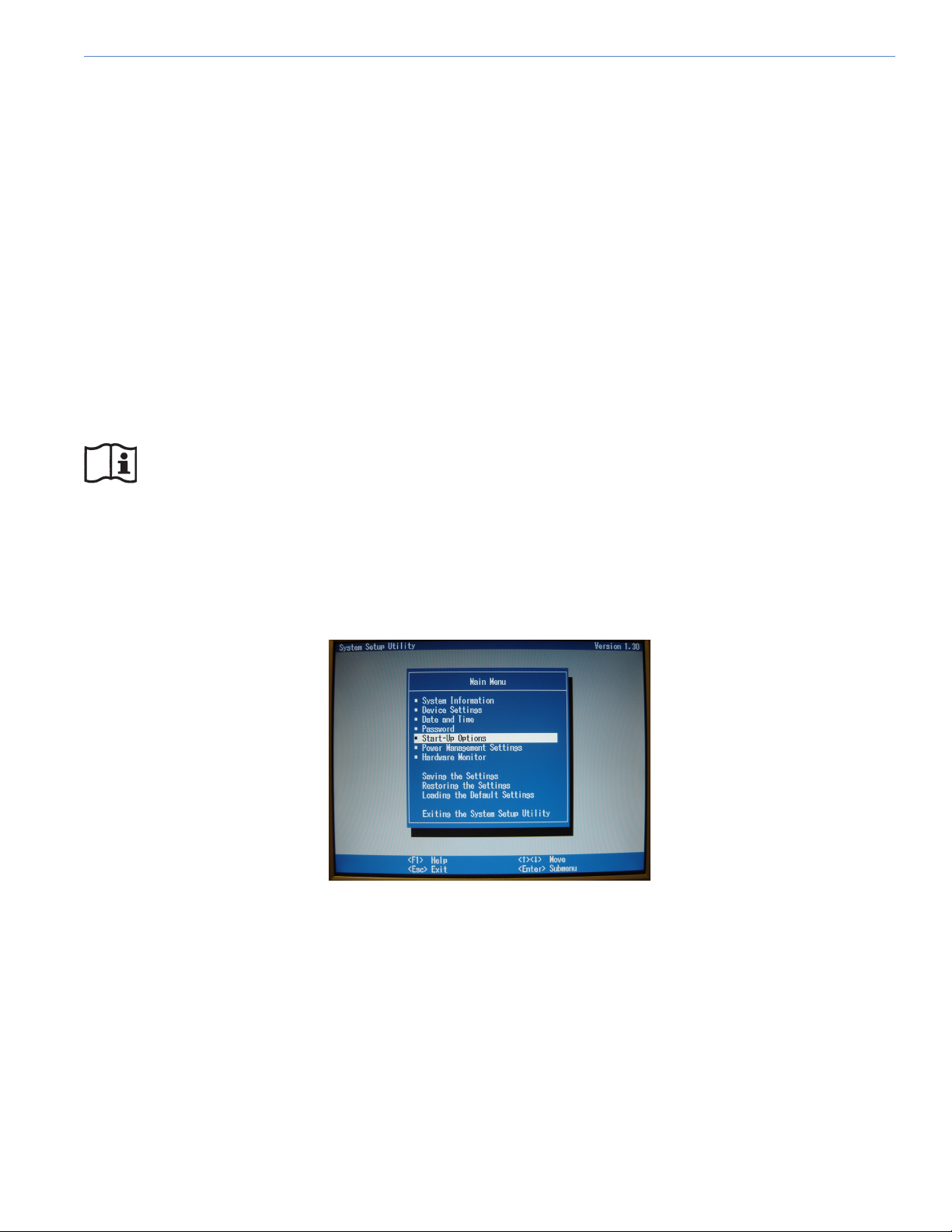

Step 1: After pressing <F1> to invoke setup the Main Menu will appear.

Use the up/down arrow keys to select “Start-Up Options” and press <Enter>

NETWORK INFRASTRUCTURE / HARDWARE ERROR HANDLING CHANGE

section 2: preparation

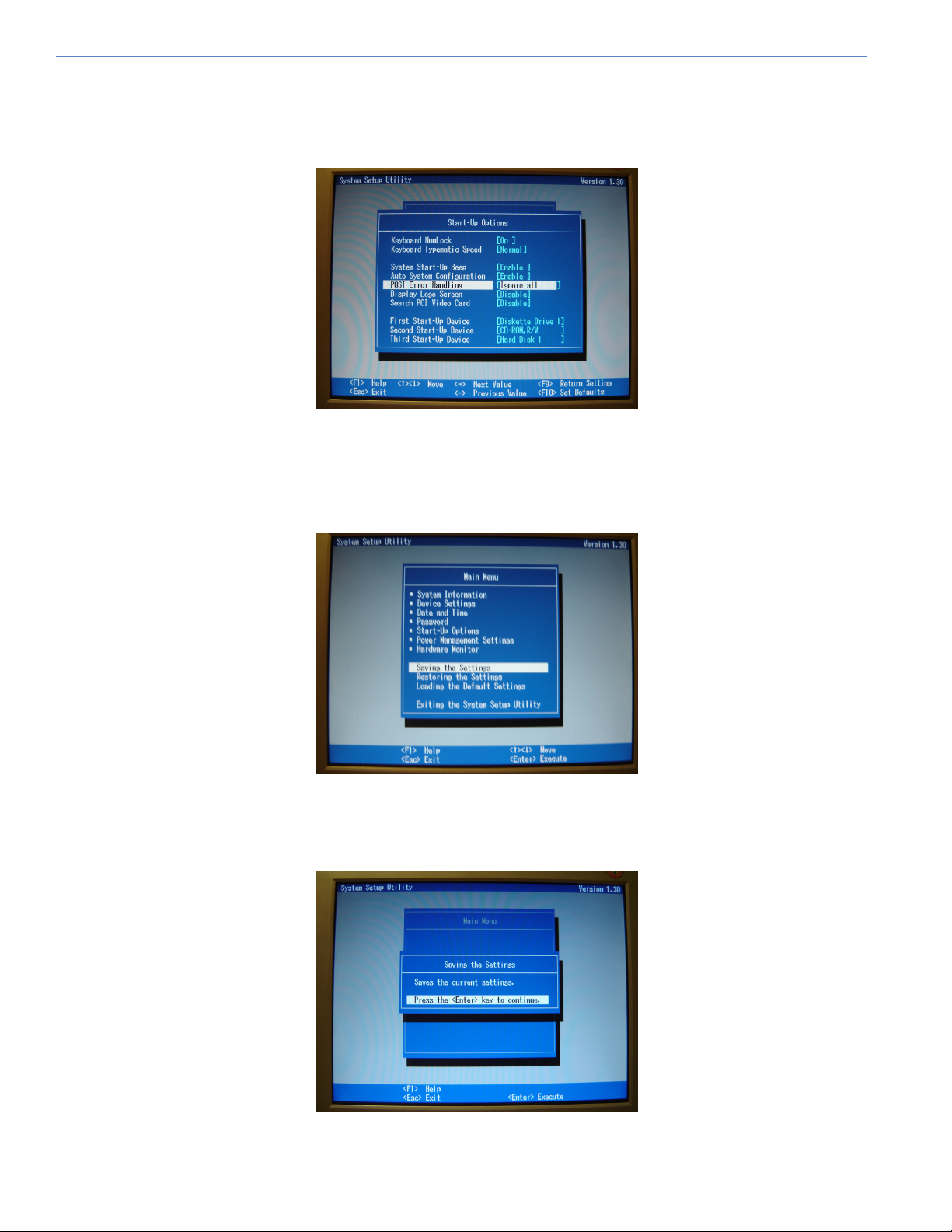

Step 2: Use the up/down arrow keys to select “POST Error Handling”

Use the right/left arrow keys to change the setting to “Ignore All”

Step 3: Press <Escape> to return to the Main Menu.

Use the up/down arrow keys to select “Saving the Settings” and press <Enter>.

Step4:Press<Enter>tocontinue.YouwillbereturnedtotheMainMenu.

sim 3 remote startup Guide

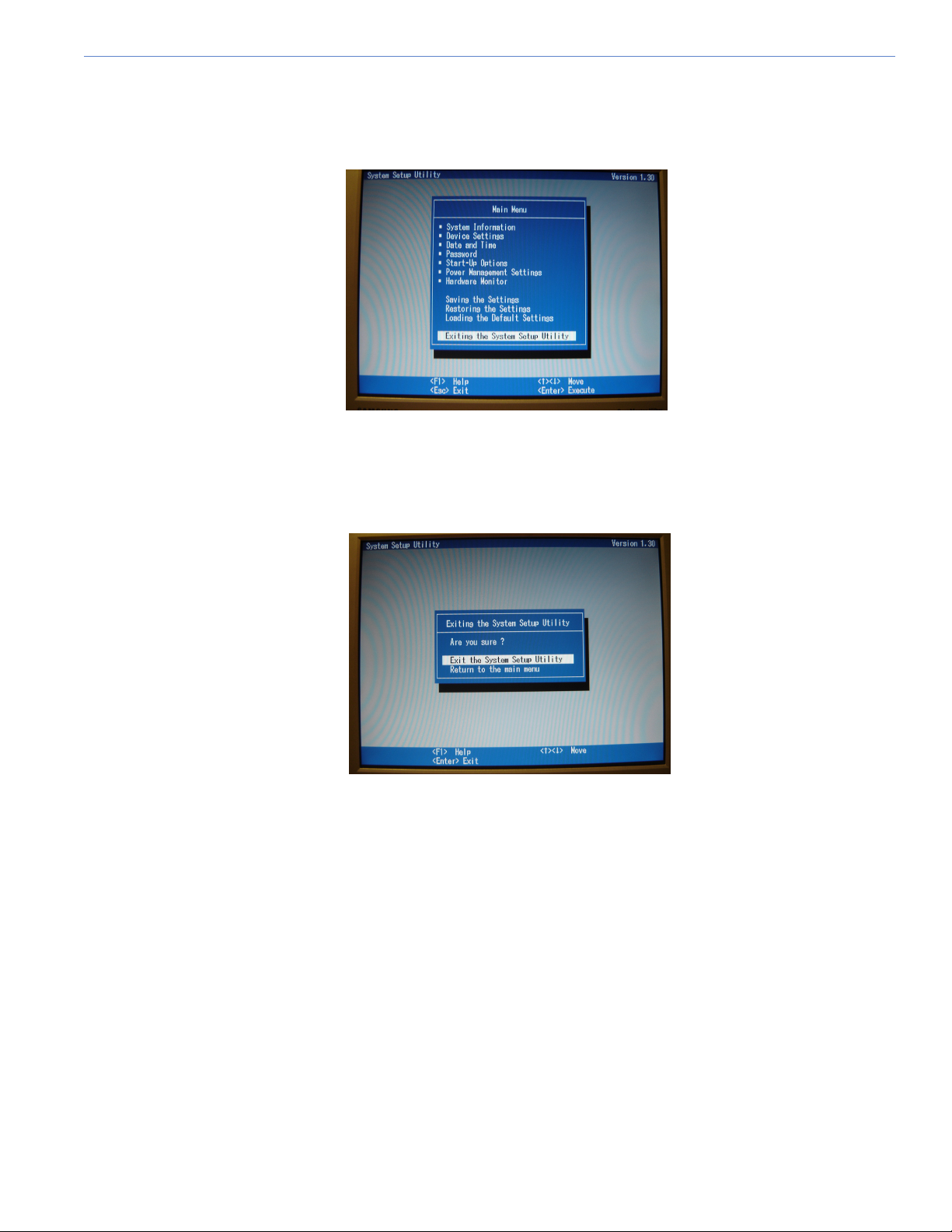

Step 5: Use the up/down arrow keys to select “Exiting the System Setup Utility”

Press <Enter>.

Step 6: Press <Enter> while “Exit the System Setup Utility” is highlighted to exit the BIOS setup.

The SIM 3 will now reboot with the new setting applied.

section 3: setup

WIRELESS ROUTER SETUP

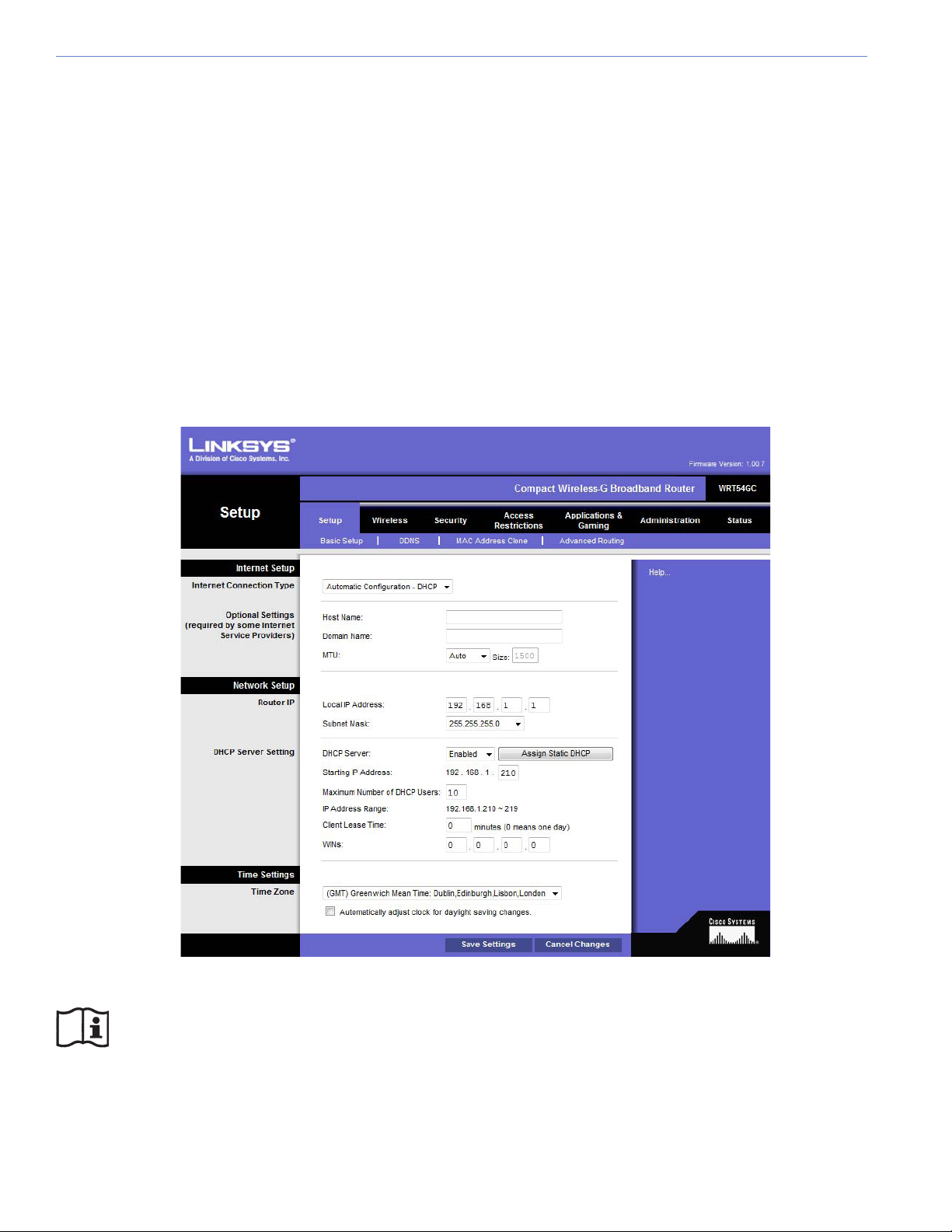

1. Enter the router basic setup page (refer to router user guide) and set the following parameters:

• Router IP address to 192.168.1.1

• Subnet Mask to 255.255.255.0

• DHCP Enabled

• Router DHCP starting IP address to 192.168.1.210

• Maximum number of DHCP users to 10

Remember to click the Save Settings button in order to implement these changes.

If the IP address of the router is changed you will need to reconnect.

SECTION 3: SETUP

NOTE: Example router software shown is for the Linksys WRT-54GC – other routers do work – please test your

setup thoroughly before relying upon it.

sim 3 remote startup Guide

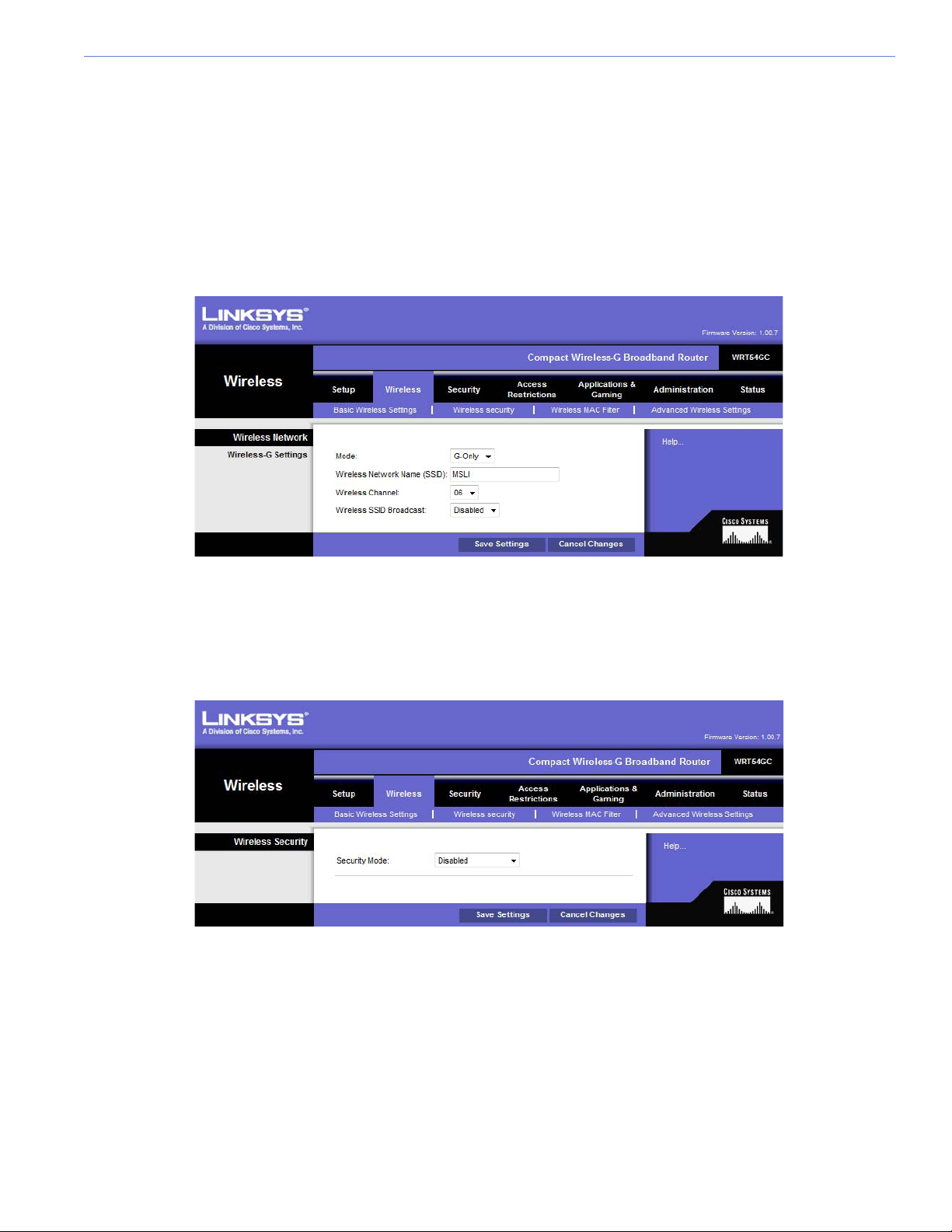

2. Go to the Wireless Setup / Basic Wireless Settings page and set the following parameters:

• Mode to G-only.

(If both router and remote computer are capable of 802.11n then N-only should be selected. Using 802.11b will result

in a very slow connection so unless it is the only available possibility it should be avoided.)

• Router SSID to MSLI

• Disable SSID broadcast

Remember to click the Save Settings button in order to implement these changes.

3. Go to the Wireless Setup/ Wireless Security page set the following parameter:

• Security mode to Disabled

Remember to click the Save Settings button in order to implement these changes.
