Metrohm OMNIS Manuel utilisateur

OMNIS Titrator

2.1001.0XX0

Product information

8.1001.8001EN / 2021-07-23

Metrohm AG

Ionenstrasse

CH-9100 Herisau

Switzerland

+41 71 353 85 85

[email protected]

www.metrohm.com

OMNIS Titrator

2.1001.0XX0

Product information

8.1001.8001EN /

2021-07-23

Technical Communication

Metrohm AG

CH-9100 Herisau

This documentation has been prepared with great care. However, errors

can never be entirely ruled out. Please send comments regarding possible

errors to the address above.

Disclaimer

Deficiencies arising from circumstances that are not the responsibility of

Metrohm, such as improper storage or improper use, etc., are expressly

excluded from the warranty. Unauthorized modifications to the product

(e.g. conversions or attachments) exclude any liability on the part of the

manufacturer for resulting damage and its consequences. Instructions and

notes in the Metrohm product documentation must be strictly followed.

Otherwise, Metrohm's liability is excluded.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents

OMNIS Titrator

￭￭￭￭￭￭￭￭ III

Table of contents

1 Overview 1

1.1 OMNIS Titrator – Product description ................................ 1

1.2 OMNIS Titrator – Product versions ..................................... 1

1.3 OMNIS Titrator – Overview .................................................. 2

1.4 Symbols and conventions .................................................... 4

1.5 Further information .............................................................. 4

1.6 Accessories ............................................................................ 4

2 Safety 6

2.1 Intended use ......................................................................... 6

2.2 Responsibility of the operator ............................................. 6

2.3 Requirements for operating personnel ............................... 7

2.4 Safety instructions ................................................................ 7

2.4.1 Danger from electrical potential ............................................... 7

2.4.2 Danger from biological and chemical hazardous substances ..... 7

2.4.3 Danger from highly flammable substances ............................... 8

2.4.4 Danger from leaking liquids ..................................................... 8

2.4.5 Danger during transport of the product ................................... 9

2.5 Design of warning messages ............................................... 9

2.6 Meaning of warning signs ................................................. 10

3 Technical specifications 12

3.1 Ambient conditions ............................................................ 12

3.2 OMNIS Titrator – Energy supply ........................................ 12

3.3 Magnetic stirrer – Energy supply ...................................... 12

3.4 Measuring module – Energy supply .................................. 13

3.5 OMNIS Titrator – Dimensions ............................................ 13

3.6 Magnetic stirrer – Dimensions ........................................... 13

3.7 Measuring module – Dimensions ...................................... 14

3.8 OMNIS Titrator – Housing ................................................. 14

3.9 Magnetic stirrer – Housing ................................................ 14

3.10 Measuring module – Housing ............................................ 15

3.11 OMNIS Titrator – Connectors specifications .................... 15

3.12 Measuring Module Analog – Connectors specifica-

tions ..................................................................................... 16

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

IV ￭￭￭￭￭￭￭￭

OMNIS Titrator

3.13 Measuring Module Digital – Connector specifications .... 17

3.14 Display specifications ......................................................... 17

3.15 Measuring Module Analog – Display specifications ........ 17

3.16 Measuring Module Digital – Display specifications ......... 17

3.17 Measuring Module Analog – Measuring specifications .. 18

3.18 OMNIS Titrator – Liquid Handling specifications ............ 19

3.19 Magnetic stirrer – Specifications ....................................... 19

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview

￭￭￭￭￭￭￭￭ 1

1 Overview

1.1 OMNIS Titrator – Product description

The OMNIS Titrator is the central instrument of an OMNIS titration system.

The OMNIS Titrator is responsible for the energy supply to all of the mod-

ules in the titration system and for communication between the titration

system and the OMNIS Software. The scope of the functions of the

OMNIS Titrator is defined in the selected function license.

1.2 OMNIS Titrator – Product versions

The product is available in the following versions:

Table 1 Product versions

Article number Designation Magnetic stirrer Function license

2.1001.0010 OMNIS Titrator without individual

2.1001.0020 OMNIS Titrator with individual

2.1001.0110 OMNIS Basic Titrator without Basic

2.1001.0120 OMNIS Basic Titrator with Basic

2.1001.0210 OMNIS Advanced

Titrator

without Advanced

2.1001.0220 OMNIS Advanced

Titrator

with Advanced

2.1001.0310 OMNIS Professional

Titrator

without Professional

2.1001.0320 OMNIS Professional

Titrator

with Professional

Information on function licenses is available on the Metrohm website or

from the regional Metrohm representative.

The article number and serial number for identifying the product can be

found on the type plate:

OMNIS Titrator – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

2￭￭￭￭￭￭￭￭

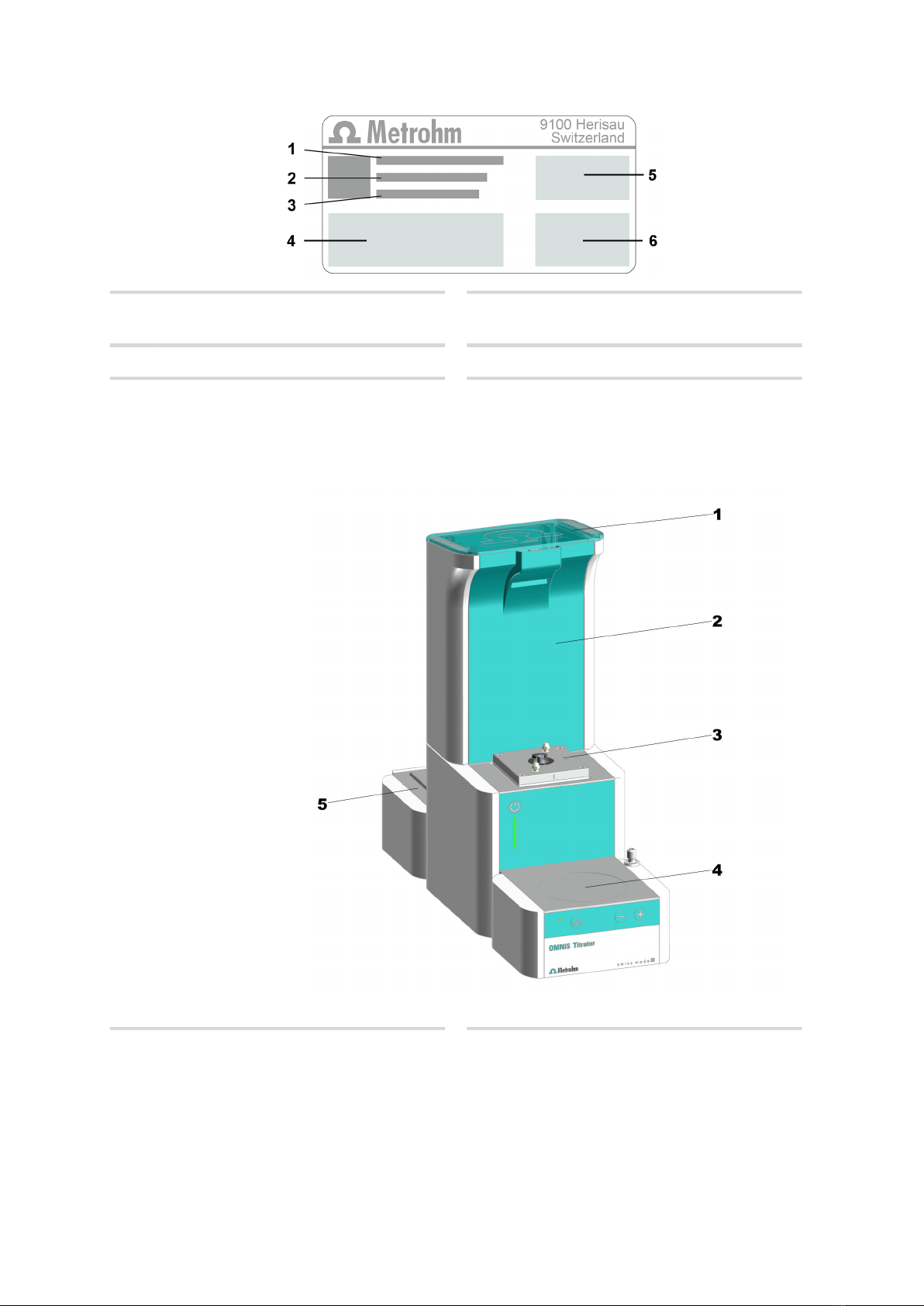

1(01) = Article number in accordance

with GS1 standard

2(21) = Serial number

3(240) = Metrohm article number 4Certification

5Certification 6Technical specifications

1.3 OMNIS Titrator – Overview

Figure 1 OMNIS Titrator – Front

1Lid 2Space for measuring modules

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview

￭￭￭￭￭￭￭￭ 3

3Dosing drive 4Magnetic stirrer

5Platform

For chemical bottles

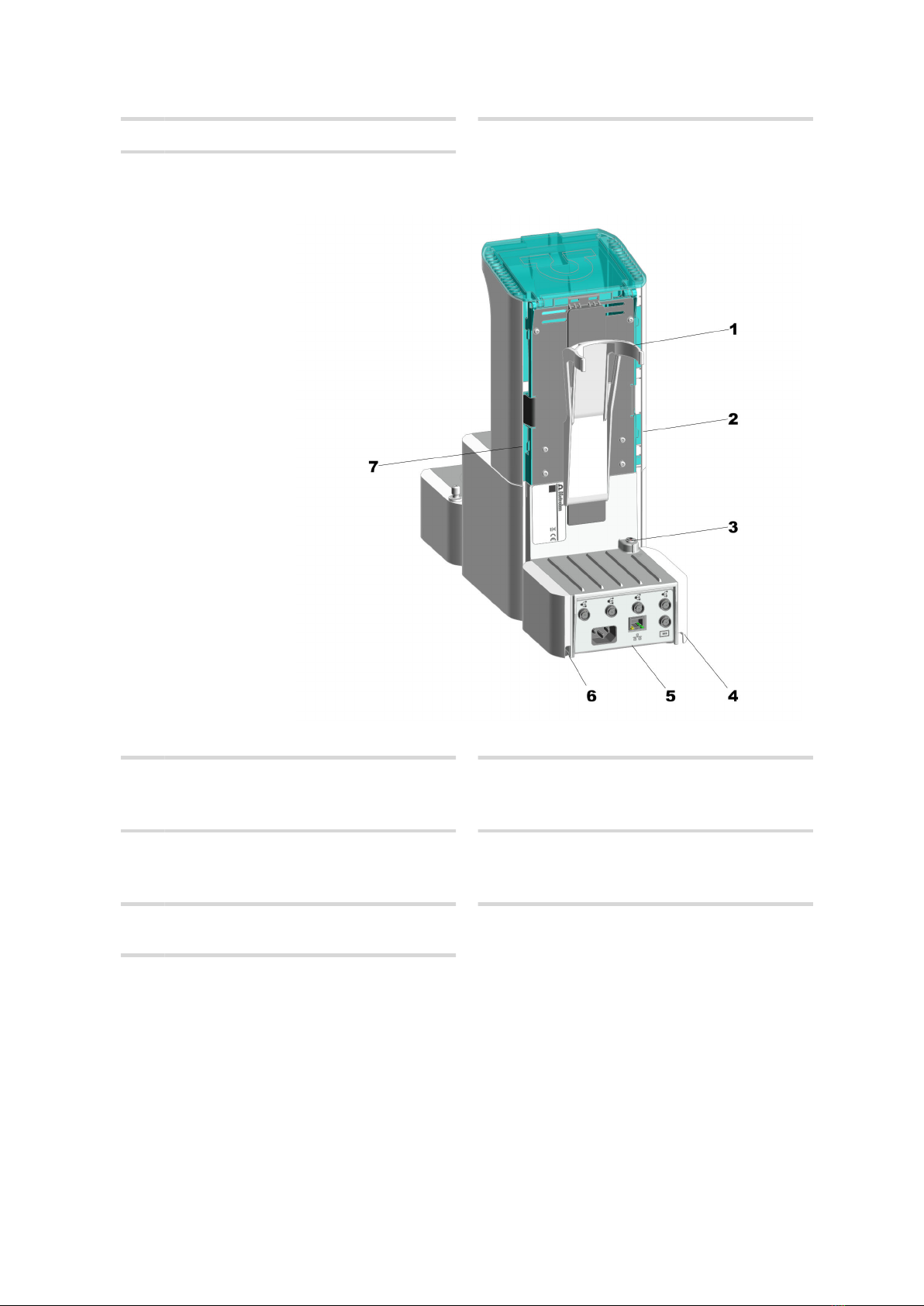

Figure 2 OMNIS Titrator – Rear

1Bottle holder 2Cable guide

On the side to the right. For Liquid Adapter

cable

3MSI connector

MSI = Metrohm Solution Identification. Con-

nection socket for Liquid Adapter cable

4Cable guide

Bottom right

5Interfaces 6Cable guide

Bottom left

7Cable guide

On the side to the left. For rod stirrer cable

or electrode cable

Symbols and conventions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

4￭￭￭￭￭￭￭￭

1.4 Symbols and conventions

The following formatting may appear in the documentation:

Cross-reference to figure legend

The first number refers to the figure number. The

second number refers to the product part in the fig-

ure.

Instruction step

Numbers indicate the order of the instructions steps.

Method Names of parameters, menu items, tabs and dialog

windows

File ▶ New Menu path

[Continue] Button or key

1.5 Further information

The Metrohm Knowledge Base https://guide.metrohm.com always pro-

vides the current version of this document. Further instructions, leaflets,

release notes etc. may be available, depending on the product. You can

directly access the required information or the associated PDF document

using the full-text search function and filters.

1.6 Accessories

Up-to-date information on the scope of delivery and on optional accesso-

ries can be found on the Metrohm website. Download this information as

follows:

Downloading the accessories list

1Go to https://www.metrohm.com.

2Enter the article number of the product (e.g. 2.1001.0010) into the

search field.

The search result is displayed.

3Click on the product.

Detailed information regarding the product is shown on various tabs.
