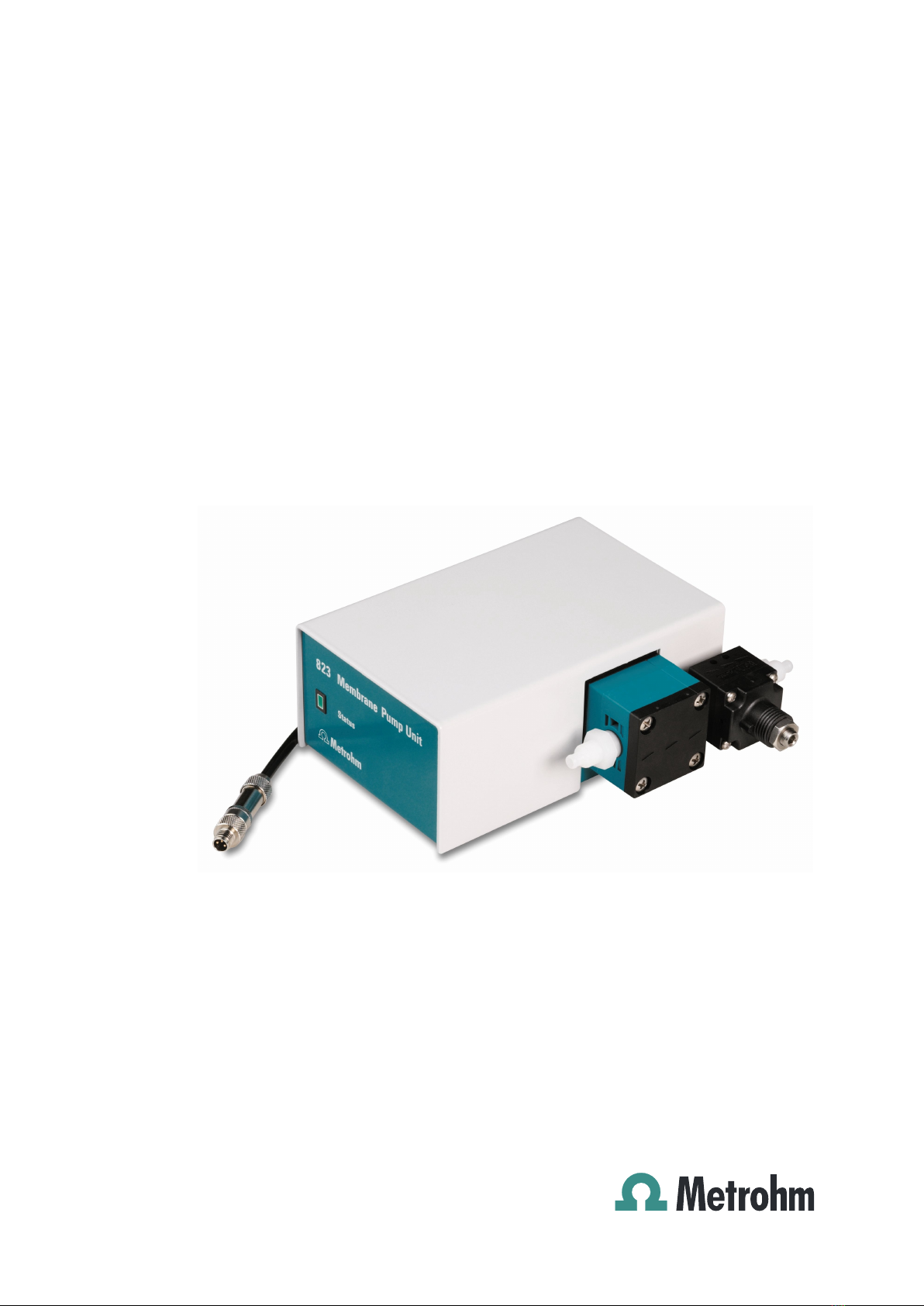

Metrohm 823 Membrane Pump Unit Manuel utilisateur

823 Membrane Pump Unit

Manual

8.823.8001EN / 2019-11-29

Metrohm AG

CH-9100 Herisau

Switzerland

Phone +41 71 353 85 85

Fax +41 71 353 89 01

[email protected]

www.metrohm.com

823 Membrane Pump Unit

Manual

8.823.8001EN / 2019-11-29

Technical Communication

Metrohm AG

CH-9100 Herisau

[email protected]

This documentation has been prepared with great care. However, errors

can never be entirely ruled out. Please send comments regarding possible

errors to the address above.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents

￭￭￭￭￭￭￭￭ III

Table of contents

1 Introduction 1

1.1 Instrument description ......................................................... 1

1.1.1 Model versions ........................................................................ 1

1.1.2 Connectors .............................................................................. 2

1.1.3 Intended use ........................................................................... 2

1.2 About the documentation ................................................... 2

1.2.1 Symbols and conventions ........................................................ 2

1.3 Safety instructions ................................................................ 3

1.3.1 General notes on safety ........................................................... 3

1.3.2 Electrical safety ........................................................................ 3

1.3.3 Tubing and capillary connections ............................................. 4

1.3.4 Flammable solvents and chemicals ........................................... 5

1.3.5 Recycling and disposal ............................................................. 5

2 Overview of the instrument 6

2.1 Mode of operation of the membrane pump ...................... 6

3 Installation 8

3.1 Setting up the instrument .................................................... 8

3.1.1 Packaging ................................................................................ 8

3.1.2 Checks .................................................................................... 8

3.1.3 Location .................................................................................. 8

3.2 Installing the inlet tubing and outlet tubing ...................... 8

3.3 Connecting the membrane pump ..................................... 10

3.3.1 Connection to a Sample Processor ......................................... 10

3.3.2 Connection to the 731 Relay Box .......................................... 11

4 Operation 13

5 Operation and maintenance 14

5.1 General notes ...................................................................... 14

5.1.1 Care ...................................................................................... 14

5.1.2 Maintenance by Metrohm Service .......................................... 14

5.2 Tubings ................................................................................ 15

6 Troubleshooting 16

6.1 Problems .............................................................................. 16

7 Technical specifications 17

7.1 Membrane pump ................................................................ 17

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

IV ￭￭￭￭￭￭￭￭

7.2 Power supply ...................................................................... 17

7.3 Interfaces and connectors ................................................. 17

7.4 Safety specifications ........................................................... 17

7.5 Electromagnetic compatibility (EMC) ................................ 18

7.6 Ambient temperature ......................................................... 18

7.7 Reference conditions .......................................................... 18

7.8 Dimensions/material ........................................................... 19

8 Accessories 20

Index 21

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of figures

￭￭￭￭￭￭￭￭ V

Table of figures

Figure 1 Front 823 Membrane Pump Unit ....................................................... 6

Figure 2 Mode of operation of the membrane pump ...................................... 6

Figure 3 Connecting the tubings ..................................................................... 9

Figure 4 Screwing the union nuts tightly ......................................................... 9

Figure 5 823 Membrane Pump Unit connected directly to the Sample Pro-

cessor ............................................................................................. 10

Figure 6 823 Membrane Pump Unit via the Remote Box and 731 Relay Box .. 11

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction

￭￭￭￭￭￭￭￭ 1

1 Introduction

1.1 Instrument description

The 823 Membrane Pump Unit is a versatile membrane pump. It was

designed specifically for the production operation and laboratory environ-

ment and enables a wide range of applications. Particularly when used in

a Metrohm automation system with Sample Processor and various analysis

instruments, it is of indisputable service in processing large sample series

in the complete titration area and in various measuring applications or

other analytical tasks.

The 823 Membrane Pump Unit uses the membrane pump principle (see

chapter 2.1, page 6) and is suitable for pumping all types of liquid

media.

NOTICE

The 823 Membrane Pump Unit is not suitable for pumping liquids with

solids content.

The flow rate of at least 450 mL/min opens up a wide range of applica-

tions.

1.1.1 Model versions

The 823 Membrane Pump Unit is available in the following three versions:

2.823.0010 823 Membrane Pump

Unit

2.823.0020 823 Membrane Pump

Unit

with aspiration equip-

ment

2.823.0030 823 Membrane Pump

Unit

with rinsing equipment

Each version includes different accessories according to its use (see chap-

ter 8, page 20).

1.2 About the documentation ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

2￭￭￭￭￭￭￭￭

1.1.2 Connectors

The 823 Membrane Pump Unit needs 16 - 24 V DC voltage.

Power is supplied to the pump via the direct connection to a Sample Pro-

cessor (e.g. 814 or 815) or to the 731 Relay Box (connection via adapter

cable 6.2160.010).

1.1.3 Intended use

The 823 Membrane Pump Unit is designed for usage in automated sys-

tems in analytical laboratories.

This instrument is suitable for pumping chemicals and flammable samples.

Use of the 823 Membrane Pump Unit therefore requires the user to have

basic knowledge and experience in handling toxic and caustic substances.

Knowledge with respect to the application of the fire prevention measures

prescribed for laboratories is also mandatory.

1.2 About the documentation

CAUTION

Please read through this documentation carefully before putting the

instrument into operation. The documentation contains information

and warnings which the user must follow in order to ensure safe opera-

tion of the instrument.

1.2.1 Symbols and conventions

The following symbols and formatting may appear in this documentation:

Cross-reference to figure legend

The first number refers to the figure number, the sec-

ond to the instrument part in the figure.

Instruction step

Carry out these steps in the sequence shown.

Method Dialog text, parameter in the software

File ▶ New Menu or menu item

[Next] Button or key

WARNING

This symbol draws attention to a possible life-threat-

ening hazard or risk of injury.
