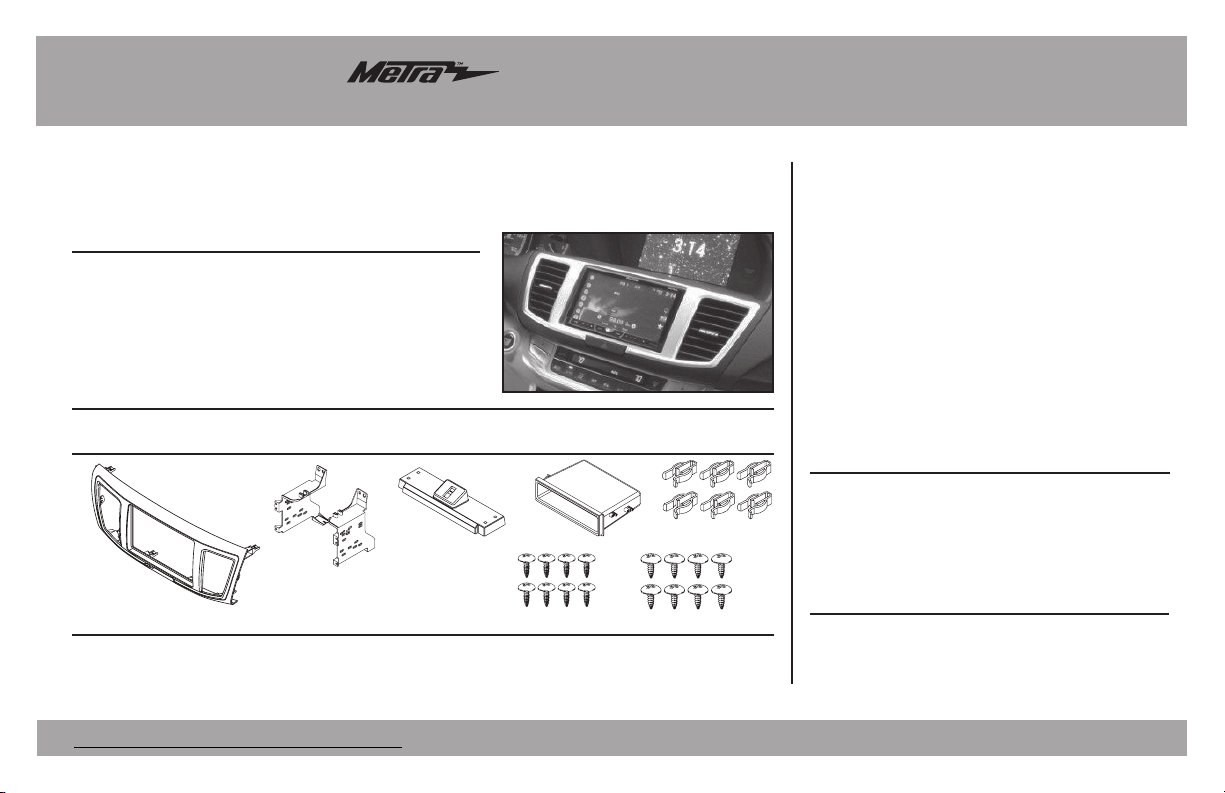

Installation Instructions for part 99-7804
METRA - The World’s best kits®
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted two-tone to match the factory dash
99-7804B - Black with silver accent
99-7804HG - High gloss black with silver accent
• Retains factory color screen
• A) Radio housing trim panel • B) Brackets • C) Top bracket • D) Pocket • E) (6) White panel clips
• F) (8) #6 x 3/8” Phillips screws • G) (8) #8 x 3/8” Phillips screws • H) Display retention interface and harness (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Included
Antenna Adapter: 40-HD11
Steering wheel control interface: ASWC-1 (sold separately)
• Panel removal tool • Phillips screwdriver
TOOLS REQUIRED
Honda Accord 2013-up
99-7804
A
F
B
G
C D E
Dash Disassembly................................................2-3
Kit Preparation ........................................................ 4
Kit Assembly
–ISO DIN radio provision with pocket...................... 5
–ISO DDIN radio provision ...................................... 6
Wiring Instructions............................................. 7-8
Touch Screen Instructions................................9-10
Table of Contents
99-7804
2

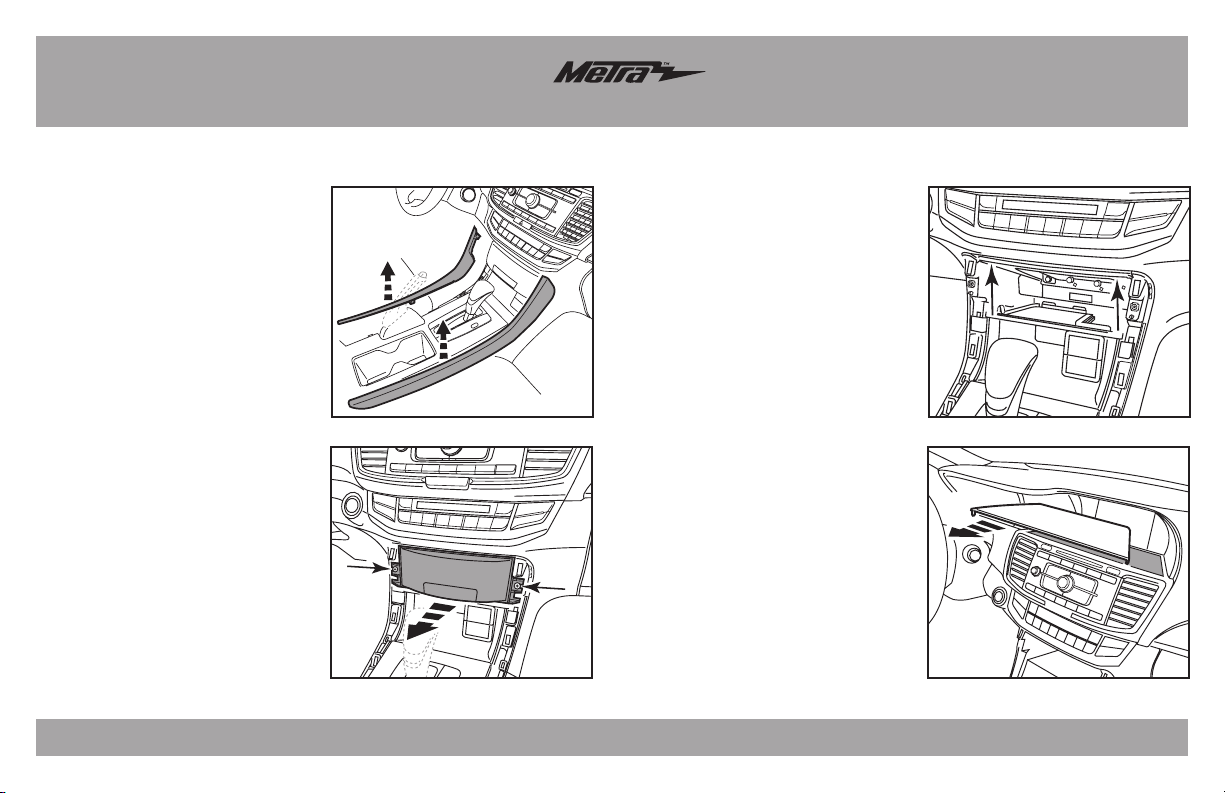

Dash Disassembly
1. Unclip and remove the side trim
panels from each side of the
console. (Figure A)
2. Remove (2) Phillips screws
exposed on pocket then remove
the pocket. (Figure B)
3. Remove (2) 8 mm screws facing
up on bottom of radio chassis
inside pocket cavity. (Figure C)
4. Unclip and remove the small trim
panel between the radio and
steering column. (Models with auto
climate will have a thermistor hose
attached to this panel. Disconnect
the hose under the dash above the
gas pedal to give it enough slack
before re-installing the panel.)
(Figure D)
Continue on the next page
(Figure A) (Figure C)
(Figure B) (Figure D)
99-7804
3

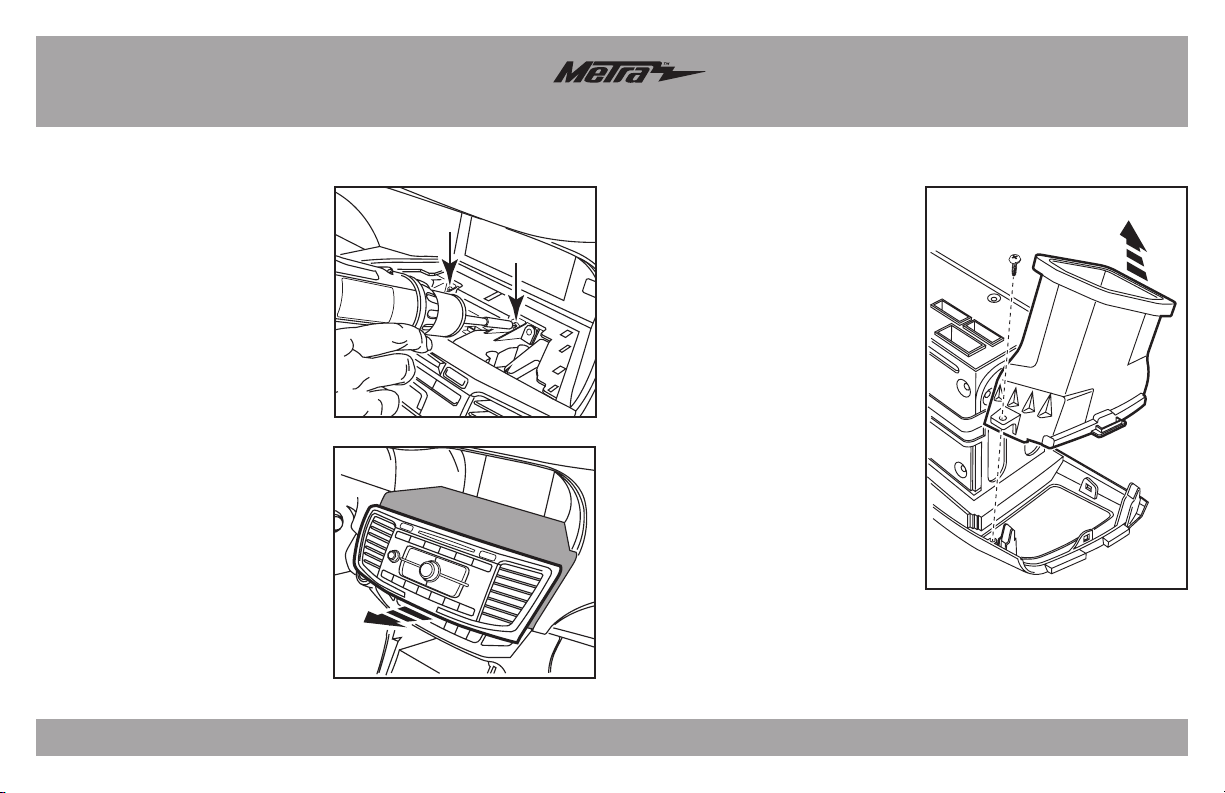

Dash Disassembly (cont)
5. Remove (2) Phillips screws on top
of radio. (Figure E)
6. Unclip and remove the radio
assembly. (Figure F)
7. Remove (1) Phillips screw from
each A/C vent then unclip and
remove the vents. (Figure G)
8. Remove (2) Phillips screws
securing the hazard light switch
and retain for kit assembly.
Continue to Kit Assembly
(Figure E)
(Figure G)
(Figure F)
99-7804

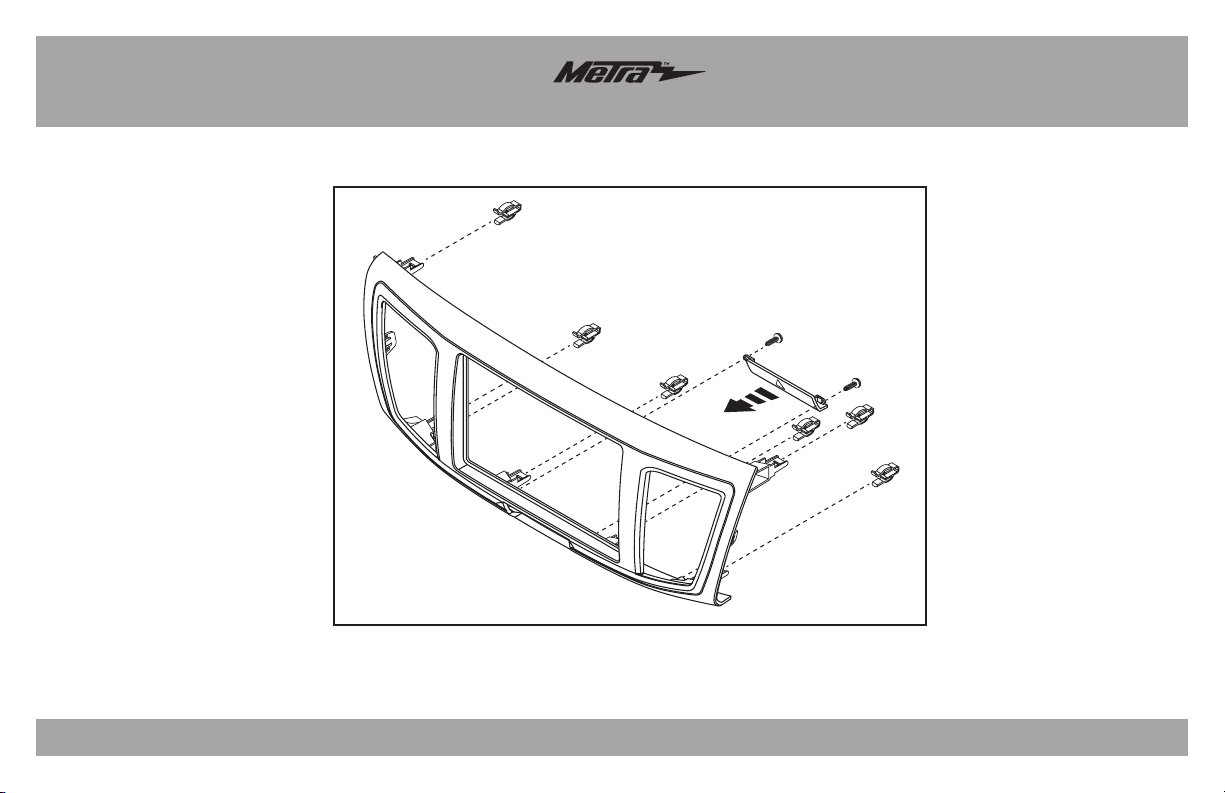

Kit Preparation
1. Attach the hazard light switch to
the radio trim panel using (2) of the
supplied #8 x 3/8” Phillips screws.
(Figure A)
2. Attach the (6) white panel clips to
the radio housing trim panel.
(Figure A)
Continue on the next page
(Figure A)
4
99-7804

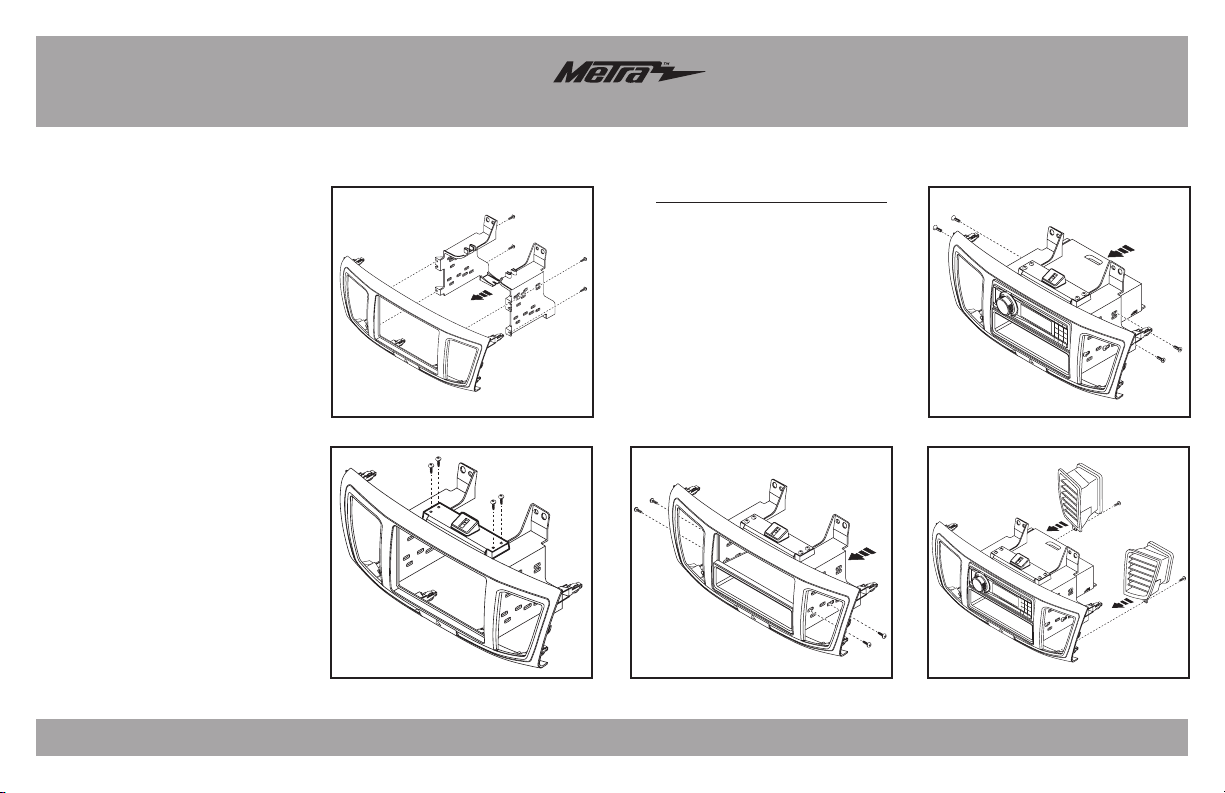

ISO DIN radio provision with pocket
1. Attach the radio brackets to the
radio housing trim panel using (4)
of the #6 x 3/8” Phillips screws.
(Figure A)
2. Attach the top bracket to the top of
the radio brackets using (4) of the
#6 x 3/8” Phillips screws supplied.
(Figure B)
3. Mount the pocket to the bracket/
panel assembly with (4) of the
#8 x 3/8” Phillips screws supplied.
(Figure C)
4. Slide the radio into the assembly
and secure with screws supplied
with the radio. (Figure D)
5. Attach the A/C vents to the radio
trim panel and secure using (2)
of the supplied #8 x 3/8” Phillips
screws. (Figure E)
6. Locate the factory wiring harness
in the dash. Follow the Wiring and
Initialization section of this manual
before completing the installation.
7. Mount the new radio assembly into
the dash and reassemble dash in
reverse order of disassembly.
Kit Assembly
(Figure A) (Figure D)
(Figure B) (Figure E)(Figure C)
5
99-7804

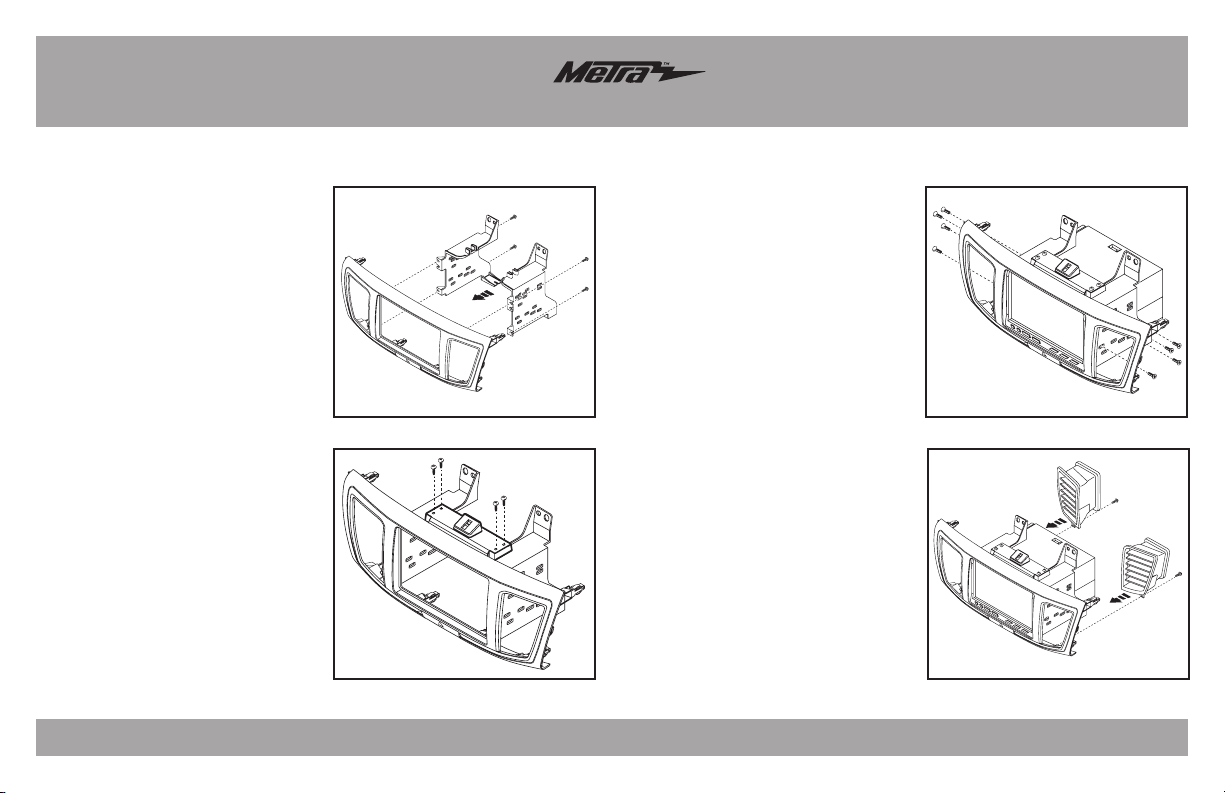

ISO DDIN radio provision
1. Attach the radio brackets to the
radio housing trim panel using
(4) of the #6 x 3/8” Phillips screws.
(Figure A)
2. Attach the top bracket to the top of
the radio brackets using (4) of the
#6 x 3/8” Phillips screws supplied.
(Figure B)
3. Slide the radio into the bracket/
trim panel assembly and secure
to the assembly using the screws
supplied with the radio. (Figure C)
4. Attach the A/C vents to the radio
trim panel and secure using (2)
of the supplied #8 x 3/8” Phillips
screws. (Figure D)
5. Locate the factory wiring harness
in the dash. Follow the Wiring and
Initialization section of this manual
before completing the installation.
6. Reassemble the dash in reverse
order of disassembly.
Kit Assembly
(Figure C)(Figure A)
(Figure B) (Figure D)
6
99-7804
7
Wiring Instructions
Harnesses Included:
• 24-pin gray Honda connector to 14-pin black interface connector, with
pre-wired 12-pin black ASWC-1 harness.
• 24-pin and 12-pin gray Honda connector to 22-pin black interface connector,
with a Yellow female RCA.
• 8-pin gray Honda subwoofer connector to White RCA.
•Blue connector to White connector LVDS cable.
Connections to be made:
From the 24-pin gray Honda connector to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Blue/White wire to the amp turn on wire (this wire must be
connected to hear sound from the factory amplifier).
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.
99-7804
8
Wiring Instruction
Connections to be made:
From the 14-pin black connector to the aftermarket radio:
• Connect the Orange wire to the illumination wire. (If the aftermarket radio has
no illumination wire, tape off the Orange wire).
The following wires are for aftermarket multimedia/navigation radios that
provide these wires (if not required, tape them off and disregard them):
• Connect the Light Green wire to the parking brake wire (if applicable).
• Connect the Blue/Pink wire to the speed sense wire (if applicable).
• Connect the Green/Purple wire to the reverse wire (if applicable).
If not equipped with a factory Rearview Camera and one wants to be added:
From the 22-pin black connector to the aftermarket radio:
• Connect the Yellow RCA to the aftermarket rearview camera (female to female
barrel connector may be needed depending on camera brand, not provided).
Note: If an aftermarket backup camera is connected it must be selected
in the Menu. (Menu button on SWC>Camera Settings>Backup Camera
Source>Aftermarket Backup Camera)
If Equipped with Factory Subwoofer:
From the 8-pin gray Honda connector to the aftermarket radio:
• Connect the White RCA to the “Subwoofer Output”
(a Y-RCA adapter may be needed, not provided).
ASWC-1 (if installing)
• After the interface is initialized, plug the ASWC-1 into the 12-pin harness
of the 7804 and refer to the ASWC-1 instructions.
Note: There are a couple harnesses in the vehicle that there will be no
harness connections; these are not needed in the installation.
•Green and Gray connectors with similar small square connectors.
• 20-pin, 18-pin, & 5-pin gray connectors.
99-7804
9

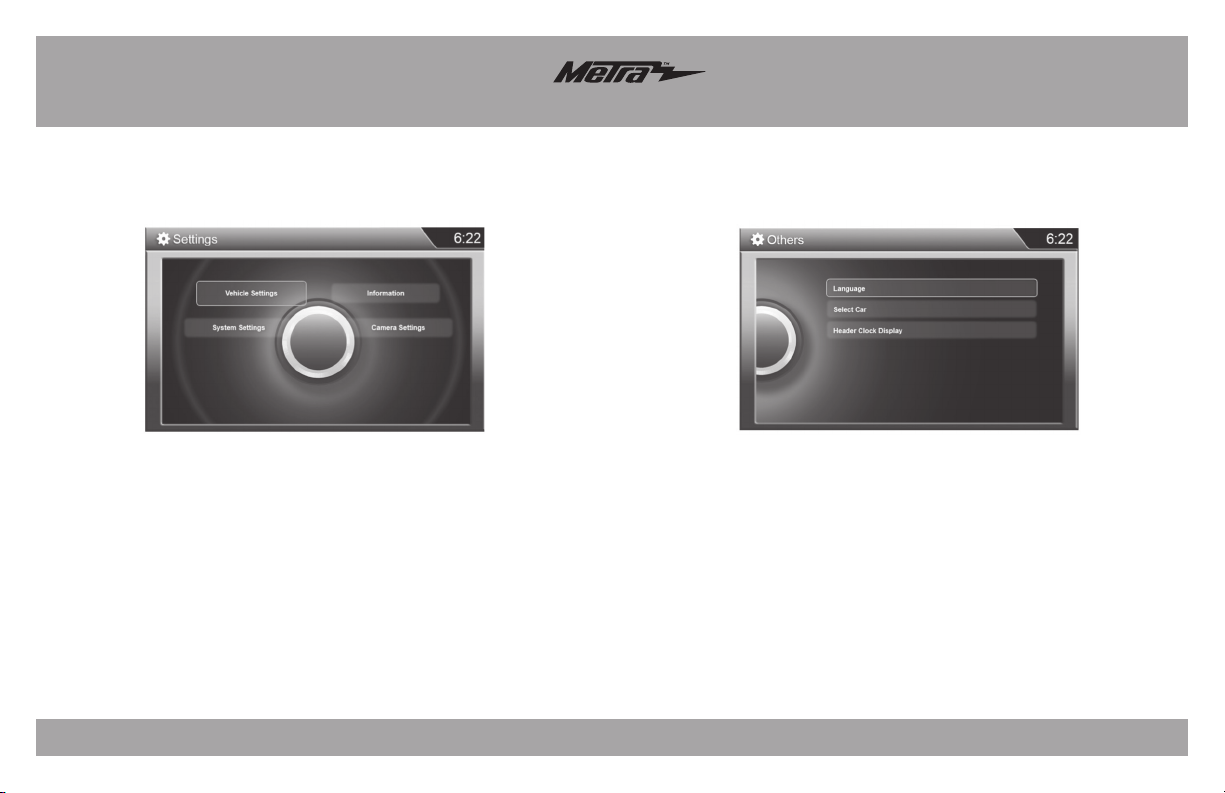

Touch Screen Instructions
When the interface first boots up, the
OEM screen will show an Android
Boot up sequence, DO NOT touch any
controls until the clock screen appears.
• Enter the System settings menu
to select the correct year range
for the vehicle; the instructions
to enter this menu are as follows.
Press the Menu button on the SWC
to enter the personalization menu
The steering wheel controls for the
personalization menu will override the
controls for the radio.
• Press the Menu button to enter the
personalization menu
To navigate through the menu you will
continue to use the steering wheel
controls.
then continue through the menus.
(System Settings>Others>Select
Car>2013 & 2014 Accord
OR 2015 Accord) If this step is not
done immediately after the boot
sequence, the interface will need
the power re-cycled by completely
unplugging the interface, waiting
5-10 seconds, and re-attaching
the harnessing.
The controls are as follows:
Volume up and down = Cycle
through the menu options
Source (SRC) = Enter
Seek left = Back or Return
Seek right = Not used
The personalization menu is the
same as the factory with a couple
differences.
Initialization Personalization Menu Procedure
99-7804

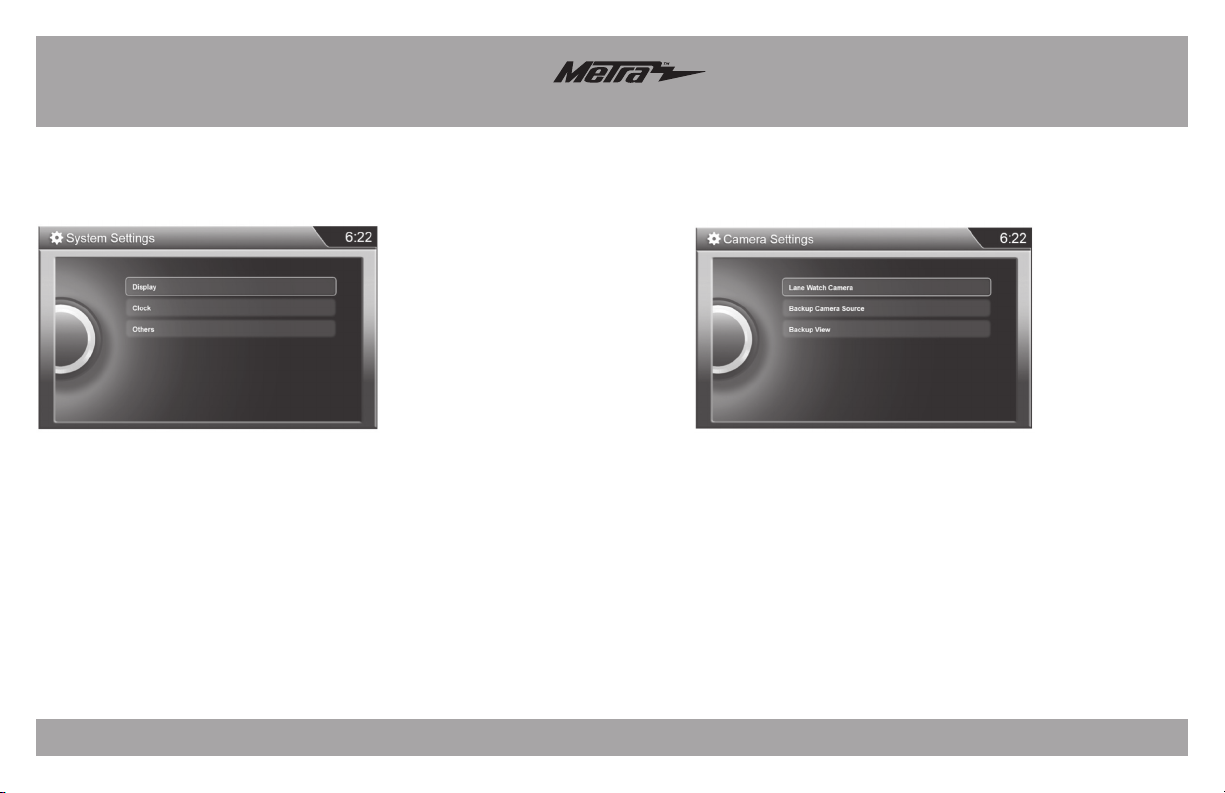

Touch Screen Instructions
10
This menu option allows for a background change
on the clock, the ability to adjust the clock, and
select the year range for interface.
This menu allows you to turn the
LaneWatch camera on and off, change
the view of the Rearview Camera, and
allow you to add a aftermarket camera
if the car is not equipped with a factory
rearview camera.
Note: Lane watch camera is default
to on. If an OE Lane watch camera is
not present please turn off the “Trigger
with Right Turn Signal” option which
located in this setting screen.
LaneWatch Calibration
Note: The LaneWatch button is located on the left
side of the steering wheel, on the stalk.
•
Press and hold the LaneWatch button for 50
seconds to begin the LaneWatch aiming procedure
(this procedure should only be done by a Honda
authorized technician). At this point the display
will also show an image of the LaneWatch
camera feed, with instructions on what to do
— a Honda authorized technician will know
what to do from here.
System Settings Camera Settings
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Metra Electronics Accessoires automobiles
Metra Electronics
Metra Electronics 99-6507 Manuel utilisateur
Metra Electronics
Metra Electronics 70-9800 Manuel utilisateur
Metra Electronics
Metra Electronics 95-3305 Manuel utilisateur
Metra Electronics
Metra Electronics 99-3300 Manuel utilisateur
Metra Electronics
Metra Electronics 2004-2006 Chrysler Pacifica Manuel utilisateur
Metra Electronics
Metra Electronics 99-3009 Manuel utilisateur
Metra Electronics
Metra Electronics 108-CH4 Manuel utilisateur
Metra Electronics
Metra Electronics 99-7524B Manuel utilisateur
Metra Electronics
Metra Electronics 99-8723B Manuel utilisateur
Metra Electronics
Metra Electronics 95-7867 Manuel utilisateur
Metra Electronics
Metra Electronics 99-7328 Manuel utilisateur
Metra Electronics
Metra Electronics 99-1005 Manuel utilisateur
Metra Electronics
Metra Electronics 99-8110 Manuel utilisateur
Metra Electronics
Metra Electronics 95-7504 Manuel utilisateur
Metra Electronics
Metra Electronics MAZDA 6 2009 99-7511S Manuel utilisateur
Metra Electronics
Metra Electronics 99-6502 Manuel utilisateur
Metra Electronics
Metra Electronics 95-6551 Manuel utilisateur
Metra Electronics
Metra Electronics 95-9615B Manuel utilisateur
Metra Electronics
Metra Electronics 95-7323 Manuel utilisateur
Metra Electronics
Metra Electronics 95-7801 Manuel utilisateur
