Metra Electronics 99-6502 Manuel utilisateur

APPLICATIONS

CAR PAGE

CHRYSLER

Cirrus 1995-00.............................................................1

Sebring (convertible) 1997-00......................................1

DODGE

Stratus 1995-00...........................................................1

PLYMOUTH

Breeze 1996-99...........................................................1

KIT COMPONENTS

TOOLS REQUIRED

Cutting tool

Socket wrench

Phillips screwdriver

Spacer

KIT FEATURES

Shaft and

DIN unit

provisions

Various mounting

depth

alternatives

99-6502

INSTALLATION

INSTRUCTIONS

Radio Housing

1-800-221-0932 www.metraonline.com

rev. 100103

Disconnect the negative battery

terminal to prevent an

accidental short circuit. Using a

flat-blade screwdriver, pry out

on the edges of the radio trim

bezel. Remove the bezel.

Remove (2) 3/8" hex-head

screws securing the factory

head unit and disconnect the

wiring. Skip to the Installation

Instructions for ALL VEHICLES

on Page #2.

Disconnect the negative battery

terminal to prevent an

accidental short circuit.

Remove the climate control

knobs. Remove (1) Phillips

screw above and (2) Phillips

screws below the climate

controls. Unclip the radio trim

bezel. Remove (4) screws from

the factory head unit, slide the

unit out and disconnect the

wiring. Skip to the Installation

Instructions for ALL VEHICLES

on Page #2.

CHRYSLER Cirrus 1995-00 / DODGE Stratus 1995-00

PLYMOUTH Breeze 1996-99

CHRYSLER Sebring (convertible) 1996-00

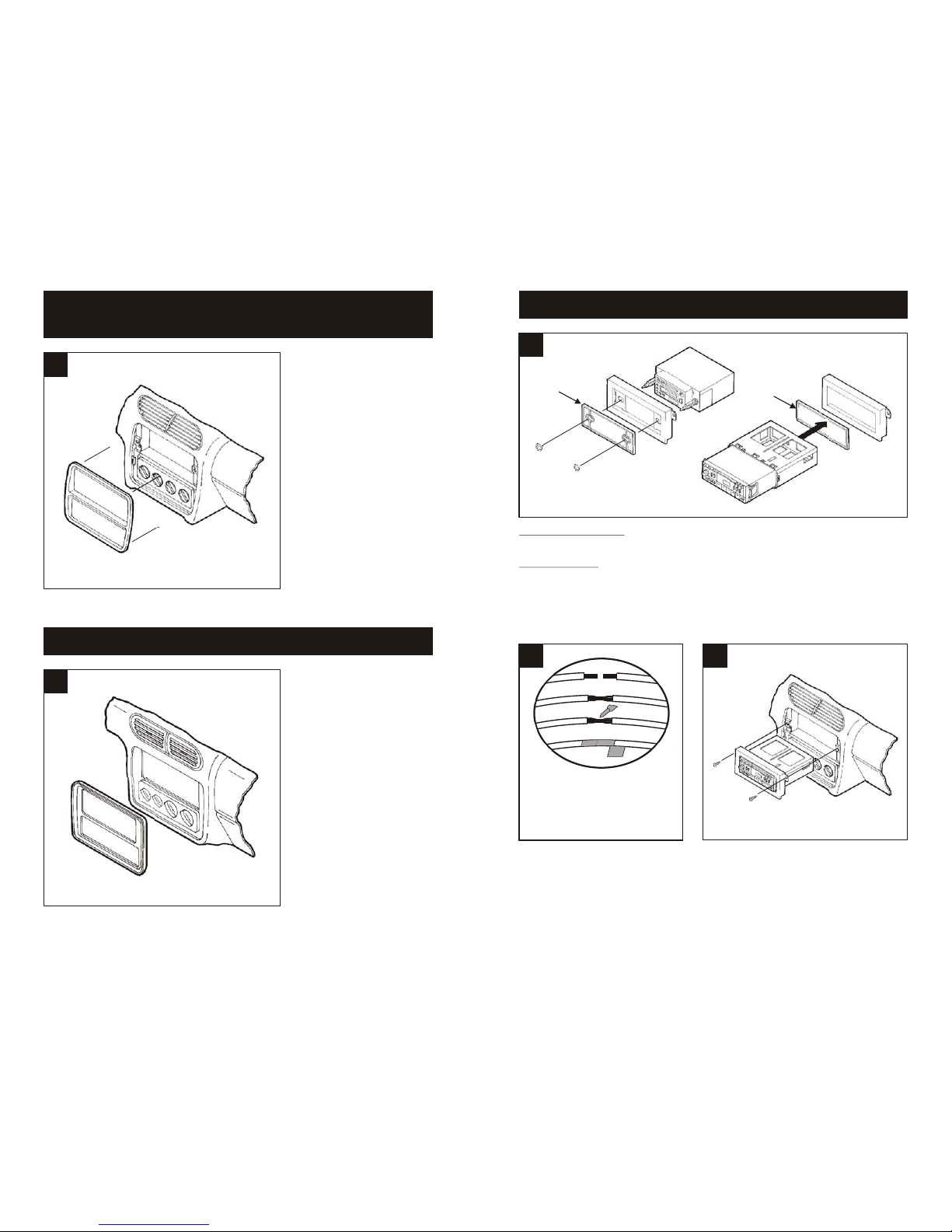

2-SHAFT HEAD UNITS: Attach the Spacer* to the Radio Housing. Slide the aftermarket

head unit into the kit and secure with shaft nuts. (see Fig. A)

DIN HEAD UNITS: Cut and remove the shaft supports from the Spacer* and Radio Housing.

Slide the DIN cage into the kit and secure by bending the metal locking tabs down. Slide the

aftermarket head unit into the cage until secure. (see Fig. B)

ALL VEHICLES

Fig. A

Fig. B

3 4

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Re-connect the battery terminal and test the unit

for proper operation. Mount the head unit/kit

assembly to the sub-dash with (2) hex-head

screws previously removed in step #1.

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

*OPTIONAL *OPTIONAL
