Metra Electronics 99-8201 Manuel utilisateur

KIT COMPONENTS

TOOLS REQUIRED

Cutting tool

Socket wrench

Phillips screwdriver

KIT FEATURES

ISO-DIN

head unit

provisions

Pocket

provisions

99-8201

INSTALLATION

INSTRUCTIONS

APPLICATIONS

CAR PAGE

TOYOTA

Celica 2000-02.........................................................1-3

Echo 2000-02...........................................................1-3

Radio

Housing

"C"

Radio

Housing

"E"

Mounting

Brackets

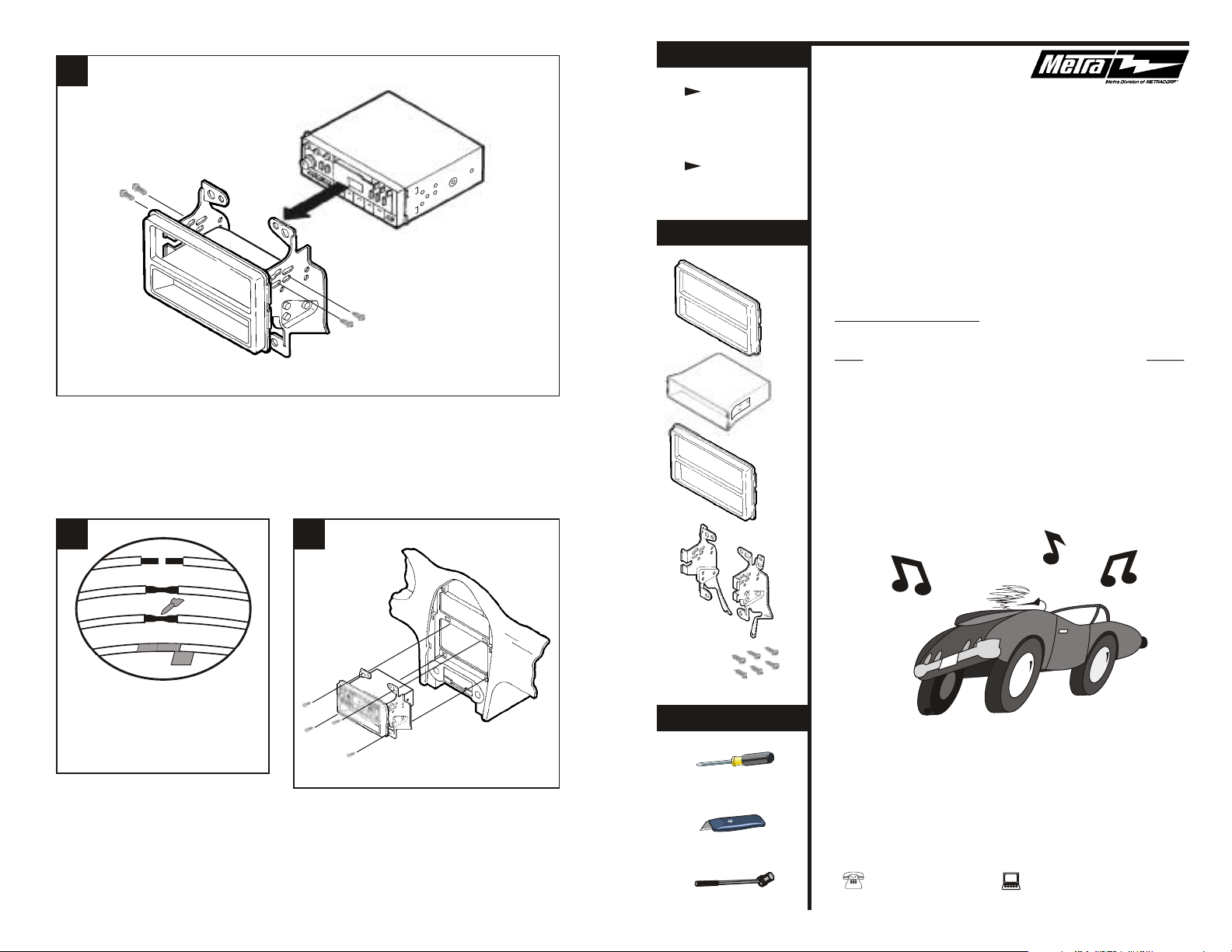

Re-connect the battery terminal and test the unit

for proper operation. Mount the head unit/kit

assembly to the sub-dash with (4) screws

previously removed in step #1.

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

(6) #6 x ¼"

Phillips Flat-

Align the holes in the Mounting Brackets with the holes in the ISO-DIN head unit and mount

the Brackets to the head unit with the screws included with the unit.

Pocket

1-800-221-0932 www.metraonline.com

rev. 201202

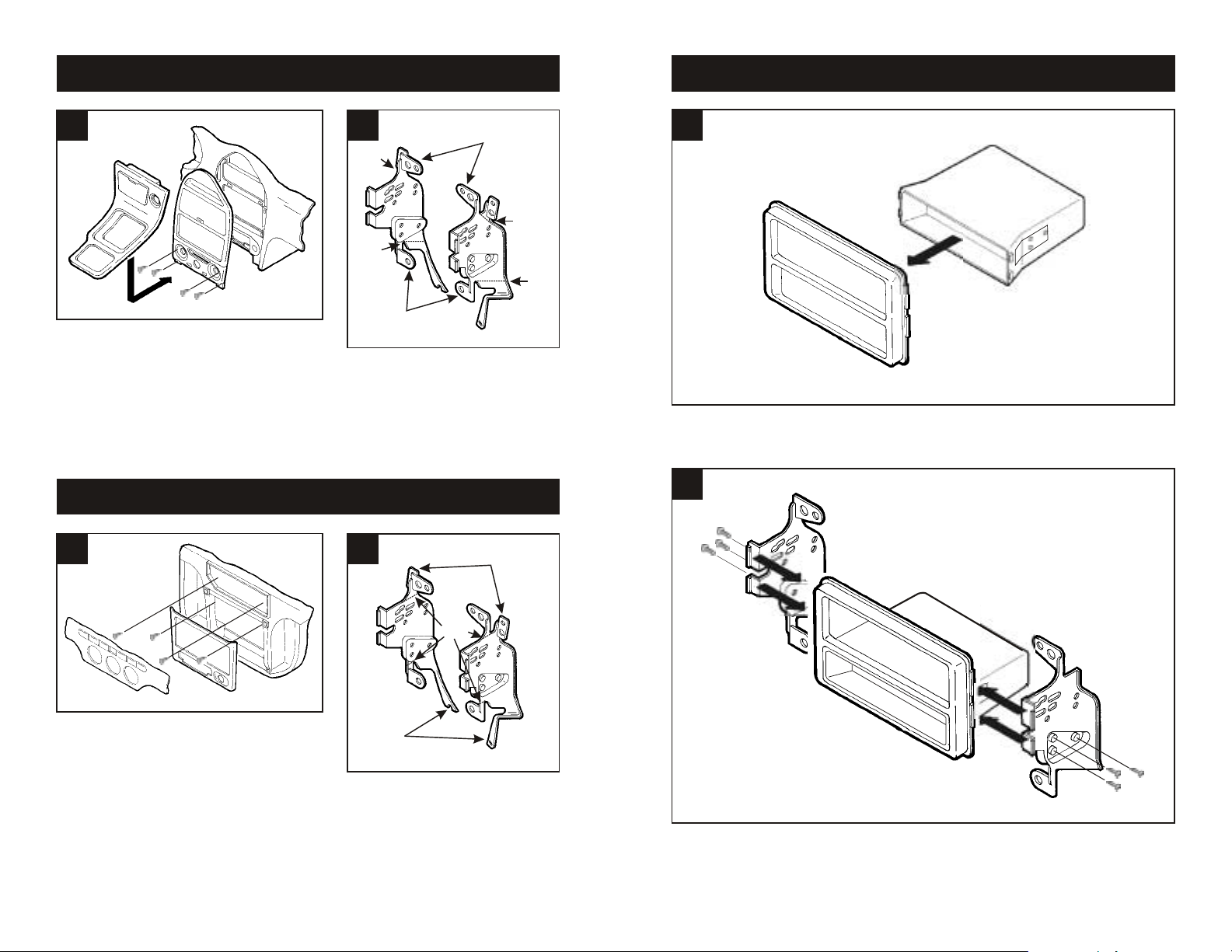

Disconnect the negative battery terminal to

prevent an accidental short circuit. Unclip and

remove the gear shifter trim bezel and remove (2)

Phillips screws exposed below the climate

controls. Pull off climate control knobs and

remove (2) Phillips screws exposed. Unclip the

climate control/factory radio trim bezel and

remove. Remove (4) 10mm screws securing the

factory head unit and disconnect the wiring.

Locate Radio Housing "C". Using the

dotted lines as a guide, cut and remove

all tabs on the Mounting Brackets

EXCEPT tabs "C". Skip to the

Installation Instructions for ALL

VEHICLES on Page #2.

Locate Radio Housing "E". Using the

dotted lines as a guide, cut and remove

all tabs on the Mounting Brackets

EXCEPT tabs "E". Skip to the

Installation Instructions for ALL

VEHICLES on Page #2.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove the

climate control knobs and (2) Phillips screws

exposed. Unclip and remove the climate control

trim bezel. Depress the side clips securing the

climate control panel and move the panel to

access (2) Phillips screws from the top of the

factory radio brackets. Remove the ashtray.

Unclip and remove the radio trim bezel. Remove

(2) Phillips screws from the bottom of the radio

brackets and disconnect the wiring.

TOYOTA Celica 2000-02 ALL VEHICLES

TOYOTA Echo 2000-02

Snap the Pocket onto the back of the Radio Housing.

Attach the Mounting Brackets to the sides of the Radio Housing by inserting the slotted

Bracket tabs into the slotted Housing tabs. (Be sure the mounting bosses on the Brackets

align with the mounting bosses on the Pocket). Mount the Brackets to the Pocket with (6) #6 x

¼" Phillips Flat-Head Screws.

"C"

"E"

"C"

CUT
