Metra Electronics 95-8733B Manuel utilisateur

INSTALLATION INSTRUCTIONS

95-8733B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DDIN radio provision

• Painted scratch resistant matte black

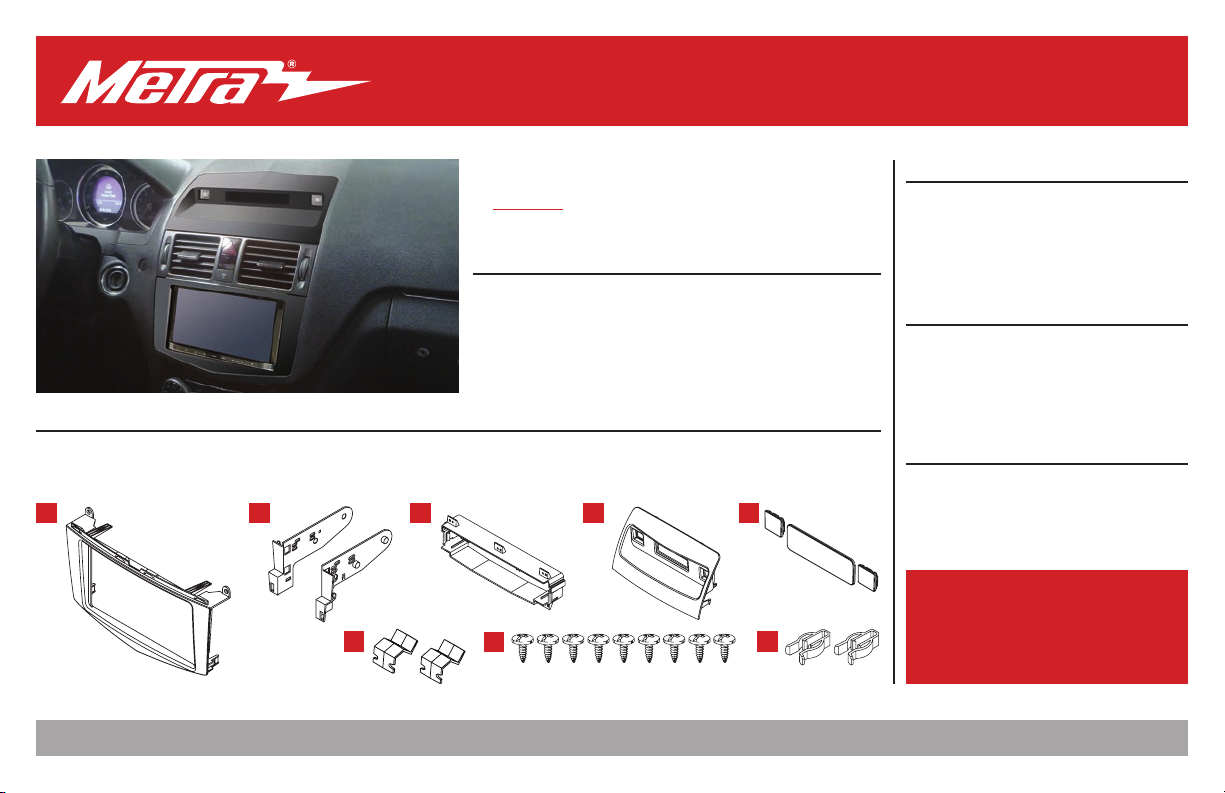

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Button housing • D) Button trim panel • E) Button blanks • F) Button panel hooks

• G) #4 x 3/8” Phillips screws (9) • H) Panel clips (2)

A B C

F F

D E

Mercedes-Benz C-class 2008-2011 (W204)

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T-20 Torx driver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit assembly ...........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: See metraonline.com or

axxessinterfaces.com for interface/harness.

Antenna Adapter: 40-EU56

386.257.1187

MetraOnline.com

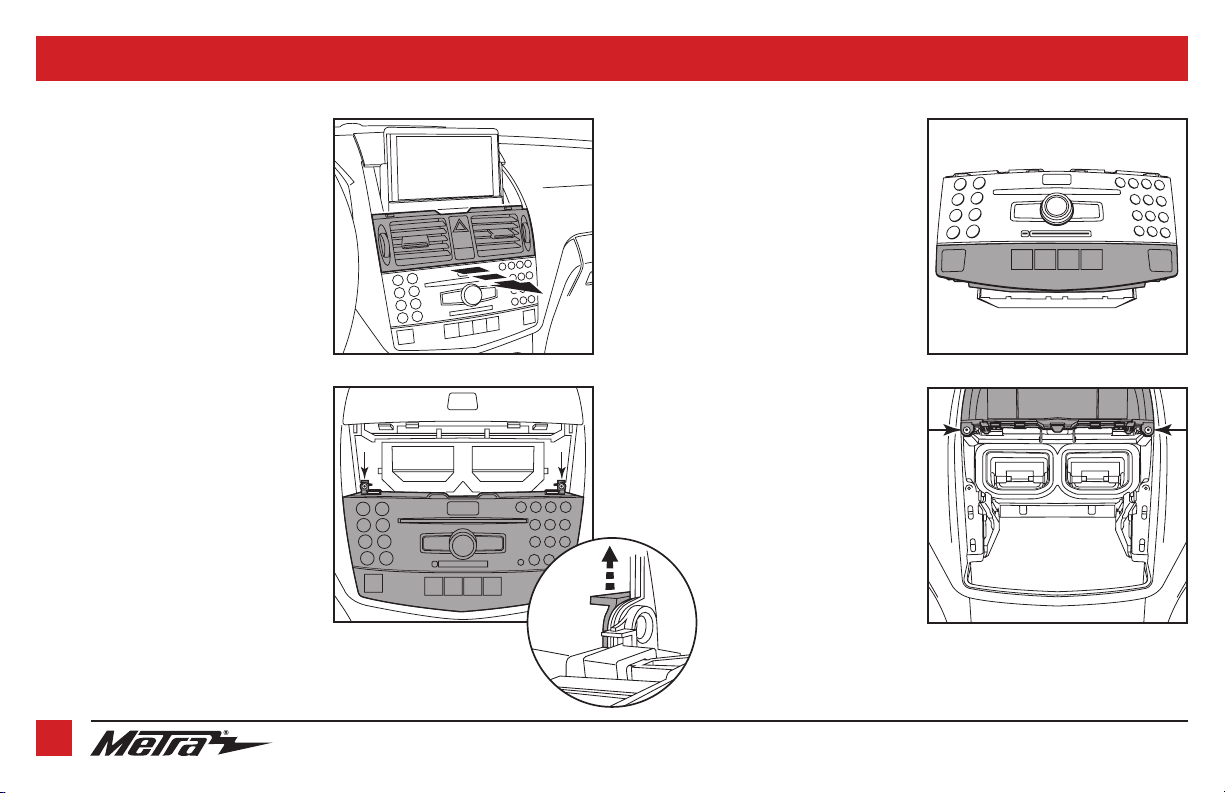

1. Unclip the air vents, unplug and remove

(do not cycle the key while unplugged).

(Figure A)

2. Remove two T-20 Torx from the radio

and lift up on the two tabs located at

each mounting point. (See detail)

3. Slide the factory radio out paying

attention to the runners on the sides.

(Figure B) (Figure D)

(Figure A) (Figure C)

DASH DISASSEMBLY

4. Unclip the trim at the bottom of the

radio and unscrew the factory buttons to

be relocated to the button trim panel in

kit assembly.

5. Remove two T-20 Torx screws from

the bottom of the factory radio screen

assembly and remove.

Continue to Kit Preparation

Detail

REV. 5/5/2020 INST95-8733B 3

KIT PREPARATION KIT ASSEMBLY

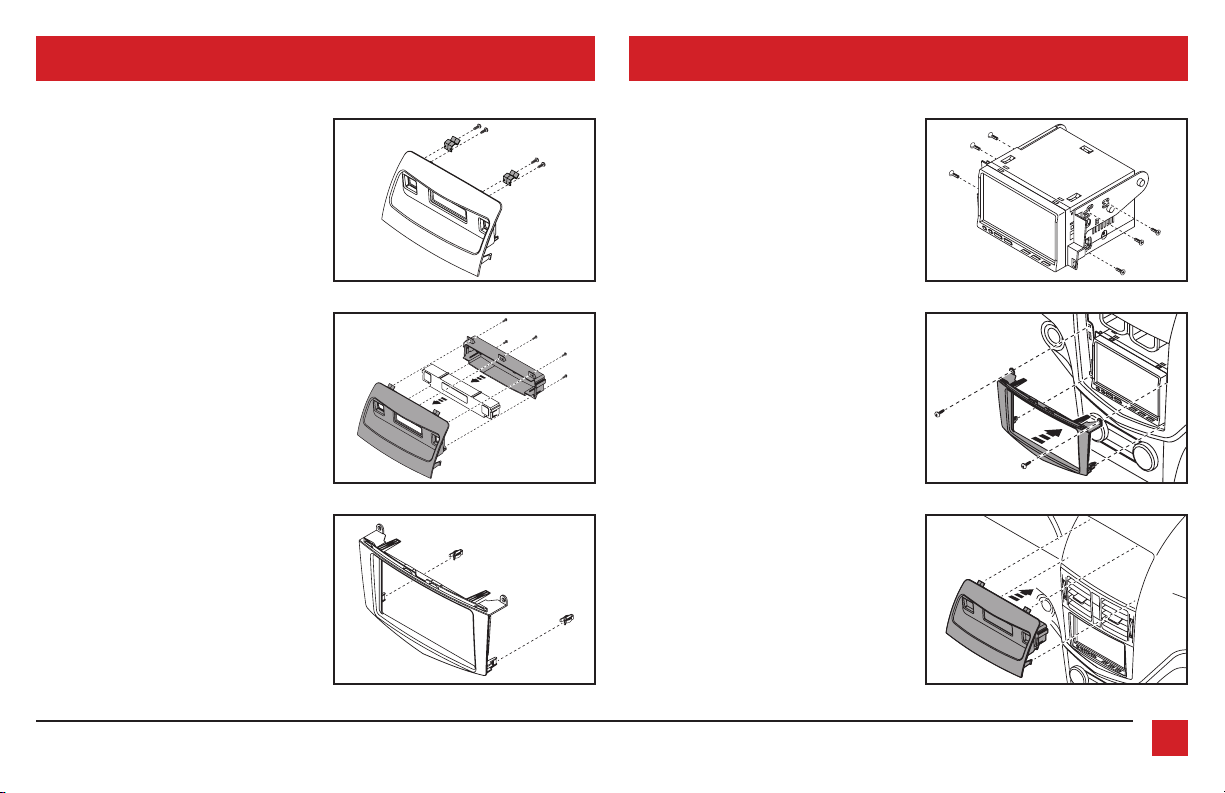

1. Secure the button panel hooks to the

button housing with (4) #4 x 3/8”

Philips screws included. (Figure A)

2. Assemble the factory buttons into the

button housing and button trim panel

with the (5) #4 x 3/8” Philips screws

included. Note: blanks are included for

different vehicle options. (Figure B)

3. Attach the (2) supplied panel clips to the

radio housing. (Figure C)

Continue to Kit Assembly

1. Route the factory button wiring up to

the top of the dash opening.

2. Attach the radio brackets to the radio

using screws supplied with the radio,

and then secure into the dash opening.

NOTE: the radio mounting screws must

be ﬂush in the brackets so the radio

assembly will ﬁt into the dash opening.

(Figure A)

3. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or AXXESS. Re-connect the negative

battery terminal and test the radio for

proper operation.

4. Snap the radio trim panel over the radio

and reassemble the dash in reverse

order of disassembly. (Figure B)

5. Install button assembly starting with the

button panel hooks at the top and then

snapping the bottom in. (Figure C)

(Figure A)(Figure A)

(Figure B)(Figure B)

(Figure C)(Figure C)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

95-8733B

Having difﬁculties? We’re here to help.

Contact our Tech Support line at:

386-257-1187

Or via email at:

techsupport@metra-autosound.com

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM
