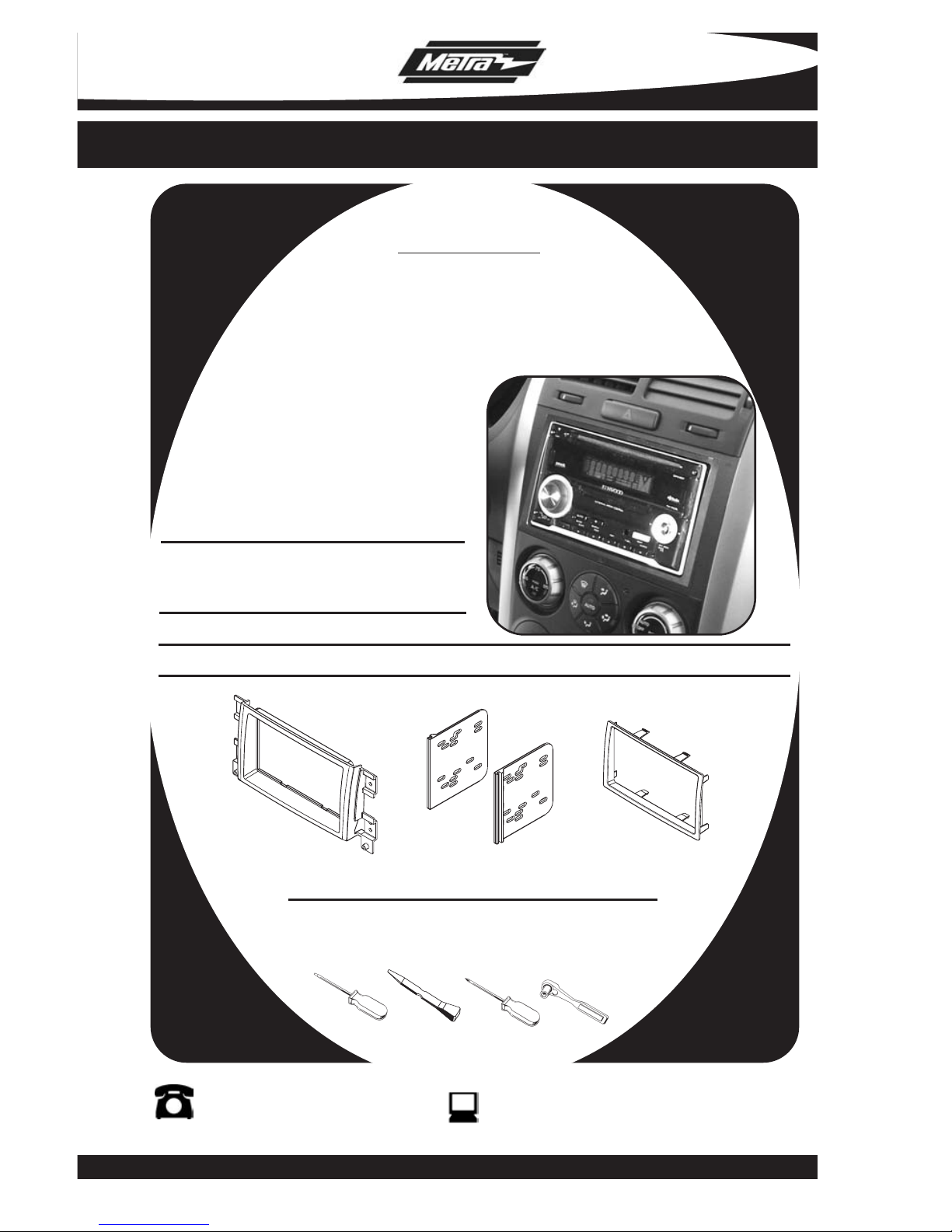

INSTALLATION INSTRUCTIONS FOR PART 95-7953

95-7953

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate

KIT COMPONENTS

A B C

Small Flat Blade Screwdriver • Panel Removal Tool

•Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

Suzuki Grand Vitara

2006-2007

Dash Disassembly

-SuzukiGrandVitara2006-2007................................... .1

Kit Assembly

-DoubleDINRadioProvision .......................................2

-Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Final Assembly ..........................................4

TABLE OF CONTENTS

95-7953

*Note:

Refer also to the instructions included with the aftermarket radio.

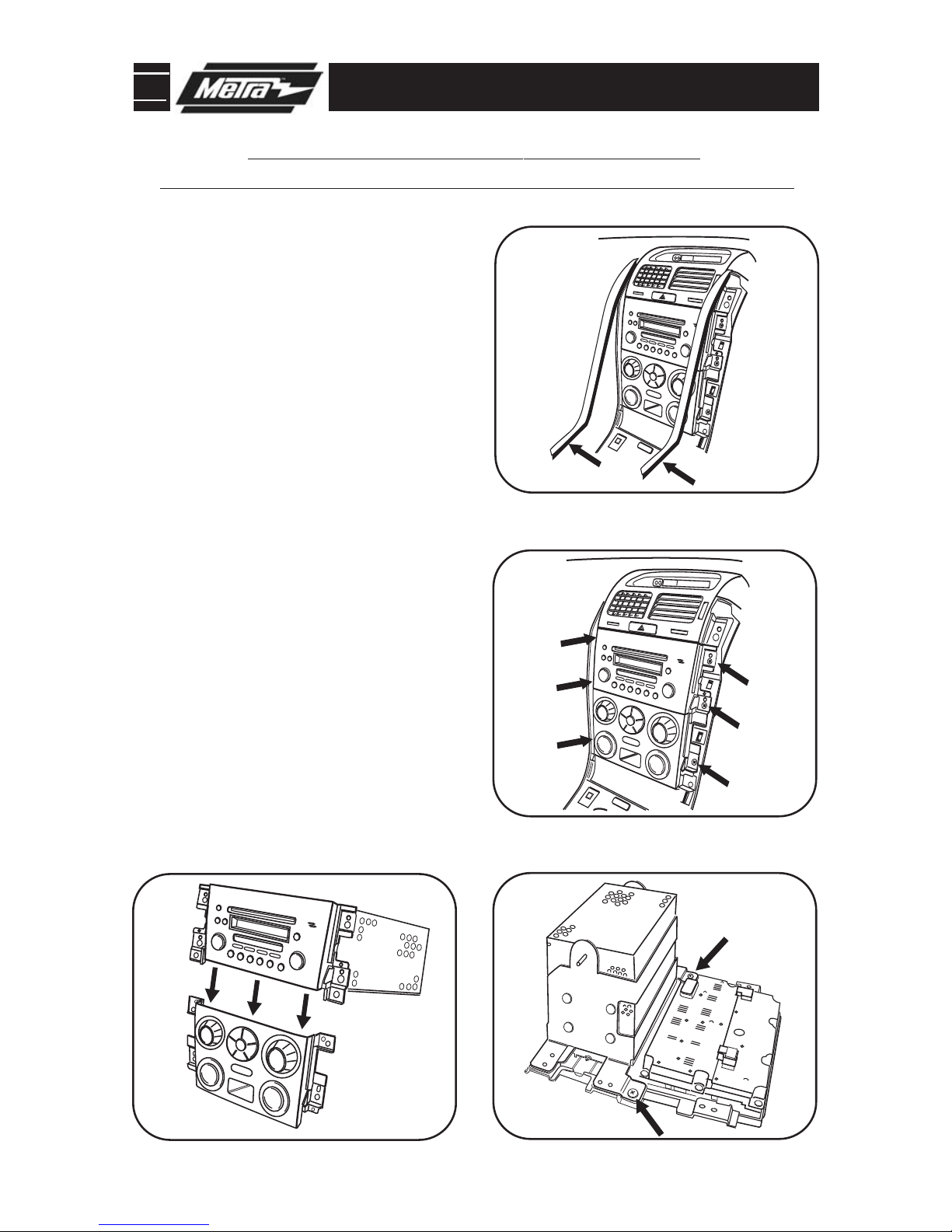

95-7953 DASH DISASSEMBLY

SUZUKI GRAND VITARA 2006-2007

Disconnect the negative battery-

terminal to prevent an accidental

short circuit.

Unclip and remove the (2) outside

trim panels.

(Figure A)

Remove (6) Phillips screws secur-

ing the radio and climate controls

to the sub dash. Unplug and

remove radio/climate control

assembly.

(Figure B)

Remove the (2) Phillips screws

securing the factory radio bracket

to the radio/climate control

assembly.

(Figure C)

Separate the bracket and factory

radio from the climate control.

(Figure D)

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

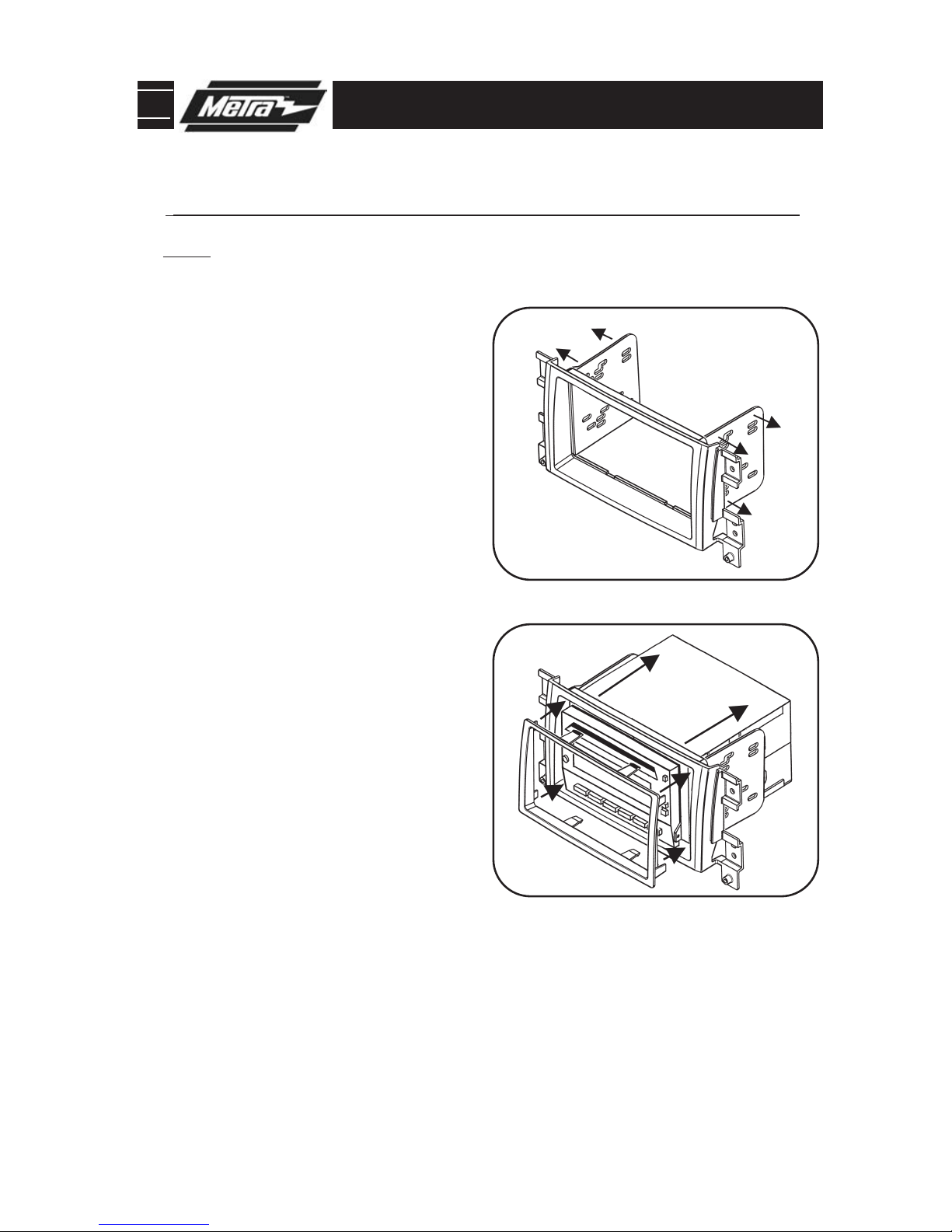

95-7953 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

NOTE: Mount the radio housing to the climate control assembly using the factory

screws removed in step 4 of dash disassembly.

Snap the Double DIN brackets to the

inside edge of the Double DIN trim

plate. (

Figure A)

Snap the Double DIN trim plate onto

the front of the housing/radio

assembly. (

Figure B)

Slide the Double DIN radio into the

bracket/trim plate assembly and

secure the radio to the assembly

using the screws supplied with the

radio. (

Figure B)

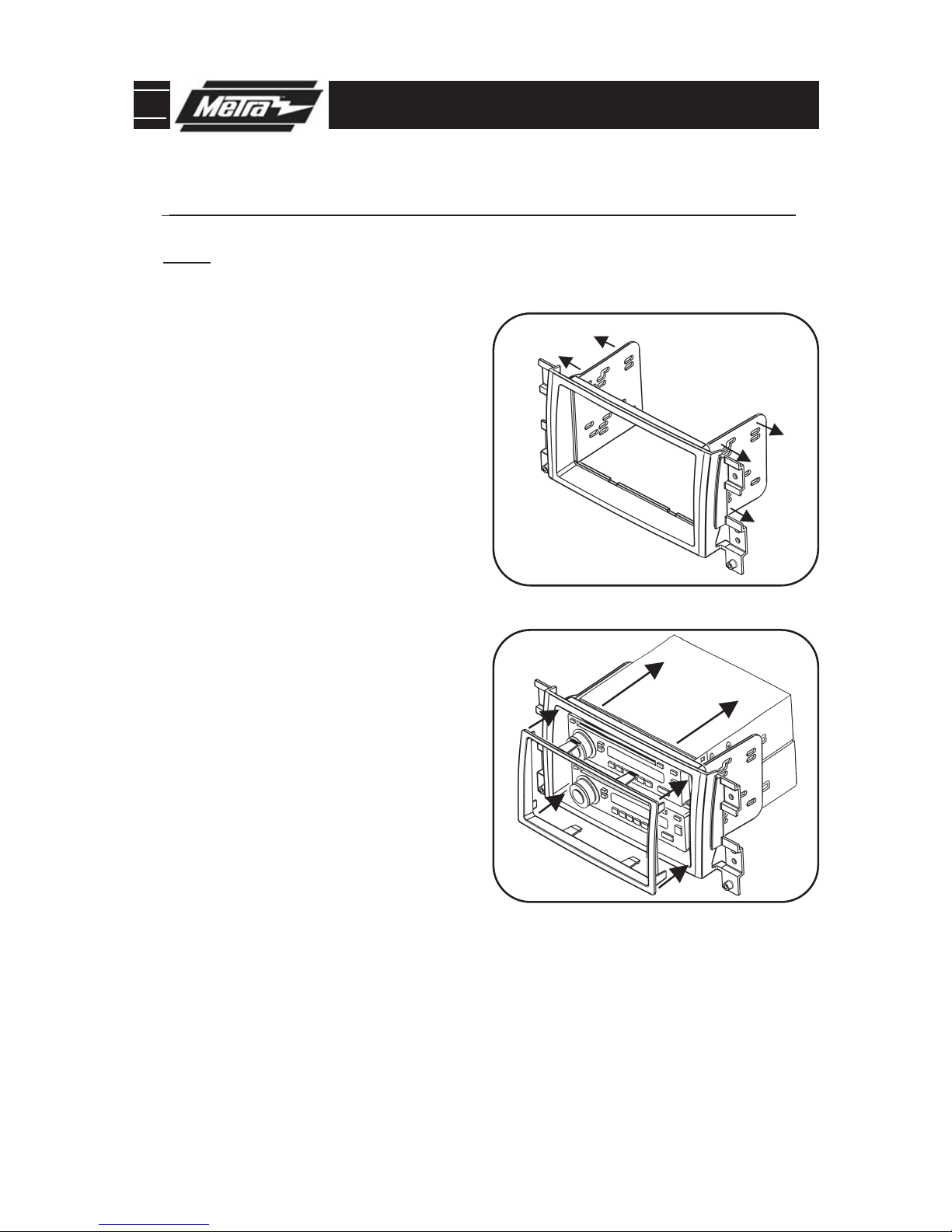

95-7953 KIT ASSEMBLY

STACKED ISO MOUNT UNITS PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

Continue to final assembly.

NOTE: Mount the radio housing to the climate control assembly using the factory

screws removed in step 4 of dash disassembly.

Snap the Double DIN brackets to the

inside edge of the Double DIN trim

plate. (

Figure A)

Slide the stacked ISO units into the

bracket/radio housing assembly and

secure the units to the kit using the

screws supplied with the units.

(

Figure B)

Snap the Double DIN trim plate onto

the front of the housing/radio

assembly. (

Figure B)

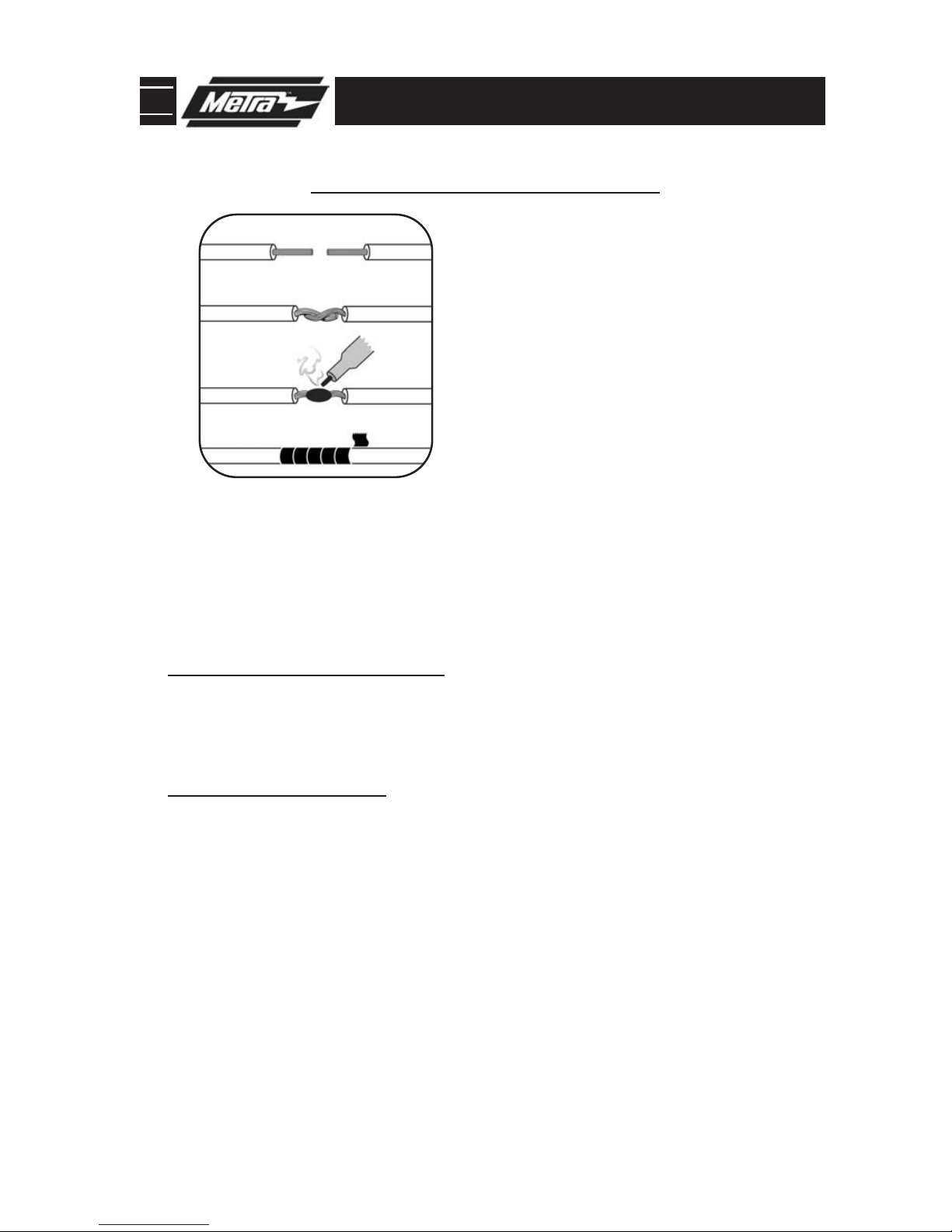

95-7953 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

NOTES

95-7953

95-7953 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
