Metra Electronics 108-GM2B Manuel utilisateur

INSTALLATION INSTRUCTIONS

108-GM2B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) #8 x 1/2” Phillips screws (4) • #8 x 3/8” Phillips screws (2) • E) Panel clips (6)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench

TABLE OF CONTENTS

Dash Disassembly ................................................... 2

Kit Assembly .............................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: Please visit metraonline.com

for wiring harness options

Antenna Adapter: • 40-CR10 • 40-EU10 (w/ nav 12-14)

A B C D E

GM SUV/Truck 2007-2014

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

APPLICATIONS

Chevrolet

Avalanche .......................2007-2013

Silverado(1) (2) ...................2007-2013

Silverado 2500/3500 (2) ........... 2014

Suburban ........................2007-2014

Tahoe .............................2007-2014

GMC

Sierra(1) (2) .........................2007-2013

Sierra 2500/3500 (2) ................. 2014

Yukon/YukonXL ..............2007-2014

(1) Excluding Classic trim models

(2) With full center console

1.800.221.0932

MetraOnline.com

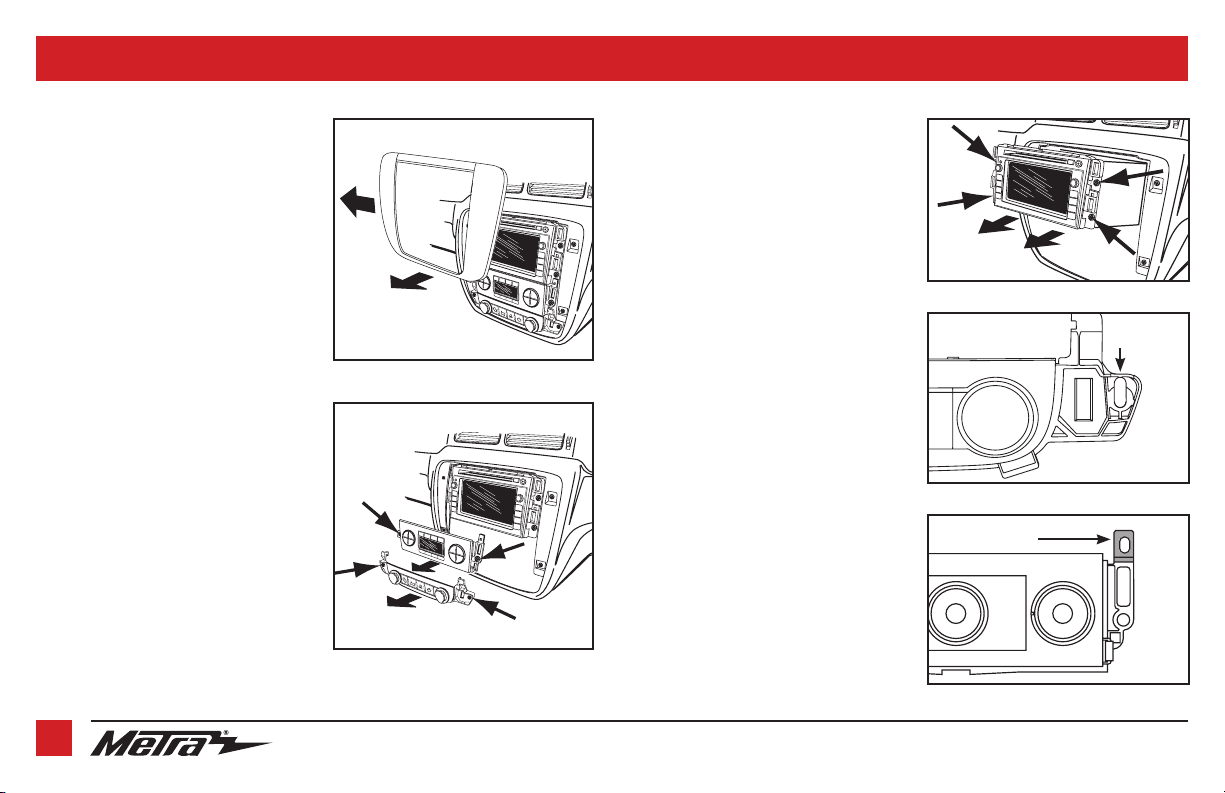

DASH DISASSEMBLY

1. Unclip and remove the radio trim panel.

(Figure A)

2. Remove (4) 9/32” screws securing the

switch panel and climate controls.

Unplug and remove just the switch

panel, and set the climate controls to the

side. (Figure B)

(Figure A)

(Figure E)

3. Remove (4) 9/32” screws securing the

radio. Slide the radio out, then unplug

and remove the radio. (Figure C)

4. Enlarge the mounting holes from the

switch panel. Reconnect the panel back

to the vehicle, then set to the side.

(Figure D)

5. Remove the upper portion of the

mounting tab on both sides of the

climate control panel. (Figure E)

Continue to Kit Assembly

Enlarge

mounting hole

Remove shaded area

(Figure C)

(Figure D)

(Figure E)

REV. 6/4/2020 INST108-GM2B 3

Note: For steps 1 and 2, reference the

installation manual provided with the radio

for which hardware to use. The display

screen and radio chassis use two different

types of screws.

1. Secure the radio display to the radio

brackets using (6) screws supplied with

the radio. (Figure A)

2. Secure the radio brackets to the radio

chassis using (4) screws supplied with

the radio. (Figure B)

3. Locate the factory wiring harness and

antenna connector in the dash. Metra

recommends using the proper mating

adapter from Metra or AXXESS. Test the

radio for proper operation.

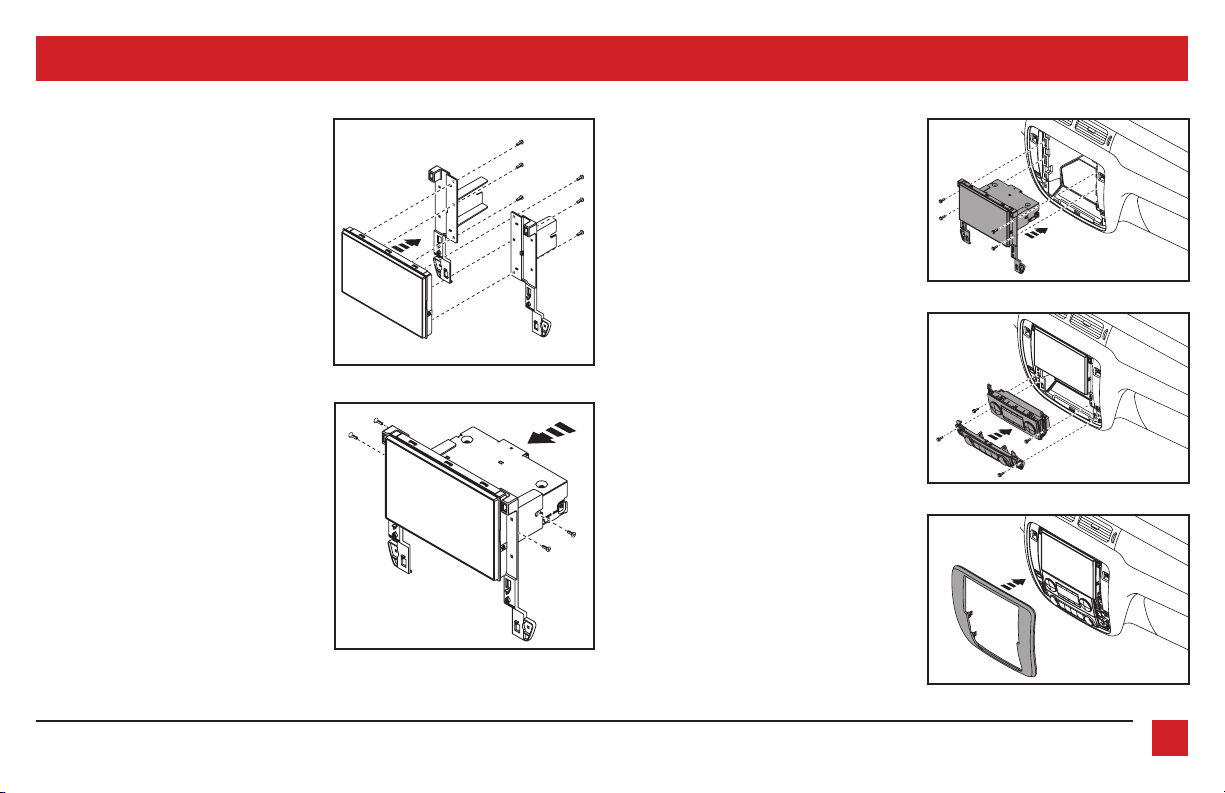

KIT ASSEMBLY

(Figure A)

(Figure B)

4. Slide the radio assembly into the dash,

then secure using the (4) #8 x 1/2”

Phillips screws provided. (Figure C)

5. Secure the climate controls to the

vehicle using the (2) #8 x 3/8” Phillips

screws provided. (Figure D)

6. Secure the switch panel to the vehicle

using the factory screws. (Figure D)

7. Attach the (6) panel clips provided to

the radio trim panel.

8. Reassemble the dash in reverse order of

disassembly using the 108-GM2B radio

trim panel to complete the installation

(Figure E)

(Figure C)

(Figure D)

(Figure E)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

108-GM2B

If you are having difﬁculties with the installation

of this product, contact our Tech Support line

either by phone at 386-257-1187, or email at

techsupport@metra-autosound.com. Before

doing so, look over the instruction booklet a

second time and ensure that the installation was

performed exactly as the instruction booklet

is stated. Have the vehicle apart and ready to

perform troubleshooting steps before contacting

Metra/Axxess Tech Support.
